A boundary integral equation with the generalized Neumann kernel for a mixed boundary value problem in unbounded multiply connected regions

In this paper we propose a new method for solving the mixed boundary value problem for the Laplace equation in unbounded multiply connected regions. All simple closed curves making up the boundary are divided into two sets. The Dirichlet condition is given for one set and the Neumann condition is given for the other set. The mixed problem is reformulated in the form of a Riemann-Hilbert (RH) problem which leads to a uniquely solvable Fredholm integral equation of the second kind. Three numerical examples are presented to show the effectiveness of the proposed method.

In the present paper, we continue the research concerned with the study of mixed boundary value problems in the plane started in [1]. We consider a mixed boundary value problem for the Laplace equation in an unbounded multiply connected regions. Recently, the interplay of the RH boundary value problem and integral equations with the generalized Neumann kernel on unbounded multiply connected regions has been investigated in [2]. Based on the reformulations of the Dirichlet problem, the Neumann problem and conformal mappings as RH problems, boundary integral equations with the generalized Neumann kernel have been implemented successfully in [3] to solve the Dirichlet problem and the Neumann problem and in [4–6] to compute the conformal mappings of unbounded multiply connected regions onto the classical canonical slit domains.

The mixed boundary value problem also can be reformulated as an RH problem (see, e.g., [7–9]). Recently, Nasser et al. [1] have presented a uniquely solvable boundary integral equation with the generalized Neumann kernel for solving the mixed boundary value problem in bounded multiply connected regions. The idea of this paper is to reformulate the mixed boundary value problem to the form of the RH problem in unbounded multiply connected regions. Based on this reformulation, we present a new boundary integral equation method for two-dimensional Laplace’s equation with the mixed boundary condition in unbounded multiply connected regions. The method is based on a uniquely solvable boundary integral equation with the generalized Neumann kernel.

This paper is organized as follows. After presenting some auxiliary materials in Section 2, we present in Section 3 the mixed boundary value problem in unbounded multiply connected regions. In Section 4, we give an explanation of an integral equation with the generalized Neumann kernel and its solvability. The reduction of the mixed boundary value problem to the form of the RH problem is given in Section 5. In Section 6, we present the solution of the mixed boundary problem via an integral equation method. In Section 7, we explain briefly the numerical implementation of the method. In Section 8, we illustrate the method by presenting two numerical examples with exact solutions and also one example without an exact solution.

In this section, we review some properties of the generalized Neumann kernel from [2, 3, 5, 10].

We consider an unbounded multiply connected region G of connectivity m\ge 2 with boundary \mathrm{\Gamma }=\partial G={\bigcup }_{j=1}^m{\mathrm{\Gamma }}_j consisting of m clockwise oriented smooth closed Jordan curves {\mathrm{\Gamma }}_j, j=1,2,\dots ,m. The complement G^{-}:=\overline{\mathbb{C}}\setminus \overline{G} consists of m bounded simply connected components G_j interior to {\mathrm{\Gamma }}_j, j=1,2,\dots ,m. We assume \mathrm{\infty }\in G, 0\in G (see Figure 1).

An unbounded multiply connected region G of connectivity m .

Full size image

The curves {\mathrm{\Gamma }}_j are parametrized by 2π-periodic twice continuously differentiable complex-valued functions {\eta }_j(t) with non-vanishing first derivatives, i.e.,

The total parameter domain J is the disjoint union of the intervals J_j, j=1,2,\dots ,m. We define a parametrization of the whole boundary Γ as the complex-valued function η defined on J by

Let H be the space of all real Hölder continuous functions on the boundary Γ. In view of the smoothness of η, a function \varphi \in H can be interpreted via \hat{\varphi }(t):=\varphi (\eta (t)), t\in J, as a real Hölder continuous 2π-periodic function \hat{\varphi }(t) of the parameter t\in J, i.e.,

with real Hölder continuous 2π-periodic functions {\hat{\varphi }}_j defined on J_j. So, here and in what follows, we do not distinguish between functions of the form \psi (\eta (t)) and \psi (t).

The subspace of H which consists of all piecewise constant functions defined on Γ is denoted by S, i.e., a function h\in S has the representation

where h_1,\dots ,h_m are real constants. For simplicity, the function h is denoted by

Let S_{\mathbf{d}} and S_{\mathbf{n}} be two subsets of the set \{1,\dots ,m\} such that

Let n be the exterior unit normal to Γ and let \varphi \in H be a given function. We consider the mixed boundary value problem

(6a)

(6b)

(6c)

for a real function u in G. We call (6b) and (6c) Dirichlet conditions and Neumann conditions, respectively.

Problem (6a)-(6c) reduces to the Dirichlet problem for S_{\mathbf{n}}=\mathrm{\varnothing } and to the Neumann problem for S_{\mathbf{d}}=\mathrm{\varnothing }. Both problems have been considered in [3]. So, we assume in this paper that S_{\mathbf{n}}\ne \mathrm{\varnothing } and S_{\mathbf{d}}\ne \mathrm{\varnothing }.

The mixed boundary value problem (6a)-(6c) is uniquely solvable [11]. Its unique solution u can be regarded as a real part of an analytic function F in G which is not necessary single-valued. The function F can be written as

where f is a single-valued analytic function in G, z_j are fixed points in G_j, j=1,2,\dots ,m; and a_1,\dots ,a_m are real constants uniquely determined by ϕ (see [12]). Without lost of generality, we assume that Imf(\mathrm{\infty })=0. The constants a_1,\dots ,a_m are chosen to ensure that (see [[12], p.149] and [3])

i.e., a_j are given by (see [3])

The constants a_j satisfy

In this paper we assume that the function A is a continuously differentiable complex-valued function given by

where θ is the real piecewise constant function

with either {\theta }_j=0 or {\theta }_j=\pi /2, j=1,\dots ,m. Here the function A(t) is different from the ones used in [1, 3]. The generalized Neumann kernel formed with A and \eta (t) is defined by

We also define a real kernel M by

The kernel N is continuous and the kernel M has a cotangent singularity type (see [2] for more details). Hence, the operator

is a Fredholm integral operator and the operator

is a singular integral operator.

The solvability of boundary integral equations with the generalized Neumann kernel is determined by the index (the change of the argument of A on the curves {\mathrm{\Gamma }}_j divided by 2π) of the function A (see [2]). For the function A given by (10), the indices {\kappa }_j of A on the curves {\mathrm{\Gamma }}_j and the index \kappa ={\sum }_{j=1}^m{\kappa }_j of A on the whole boundary curve Γ are given by

The generalized Neumann kernel for an integral equation associated with the mixed boundary value problem which will be presented in this paper is different from the generalized Neumann kernel for the integral equation considered in [1, 3]. Thus, not all of the properties of the generalized Neumann kernel which have been studied in [3] are valid for the generalized Neumann kernel which will be studied in this paper. For example, it is still true that \lambda =1 is not an eigenvalue of the generalized Neumann kernel which means that the presented integral equation is uniquely solvable.

By using the same approach used in [3] for unbounded multiply connected regions, we can prove that the properties of the generalized Neumann kernel proved in [3], except Theorem 8, Theorem 10 and Corollary 2, are still valid for the generalized Neumann kernel formed with the function A(t) in (10) above (see [5]).

Thus, we have from [5] the following theorem (see also [2, 10]).

Theorem 1 For a given function \gamma \in H, there exist unique functions h\in S and \mu \in H such that

are boundary values of a unique analytic function g(z) in G with g(\mathrm{\infty })=0. The function μ is the unique solution of the integral equation

and the function h is given by

The mixed boundary value problem can be reduced to an RH problem as follows. Let the boundary values of the multi-valued analytic function F be given by

Although, the function F(z) is in general multi-valued, its derivative F^{\prime } is a single-valued analytic function on G. The boundary values of the function F^{\prime }(z) are given by

For the Dirichlet conditions, i.e., t\in J_j and j\in S_{\mathbf{d}}, the functions {\psi }_j are equal to the known functions {\varphi }_j(t) (see (6b)). Thus, the function F(z) satisfies the RH problem

The Neumann conditions can also be reduced to an RH problem by using the Cauchy-Riemann equations and integrating along the boundaries {\mathrm{\Gamma }}_j, j\in S_{\mathbf{n}}. Let \mathbf{T}(\zeta ) be the unit tangent vector and \mathbf{n}(\zeta ) be the unit external normal vector to Γ at \zeta \in \mathrm{\Gamma }. Let also \nu (\zeta ) be the angle between the normal vector \mathbf{n}(\zeta ) and the positive real axis, i.e., \mathbf{n}(\zeta )=e^{\mathrm{i}\nu (\zeta )}. Then

Thus,

Since u(z)=ReF(z), then by the Cauchy-Riemann equations, we have

Thus, the function F^{\prime }(z) satisfies the RH problem

If we define the real piecewise constant function

the boundary values of the function F(z) satisfy on the boundary Γ the condition

where

is known and

The functions {\varphi }_j(t) for j\in S_{\mathbf{d}}\cup S_{\mathbf{n}} are given by (6b) and (6c). The functions {\phi }_j(t) can be then computed for t\in J_j and j\in S_{\mathbf{n}} by integrating the functions {\phi }_j^{\prime }(t). Then it follows from (7), (26) and (27) that the function f(z) is a solution of the RH problem

or briefly,

where

for k=1,2,\dots ,m. In view of (8) and (28), the real constants a_k are known for k\in S_{\mathbf{n}} and are given by

However, for k\in S_{\mathbf{d}}, the real constants a_k are unknown. Thus, the boundary condition (29) can be written as

where the function \hat{\psi }(t) is known and is given by

Obviously, the functions {\hat{\psi }}_j(t) are known explicitly for t\in J_j with j\in S_{\mathbf{d}}. However, for t\in J_j with j\in S_{\mathbf{n}}, it is required to integrate {\phi }_j^{\prime }(t) to obtain {\phi }_j(t).

The functions {\phi }_j(t) are not necessary 2π-periodic. In order to keep dealing with periodic functions numerically, we do not compute {\phi }_j(t) directly by integrating the functions {\phi }_j^{\prime }(t). Instead, we integrate the functions

According to the definitions of the constants a_k and the functions {\gamma }^{[k]}, we have

which implies that the functions {\hat{\psi }}_j(t)={\phi }_j(t)+{\sum }_{k\in S_{\mathbf{n}}}{a}_k{\gamma }_j^{[k]}(t) are always 2π-periodic. By using the Fourier series for t\in J_j with j\in S_{\mathbf{n}}, the functions {\hat{\psi }}_j^{\prime }(t) can be written as

Then the functions {\hat{\psi }}_j(t) are given for t\in J_j with j\in S_{\mathbf{n}} by

where c_j are undetermined real constants and the functions {\tilde{\psi }}_j(t) are given by

Hence, the boundary condition (33) can then be written as

where \tilde{h}(t) is the real piecewise constant function

and the function \hat{\gamma }(t) is given by

Let c:=f(\mathrm{\infty }) (unknown real constant) and g(z) be the analytic function defined on G by

Then g(z) is analytic on G with g(\mathrm{\infty })=0. The function g(z) is a solution of the RH problem

where the function A(t) is given by (10) and the function h(t) is defined by

Let \mu (t):=Im[A(t)g(\eta (t))]. Then the boundary values of the function g(z) are given on the boundary Γ by

where \hat{\gamma }(t), {\gamma }^{[1]},\dots ,{\gamma }^{[m]} are knowns and h, μ are unknowns. The real constants a_j are known for j\in S_{\mathbf{n}} and unknown for j\in S_{\mathbf{d}}.

For j\in S_{\mathbf{d}}, let the functions \hat{\mu } and {\mu }^{[j]} be the unique solutions of the integral equations

respectively, \hat{h}(t) and h^{[j]} be given by

Then it follows from Theorem 1 that

are boundary values of an analytic function \hat{g}(z). By the uniqueness of the functions h and μ in (44), it follows from (44) and (47) that

and

Equation (49a) with the following equation (from (9)),

represents a linear system of m equations. Since from (43) the function h(t) is given by

only the constants c, a_j for j\in S_{\mathbf{d}} and c_j for j\in S_{\mathbf{n}} are unknowns. Thus, linear equations (49a) and (49b) represent a linear system of m+1 equations in m+1 unknowns a_j for j\in S_{\mathbf{d}} and c_j for j\in S_{\mathbf{n}}.

By obtaining the values of the constants a_j, we obtain the functions μ from (48) and h from (49a). Consequently, the boundary values of the function g are given by

where

The function g(z) can be computed for z\in G by the Cauchy integral formula. Then the function f(z) is computed from

Finally, the solution of the mixed boundary value problem can be computed from u(z)=ReF(z), where F(z) is given by (7).

Since the functions A_j and {\eta }_j are 2π-periodic, the integrals in the operators N and M in integral equations (45) are best discretized on an equidistant grid by the trapezoidal rule [13]. The computational details are similar to previous works in [4, 5, 10, 14]. For analytic integrands, the rate of convergence is better than 1/n^k for any positive integer k (see, e.g., [[15], p.83]). The obtained approximate solutions of the integral equations converge to the exact solutions with a similarly rapid rate of convergence (see, e.g., [[13], p.322]). Since the smoothness of the integrands in (45) depends on the smoothness of the function \eta (t), results of high accuracy can be obtained for very smooth boundaries.

By using the trapezoidal rule with n (an even positive integer) equidistant collocation points on each boundary component, solving integral equations (45) reduces to solving mn by mn linear systems. Since integral equations (45) are uniquely solvable, then for sufficiently large values of n, the obtained linear systems are also uniquely solvable [13].

In this paper, the linear systems are solved using the Gauss elimination method. By solving the linear systems, we obtain approximations to \hat{\mu } and {\mu }^{[j]} for j\in S_{\mathbf{d}}, which give approximations to \hat{h} and h^{[j]} for j\in S_{\mathbf{d}} from (46). By solving (49a) and (49b), we get approximations to the constants c, a_j for j\in S_{\mathbf{d}} and c_j for j\in S_{\mathbf{n}}. These give approximations to the boundary values of the function g(z) from (50). Then the values of g(z) for z\in G are calculated by the Cauchy integral formula. For points z which are not close to the boundary Γ, the integrals in the Cauchy integral formula are approximated by the trapezoidal rule. However, for points z near the boundary Γ, the integrand is nearly singular. For the latter case, the integral in the Cauchy integral formula can be calculated accurately using the method suggested in [[16], Eq. (23)]. Then approximate values of the function f(z) are computed from (52). Finally, in view of (7), the approximate solution of the mixed boundary value problem can be computed from

In this paper, we have considered regions with smooth boundaries. For some ideas on how to solve numerically boundary integral equations with the generalized Neumann kernel on regions with piecewise smooth boundaries, see [14].

In this section, the proposed method is used to solve three mixed boundary value problems in unbounded multiply connected regions with smooth boundaries.

Example 1 In this example, we consider an unbounded multiply connected region of connectivity 4 bounded by the four circles (see Figure 2)

where 0\le t\le 2\pi.

The region for Example 1.

Full size image

We assume that the conditions on the boundaries {\mathrm{\Gamma }}_1, {\mathrm{\Gamma }}_2 are the Neumann conditions and the conditions on the boundaries {\mathrm{\Gamma }}_3, {\mathrm{\Gamma }}_4 are the Dirichlet conditions. The functions {\varphi }_j in (6b)-(6c) are obtained based on choosing an exact solution of the form

We use the error norm

where u(z) is the exact solution of the mixed boundary value problem and u_n(z) is the approximate solution obtained with n collocation points. The error norm vs. the total number of calculation points n by using the presented method is shown in Figure 3, where the integral in (54) is discretized by the trapezoidal rule. By using only n=64 (256 calculation points on the whole boundary), we obtain error norm less that 10⁻¹⁵. The absolute errors |u(z)-u_n(z)| at selected points in the entire domain are plotted in Figure 4. The graph of the approximate solution u_n(z) is illustrated in Figure 5.

The error norm ( 54 ) for Example 1.

Full size image

The absolute error for Example 1.

Full size image

The graph of the approximate solution for Example 1.

Full size image

Example 2 In this example, we consider an unbounded multiply connected region of connectivity 6 (see Figure 6). The boundary \mathrm{\Gamma }=\partial G is parametrized by

where the values of the complex constants z_j and the real constants {\alpha }_j, {\beta }_j, {\nu }_j are as in Table 1.

The region for Example 2.

Full size image

The region in this example has been considered in [3, 17, 18] for the Dirichlet problem and the Neumann problem. In this example, we consider a mixed boundary value problem where we assume that the conditions on the boundaries {\mathrm{\Gamma }}_1, {\mathrm{\Gamma }}_2, {\mathrm{\Gamma }}_3 are the Dirichlet conditions and the conditions on the boundaries {\mathrm{\Gamma }}_4, {\mathrm{\Gamma }}_5, {\mathrm{\Gamma }}_6 are the Neumann conditions. The functions {\varphi }_j in (6b)-(6c) are obtained based on choosing an exact solution of the form

where the values of the complex constants {\zeta }_j are as in Table 1. For the error, we use the error norm (see Figure 7)

The absolute errors |u(z)-u_n(z)| at selected points in the entire domain are plotted in Figure 8. The graph of the approximate solution u_n(z) is shown in Figure 9.

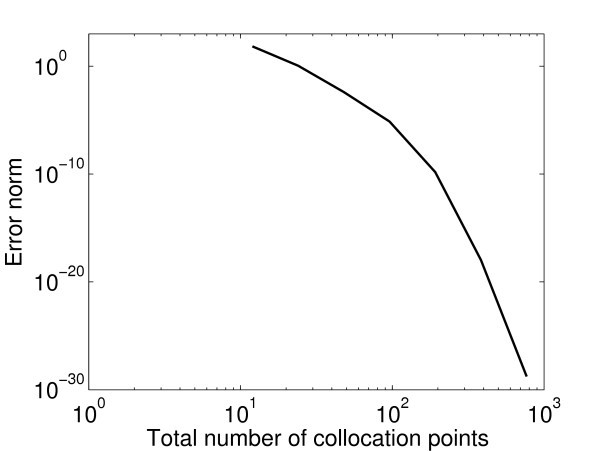

The error norm ( 56 ) for Example 2.

Full size image

The absolute error for Example 2.

Full size image

The graph of the approximate solution for Example 2.

Full size image

Example 3 This example aims to give an impression how the method works for a problem with an unknown exact solution. We assume that the boundaries of an unbounded doubly connected region are represented as follows (see Figure 10):

We assume the Dirichlet condition on the star-shape boundary with Dirichlet data {\varphi }_1(t)=4, while on the ellipse-shape boundary is the Neumann condition with Neumann data \frac{\partial u}{\partial \mathbf{n}}={\varphi }_2(t)=-4. The graph of the approximate solution is illustrated in Figure 11.

The region for Example 3.

Full size image

The graph of the approximate solution for Example 3.

Full size image

We have constructed a new boundary integral equation with the generalized Neumann kernel for solving a mixed boundary value problem in unbounded multiply connected regions. The generalized Neumann kernel used in this paper is formed with A(t)=e^{-\mathrm{i}\theta (t)} which is different from the ones used in [1, 3]. Numerical evidences show that Theorem 8 in [3], which claims that the eigenvalues of the generalized Neumann kernel lie in [-1,1), is no longer true for the function A(t) of this paper (see Figures 12 and 13). Three numerical examples are presented to illustrate the accuracy of the presented method. The numerical examples illustrate that the proposed method yields approximations of high accuracy. This paper only applies to the explicitly mixed Dirichlet and Neumann boundary conditions in unbounded multiply connected regions, but the method can be extended to a boundary with both mixed boundary conditions in a boundary component {\mathrm{\Gamma }}_k. For this case, the function A(t) is discontinuous on J_k, where A(t)=1 on the part of {\mathrm{\Gamma }}_k corresponding to the Dirichlet condition and A(t)=-\mathrm{i} on the part of {\mathrm{\Gamma }}_k corresponding to the Neumann condition. Hence, the RH problem (42) will be a problem with discontinuous coefficient A(t). Thus, further investigations are required. This will be considered in future work.

The eigenvalues of the coefficient matrix of the linear systems obtained by discretizing integral equations ( 45 ) with \mathit{n}\mathbf{=}\mathbf{256} for the region in Example 1.

Full size image

The eigenvalues of the coefficient matrix of the linear systems obtained by discretizing integral equations ( 45 ) with \mathit{n}\mathbf{=}\mathbf{256} for the region in Example 2.

Full size image
