Analysis of fractional partial differential equations by Taylor series expansion

Boundary Value Problems20132013:68

https://doi.org/10.1186/1687-2770-2013-68

©  Demir et al.; licensee Springer 2013

Received: 19 December 2012

Accepted: 11 March 2013

Published: 30 March 2013

Abstract

We develop a formulation for the analytic or approximate solution of fractional differential equations (FDEs) by using respectively the analytic or approximate solution of the differential equation, obtained by making fractional order of the original problem integer order. It is shown that this method works for FDEs very well. The results reveal that it is very effective and simple in determination of solutions of FDEs.

Keywords

Approximate SolutionTaylor SeriesFractional OrderFractional DerivativeSpace Variable

1 Introduction

Fractional differential equations (FDEs) are obtained by generalizing differential equations to an arbitrary order. Since fractional differential equations are used to model complex phenomena, they play a crucial role in engineering, physics and applied mathematics. Therefore they have been generating increasing interest from engineers and scientist in recent years. Since FDEs have memory, nonlocal relations in space and time, complex phenomena can be modeled by using these equations. Due to this fact, materials with memory and hereditary effects, fluid flow, rheology, diffusive transport, electrical networks, electromagnetic theory and probability, signal processing, and many other physical processes are diverse applications of FDEs [1–7].

In [8], the solutions for some nonlinear fractional differential equations are constructed by using symmetry analysis. But, in general, FDEs do not have exact analytic solutions, hence the approximate and numerical solutions of these equations are studied. Analytical approximations of linear and nonlinear FDEs are obtained by the variational iteration method, Adomian’s decomposition method, the homotopy perturbation method and the Lagrange multiplier method [9–24].

In the present paper, we use the Taylor series of an analytical solution for the differential equations which is obtained from FDEs by making the fractional order of the derivative integer, to obtain the analytical or approximate solution of FDEs. We can obtain the exact or approximate solution of FDEs by changing the terms of Taylor series expansion for a solution of a differential equation in such a way that the relationship among the terms of Taylor series expansion in the sense of derivative and fractional derivative remains the same. Applications of this method show that it is easy and effective when applied to any FDEs as long as the differential equation obtained from FDEs has an analytical or approximate solution. We take the fractional derivative in the Caputo sense.

The structure of this article is as follows. In Section 2, we give the construction of analytical or approximate solutions for FDEs including fractional derivative with respect to time. In the same manner, we obtain the analytical or approximate solution of FDEs with fractional derivative with respect to space variable in Section 3. In Section 4, we take the combination of previous two sections, and we get the analytical or approximate solution of FDEs with fractional derivative with respect to time and space variable. Finally, we give some illustrative examples of this method for all cases in Section 5.

2 Solution of FDEs including fractional derivative with respect to time

Let us consider the following FDE:
D t α u ( x , t ) = F ( u , ∂ u ∂ x ⋯ ∂ n u ∂ x n , x , t ) , m − 1 < α ≤ m , t > 0 .
(1)
In order to determine the solution of this equation, we first need to determine the solution of the following differential equation:
D t m u ( x , t ) = F ( u , ∂ u ∂ x ⋯ ∂ n u ∂ x n , x , t ) , t > 0 ,
(2)
which is obtained by taking α = m . After finding an analytic or approximate solution of equation (2), we can obtain the exact or approximate solution of equation (1) by changing the terms of Taylor series expansion for the solution of differential equation (2) in such a way that the relationship among the terms of Taylor series expansion in the sense of derivative and fractional derivative with respect to time remains the same. In other words, we expand the exact or approximate solution into its Taylor series with respect to t. Then we replace the derivatives with respect to t by fractional derivatives with respect to t in such a way that the relation among the terms of Taylor series is preserved. Moreover, we leave the first m terms of Taylor series fixed since α = m . This also allows the solution of the fractional differential equation to satisfy the initial conditions of the problem. Let us assume that the solution of equation (2) is expanded into its Taylor series with respect to t as follows:
u ( x , t ) = ∑ n = 0 ∞ ∂ n u ( x , 0 ) ∂ t n t n n ! .
(3)
Then the solution of equation (1) becomes
u ( x , t ) = ∑ n = 0 m − 1 ∂ n u ( x , 0 ) ∂ t n t n n ! + ∑ n = 1 ∞ ∑ i = 0 m − 1 ∂ m n + i u ( x , 0 ) ∂ t m n + i t n α + i Γ ( n α + i + 1 ) .
(4)
For instance, let us assume that 0 < α ≤ 1 and the solution of equation (2) is u ( x , t ) = e x e t . In order to find the solution of equation (1), we expand this solution into Taylor series with respect to t as follows:
u ( x , t ) = ∑ n = 0 ∞ e x t n n ! .
Based on (4), the solution of equation (1) can be written in the following form:
u ( x , t ) = e x + e x t α Γ ( α + 1 ) + e x t 2 α Γ ( 2 α + 1 ) + e x t 3 α Γ ( 3 α + 1 ) + ⋯ .
(5)
Figures 1-3 show the evolution results for the expansion (5) obtained for different values of α.
Figure 1
Figure 1

The surface shows the expansion ( 5 ) for α = 1 .

Figure 2
Figure 2

The surface shows the expansion ( 5 ) for α = 0.75 .

Figure 3
Figure 3

The surface shows the expansion ( 5 ) for α = 0.5 .

3 Solution of FDEs including fractional derivative with respect to space variable

Let us consider the following FDE:
D x α u ( x , t ) = F ( u , ∂ u ∂ t ⋯ ∂ n u ∂ t n , x , t ) , m − 1 < α ≤ m , t > 0 .
(6)
In order to determine the solution of this equation, we first need to determine the solution of the following differential equation:
D x m u ( x , t ) = F ( u , ∂ u ∂ t ⋯ ∂ n u ∂ t n , x , t ) , t > 0 ,
(7)

which is obtained by taking α = m .

After finding the analytic or approximate solution of equation (7), we can obtain the exact or approximate solution of equation (6) by changing the terms of Taylor series expansion for the solution of differential equation (7) in such a way that the relationship among the terms of Taylor series expansion in the sense of derivative and fractional derivative with respect to space remains the same. In other words, we expand the exact or approximate solution into its Taylor series with respect to x. Then we replace the derivatives with respect to x by fractional derivatives with respect to x in such a way that the relation among the terms of Taylor series is preserved. Moreover, we leave the first m terms of Taylor series fixed since α = m . This also allows the solution of the fractional differential equation to satisfy the boundary conditions of the problem.

Let us assume that the solution of equation (7) is expanded into its Taylor series with respect to x as follows:
u ( x , t ) = ∑ n = 0 ∞ ∂ n u ( 0 , t ) ∂ x n x n n ! .
(8)
Then the solution of equation (6) becomes
u ( x , t ) = ∑ n = 0 m − 1 ∂ n u ( 0 , t ) ∂ x n x n n ! + ∑ n = 1 ∞ ∑ i = 0 m − 1 ∂ m n + i u ( 0 , t ) ∂ x m n + i x n α + i Γ ( n α + i + 1 ) .
(9)
For instance, let us assume that 0 < α ≤ 1 and the solution of equation (7) is u ( x , t ) = e t e x . In order to find the solution of equation (6), we expand this solution into Taylor series with respect to x as follows:
u ( x , t ) = ∑ n = 0 ∞ e t x n n ! .
Based on (9), the solution of equation (6) can be written in the following form:
u ( x , t ) = e t + e t x α Γ ( α + 1 ) + e t x 2 α Γ ( 2 α + 1 ) + e t x 3 α Γ ( 3 α + 1 ) + ⋯ .
(10)
Figures 4-6 show the evolution results for the expansion (10) obtained for different values of α.
Figure 4
Figure 4

The surface shows the expansion ( 10 ) for α = 1 .

Figure 5
Figure 5

The surface shows the expansion ( 10 ) for α = 0.75 .

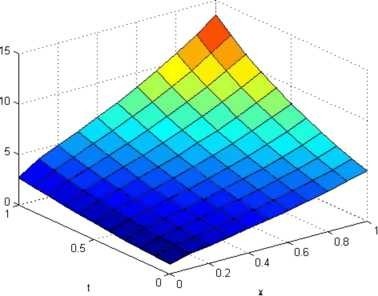

Figure 6
Figure 6

The surface shows the expansion ( 10 ) for α = 0.5 .

4 Solution of FDEs including fractional derivative with respect to space variable and time

Let us consider the following linear FDE with constant coefficients:
F ( u , D t β u , D x α u , x , t ) = 0 , k − 1 < β ≤ k , m − 1 < α ≤ m , t > 0 .
(11)
In order to determine the solution of this equation, we first need to determine the solution of the following differential equation:
F ( u , D t k u , D x m u , x , t ) = 0 , t > 0 ,
(12)
which is obtained by taking β = k , α = m . Since it is a linear partial differential equation, its solution can be written as
u ( x , t ) = u 0 ( x ) u 1 ( t ) .
(13)
After finding the analytic or approximate solution of equation (12), we expand u 0 ( x ) into its Taylor series with respect to x and u 1 ( t ) into its Taylor series with respect to t. Then we replace the derivatives with respect to x by fractional derivatives with respect to x in u 0 ( x ) in such a way that the relation among the terms of Taylor series is preserved. Moreover, we leave the first m terms of Taylor series fixed since α = m . Similarly, we do the same thing for u 1 ( t ) . This also allows the solution of the fractional differential equation to satisfy the initial and boundary conditions of the problem. Let us assume that u 0 ( x ) of equation (12) is expanded into its Taylor series with respect to x as follows:
u 0 ( x ) = ∑ n = 0 ∞ ∂ n u 0 ( 0 ) ∂ x n x n n ! .
Then u 0 ( x ) of solution (13) becomes
u 0 ( x ) = ∑ n = 0 m − 1 ∂ n u 0 ( 0 ) ∂ x n x n n ! + ∑ n = 1 ∞ ∑ i = 0 m − 1 ∂ m n + i u 0 ( 0 ) ∂ x m n + i x n α + i Γ ( n α + i + 1 ) .
(14)
Let us assume that u 1 ( t ) of equation (12) is expanded into its Taylor series with respect to t as follows:
u 1 ( t ) = ∑ n = 0 ∞ ∂ n u 1 ( 0 ) ∂ t n t n n ! .
Then u 1 ( t ) of solution (13) becomes
u 1 ( t ) = ∑ n = 0 m − 1 ∂ n u 1 ( 0 ) ∂ t n t n n ! + ∑ n = 1 ∞ ∑ i = 0 m − 1 ∂ m n + i u 1 ( 0 ) ∂ t m n + i t n α + i Γ ( n α + i + 1 ) .
(15)
For instance, let us assume that 0 < β ≤ 1 , 0 < α ≤ 1 , and that the solution of equation (12) is u ( x , t ) = e x e t . In order to find the solution of equation (11), we first expand u 0 ( x ) = e x into Taylor series with respect to x as follows:
u 0 ( x ) = ∑ n = 0 ∞ x n n ! .
Similarly,
u 1 ( t ) = ∑ n = 0 ∞ t n n ! .
Based on (4) and (9), the expansions of u 0 ( x ) and u 1 ( t ) can be written in the following form:
u 0 ( x ) = 1 + x α Γ ( α + 1 ) + x 2 α Γ ( 2 α + 1 ) + x 3 α Γ ( 3 α + 1 ) + ⋯ , u 1 ( t ) = 1 + t β Γ ( β + 1 ) + t 2 β Γ ( 2 β + 1 ) + t 3 β Γ ( 3 β + 1 ) + ⋯
and then the solution of equation (11) can be written in the following form:
u ( x , t ) = ( 1 + x α Γ ( α + 1 ) + x 2 α Γ ( 2 α + 1 ) + x 3 α Γ ( 3 α + 1 ) + ⋯ ) × ( 1 + t β Γ ( β + 1 ) + t 2 β Γ ( 2 β + 1 ) + ⋯ ) .
(16)

5 Illustrative applications

Example 1

Let us consider the following time-fractional initial boundary value problem:
D t α u ( x , t ) = 1 2 x 2 u x x ( x , t ) , 0 < α ≤ 1 , t > 0 , u ( x , 0 ) = x 2 , u ( 0 , t ) = 0 , u ( 1 , t ) = e t .
The exact solution, for the special case α = 1 , is given by
u ( x , t ) = x 2 e t .
Now we can apply series (4) to construct the solution u ( x , t ) for 0 < α ≤ 1 , and we have
u ( x , t ) = x 2 [ 1 + t α Γ ( α + 1 ) + t 2 α Γ ( 2 α + 1 ) + t 3 α Γ ( 3 α + 1 ) + ⋯ ] ,

which is exactly the same solution as in [18].

Example 2

Let us consider the following time-fractional initial boundary value problem:
D t α u = u x x ( x , t ) + x u x ( x , t ) + u ( x , t ) , 0 < α ≤ 1 , t > 0 , u ( x , 0 ) = x , u x ( x , 0 ) = 1 , u ( 0 , t ) = 0 .
The exact solution, for the special case α = 1 , is given by
u ( x , t ) = x e 2 t .
Now we can apply series (4) to u ( x , t ) for 0 < α ≤ 1 , and we have
u ( x , t ) = x 2 [ 1 + 2 t α Γ ( α + 1 ) + 4 t 2 α Γ ( 2 α + 1 ) + 8 t 3 α Γ ( 3 α + 1 ) + ⋯ ] ,

which is exactly the same solution as in [19].

Example 3

Let us consider the nonlinear time-fractional Fisher’s equation
D t α u = u x x ( x , t ) + 6 u ( x , t ) ( 1 − u ( x , t ) ) , 0 < α ≤ 1 , t > 0 , u ( x , 0 ) = 1 ( 1 + e x ) 2 .
The exact solution, for the special case α = 1 , is given by
u ( x , t ) = 1 ( 1 + e x − 5 t ) 2 .
As in the previous examples, we can apply series (4) to obtain the solution u ( x , t ) for 0 < α ≤ 1 , and we get
u ( x , t ) = 1 ( 1 + e x ) 2 + 10 e x ( 1 + e x ) 3 t α Γ ( α + 1 ) + 50 e x ( − 1 + 2 e x ) ( 1 + e x ) 4 t 2 α Γ ( 2 α + 1 ) + ⋯ ,

which is totaly the same solution as in [20].

Example 4

Let us consider the following time-fractional initial boundary value problem:
D t α u = ± u x x ( x , t ) , 0 < α ≤ 1 , t > 0 ,
(17)
u ( x , 0 ) = x 2 , u ( 0 , t ) = 2 k t α Γ ( α + 1 ) , u ( ℓ , t ) = ℓ 2 + 2 k t α Γ ( α + 1 ) ,
(18)

where the boundary conditions are given in fractional terms.

Boundary value problem (17)-(18), for the special case α = 1 , becomes as follows:
u t = ± u x x ( x , t ) , 0 < α ≤ 1 , t > 0 , u ( x , 0 ) = x 2 , u ( 0 , t ) = 2 k t , u ( ℓ , t ) = ℓ 2 + 2 k t ,
and its analytic solution is obtained as follows:
u ( x , t ) = x 2 + 2 k t .
Now we can apply series (4) to u ( x , t ) for 0 < α ≤ 1 , and we have
u ( x , t ) = x 2 + 2 k t α Γ ( α + 1 ) ,

which is exactly the same solution as in [21].

Example 5

Let us consider the following space-fractional initial boundary value problem:
u t ( x , t ) = D x β u ( x , t ) − ( 1 + tan t ) u ( x , t ) , 1 < β ≤ 2 ,
(19)
u ( x , 0 ) = e x , u ( 0 , t ) = cos t , u x ( 0 , t ) = cos t .
(20)
The exact solution, for the special case β = 2 , is given by
u ( x , t ) = e x cos t .
Now we can apply series (9) to u ( x , t ) for 1 < β ≤ 2 , then we have
u ( x , t ) = cos t ( 1 + x + x β Γ ( β + 1 ) + x β + 1 Γ ( β + 2 ) + x 2 β Γ ( 2 β + 1 ) + x 2 β + 1 Γ ( 2 β + 2 ) + ⋯ ) .

Example 6

Let us consider the following space and time-fractional initial boundary value problem:
D t α u ( x , t ) = 2 D x β u ( x , t ) + cos t , 0 < α ≤ 1 , 1 < β ≤ 2 ,
(21)
u ( x , 0 ) = e x , u ( 0 , t ) = e 2 t + sin t , u x ( 0 , t ) = e 2 t + sin t .
(22)
The exact solution, for the special case α = 1 and β = 2 , is given by
u ( x , t ) = e 2 t e x + sin t .
Now we can apply the series (4)-(9) to u ( x , t ) for 0 < α ≤ 1 and 1 < β ≤ 2 , then we have
u ( x , t ) = ( 1 + 2 t α Γ ( α + 1 ) + 4 t 2 α Γ ( 2 α + 1 ) + ⋯ ) ( 1 + x + x β Γ ( β + 1 ) + x β + 1 Γ ( β + 2 ) + ⋯ ) + ( t α Γ ( α + 1 ) − t 3 α Γ ( 3 α + 1 ) + t 5 α Γ ( 5 α + 1 ) − ⋯ ) .

Example 7

Let us consider the following space and time-fractional initial boundary value problem:
D t α u ( x , t ) = 2 D x β u ( x , t ) + 2 sin x , 0 < α ≤ 1 , 1 < β ≤ 2 ,
(23)
u ( x , 0 ) = e x + sin x , u ( 0 , t ) = e 2 t , u x ( 0 , t ) = e 2 t + 1 .
(24)
The exact solution, for the special case α = 1 and β = 2 , is given by
u ( x , t ) = e 2 t e x + sin x .
Now we can apply the series (4)-(9) to u ( x , t ) for 0 < α ≤ 1 and 1 < β ≤ 2 , then we have
u ( x , t ) = ( 1 + 2 t α Γ ( α + 1 ) + 4 t 2 α Γ ( 2 α + 1 ) + ⋯ ) ( 1 + x + x β Γ ( β + 1 ) + x β + 1 Γ ( β + 2 ) + ⋯ ) + ( x − x β + 1 Γ ( β + 2 ) + x 2 β + 1 Γ ( 2 β + 2 ) − x 3 β + 1 Γ ( 3 β + 2 ) − ⋯ ) .
Figures 7-9 show the evolution results for the approximate solutions of problem (23)-(24) obtained for different values of α and β.
Figure 7
Figure 7

The surface shows the approximate solution u ( x , t ) of problem ( 23 )-( 24 ) for α = 1 , β = 2 .

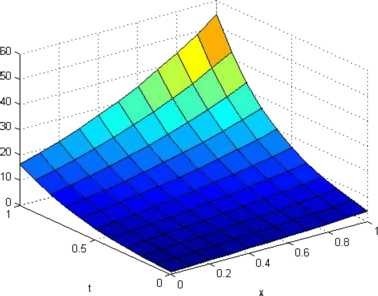

Figure 8
Figure 8

The surface shows the approximate solution u ( x , t ) of problem ( 23 )-( 24 ) for α = 0.75 , β = 1.5 .

Figure 9
Figure 9

The surface shows the approximate solution u ( x , t ) of problem ( 23 )-( 24 ) for α = 0.5 , β = 1.75 .

Declarations

Acknowledgements

Dedicated to Professor Hari M Srivastava.

The research was supported by parts by the Scientific and Technical Research Council of Turkey (TUBITAK).

Authors’ Affiliations

(1)
Department of Mathematics, Kocaeli University, Umuttepe, Izmit, Turkey
(2)
Ardahan University, Ardahan, Turkey
