Existence and stability analysis for a class of fractional pantograph q-difference equations with nonlocal boundary conditions

Abstract

In this present manuscript, by applying fractional quantum calculus, we study a nonlinear fractional pantograph q-difference equation with nonlocal boundary conditions. We prove the existence and uniqueness results by using the well-known fixed-point theorems of Schaefer and Banach. We also discuss the Ulam–Hyers stability of the mentioned pantograph q-difference problem. Lastly, the paper includes pertinent examples to support our theoretical analysis and justify the validity of the results.

1 Introduction

It is known that the difference equations involving quantum calculus play an important role in modeling many problems in engineering, physics, and mathematics, for further information the reader can address the following works [13]. In recent years, differential equations with fractional quantum calculus have been extensively studied by several scientific researchers, see for instance [47]. In this sense, several interesting topics concerning research for differential equations involving fractional quantum calculus have been devoted to the existence and the Ulam–Hyers stability of the solutions. Recently, many interesting results concerning the existence and Ulam-type stability of solutions for differential equations with fractional q-calculus have been obtained, see [811] and the references therein. In [12, 13], the existence and uniqueness of solutions were investigated for sequential differential equations with q-fractional calculus.

In the 1960s, British Railways wanted to make the electric locomotive faster and to develop a new type of electric locomotive. The goal was to make the trains faster. An important component for the new high-speed electric locomotive was the pantograph. The purpose of the pantograph is to collect current from an overhead wire, which is necessary for the locomotive to be able to move; see Fig. 1.

Figure 1
figure 1

Physical application: Collection pantograph system

To make sure that the electric locomotive can move smoothly with high speed, it is necessary that there are no interruptions in the current-collection system. Therefore, the pantograph should stay in contact with the overhead wire for the whole time, particularly when the pantograph passes the supports of the overhead wire, which is a critical passage. Therefore, Ockendon and Tayler studied the motion of the pantograph head on an electric locomotive in [14] and developed a special delay differential equation of the form

$$ \upvarphi^{\prime } ( \rho )= \gamma _{1} \upvarphi ( \rho )+ \gamma _{2} \upvarphi ( \lambda \rho ), $$

for \(\rho >0\), where \(\gamma _{i}\) is a real constant and \(0< \lambda <1\) for \(\lambda \in \mathbb{R}\). In [15] the authors described different classes of exact solutions to nonlinear pantograph-type reaction–diffusion equations of the form

$$ \upvarphi_{\rho} ( y, \rho ) = \bigl[\hslash (\upvarphi) \upvarphi_{y}\bigr]_{y} + \mathfrak{g} ( \upvarphi, \acute{\upvarphi} ), $$

where \(\upvarphi = \upvarphi ( y, \rho )\) and \(\acute{\upvarphi}= \upvarphi ( py, q \rho )\), \(p,q >0\) such that p and q cannot be equal to 1 at the same time.

The authors in [16] considered the following initial value problem for the fractional pantograph equation in quantum form

$$ \textstyle\begin{cases} {}^{C }\mathcal{D}_{ q}^{\theta} \upvarphi ( \rho )= \mathfrak{g} ( \rho, \upvarphi (\rho ), \upvarphi ( \lambda \rho ) ), & \rho \in (0,1), \\ \upvarphi^{ (i ) } ( 0 ) = \upvarphi_{0},& \end{cases} $$

where \(\theta , \lambda \in (0,1)\), \(\mathfrak{g}: [ 0,\delta ] \times \mathbb{R} \times \mathbb{R} \to \mathbb{R} \) is a continuous function. Abdo et al. in [17] investigated two AB-Caputo-type implicit fractional differential equations with nonlinear integral conditions described by

$$ \textstyle\begin{cases} {}^{ABC }\mathcal{D}_{ a^{+}}^{\theta} \upvarphi ( \rho ) = \mathfrak{g} ( \rho, \upvarphi (\rho ), {}^{ABC }\mathcal{D}_{ a^{+}}^{\theta} ), & \theta \in (0,1], \\ \upvarphi ( a ) - \upvarphi^{\prime } ( a ) = \int _{a}^{\top } \mathfrak{u}(\eta , \upvarphi(\eta )) \,\mathrm{d}\eta ,& \end{cases} $$

and

$$ \textstyle\begin{cases} {}^{ABC }\mathcal{D}_{ a^{+}}^{\theta} \upvarphi ( \rho ) = \mathfrak{g} ( \rho, \upvarphi (\rho ), {}^{ABC }\mathcal{D}_{ a^{+}}^{\theta} ),& \theta \in (1,2], \\ \upvarphi ( a )=0, \qquad \upvarphi ( \top ) = \int _{a}^{\top } \mathfrak{u}(\eta , \upvarphi(\eta )) \,\mathrm{d}\eta , & \end{cases} $$

for \(\rho \in [a,\top ]\), where \({}^{ABC }\mathcal{D}_{ a^{+}}^{\theta}\) is the AB-Caputo-type fractional differential of order θ, while \(\mathfrak{g} \in C([a,\top ] \times \mathbb{R}^{2}) \) and \(\mathfrak{u} \in C([a,\top ] \times \mathbb{R})\). In 2021, Ali et al. studied the given class of fractional order of pantograph differential equations under multipoint boundary conditions

$$ \textstyle\begin{cases} \mathcal{D}_{ 0^{+}}^{\theta} \upvarphi ( \rho )= \mathfrak{g} ( \rho, \upvarphi (\rho ), \upvarphi ( \lambda \rho ) ), & \rho \in {}[ 0,1 ] , \\ \upvarphi^{ (i ) } ( 0 ) =0,& i=0,1,2,\dots , m-2, \\ \upvarphi ( 1 ) = \sum_{i=1}^{k} \upgamma _{0i} \upvarphi ( \upgamma _{1i} ),& \vartheta _{i}>0, \upgamma _{0i} \in \mathbb{R}, \end{cases} $$

where \(\mathcal{D}_{ 0^{+}}^{\theta}\) represents the Riemann–Liouville derivative with arbitrary order \(( m-1, m ]\), \(m \geq 2\) and \(0 < \upgamma _{0i}\), \(\upgamma _{1i} \in < 1\) with \(\sum_{i=1}^{m-2} \upgamma _{0i} \upgamma _{1i} <1\) and \(\mathfrak{g}: [ 0,1 ] \times \mathbb{R} \times \mathbb{R} \to \mathbb{R} \) is a continuous function [18]. Also, Alzabut et al. investigated the following nonlinear discrete fractional pantograph equation

$$ \textstyle\begin{cases} {}^{C }\mathcal{D}_{ q}^{\theta} \upvarphi ( \rho )= \mathfrak{g} ( \rho+\beta , \upvarphi (\rho +\beta ), \upvarphi ( \lambda ( \rho + \beta ) ) ), & \rho \in \mathbb{N}_{1-\beta}, \beta \in (0,1], \\ \upvarphi ( 0 ) =p ( \upvarphi ),& \end{cases} $$

where \({}^{C }\mathcal{D}^{(\cdot)}\) is the Caputo fractional derivative, \(\mathbb{N}_{1-\beta} = \{\rho , \rho +1, \rho +2, \dots \}\), \(\lambda\in ( 0,1 )\), \(p : C( [0, \infty ), \mathbb{C} )\to \mathbb{R}\), and \(\mathfrak{g}: [ 0,\delta ] \times \mathbb{R} \times \mathbb{R} \to \mathbb{R} \) is a Lipschitz continuous function with respect to φ [19]. Derbazi et al. determined the existence criteria of extremal solutions for the following θ-Caputo-type fractional differential equations in a Caputo sense with nonlinear boundary conditions

$$ \textstyle\begin{cases} {}^{C }\mathcal{D}_{ a^{+}}^{\nu , \theta} \upvarphi ( \rho ) = \mathfrak{g} ( \rho, \upvarphi ( \rho ) ), & \rho \in [a, b], \\ \mathfrak{u} ( \upvarphi(a), \upvarphi(b) )=0,& \end{cases} $$

where \({}^{C }\mathcal{D}_{ a^{+}}^{\nu , \theta}\) is the θ-fractional operator of order \(0< \nu \leq 1\) in the Caputo sense and this was investigated and \(\mathfrak{g}\in C([a, b]\times \mathbb{R})\), \(\mathfrak{u}\in C(\mathbb{R}^{2})\) [20]. For more information related to this topics see [2127].

Motivated by the aforementioned works, we investigated the existence and Ulam-stability analysis for the following class of fractional pantograph q-difference equation \((\mathbb{F}\mathrm{P}q{-}\mathbb{DE})\) with nonlocal boundary conditions

$$ \textstyle\begin{cases} {}^{C }\mathcal{D}_{ q}^{\theta} \upvarphi ( \rho ) = \mathfrak{g} ( \rho, \upvarphi (\rho ), \upvarphi ( \lambda \rho ) ), & \theta \in ( m-1, m ], m \geq 2, \\ \upvarphi^{ (i ) } ( 0 ) =0,& i=0,1,2,\dots , m-2, \\ \upvarphi ( \delta )= \sum_{i=1}^{k} \upgamma _{0i} ( \mathcal{I}_{ q}^{ \vartheta _{i}} \upvarphi ( \upgamma _{1i} ) - \mathcal{I}_{ q}^{\vartheta _{i}} \upvarphi ( \upgamma _{2i} ) ),& \vartheta _{i}>0, \upgamma _{0i} \in \mathbb{R}, \end{cases} $$
(1)

where \({}^{C }\mathcal{D}_{ q}^{(\cdot)}\), \(\mathcal{I}_{ q}^{(\cdot)}\) are the Caputo fractional q-derivative and Riemann–Liouville fractional q-integral, respectively, \(q\in (0,1 )\), \(\rho \in [ 0, \delta ] \), \(m\in \mathbb{N}\), \(\lambda\in ( 0,1 )\),

$$ 0< \upgamma _{2i} < \upgamma _{1i}< \cdots < \upgamma _{2k} < \upgamma _{1k} < \delta ,\quad i=1,2,\dots , k,$$

and \(\mathfrak{g}: [ 0,\delta ] \times \mathbb{R}\times \mathbb{R} \to \mathbb{R} \) is a given continuous function.

In Sect. 2, we recall some essential definitions of fractional quantum calculus. Section 3 contains our main results in this work, while an example is presented to support the validity of our obtained results. An application, together with some needed algorithms for the problems, are given in Sect. 4. In Sect. 5, some conclusions are presented.

2 Preliminary notions

We recall some basic definitions and necessary lemmas related to fractional q-calculus and nonlinear analysis that will be used in the following.

Let \(\Sigma = [ 0,\delta ]\), and consider the Banach spaces \(C ( \Sigma ,\mathbb{R} ) \) and \(L^{1} (\Sigma ,\mathbb{R} ) \) of Lebesgue integrable functions \(\upvarphi : \Sigma \to \mathbb{R}\) with the norm \(\Vert \upvarphi \Vert = \sup \{ \vert \upvarphi ( \rho ) \vert : \rho \in \Sigma \}\), and

$$ \Vert \upvarphi \Vert _{L^{1}} = \int _{\Sigma } \bigl\vert \upvarphi ( \rho ) \bigr\vert \, \mathrm{d} \rho,$$

respectively. Let \(q\in ( 0,1 ) \). Then, the q-number is defined by

$$ [ b ]_{q} = \frac{1-q^{b}}{1-q}, \quad b\in \mathbb{R}.$$

The q-analog of the power \((p-r )^{m}\) is

$$ ( p-r )^{(m)}=\textstyle\begin{cases} 1,& m=0, \\ \prod_{i=0}^{m-1} ( p-rq^{i} ), & m\in \mathbb{N}, p,r\in \mathbb{R}. \end{cases} $$

The q-gamma function is defined by [28]

$$ \Gamma _{q} ( b ) = \frac{ ( 1-q )^{ ( b-1 ) }}{ ( 1-q ) ^{b-1}},\quad b\in \mathbb{R} \backslash \{ 0,-1,-2,\dots \}.$$

Note that the q-gamma function satisfies \(\Gamma _{q} ( 1+b ) = [ b ]_{q} \Gamma _{q} ( b ) \). The 1st-q-derivative of a function \(\upvarphi :\mathrm{J} \to \mathbb{R}\) is given by

$$ ( \mathcal{D}_{ q}\upvarphi ) ( \rho ) = \frac{\upvarphi ( \rho ) - \upvarphi ( q \rho ) }{ ( 1-q ) \rho }, \quad \rho \neq 0, \qquad ( \mathcal{D}_{ q} \upvarphi ) ( 0 ) =\lim _{ t \to 0} ( \mathcal{D}_{ q}\upvarphi ) ( \rho ),$$

and for the higher orders, it becomes \(\mathcal{D}_{ q}^{0}\upvarphi ( \rho ) = \upvarphi ( \rho )\), \(\mathcal{D}_{ q}^{m} \upvarphi ( \rho ) = \mathcal{D}_{ q} \mathcal{D}_{ q}^{m-1} \upvarphi ( \rho ) \), for \(\text{ }\rho \in \Sigma \), \(\text{ } m\in \{ 1,2,\dots \}\). Set \(\Sigma _{\rho }:= \{ \rho q^{m}:n\in \mathbb{N} \} \cup \{ 0 \} \) [28]. The 1st-q-integral of a function \(\upvarphi : \Sigma _{\rho} \to \mathbb{R} \) is defined by

$$ ( \mathcal{I}_{ q}\upvarphi ) ( \rho ) = \int _{0}^{\rho } \upvarphi ( \varpi ) \, \mathrm{d}_{q} \varpi = \sum_{n=0}^{ \infty } \rho ( 1- q ) q^{n} \upvarphi \bigl( \rho q^{n} \bigr) ,$$

provided that the series absolutely converges [28]. We note that \(( \mathcal{D}_{ q} \mathcal{I}_{ q} \upvarphi ) ( \rho ) = \upvarphi ( \rho )\), while φ is continuous at 0, then \(( \mathcal{I}_{ q} \mathcal{D}_{ q} \upvarphi ) ( \rho ) =\upvarphi ( \rho ) -\upvarphi ( 0 )\). The ϑth Riemann–Liouville fractional q-integral of a function \(\upvarphi: \Sigma \to \mathbb{R}\) is defined by [29], \(( \mathcal{I}_{ q}^{0} \upvarphi ) ( \rho ) =\upvarphi ( \rho )\) and

$$ \mathcal{I}_{ q}^{\vartheta}\upvarphi ( \rho ) = \int _{0}^{\rho } \frac{ ( \rho -q\varpi )^{ ( \vartheta - 1 ) }}{ \Gamma _{q} ( \vartheta )} \upvarphi ( \varpi ) \,\mathrm{d}_{q}\varpi , \quad \rho \in [ 0,\infty ).$$

The θth Caputo fractional q-derivative of a function \(\upvarphi: \Sigma \to \mathbb{R}\) is given by [30],

$$ \bigl( {}^{C }\mathcal{D}_{ q}^{0} \upvarphi \bigr) ( \rho ) =\upvarphi ( \rho ) \quad \& \quad {}^{C } \mathcal{D}_{ q}^{\theta _{1}} \upvarphi ( \rho ) = \mathcal{I}_{ q}^{ [\theta ] - \theta} \mathcal{D}_{ q}^{ [ \theta ] } \upvarphi ( \rho ), \quad \text{ }\rho \in \Sigma .$$

For more details about the fractional q-operators, see [22].

Lemma 2.1

([22, 28])

Let \(\theta _{1}, \theta _{2} \geq 0\). Then, we have the following relations

  1. (i)

    \(\mathcal{I}_{ q}^{\theta _{1}} \mathcal{I}_{ q}^{\theta _{2}} \upvarphi ( \rho ) = \mathcal{I}_{ q}^{\theta _{1}+ \theta _{2}}\upvarphi ( \rho ) \);

  2. (ii)

    \({}^{C }\mathcal{D}_{ q}^{\theta _{1}} \mathcal{I}_{ q}^{\theta _{1}} \upvarphi ( \rho ) =\upvarphi ( \rho )\);

  3. (iii)

    \(\mathcal{I}_{ q}^{\theta _{1}} s^{\rho } = \frac{\Gamma _{q} ( 1+\rho ) }{ \Gamma _{q} ( 1+\rho +\theta ) }s^{ \rho +\theta }\), \(\rho \in ( -1,\infty )\), \(s >0\).

Lemma 2.2

([30])

Let \(\theta \in ( m-1,m ) \). Then, the following equality holds

$$ \mathcal{I}_{ q}^{\theta} {}^{C } \mathcal{D}_{ q}^{\theta} \upvarphi ( \rho ) = \upvarphi ( \rho ) - \sum_{j=0}^{m-1} \frac{\rho ^{j}}{ \Gamma _{q} ( 1+j ) } \mathcal{D}_{ q}^{ \theta} \upvarphi ( 0 ).$$

In view of Lemma 2.2, the general series solution of the following equation \(\mathcal{I}_{ q}^{\theta} {}^{C }\mathcal{D}_{ q}^{\theta} \upvarphi ( \rho ) =0\) is

$$ \upvarphi ( \rho ) = \zeta _{0} +\zeta _{1} \rho + \zeta _{2} \rho ^{2} + \cdots + \zeta _{m-1} \rho ^{m-1}, \quad \zeta _{j}\in \mathbb{R}, \&\, m=[\theta _{1}]+1.$$

Hence, we have

$$ \mathcal{I}_{ q}^{\theta} {}^{C } \mathcal{D}_{ q}^{\theta} \upvarphi ( \rho ) = \upvarphi ( \rho ) + \zeta _{0}+\zeta _{1}\rho +\zeta _{2}\rho ^{2}+\cdots + \zeta _{m-1} \rho ^{m-1}. $$

Theorem 2.3

(Banach fixed-point theorem [31])

Let \(\Omega \neq \emptyset \) be a closed subset of a Banach space \((\mathcal{X}, \Vert \cdot \Vert )\). If \(\mathcal{Z}:\Omega \to \Omega \) is a contraction mapping, then Φ admits a unique fixed point.

Theorem 2.4

(Schaefer fixed-point theorem [31])

Let \(\mathcal{Z} \) be a continuous compact operator of a Banach space \(\mathcal{X}\) into itself, such that the set

$$ \{ \rho \in \mathcal{X} : \rho = \lambda \mathcal{Z} \rho \textit{ for some } 0 \leq \lambda \leq 1 \},$$

is bounded. Then, \(\mathcal{Z}\) has a fixed point.

3 Existence and uniqueness results

In what follows, we apply some fixed-point theorems to demonstrate the existence and uniqueness results for problem (1). To obtain the existence results for problem (1), the following auxiliary lemma is needed.

Lemma 3.1

For any \(\omega \in C(\Sigma , \mathbb{R})\), the \(\mathbb{F}\mathrm{P}q{-}\mathbb{DE}\) with nonlocal boundary conditions

$$ \textstyle\begin{cases} {}^{C }\mathcal{D}_{ q}^{\theta} \upvarphi (\rho )= \omega ( \rho ), & \theta \in ( m-1, m ], m \geq 2, \\ \upvarphi^{ (i ) } ( 0 ) =0,& i=0,1,2,\dots , m-2, \\ \upvarphi ( \delta )= \sum_{i=1}^{k} \upgamma _{0i} ( \mathcal{I}_{ q}^{ \vartheta _{i}} \upvarphi ( \upgamma _{1i} ) - \mathcal{I}_{ q}^{\vartheta _{i}} \upvarphi ( \upgamma _{2i} ) ),& \vartheta _{i}>0, \upgamma _{0i} \in \mathbb{R}, \end{cases} $$
(2)

for \(q\in (0,1 )\), \(\rho \in [ 0,\delta ]\), \(m\in \mathbb{N}\),

$$ 0< \upgamma _{2i} < \upgamma _{1i}< \cdots < \upgamma _{2k} < \upgamma _{1k}< \delta ,\quad i=1,2,\dots , k,$$

has a unique solution given by

$$ \upvarphi ( \rho ) = \mathcal{I}_{ q}^{\theta} \omega ( \rho ) +\frac{\rho ^{m-1}}{\Lambda } \Biggl[ \sum_{i=1}^{k} \upgamma _{0i} \bigl(\mathcal{I}_{ q}^{ \vartheta _{i} + \theta } \omega ( \upgamma _{1i} ) - \mathcal{I}_{ q}^{\vartheta _{i}+\theta} \omega ( \upgamma _{2i} ) \bigr) - \mathcal{I}_{ q}^{\theta} \omega ( \delta ) \Biggr], $$
(3)

where

$$ \Lambda := \sum_{i=1}^{k} \frac{\upgamma _{0i} \Gamma _{q} (m ) }{ \Gamma _{q} ( m + \vartheta _{i} ) } \bigl( \upgamma _{2i}^{\vartheta _{i} + m-1} - \upgamma _{1i}^{ \vartheta _{i} + m-1} \bigr) + \delta ^{ m-1} \neq 0. $$
(4)

Proof

Assume φ satisfies problem (1). First, we write this equation as

$$ \mathcal{I}_{ q}^{\theta} {}^{C } \mathcal{D}_{ q}^{\theta} \upvarphi ( \rho ) = \mathcal{I}_{ q}^{\theta} \omega ( \rho ).$$

In view of Lemma 2.2, we have

$$ \upvarphi ( \rho ) = \mathcal{I}_{ q}^{\theta } \omega ( \rho ) -\zeta _{0} - \zeta _{1} \rho -\zeta _{2} \rho ^{2}- \cdots - \zeta _{m-1}\rho ^{m-1}. $$
(5)

Applying the BCs, we obtain

$$ \zeta _{0} = \zeta _{1}=\zeta _{2}=\cdots =\zeta _{m-2}=0. $$
(6)

By substituting (6) into (5), we obtain

$$ \upvarphi ( \rho ) =\mathcal{I}_{ q}^{\theta} \omega ( \rho ) -\zeta _{m-1}\rho ^{m-1}. $$
(7)

Applying the integrator operator \(\mathcal{I}_{ q}^{ \vartheta _{i}}\) to both sides of equation (7), we obtain

$$ \mathcal{I}_{ q}^{\vartheta _{i}} \upvarphi ( \rho ) = \mathcal{I}_{ q}^{\vartheta _{i}+\theta _{1} } \omega ( \rho ) - \zeta _{m-1} \mathcal{I}_{ q}^{\vartheta _{i}} \rho ^{m-1}.$$

Using the condition

$$ \upvarphi ( \delta ) =\sum_{i=1}^{k} \upgamma _{0i} \bigl( \mathcal{I}_{ q}^{\vartheta _{i}} \upvarphi ( \upgamma _{1i} ) - \mathcal{I}_{ q}^{ \vartheta _{i}} \upvarphi ( \upgamma _{2i} ) \bigr),$$

we have

$$\begin{aligned} \mathcal{I}_{ q}^{\theta _{1}} \omega ( \delta ) - \zeta _{m-1} \delta ^{m-1} & = \sum _{i=1}^{k}\upgamma _{0i} \biggl[ \mathcal{I}_{ q}^{\vartheta _{i} + \theta _{1}} \upvarphi ( \upgamma _{1i} ) - \mathcal{I}_{ q}^{\vartheta _{i}+\theta _{1} }\upvarphi ( \upgamma _{2i} ) \\ &\quad{} + \zeta _{m-1} \frac{\Gamma _{q} ( m ) }{\Gamma _{q} ( m+ \vartheta _{i} ) } \bigl( \xi \upgamma _{2i}^{\vartheta _{i} + m-1} - \upgamma _{1i}^{\vartheta _{i}+m-1} \bigr) \biggr]. \end{aligned}$$
(8)

By solving (8), we find that

$$ \zeta _{m-1} = \frac{1}{\Lambda } \Biggl( \mathcal{I}_{ q}^{\theta} \omega ( \delta ) - \sum _{i=1}^{k} \upgamma _{0i} \bigl[ \mathcal{I}_{ q}^{\vartheta _{i}+\theta } \upvarphi ( \upgamma _{1i} ) - \mathcal{I}_{ q}^{ \vartheta _{i} + \theta}\upvarphi ( \upgamma _{2i} ) \bigr] \Biggr). $$
(9)

By inserting (9) into (7), we obtain (3). □

To obtain our findings, we need the following assumptions.

  1. (As1)

    There is a constant \(l_{\mathfrak{g}}>0\) such that

    $$ \bigl\vert \mathfrak{g} ( \rho , \upvarphi, \upvarphi ) - \mathfrak{g} ( \rho , \tilde{\upvarphi}, \tilde{\upvarphi} ) \bigr\vert \leq l_{\mathfrak{g}} \bigl( \vert \upvarphi-\tilde{\upvarphi} \vert + \vert \upvarphi - \tilde{ \upvarphi} \vert \bigr),$$

    for \(\rho \in \Sigma \) and \(\upvarphi ,\tilde{\upvarphi}\in \mathbb{R}\).

  2. (As2)

    There exist constants \(\mathrm{D}, \mathrm{h}_{\mathfrak{g}}^{ ( 1 )}, \mathrm{h}_{\mathfrak{g}}^{ ( 2 ) }>0\) such that

    $$ \bigl\vert \mathfrak{g} \bigl( \rho , \upvarphi ( \rho ), \upvarphi ( \lambda \rho ) \bigr) \bigr\vert \leq \mathrm{D}+ \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) } \bigl\vert \upvarphi ( \rho ) \bigr\vert + \mathrm{h}_{\mathfrak{g}}^{ (2 ) } \bigl\vert \upvarphi ( \lambda \rho ) \bigr\vert , \quad \forall ( \rho , \upvarphi ) \in \Sigma \times \mathbb{R}. $$

3.1 Existence and uniqueness results via Banach’s fixed-point theorem

Theorem 3.2

Let (As1) be valid, then \(\mathbb{F}\mathrm{P}q{-}\mathbb{DE}\) (1) has a unique mild solution on Σ, whenever

$$ \mathrm{k}^{\ast }l_{\mathfrak{g}}< 1, $$
(10)

where

$$\begin{aligned} \mathrm{k}^{\ast} & = \frac{2 (\delta ^{\theta } + \delta ^{m+ \theta -1} )}{ \Gamma _{q} ( \theta + 1 ) } + \sum _{i=1}^{k} \vert \upgamma _{0i} \vert \frac{4\delta ^{m+ \vartheta _{i}+\theta -1}}{ \vert \Lambda \vert \Gamma _{q} ( \vartheta _{i} + \theta +1 ) }. \end{aligned}$$
(11)

Proof

We switch problem (1) into a fixed-point problem and we consider the operator \(\tilde{\mathcal{Z}} : C(\Sigma , \mathbb{R})\to C(\Sigma , \mathbb{R})\) as

$$\begin{aligned} ( \tilde{\mathcal{Z}} \upvarphi ) ( \rho ) & = \mathcal{I}_{ q}^{\theta} \mathfrak{g} \bigl( \rho , \upvarphi ( \rho ), \upvarphi ( \lambda \rho ) \bigr) \\ & \quad{}+\frac{\rho ^{m-1}}{\Lambda } \Biggl[ \sum_{i=1}^{k} \upgamma _{0i} \bigl( \mathcal{I}_{ q}^{\vartheta _{i} + \theta } \mathfrak{g} \bigl( \upgamma _{1i}, \upvarphi ( \upgamma _{1i} ), \upvarphi ( \lambda \upgamma _{1i} ) \bigr) \\ & \quad{}- \mathcal{I}_{ q}^{\vartheta _{i} + \theta } \mathfrak{g} \bigl( \upgamma _{2i}, \upvarphi ( \upgamma _{2i} ), \upvarphi ( \lambda \upgamma _{2i} ) \bigr) \bigr) \Biggr] \\ &\quad{}- \frac{\rho ^{m-1}}{\Lambda } \mathcal{I}_{ q}^{\theta} \mathfrak{g} \bigl( \delta , \upvarphi ( \delta ),\upvarphi ( \lambda \delta ) \bigr). \end{aligned}$$
(12)

Clearly, the solution of (1) is as a fixed point of the operator \(\tilde{\mathcal{Z}}\). By (As1), for any \(\upvarphi ,\tilde{\upvarphi}\in C(\Sigma , \mathbb{R})\) and \(\rho \in \Sigma \), we obtain

$$\begin{aligned} & \bigl\vert ( \tilde{\mathcal{Z}}\upvarphi ) ( \rho ) - ( \tilde{\mathcal{Z}} \tilde{\upvarphi} ) ( \rho ) \bigr\vert \\ &\quad \leq \mathcal{I}_{ q}^{\theta} \bigl\vert \mathfrak{g} \bigl( \rho , \upvarphi ( \rho ), \upvarphi ( \lambda \rho ) \bigr) - \mathfrak{g} \bigl( \rho, \tilde{ \upvarphi} ( \rho ), \tilde{\upvarphi} ( \lambda \rho ) \bigr) \bigr\vert \\ &\quad \quad{}+ \frac{ \rho^{m-1}}{ \vert \Lambda \vert } \Biggl[ \sum_{i=1}^{k} \vert \upgamma _{0i} \vert \bigl( \mathcal{I}_{ q}^{\vartheta _{i} +\theta } \bigl\vert \mathfrak{g} \bigl( \upgamma _{1i}, \upvarphi ( \upgamma _{1i} ) ,\upvarphi ( \lambda \upgamma _{1i} ) \bigr) \\ &\quad \quad{}- \mathfrak{g} \bigl( \upgamma _{1i}, \tilde{ \upvarphi} ( \upgamma _{1i} ), \tilde{\upvarphi} ( \lambda \upgamma _{1i} ) \bigr) \bigr\vert + \mathcal{I}_{ q}^{\vartheta _{i} + \theta } \bigl\vert \mathfrak{g} \bigl( \upgamma _{2i}, \upvarphi ( \upgamma _{2i} ) , \upvarphi ( \lambda \upgamma _{2i} ) \bigr) \\ &\quad \quad{}- \mathfrak{g} \bigl( \upgamma _{2i}, \tilde{\upvarphi} ( \upgamma _{2i} ), \tilde{\upvarphi} ( \lambda \upgamma _{2i} ) \bigr) \bigr\vert \bigr) \\ &\quad \quad{}+I_{q}^{\theta} \bigl\vert \mathfrak{g} \bigl( \delta , \upvarphi ( \delta ) ,\upvarphi ( \lambda \delta ) \bigr) -\mathfrak{g} \bigl( \delta , \tilde{\upvarphi} ( \delta ) , \tilde{\upvarphi} ( \lambda \delta ) \bigr) \bigr\vert \Biggr] \\ &\quad \leq \frac{\rho ^{\theta} l_{\mathfrak{g}}}{ \Gamma _{q} ( \theta + 1 ) } \bigl( \Vert \upvarphi - \tilde{\upvarphi} \Vert + \Vert \upvarphi - \tilde{\upvarphi} \Vert \bigr) \\ &\quad \quad{}+ \frac{\delta ^{m-1}l_{\mathfrak{g}} ( \Vert \upvarphi -\tilde{\upvarphi} \Vert + \Vert \upvarphi - \tilde{\upvarphi} \Vert ) }{ \vert \Lambda \vert } \\ &\quad \quad{}\times \Biggl[ \sum_{i=1}^{k} \vert \upgamma _{0i} \vert \biggl( \frac{\upgamma _{1i}^{\vartheta _{i} + \theta}}{ \Gamma _{q} ( \vartheta _{i}+\theta + 1 ) }+ \frac{\upgamma _{2i}^{\vartheta _{i} + \theta }}{\Gamma _{q} ( \vartheta _{i} + \theta + 1 ) } \biggr) + \frac{\delta ^{ \theta}}{\Gamma _{q} ( \theta +1 ) } \Biggr] \\ &\quad \leq \Biggl[ \frac{2\delta ^{ \theta}}{\Gamma _{q} ( \theta + 1 ) } + \sum_{i=1}^{k} \vert \upgamma _{0i} \vert \frac{4\delta ^{m+\vartheta _{i} + \theta - 1}}{ \vert \Lambda \vert \Gamma _{q} ( \vartheta _{i} + \theta + 1 ) } \\ &\quad \quad{}+ \frac{2\delta ^{m+\theta -1}}{\Gamma _{q} ( \theta +1 ) } \Biggr] l_{\mathfrak{g}} \Vert \upvarphi - \tilde{\upvarphi} \Vert . \end{aligned}$$

Thus,

$$ \bigl\Vert ( \tilde{\mathcal{Z}} \upvarphi ) - ( \tilde{\mathcal{Z}} \tilde{ \upvarphi} ) \bigr\Vert \leq \mathrm{k }^{\ast } l_{\mathfrak{g}} \Vert \upvarphi - \tilde{\upvarphi} \Vert .$$

From (10), \(\tilde{\mathcal{Z}}\) is a contraction. As an outcome of Banach’s FPT, \(\tilde{\mathcal{Z}}\) has a unique fixed point that is a unique mild solution of (1) on Σ. □

3.2 Existence results via Schaefer’s fixed-point theorem

Theorem 3.3

Suppose that the hypothesis (As2) is satisfied. Then, \(\mathbb{F}\mathrm{P}q{-}\mathbb{DE}\) (1) has at least one solution on Σ, whenever \(\mathrm{N}_{1}<1\), where

$$\begin{aligned} \mathrm{N}_{1}& =\frac{\delta ^{\theta } ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) }+\mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) }{\Gamma _{q} ( \theta +1 ) }+ \frac{ ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) }+ \mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) \delta ^{m-1}}{ \vert \Lambda \vert } \sum_{i=1}^{k} \frac{2 \vert \upgamma _{0i} \vert \mathcal{I}_{ q}^{\vartheta _{i} + \theta }}{\Gamma _{q} ( \vartheta _{i} + \theta +1 )} \\ & \quad{}+ \frac{ \delta ^{ m +\theta -1} ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) }+\mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) }{ \vert \Lambda \vert \Gamma _{q} ( \theta + 1 ) }. \end{aligned}$$
(13)

Proof

We shall use Schaefer’s fixed-point theorem to demonstrate that \(\tilde{\mathcal{Z}}\) defined in (12) has a fixed point. The proof will be given in the following steps.

Step 1. \(\tilde{\mathcal{Z}}\) is continuous. Let a sequence \(\upvarphi _{n} \to \upvarphi \) in \(C(\Sigma , \mathbb{R})\). Since \(\mathfrak{g}\) is continuous, we have

$$ \bigl\vert \mathfrak{g} \bigl( \rho , \upvarphi _{n} ( \rho ), \upvarphi _{n} ( \lambda \rho ) \bigr) - \mathfrak{g} \bigl( \rho , \upvarphi ( \rho ) , \upvarphi ( \lambda \rho ) \bigr) \bigr\vert \rightarrow 0,$$

as \(n\to \infty \). Thus, for any \(\rho\in \Sigma \), we write

$$\begin{aligned} & \bigl\vert ( \tilde{\mathcal{Z}} \upvarphi _{n} ) (\rho ) - ( \tilde{\mathcal{Z}}\upvarphi ) ( \rho ) \bigr\vert \\ &\quad \leq \int _{0}^{\rho } \frac{ (\rho - q \varpi )^{ ( \theta -1 ) }}{\Gamma _{q} ( \theta ) } \bigl\vert \mathfrak{g} \bigl( \varpi , \upvarphi _{n} ( \varpi ), \upvarphi _{n} ( \lambda \varpi ) \bigr) \\ &\quad \quad{}- \mathfrak{g} \bigl( \varpi , \upvarphi ( \varpi ), \upvarphi ( \lambda \varpi ) \bigr) \bigr\vert \,\mathrm{d}_{q} \varpi \\ &\quad \quad{}+ \frac{ \rho ^{m-1}}{ \vert \Lambda \vert } \sum_{i=1}^{k} \vert \upgamma _{0i} \vert \int _{0}^{ \upgamma _{1i}} \frac{ ( \upgamma _{1i} - q \varpi )^{ ( \theta -1 ) }}{\Gamma _{q} ( \theta ) } \bigl\vert \mathfrak{g} \bigl( \varpi, \upvarphi _{n} ( \varpi ), \upvarphi_{n} ( \lambda \varpi ) \bigr) \\ &\quad \quad{}-\mathfrak{g} \bigl(\varpi, \upvarphi ( \varpi ), \upvarphi ( \lambda \varpi ) \bigr) \bigr\vert \,\mathrm{d}_{q} \varpi \\ &\quad \quad{}+ \frac{\rho ^{m-1}}{ \vert \Lambda \vert } \sum_{i=1}^{k} \vert \upgamma _{0i} \vert \int _{0}^{ \upgamma _{1i}} \frac{ ( \upgamma _{2i} - q\varpi )^{ ( \theta _{1}-1 ) }}{\Gamma _{q} ( \theta ) } \bigl\vert \mathfrak{g} \bigl( \varpi , \upvarphi _{n} ( \varpi ), \upvarphi _{n} ( \lambda \varpi ) \bigr) \\ &\quad \quad{}- \mathfrak{g} \bigl( \varpi , \upvarphi ( \varpi ) ,\upvarphi ( \lambda \varpi ) \bigr) \bigr\vert \,\mathrm{d}_{q} \varpi \\ &\quad \quad{}+ \frac{\rho ^{m-1}}{ \vert \Lambda \vert } \int _{0}^{ \delta} \frac{ ( \delta - q\varpi )^{ ( \theta -1 ) }}{\Gamma _{q} ( \theta ) } \bigl\vert \mathfrak{g} \bigl( \varpi , \upvarphi _{n} ( \varpi ) , \upvarphi _{n} ( \lambda \varpi ) \bigr) \\ &\quad \quad{}-\mathfrak{g} \bigl( \varpi ,\upvarphi ( \varpi ) ,\upvarphi ( \lambda \varpi ) \bigr) \bigr\vert \,\mathrm{d}_{q} \varpi. \end{aligned}$$

Hence, we obtain

$$ \bigl\Vert ( \tilde{\mathcal{Z}}\upvarphi _{n} ) - ( \tilde{ \mathcal{Z}}\upvarphi ) \bigr\Vert \rightarrow 0\quad \text{as } n \to \infty .$$

Consequently, \(\tilde{\mathcal{Z}}\) is continuous.

Step 2. The image of a bounded set under \(\tilde{\mathcal{Z}}\) is bounded in \(C(\Sigma , \mathbb{R})\). Indeed, it is enough to show that for any \(\omega >0\), there exists a positive constant ζ such that for each

$$ \upvarphi \in \Omega _{\omega }= \bigl\{ \upvarphi \in C(\Sigma , \mathbb{R}) : \Vert \upvarphi \Vert \leq \omega \bigr\} ,$$

we have \(\Vert \tilde{\mathcal{Z}} \upvarphi \Vert \leq \zeta \). In fact, we have

$$\begin{aligned} \bigl\vert ( \tilde{\mathcal{Z}}\upvarphi ) ( \rho ) \bigr\vert & \leq \mathcal{I}_{ q}^{ \theta } \bigl\vert \mathfrak{g} \bigl( \rho , \upvarphi ( \rho ), \upvarphi ( \lambda \rho ) \bigr) \bigr\vert \\ & \quad{}+ \frac{\rho ^{m-1}}{ \vert \Lambda \vert } \Biggl[ \sum_{i=1}^{k} \vert \upgamma _{0i} \vert \bigl( \mathcal{I}_{ q}^{\vartheta _{i} +\theta} \bigl\vert \mathfrak{g} \bigl( \upgamma _{1i}, \upvarphi ( _{i} ), \upvarphi ( \lambda _{i} ) \bigr) \bigr\vert \\ & \quad{}+\mathcal{I}_{ q}^{\vartheta _{i}+\theta } \bigl\vert \mathfrak{g} \bigl( \upgamma _{2i} , \upvarphi ( \upgamma _{2i} ) , \upvarphi ( \lambda \upgamma _{2i} ) \bigr) \bigr\vert \bigr) \Biggr] \\ &\quad{}+ \frac{\rho ^{m-1}}{ \vert \Lambda \vert } \mathcal{I}_{ q}^{\theta} \bigl\vert \mathfrak{g} \bigl( \delta , \upvarphi ( \delta ) ,\upvarphi ( \lambda \delta ) \bigr) \bigr\vert \\ & \leq \frac{\delta ^{\theta} ( \mathrm{D}+ ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) } + \mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } )\omega ) }{ \Gamma _{q} ( \theta + 1 ) } \\ & \quad{}+ \frac{ ( \mathrm{D}+ ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) } + \mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) \omega ) \delta ^{m-1}}{ \vert \Lambda \vert } \sum_{i=1}^{k} \frac{2 \vert \upgamma _{0i} \vert \delta ^{\vartheta _{i} + \theta }}{\Gamma _{q} ( \vartheta _{i}+\theta + 1 ) } \\ & \quad{}+ \frac{\delta ^{m+\theta _{1}-1} ( \mathrm{D}+ ( \mathrm{h}_{\mathfrak{g}}^{ (1 )}+\mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) \omega ) }{ \vert \Lambda \vert \Gamma _{q} ( \theta +1 ) }, \end{aligned}$$

and consequently

$$\begin{aligned} \Vert \tilde{\mathcal{Z}}\upvarphi \Vert & \leq \Biggl( \frac{ \delta ^{\theta } ( \mathrm{D}+\mathrm{h}_{\mathfrak{g}} \omega ) }{\Gamma _{q} ( \theta +1 ) } \\ & \quad{}+ \frac{ ( \mathrm{D}+ ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) }+\mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) \omega ) \delta ^{m-1}}{ \vert \Lambda \vert } \sum_{i=1}^{k} \frac{2 \vert \upgamma _{0i} \vert \delta ^{\vartheta _{i} + \theta} }{ \Gamma _{q} ( \vartheta _{i}+\theta + 1 ) } \\ &\quad{} + \frac{ \delta ^{m+\theta -1} ( \mathrm{D}+\mathrm{h}_{\mathfrak{g}} \omega ) }{ \vert \Lambda \vert \Gamma _{q} (\theta +1 ) } \Biggr) :=\zeta , \end{aligned}$$

where \(\mathrm{h}_{\mathfrak{g}} = \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) } + \mathrm{h}_{\mathfrak{g}}^{ ( 2 ) }\).

Step 3. \(\tilde{\mathcal{Z}}\) sends bounded sets of \(C(\Sigma , \mathbb{R})\) into equicontinuous sets. For \(\rho_{1}, \rho _{2}\in \Sigma \), \(\rho _{1} < \rho _{2}\) and for \(\upvarphi \in \Omega _{\omega }\), we have

$$\begin{aligned} & \bigl\vert ( \tilde{\mathcal{Z}}\upvarphi ) ( \rho_{2} ) - ( \tilde{\mathcal{Z}}\upvarphi ) ( \rho_{1} ) \bigr\vert \\ &\quad \leq \int _{0}^{\rho_{2}} \frac{ ( \rho _{2} - q\varpi )^{ ( \theta -1 ) }}{\Gamma _{q} ( \theta ) } \bigl\vert \mathfrak{g} \bigl( \varpi ,\upvarphi ( \varpi ) ,\upvarphi ( \lambda \varpi ) \bigr) \bigr\vert \,\mathrm{d}_{q} \varpi \\ &\quad \quad{}- \int _{0}^{\rho_{1}} \frac{ ( \rho _{1} - q\varpi )^{ ( \theta -1 ) }}{\Gamma _{q} ( \theta ) } \bigl\vert \mathfrak{g} \bigl( \varpi ,\upvarphi ( \varpi ) ,\upvarphi ( \lambda \varpi ) \bigr) \bigr\vert \,\mathrm{d}_{q} \varpi \\ &\quad \quad{}+ \biggl\vert \frac{\rho_{2}^{m-1} - \rho_{1}^{m-1}}{ \vert \Lambda \vert } \biggr\vert \\ &\quad \quad{}\times \sum_{i=1}^{k} \vert \upgamma _{0i} \vert \int _{0}^{\upgamma _{1i} } \frac{ ( \upgamma _{1i} - q \varpi )^{ ( \theta - 1 ) }}{\Gamma _{q} ( \theta ) } \bigl\vert \mathfrak{g} \bigl( \varpi , \upvarphi ( \varpi ), \upvarphi ( \lambda \varpi ) \bigr) \bigr\vert \,\mathrm{d}_{q} \varpi \\ &\quad \quad{}+ \biggl\vert \frac{\rho_{2}^{m-1} - \rho_{1}^{m-1}}{ \vert \Lambda \vert } \biggr\vert \int _{0}^{\delta} \frac{ ( \delta - q\varpi ) ^{ ( \theta -1 ) }}{\Gamma _{q} ( \theta ) } \bigl\vert \mathfrak{g} \bigl( \varpi ,\upvarphi ( \varpi ) ,\upvarphi ( \lambda \varpi ) \bigr) \bigr\vert \,\mathrm{d}_{q} \varpi. \end{aligned}$$

As \(\rho_{1} \rightarrow \rho _{2}\), we obtain

$$ \bigl\vert ( \tilde{\mathcal{Z}} \upvarphi ) ( \rho _{2})- ( \tilde{\mathcal{Z}} \upvarphi ) (\rho _{1}) \bigr\vert \to 0.$$

Consequently, \(\tilde{\mathcal{Z}} ( \Omega _{\omega } ) \) is equicontinuous. From the previous steps, together with the Arzelá–Ascoli theorem, we deduce that \(\tilde{\mathcal{Z}}\) is completely continuous.

Step 4. A priori bounds. Now, it remains to prove that the set

$$ \mathcal{U} = \bigl\{ \upvarphi \in C(\Sigma , \mathbb{R}) : \upvarphi = \varrho \tilde{\mathcal{Z}} \upvarphi , \text{for some } \varrho \in (0,1) \bigr\} ,$$

is bounded. Let \(\upvarphi \in \mathcal{U}\) and for each \(\rho \in \Sigma \), we have

$$\begin{aligned} \bigl\vert \upvarphi ( \rho ) \bigr\vert & = \bigl\vert \varrho \tilde{ \mathcal{Z}} \bigl( \upvarphi ( \rho ) \bigr) \bigr\vert \\ &\leq \mathcal{I}_{ q}^{\theta _{1}} \bigl\vert \mathfrak{g} \bigl( \rho , \upvarphi ( \rho ), \upvarphi ( \lambda \rho ) \bigr) \bigr\vert \\ & \quad{}+ \frac{ \rho ^{m-1}}{ \vert \Lambda \vert } \Biggl[ \sum_{i=1}^{k} \vert \upgamma _{0i} \vert \bigl( \mathcal{I}_{ q}^{\vartheta _{i}+ \theta } \bigl\vert \mathfrak{g} \bigl( \upgamma _{1i}, \upvarphi ( \upgamma _{1i} ), \upvarphi ( \lambda \upgamma _{1i} ) \bigr) \bigr\vert \\ & \quad{}+ \mathcal{I}_{ q}^{\vartheta _{i} + \theta} \bigl\vert \mathfrak{g} \bigl( \upgamma _{2i}, \upvarphi ( \upgamma _{2i} ), \upvarphi ( \lambda \upgamma _{2i} ) \bigr) \bigr\vert \bigr) \Biggr] \\ & \quad{}+ \frac{\rho ^{m-1}}{ \vert \Lambda \vert } \mathcal{I}_{ q}^{\theta} \bigl\vert \mathfrak{g} \bigl( \delta , \upvarphi ( \delta ) , \upvarphi ( \lambda \delta ) \bigr) \bigr\vert \\ & \leq \frac{ \delta ^{\theta} ( \mathrm{D}+ ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) } + \mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) \Vert \upvarphi \Vert ) }{ \Gamma _{q} ( \theta +1 ) } \\ & \quad{}+ \frac{ ( \mathrm{D}+ ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) }+\mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) \Vert \upvarphi \Vert ) \delta ^{m-1} }{ \vert \Lambda \vert } \sum_{i=1}^{k} \frac{ 2 \vert \gamma _{i} \vert \delta ^{\vartheta _{i} + \theta} }{ \Gamma _{q} ( \vartheta _{i} + \theta + 1 ) } \\ &\quad{}+ \frac{\delta ^{ m + \theta -1} ( \mathrm{D}+ (\mathrm{h}_{\mathfrak{g}}^{ ( 1 ) } + \mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) \Vert \upvarphi \Vert ) }{ \vert \Lambda \vert \Gamma _{q} ( \theta + 1 ) } . \end{aligned}$$
(14)

From inequality (14), we obtain \(\Vert \upvarphi \Vert \leq \frac{\mathrm{N}_{2}}{ ( 1- \mathrm{N}_{1} )}\), where

$$\begin{aligned} \mathrm{N}_{2}& =\frac{\delta ^{ \theta} \mathrm{D}}{\Gamma _{q} (\theta + 1 ) } + \frac{\mathrm{D} \delta ^{m-1}}{ \vert \Lambda \vert } \sum_{i=1}^{k} \frac{2 \vert \upgamma _{0i} \vert \delta ^{\vartheta _{i} + \theta }}{\Gamma _{q} ( \vartheta _{i} + \theta +1 ) }+\frac{\delta ^{m + \theta - 1 } \mathrm{D}}{ \vert \Lambda \vert \Gamma _{q} ( \theta + 1 )}. \end{aligned}$$
(15)

This means that the set \(\mathcal{U}\) is bounded. We infer from Schaefer’s fixed-point theorem that \(\tilde{\mathcal{Z}}\) possesses at least one fixed point. Consequently, there is at least one solution to the problem (1). □

4 Ulam–Hyers stability

In this section, we discuss two types of Ulam stability for solutions of problem (1).

Theorem 4.1

Suppose that the hypothesis (As1) and condition (10) are satisfied. Then, the problem (1) is Ulam–Hyers stable. Moreover, it is also generalized Ulam–Hyers stable.

Proof

Let \(\varepsilon >0\). Let \(\hat{\upvarphi}\in C(\Sigma , \mathbb{R})\) be any solution of the inequality

$$ \bigl\vert {}^{C }\mathcal{D}_{ q}^{\theta} \hat{ \upvarphi} ( \rho ) -\mathfrak{g} \bigl( \rho , \hat{\upvarphi} ( \rho ) , \hat{ \upvarphi} ( \lambda \rho ) \bigr) \bigr\vert \leq \varepsilon , \quad \rho \in \Sigma .$$

Then, there exists \(\mathrm{Q}\in C(\Sigma , \mathbb{R})\) such that

$$ {}^{C }\mathcal{D}_{ q}^{\theta} \hat{ \upvarphi} ( \rho ) = \mathfrak{g} \bigl( \rho , \hat{\upvarphi} ( \rho ), \hat{ \upvarphi} ( \lambda \rho ) \bigr) +\mathrm{Q } ( \rho ), \quad \rho \in \Sigma , $$
(16)

and \(\vert \mathrm{Q} ( \rho ) \vert \leq \varepsilon \), \(\rho \in \Sigma \). This gives

$$\begin{aligned} \hat{\upvarphi} ( \rho ) & = \mathcal{I}_{ q}^{\theta} \mathfrak{g} \bigl( \rho , \hat{\upvarphi} ( \rho ), \hat{\upvarphi} ( \lambda \rho ) \bigr) \\ &\quad{}+ \frac{\rho ^{m-1}}{\Lambda } \Biggl[ \sum_{i=1}^{k} \upgamma _{0i} \bigl( \mathcal{I}_{ q}^{\vartheta _{i} + \theta } \mathfrak{g} \bigl( \upgamma _{1i}, \hat{\upvarphi} ( \upgamma _{1i} ), \hat{\upvarphi} ( \lambda \upgamma _{1i} ) \bigr) \\ & \quad{}- \mathcal{I}_{ q}^{\vartheta _{i} + \theta } \mathfrak{g} \bigl( \upgamma _{2i}, \hat{\upvarphi} ( \upgamma _{2i} ) , \hat{ \upvarphi} ( \lambda \upgamma _{2i} ) \bigr) \bigr) \Biggr] \\ & \quad{}- \frac{\rho ^{m-1}}{\Lambda } \mathcal{I}_{ q}^{\theta} \mathfrak{g} \bigl( \delta , \hat{\upvarphi} ( \delta ), \hat{\upvarphi} ( \lambda \delta ) \bigr) + \mathcal{I}_{ q}^{\theta} \mathrm{Q} ( \rho ). \end{aligned}$$
(17)

On the other hand, let \(\upvarphi \in C(\Sigma , \mathbb{R})\) be a unique solution of the \(\mathbb{F}\mathrm{P}q{-}\mathbb{DE}\) (1). From Lemma 3.1, we have

$$\begin{aligned} \upvarphi ( \rho ) & =\mathcal{I}_{ q}^{\theta} \mathfrak{g} \bigl( \rho , \upvarphi ( \rho ), \upvarphi ( \lambda \rho ) \bigr) \\ & \quad{}+ \frac{\rho ^{m-1}}{\Lambda } \Biggl[ \sum_{i=1}^{k} \upgamma _{0i} \bigl( \mathcal{I}_{ q}^{\vartheta _{i} + \theta } \mathfrak{g} \bigl( \upgamma _{1i}, \upvarphi ( \upgamma _{1i} ) , \upvarphi ( \lambda \upgamma _{1i} ) \bigr) \\ & \quad{}- \mathcal{I}_{ q}^{\vartheta _{i}+\theta} \mathfrak{g} \bigl( \upgamma _{2i},\upvarphi ( \upgamma _{2i} ), \upvarphi ( \lambda \upgamma _{2i} ) \bigr) \bigr) \Biggr] \\ & \quad{}- \frac{\rho ^{m-1}}{\Lambda} \mathcal{I}_{ q}^{\theta} \mathfrak{g} \bigl( \delta ,\upvarphi ( \delta ), \upvarphi ( \lambda \delta ) \bigr). \end{aligned}$$
(18)

From (17), (18), and assumption (As1), we obtain

$$\begin{aligned} \bigl\vert \hat{\upvarphi} ( \rho ) - \upvarphi ( \rho ) \bigr\vert & \leq \mathcal{I}_{ q}^{\theta} \bigl\vert \mathrm{Q} ( \rho ) \bigr\vert + \mathcal{I}_{ q}^{\theta} \bigl\vert \mathfrak{g} \bigl( \rho ,\upvarphi ( \rho ) ,\upvarphi ( \lambda \rho ) \bigr) \\ & \quad{}-\mathfrak{g} \bigl( \rho , \hat{\upvarphi} ( \rho ), \hat{\upvarphi} ( \lambda \rho ) \bigr) \bigr\vert \\ & \quad{}+ \frac{\rho ^{m-1}}{ \vert \Lambda \vert } \Biggl[ \sum_{i=1}^{k} \vert \upgamma _{0i} \vert \bigl( \mathcal{I}_{ q}^{\vartheta _{i} + \theta} \bigl\vert \mathfrak{g} \bigl( \upgamma _{1i}, \upvarphi ( \upgamma _{1i} ) , \upvarphi ( \lambda \upgamma _{1i} ) \bigr) \\ & \quad{}-\mathfrak{g} \bigl(\upgamma _{1i}, \hat{\upvarphi} ( \upgamma _{1i} ), \hat{\upvarphi} ( \lambda \upgamma _{1i} ) \bigr) \bigr\vert \\ & \quad{}+\mathcal{I}_{ q}^{\vartheta _{i} + \theta} \bigl\vert \mathfrak{g} \bigl( \upgamma _{2i}, \upvarphi ( \upgamma _{2i} ) , \upvarphi ( \lambda \upgamma _{2i} ) \bigr) \\ & \quad{}-\mathfrak{g} \bigl( \upgamma _{2i}, \hat{\upvarphi} ( \upgamma _{2i} ) , \hat{\upvarphi} ( \lambda \upgamma _{2i} ) \bigr) \bigr\vert \bigr) \\ & \quad{}+\mathcal{I}_{ q}^{\theta} \bigl\vert \mathfrak{g} \bigl( \delta ,\upvarphi ( \delta ) , \upvarphi ( \lambda \delta ) \bigr) - \mathfrak{g} \bigl(\delta , \tilde{\upvarphi} ( \delta ) , \tilde{\upvarphi} ( \lambda \delta ) \bigr) \bigr\vert \Biggr] \\ & \leq \frac{\delta ^{\theta }\varepsilon }{ \Gamma _{q} ( \theta + 1 ) } + \mathrm{k}^{\ast }l_{\mathfrak{g}} \Vert \upvarphi - \hat{\upvarphi} \Vert . \end{aligned}$$

Hence,

$$ \bigl\Vert \hat{\upvarphi} ( \rho ) - \upvarphi ( \rho ) \bigr\Vert \leq \frac{T^{\theta _{1}}\varepsilon }{\Gamma _{q} ( \theta _{1}+1 ) }+ \mathrm{k}^{\ast }l_{f} \Vert \upvarphi - \hat{\upvarphi} \Vert ,$$

where \(\mathrm{k}^{\ast }\) is defined in (11). Consequently,

$$ \bigl\Vert \hat{\upvarphi} ( \rho ) -\upvarphi ( \rho ) \bigr\Vert \leq \frac{\delta ^{\theta}}{\Gamma _{q} ( \theta + 1 ) ( 1-\mathrm{k}^{ \ast} l_{\mathfrak{g}} ) } \varepsilon . $$
(19)

Consequently, the problem (1) is Ulam–Hyers stable. By setting

$$ \phi ( \varepsilon ) = \frac{\delta ^{\theta} }{ \Gamma _{q} ( \theta + 1 ) ( 1-\mathrm{k}^{\ast } l_{\mathfrak{g}} ) } \varepsilon ,$$

we obtain

$$ \bigl\Vert \hat{\upvarphi} ( \rho ) - \upvarphi ( \rho ) \bigr\Vert \leq \phi (\varepsilon ). $$
(20)

Clearly in (20), \(\phi ( \varepsilon ) =0\). Therefore, the problem (1) is also generalized Ulam–Hyers stable. □

5 Illustrative examples with a numerical approach

In this section, we provide two examples to validate the obtained results.

Example 5.1

Consider the following nonlocal boundary value problem of \(\mathbb{F}\mathrm{P}q{-}\mathbb{DE}\) as

$$ \textstyle\begin{cases} {}^{C }\mathcal{D}_{ q}^{7/2} \upvarphi ( \rho ) = \mathfrak{g} ( \rho, \upvarphi (\rho ), \upvarphi ( \frac{1}{2} \rho ) ), \\ \upvarphi ( 0 ) = \upvarphi^{\prime } ( 0 ) = \upvarphi^{ \prime \prime} ( 0 )=0, \\ \upvarphi ( 1 ) = \frac {1}{3} ( \mathcal{I}_{ q}^{ 1/3} \upvarphi ( \frac{1}{2} ) - \mathcal{I}_{ q}^{1/4} \upvarphi ( \frac{1}{6} ) ) \\ \hphantom{ \upvarphi ( 1 ) ={}}{}+ \frac {1}{4} ( \mathcal{I}_{ q}^{ 1/3} \upvarphi ( \frac{1}{4} ) - \mathcal{I}_{ q}^{1/4} \upvarphi ( \frac{1}{8} ) ), \end{cases} $$
(21)

for \(\rho \in \Sigma = [0, 1]\) with \(\delta =1>0\). Here, \(\theta =\frac{7}{2} \in (3, 4]\) with \(m=4 \geq 2\), \(\lambda = \frac{1}{2} \in (0,1)\), \(i=0,1,2\), \(k=2\), \(\upgamma _{01} = \frac{1}{3} \in \mathbb{R}\), \(\upgamma _{02} = \frac{1}{4} \in \mathbb{R}\), \(\vartheta _{1} = \frac{1}{3} >0\), \(\vartheta _{2} = \frac{1}{4}>0\), \(\upgamma _{11} = \frac{1}{2} \in (0,1)\), \(\upgamma _{12} = \frac{1}{4} \in (0,1)\), and \(\upgamma _{21} = \frac{1}{6}\in (0,1)\), \(\upgamma _{22}=\frac{1}{8} \in (0,1)\). We consider three cases

$$ q= \biggl\{ \frac{3}{10}, \frac{1}{2}, \frac{9}{10} \biggr\} ,$$

for the problem. With Eq. (4) and these data we find that

$$\begin{aligned} \Lambda &= \sum_{i=1}^{k} \frac{\upgamma _{0i} \Gamma _{q} ( m ) }{ \Gamma _{q} ( m + \vartheta _{i} ) } \bigl( \upgamma _{2i}^{\vartheta _{i} + m-1} - \upgamma _{1i}^{\vartheta _{i} + m-1} \bigr) + \delta ^{ m-1} \\ (k=2)\quad & = \frac{\upgamma _{01} \Gamma _{q} (4 ) }{ \Gamma _{q} ( 4 + \vartheta _{1} ) } \bigl( \upgamma _{21}^{\vartheta _{1} + 3} - \upgamma _{11}^{\vartheta _{1} + 3} \bigr) \\ & \quad{}+ \frac{\upgamma _{02} \Gamma _{q} (4 ) }{ \Gamma _{q} ( 4 + \vartheta _{2} ) } \bigl( \upgamma _{22}^{\vartheta _{2} + 3} - \upgamma _{12}^{\vartheta _{2} + 3} \bigr)+ \delta ^{ 3} \\ & = \frac{\frac{1}{3} \Gamma _{q} (4 ) }{ \Gamma _{q} ( 4 + \frac{1}{3} ) } \biggl( \biggl(\frac{1}{4} \biggr)^{\frac{1}{3} + 3} - \biggl(\frac{1}{2} \biggr)^{\frac{1}{3} + 3} \biggr) \\ & \quad{}+ \frac{\frac{1}{4} \Gamma _{q} ( 4 ) }{ \Gamma _{q} ( 4 + \frac{1}{4} ) } \biggl( \biggl(\frac{1}{8} \biggr)^{\frac{1}{4} + 3} - \biggl(\frac{1}{6} \biggr)^{\frac{1}{4} + 3} \biggr)+ \delta ^{ 3} \\ & \simeq \left \{\textstyle\begin{array}{l@{\quad}l} 0.9728, & q=\frac{3}{10}, \\ 0.9746, & q=\frac{1}{2}, \\ 0.9777, & q=\frac{9}{10} \end{array}\displaystyle \right \} < 1. \end{aligned}$$
(22)

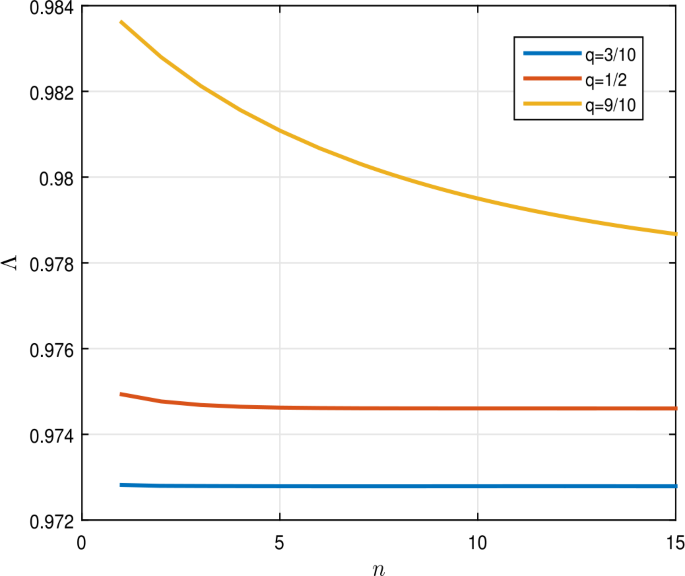

One can see these results in Table 1 and the graphical representation of Λ for three cases of q in Fig. 2. Consider the function

$$ \mathfrak{g} \biggl( \rho , \upvarphi ( \rho ) , \upvarphi \biggl( \frac{1}{2} \rho \biggr) \biggr) = \frac{\cos ( \rho ) \vert \upvarphi ( \rho ) \vert }{ (\exp ( \rho ^{2} ) + 5 ) ( \vert \upvarphi ( \rho ) \vert +1 ) } + \frac{\exp ( -\sin ( \rho ) ) \upvarphi ( \frac{1}{2}\rho ) }{ ( 6+ \rho ) ( \vert \upvarphi ( \frac{1}{2}\rho ) \vert +1 )}. $$

Now, for every \(\upvarphi , \tilde{\upvarphi} \in \mathbb{R}\) and \(\rho \in \Sigma \), one has

$$\begin{aligned} & \biggl\vert \mathfrak{g} \biggl( \rho , \upvarphi ( \rho ), \upvarphi \biggl( \frac{1}{2} \rho \biggr) \biggr) - \mathfrak{g} \biggl( \rho , \tilde{ \upvarphi} ( \rho ), \tilde{\upvarphi} \biggl( \frac{1}{2}\rho \biggr) \biggr) \biggr\vert \\ &\quad \leq \biggl\vert \frac{\cos ( \rho ) }{ ( \exp ( \rho ^{2} ) +5 ) } \biggl( \frac{ \vert \upvarphi ( \rho ) \vert }{ ( \vert \upvarphi ( \rho ) \vert +1 ) } - \frac{ \vert \tilde{\upvarphi} ( \rho ) \vert }{ ( \vert \tilde{\upvarphi} ( \rho ) \vert +1 ) } \biggr) \biggr\vert \\ &\quad \quad{}+ \biggl\vert \frac{\exp ( -\sin ( \rho ) ) }{ ( 6+\rho ) } \biggl( \frac{\upvarphi ( \frac{1}{2} \rho ) }{ ( \vert \upvarphi ( \frac{1}{2} \rho ) \vert +1 ) } - \frac{\tilde{\upvarphi} (\frac{1}{2}\rho )}{ ( \vert \tilde{\upvarphi} ( \frac{1}{2}\rho ) \vert +1 ) } \biggr) \biggr\vert \\ &\quad \leq \biggl\vert \frac{\cos ( \rho ) }{ ( \exp ( \rho ^{2} ) +5 ) } \biggr\vert \biggl\vert \frac{\upvarphi ( \rho ) -\tilde{\upvarphi} ( \rho ) }{ ( \vert \upvarphi ( \rho ) \vert +1 ) ( \vert \tilde{\upvarphi} ( \rho ) \vert +1 ) } \biggr\vert \\ &\quad \quad{}+ \biggl\vert \frac{\exp ( -\sin ( \rho ) ) }{ ( 6+\rho ) } \biggr\vert \biggl\vert \frac{\upvarphi ( \frac{1}{2}\rho ) - \tilde{\upvarphi} (\frac{1}{2} \rho ) }{ ( \vert \upvarphi ( \frac{1}{2} \rho ) \vert +1 ) ( \vert \tilde{\upvarphi} ( \frac{1}{2}\rho ) \vert + 1 ) } \biggr\vert \\ &\quad \leq \biggl\vert \frac{\cos ( \rho ) }{ ( \exp ( \rho ^{2} ) +5 ) } \biggr\vert \bigl\vert \upvarphi ( \rho ) -\tilde{\upvarphi} (\rho ) \bigr\vert \\ &\quad \quad{}+ \biggl\vert \frac{\exp ( -\sin (\rho ) ) }{ ( 6 + \rho ) } \biggr\vert \biggl\vert \upvarphi \biggl( \frac{1}{2} \rho \biggr) - \tilde{\upvarphi} \biggl( \frac{1}{2}\rho \biggr) \biggr\vert \\ &\quad \leq \frac{1}{6} \biggl( \bigl\vert \upvarphi ( \rho ) -\tilde{ \upvarphi} ( \rho ) \bigr\vert + \biggl\vert \upvarphi \biggl( \frac{1}{2}\rho \biggr) - \tilde{\upvarphi} \biggl( \frac{1}{2}\rho \biggr) \biggr\vert \biggr), \end{aligned}$$

thus, the assumption (As1) is satisfied for \(l_{\mathfrak{g}}=\frac{1}{6}\) and by using Eq. (11) we obtain

$$\begin{aligned} \mathrm{k}^{\ast} l_{\mathfrak{g}} & = \frac{2 (\delta ^{\theta } + \delta ^{m+ \theta -1} )}{ \Gamma _{q} ( \theta + 1 ) } + \sum _{i=1}^{k} \vert \upgamma _{0i} \vert \frac{4\delta ^{m+ \vartheta _{i}+\theta -1}}{ \vert \Lambda \vert \Gamma _{q} ( \vartheta _{i} + \theta +1 ) } \\ (k=2)\quad & = \frac{4}{ \Gamma _{q} ( \frac{7}{2}+ 1 ) } + \biggl\vert \frac{1}{3} \biggr\vert \frac{4}{ \vert \Lambda \vert \Gamma _{q} ( \frac{1}{3} + \frac{7}{2} +1 ) } \\ & \quad{}+ \biggl\vert \frac{1}{4} \biggr\vert \frac{4}{ \vert \Lambda \vert \Gamma _{q} ( \frac{1}{4} + \frac{7}{2}+1 ) } \\ & \simeq \left \{\textstyle\begin{array}{l@{\quad}l} 0.4716, & q=\frac{3}{10}, \\ 0.2558, & q=\frac{1}{2}, \\ 0.0315, & q=\frac{9}{10} \end{array}\displaystyle \right \} < 1. \end{aligned}$$
Figure 2
figure 2

Graphical representation of Λ for \(q \in \{\frac{3}{10} , \frac{1}{2}, \frac{9}{10} \}\) in Example 5.1 according to Eq. (4)

Table 1 Numerical results of \(\Gamma _{q}(m)\) and Λ of \(\mathbb{F}\mathrm{D}q-\mathbb{DP}\) (21) with \(q\in \{ \frac{3}{10}, \frac{1}{2}, \frac{9}{10} \}\) in Example 5.1

Table 2 shows these results and the graphical representation of \(\mathrm{k}^{\ast}\) for three cases of q can be seen in Fig. 3. Hence, inequality (10) holds. Hence, all hypotheses of Theorem 3.2 hold, and so the problem (21) has at most one solution on Σ. Further, it follows from Theorem 4.1 that the problem (21) is Ulam–Hyers stable and consequently it is also generalized Ulam–Hyers stable.

Figure 3
figure 3

Graphical representation of \(\mathrm{k}^{\ast}\) for \(q \in \{\frac{3}{10} , \frac{1}{2}, \frac{9}{10} \}\) in Example 5.1 according to Eq. (10)

Table 2 Numerical results of \(\Gamma _{q}(\theta +1)\) and \(\mathrm{k}^{\ast}\) of \(\mathbb{F}\mathrm{D}q-\mathbb{DP}\) (21) with \(q\in \{ \frac{3}{10}, \frac{1}{2}, \frac{9}{10} \}\) in Example 5.1

Example 5.2

Consider problem (21) with the function

$$ \mathfrak{g} \biggl( \rho, \upvarphi ( \rho ) , \upvarphi \biggl( \frac{1}{2} \rho \biggr) \biggr) = 2 +\frac{1}{4}\sqrt{ \bigl\vert \upvarphi ( \rho ) \bigr\vert } + \frac{1}{7}\sqrt{ \biggl\vert \upvarphi \biggl( \frac{1}{2} \rho \biggr) \biggr\vert }.$$

Now, for any \(\upvarphi \in \mathbb{R}\) and \(\rho \in \Sigma \), we have

$$ \biggl\vert \mathfrak{g} \biggl( \rho, \upvarphi ( \rho ), \upvarphi \biggl( \frac{1}{2} \rho \biggr) \biggr) \biggr\vert \leq 2 + \frac{1}{4} \bigl\vert \upvarphi ( \rho ) \bigr\vert + \frac{1}{7} \biggl\vert \upvarphi \biggl( \frac{1}{2} \rho \biggr) \biggr\vert ,$$

thus, the assumption (As2) is satisfied for \(\mathrm{D}=2\), \(\mathrm{h}_{\mathfrak{g}}^{ ( 1 ) }= \frac{1}{4}\) and \(\mathrm{h}_{\mathfrak{g} }^{ ( 2 ) }=\frac{1}{7}\) and

$$\begin{aligned} \mathrm{N}_{1}& =\frac{\delta ^{\theta } ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) } + \mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) }{\Gamma _{q} ( \theta +1 ) }+\frac{ ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) } + \mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) \delta ^{m-1}}{ \vert \Lambda \vert } \sum _{i=1}^{k} \frac{2 \vert \gamma \vert \delta ^{\vartheta _{i} + \theta }}{\Gamma _{q} ( \vartheta _{i}+\theta +1 ) } \\ &\quad{}+ \frac{\delta ^{m+\theta -1} ( \mathrm{h}_{\mathfrak{g}}^{ ( 1 ) } + \mathrm{h}_{\mathfrak{g}}^{ ( 2 ) } ) }{ \vert \Lambda \vert \Gamma _{q} ( \theta _{1}+1 ) } \\ & =\frac{\frac{1}{4} + \frac{1}{7} }{\Gamma _{q} ( \frac{7}{2} +1 ) } + \frac{\frac{1}{4} + \frac{1}{7} }{ \vert \Lambda \vert } \biggl[ \frac{2 \vert \frac{1}{3} \vert }{ \Gamma _{q} ( \frac{1}{3} + \frac{7}{2} +1 ) } + \frac{2 \vert \frac{1}{4} \vert }{\Gamma _{q} ( \frac{1}{4} + \frac{1}{4} +1 ) } \biggr] \\ &\quad{}+ \frac{ \frac{1}{4} + \frac{1}{7}}{ \vert \frac{1}{2} \vert \Gamma _{q} ( \frac{7}{2}+1 ) } \\ &\simeq \left \{\textstyle\begin{array}{l@{\quad}l} 0.5609, & q=\frac{3}{10}, \\ 0.3041, & q=\frac{1}{2}, \\ 0.0376, & q=\frac{9}{10} \end{array}\displaystyle \right \} < 1. \end{aligned}$$

Table 3 shows these results and the graphical representation of \(\mathrm{N}_{1}\) for three cases of q can be seen in Fig. 4. Hence, all items of Theorem 3.3 are satisfied. Hence, the problem (21) possesses at least one solution on Σ.

Figure 4
figure 4

Graphical representation of \(\mathrm{N}_{1}\) for \(q \in \{\frac{3}{10} , \frac{1}{2}, \frac{9}{10} \}\) in Example 5.2 according to Eq. (13)

Table 3 Numerical results of \(\mathrm{N}_{1}\) of \(\mathbb{F}\mathrm{D}q-\mathbb{DP}\) (21) with \(q\in \{ \frac{3}{10}, \frac{1}{2}, \frac{9}{10} \}\) in Example 5.2

6 Conclusion

The \(\mathbb{F}\mathrm{P}q{-}\mathbb{DE}\) has been investigated in this work in detail. The investigation of this particular equation provides us with a powerful tool in modeling most scientific phenomena without the need to remove most parameters that have an essential role in the physical interpretation of the studied phenomena. For the first time, we have described the existence and uniqueness of solutions of various classes of nonlinear pantograph-type \(\mathbb{F}\mathrm{P}q{-}\mathbb{DE}\) (1) on a time scale under some BCs. Also, the two types of Ulam stability of the problem (1) are considered. We presented a few examples of \(\mathbb{F} \mathrm{P}q-\mathbb{DE}\) (1) that describe our outcomes.

Availability of data and materials

Data sharing is not applicable to this article as no datasets were generated or analyzed during the current study.

References

  1. Finkelstein, R., Marcus, E.: Transformation theory of the q-oscillator. J. Math. Phys. 36(6), 2652–2672 (1995)

    Article  MathSciNet  MATH  Google Scholar

  2. Floreanini, R., Vinet, L.: Symmetries of the q-difference heat equation. Lett. Math. Phys. 32(1), 37–44 (1994)

    Article  MathSciNet  MATH  Google Scholar

  3. Han, G., Zeng, J.: On a q-sequence that generalizes the median Genocchi numbers. Ann. Sci. Math. Qué. 23, 63–72 (1999)

    MathSciNet  MATH  Google Scholar

  4. Abdeljawad, T., Samei, M.E.: Applying quantum calculus for the existence of solution of q-integro-differential equations with three criteria. Discrete Contin. Dyn. Syst., Ser. S 14(10), 3351–3386 (2021)

    MathSciNet  MATH  Google Scholar

  5. Guo, C., Guo, J., Gao, Y., Kang, S.: Existence of positive solutions for two-point boundary value problems of nonlinear fractional q-difference equation. Adv. Differ. Equ. 2018, 180 (2018)

    Article  MathSciNet  MATH  Google Scholar

  6. Liang, S., Samei, M.E.: New approach to solutions of a class of singular fractional q-differential problem via quantum calculus. Adv. Differ. Equ. 2020, 14 (2020)

    Article  MathSciNet  MATH  Google Scholar

  7. Sheng, Y., Zhang, T.: Some results on the q-calculus and fractional q-differential equations. Mathematics 10(1), 64 (2022)

    Article  Google Scholar

  8. Abbas, S., Benchohra, M., Laledj, N., Zhou, Y.: Existence and Ulam stability for implicit fractional q-difference equations. Adv. Differ. Equ. 2019, 48 (2019)

    Article  MathSciNet  MATH  Google Scholar

  9. Jiang, M., Huang, R.: Existence and stability results for impulsive fractional q-difference equation. J. Appl. Math. Phys. 8(7), 1413–1423 (2020)

    Article  Google Scholar

  10. Kalvandi, V., Samei, M.E.: New stability results for a sum-type fractional q-integro-differential equation. J. Adv. Math. Stud. 12(2), 201–209 (2019)

    MathSciNet  MATH  Google Scholar

  11. Lachouri, A., Ardjouni, A., Djoudi, A.: Existence and uniqueness results for nonlinear implicit Caputo fractional q-difference equations with nonlocal conditions. Asia Pac. J. Math. 7, 34 (2020)

    MATH  Google Scholar

  12. Agarwal, R.P., Ahmad, B., Alsaedi, A., Al-Hutami, H.: Existence theory for q-antiperiodic boundary value problems of sequential q-fractional integrodifferential equations. Abstr. Appl. Anal. 2014, 207547 (2014)

    Article  MathSciNet  MATH  Google Scholar

  13. Phuong, N.D., Etemad, S., Rezapour, S.: On two structures of the fractional q-sequential integro-differential boundary value problems. Math. Methods Appl. Sci. 45(2), 618–639 (2022)

    Article  MathSciNet  Google Scholar

  14. Ockendon, J.R., Tayler, A.B.: The dynamics of a current collection system for an electric locomotive. Proc. R. Soc. Lond., Ser. A, Math. Phys. Eng. Sci. 322, 447–468 (1971)

    Google Scholar

  15. Polyanin, A.D., Sorokin, V.G.: Nonlinear pantograph-type diffusion PDEs: exact solutions and the principle of analogy. Mathematics 9, 511 (2021). https://doi.org/10.3390/math9050511

    Article  Google Scholar

  16. Kosari, S., Shao, Z., Yadollahzadeh, M., Rao, Y.: Existence and uniqueness of solution for quantum fractional pantograph equations. Iran. J. Sci. Technol. Trans. A, Sci. 45, 1383–1388 (2021). https://doi.org/10.1007/s40995-021-01124-1

    Article  MathSciNet  Google Scholar

  17. Abdo, M.S., Abdeljawad, T., Ali, S.M., Shah, K.: On fractional boundary value problems involving fractional derivatives with Mittag-Leffler kernel and nonlinear integral conditions. Adv. Differ. Equ. 2021, 37 (2021). https://doi.org/10.1186/s13662-020-03196-6

    Article  MathSciNet  MATH  Google Scholar

  18. Ali, G., Shah, K., Rahman, G.: Investigating a class of pantograph differential equations under multi-points boundary conditions with fractional order. Int. J. Appl. Comput. Math. 7, 2 (2021). https://doi.org/10.1007/s40819-020-00932-0

    Article  MathSciNet  MATH  Google Scholar

  19. Alzabut, J., Selvam, A.G.M., El-Nabulsi, R.A., Dhakshinamoorthy, V., Samei, M.E.: Asymptotic stability of nonlinear discrete fractional pantograph equations with non-local initial conditions. Symmetry 13(3), 473 (2021). https://doi.org/10.3390/sym13030473

    Article  Google Scholar

  20. Derbazi, C., Baitiche, Z., Abdo, M.S., Shah, K., Abdalla, B., Abdeljawad, T.: Extremal solutions of generalized Caputo-type fractional-order boundary value problems using monotone iterative method. Fractal Fract. 6, 146 (2022). https://doi.org/10.3390/fractalfract6030146

    Article  Google Scholar

  21. Rezapour, S., Samei, M.E.: On the existence of solutions for a multi-singular pointwise defined fractional q-integro-differential equation. Bound. Value Probl. 2020, 38 (2020)

    Article  MathSciNet  MATH  Google Scholar

  22. Samei, M.E., Zanganeh, H., Aydogan, S.M.: Investigation of a class of the singular fractional integro-differential quantum equations with multi-step methods. J. Math. Ext. 17(1), 1–545 (2021)

    MATH  Google Scholar

  23. Samei, M.E., Ahmadi, A., Hajiseyedazizi, S.N., Mishra, S.K., Ram, B.: The existence of non-negative solutions for a nonlinear fractional q-differential problem via a different numerical approach. J. Inequal. Appl. 2021, 75 (2021). https://doi.org/10.1186/s13660-021-02612-z

    Article  MATH  Google Scholar

  24. Aydogan, M., Baleanu, D., Aguilar, J.F.G., Rezapour, S., Samei, M.E.: Approximate endpoint solutions for a class of fractional q-differential inclusions. Fractals 28(8), 2040029 (2020). https://doi.org/10.1142/S0218348X20400290

    Article  MATH  Google Scholar

  25. Samei, M.E., Rezapour, S.: On a system of fractional q-differential inclusions via sum of two multi-term functions on a time scale. Bound. Value Probl. 2020, 135 (2020). https://doi.org/10.1186/s13661-020-01433-1

    Article  MathSciNet  MATH  Google Scholar

  26. Ntouyas, S.K., Samei, M.E.: Existence and uniqueness of solutions for multi-term fractional q-integro-differential equations via quantum calculus. Adv. Differ. Equ. 2019, 475 (2019). https://doi.org/10.1186/s13662-019-2414-8

    Article  MathSciNet  MATH  Google Scholar

  27. Samei, M.E., Hedayati, V., Rezapour, S.: Existence results for a fraction hybrid differential inclusion with Caputo–Hadamard type fractional derivative. Adv. Differ. Equ. 2019, 163 (2019). https://doi.org/10.1186/s13662-019-2090-8

    Article  MathSciNet  MATH  Google Scholar

  28. Kac, V., Cheung, P.: Quantum Calculus. Universitext. Springer, New York (2002). https://doi.org/10.1007/978-1-4613-0071-7-1

    Book  MATH  Google Scholar

  29. Agarwal, R.P.: Certain fractional q-integrals and q-derivatives. Proc. Camb. Philos. Soc. 66, 365–370 (1969). https://doi.org/10.1017/S0305004100045060

    Article  MathSciNet  MATH  Google Scholar

  30. Rajkovic, P.M., Marinkovic, S.D., Stankovic, M.S.: On q-analogues of Caputo derivative and Mittag-Leffler function. Fract. Calc. Appl. Anal. 10, 359–373 (2007)

    MathSciNet  MATH  Google Scholar

  31. Smart, D.R.: Fixed Point Theorems. Cambridge University Press, London (1974)

    MATH  Google Scholar

Download references

Acknowledgements

Not applicable.

Funding

Not applicable.

Author information

Authors and Affiliations

Authors

Contributions

AL: Actualization, methodology, formal analysis, validation, investigation, initial draft and was a major contributor in writing the manuscript. MES: Actualization, methodology, formal analysis, validation, investigation, software, simulation, initial draft and was a major contributor in writing the manuscript. AA: Actualization, methodology, formal analysis, validation, investigation and initial draft. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Mohammad Esmael Samei.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare no competing interests.

Appendix

Appendix

Algorithm 1

(MATLAB function for calculation q-gamma function)

figure e

Algorithm 2

(MATLAB function for calculation the fractional q-integral of the Riemann–Liouville type)

figure f

Algorithm 3

(MATLAB lines for calculation of all variables in Example 5.1)

figure g

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Lachouri, A., Samei, M.E. & Ardjouni, A. Existence and stability analysis for a class of fractional pantograph q-difference equations with nonlocal boundary conditions. Bound Value Probl 2023, 2 (2023). https://doi.org/10.1186/s13661-022-01691-1

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s13661-022-01691-1

MSC

  • 26A33
  • 39A13
  • 34A08

Keywords

  • Pantograph q-difference problem
  • Caputo fractional q-difference derivatives
  • Schaefer fixed-point theorem
