# Chebyshev spectral method for studying the viscoelastic slip flow due to a permeable stretching surface embedded in a porous medium with viscous dissipation and non-uniform heat generation

*Boundary Value Problems*
**volume 2017**, Article number: 37 (2017)

## Abstract

Herein, we study the numerical solution with the help of Chebyshev spectral collocation method for the ordinary differential equations which describe the flow of viscoelastic fluid over a stretching sheet embedded in a porous medium with viscous dissipation and slip velocity. The novel effects for the parameters which affect the flow and heat transfer, such as the Eckert number coupled with a porous medium and the velocity slip parameter, are studied. Also, the convergence analysis for the proposed method is addressed.

## Introduction

Owing to the importance of the fluid flow over a stretching surface because of its practical applications such as hot rolling, fiber plating, and lubrication processes, Crane [1] was the first researcher to investigate an analytical solution to the problem of Newtonian boundary layer equations for the flow due to a stretching surface. In the same context, similar problems of Newtonian flow at different situations past a stretching surface have been extended by many authors [2–5].

The viscoelastic fluid belongs to a very important class of non-Newtonian fluids which is often found in many fields of engineering fluid mechanics because of its immense applications, such as inks, paints, and jet fuels. From this standpoint and because of this great importance to this type of fluid, many researchers turned to the study of this type under different conditions. From these researchers, for example, but not limited [6–14].

Motivated by the above mentioned studies, the effects of velocity slip is absence. However, this phenomenon is very interesting in fluid mechanics. The earliest slip boundary condition was proposed by Navier [15]. After the pioneering work of Navier [15], many papers dealing with this aspect are presented [16–18]. In the same context, velocity slip effect on the viscoelastic fluid flow and heat transfer was introduced by many authors [19–21].

The prediction of heat transfer characteristics for the non-Newtonian viscoelastic fluids in porous media is very important due to its practical engineering applications, such as oil recovery, flow through filtering media, and food processing. So, in this work a new visualization for the effects of viscous dissipation, non-uniform heat generation/absorption and velocity slip on the flow and heat transfer of a viscoelastic fluid over a stretching sheet embedded in porous medium is presented.

The Chebyshev collocation methods are used to solve many problems of ODEs and PDEs [22, 23]. We can solve ODEs or PDEs to high accuracy on a simple domain using these methods. They can often achieve 10 digits of accuracy where the finite difference method or finite element method would get two or three digits of accuracy [24]. At lower accuracies, they demand less computational time and computer memory than the alternatives. For a recent efficient use of spectral methods, in physical and engineering problems, see [25, 26]. So, in this work, we use the properties of the Chebyshev polynomials to derive an approximate formula of the integer derivative \(D^{(n)}y(x)\) and estimate an error upper bound of this formula, then we use this formula to solve numerically the proposed problem.

## Formulation of the problem

In this section, we will consider a two-dimensional boundary layer flow of an incompressible viscoelastic fluid over a stretching sheet embedded in a porous medium. The origin is located at a slit, through which the sheet (see Figure 1) is drawn through the fluid medium. The *x*-axis is chosen along the sheet and the *y*-axis is taken normal to it.

The sheet is assumed to have the velocity \(U=cx\) where *x* is the coordinate measured along the stretching surface and \(c(>0)\) is a constant for a stretching sheet. Likewise, the temperature distribution for the sheet is assumed to be in the form \(T_{w}=T_{\infty}+Ax^{r}\) where \(T_{w}\) is the temperature of the sheet, \(T_{\infty}\) is the temperature of the ambient, *A* and *r* are constants. Also, the sheet is assumed to be porous with the suction velocity \(v_{w}>0\).

Making the usual boundary layer approximations the boundary layer equations read

where *u* and *v* are the velocity components in the *x* and *y* directions, respectively. *ρ* is the density of the fluid, *κ* is the fluid thermal conductivity and \(K_{0}\) is a positive parameter associated with the viscoelastic fluid. *T* is the temperature of the fluid, *μ* is the fluid viscosity, \(\mu_{e}\) is the dynamic viscosity of the fluid due to the flow in the porous medium, *k* is the permeability of the porous medium, \(q^{\prime\prime\prime}\) is the rate of internal heat generation, and \(c_{p}\) is the specific heat at constant pressure. We must observe that in the second term of the right hand side of equation (3), we follow [27–30].

The boundary conditions with the slip condition [19–21] can be written as

where *a* is the velocity slip factor. The mathematical analysis of the problem is simplified by introducing the following dimensionless coordinates:

where *η* is the similarity variable, \(f(\eta)\) is the dimensionless stream function, \(\nu=\frac{\mu}{\rho}\) is the kinematic viscosity, and \(\theta(\eta)\) is the dimensionless temperature. It can be seen that a similarity solution exists only when we take \(r=2\).

Likewise, the internal heat generation or absorption \(q^{\prime\prime\prime}\) is modeled according to the following formula [31]:

Therefore, upon using these variables, the boundary layer governing equations (2)-(3) can be written in the following non-dimensional form:

the boundary conditions are

where \(\beta=\frac{\mu_{e}}{\rho c k}\) is the porous parameter, \(K=\frac{c K_{0}}{\mu}\) is the viscoelastic parameter, \(\mathrm{Pr}=\frac{\mu c_{p}}{\kappa}\) is the Prandtl number, \(\mathrm{Ec}=\frac{c^{2}}{A c_{p}}\) is the Eckert number, \(f_{w}=\frac{v_{w}}{\sqrt{c\nu}}>0\) is the suction velocity parameter, and \(\lambda=a\sqrt{\frac{c}{\nu}}\) is the velocity slip parameter.

Finally, the local skin friction coefficient \(C_{f}\) and the local Nusselt number analysis Nu, which are very important, can be written as

where \(R_{\mathrm{ex}}\) is the local Reynolds number.

## Procedure solution using Chebyshev spectral collocation method

### An approximate formula of the derivative for Chebyshev polynomials expansion

The analytic form of the Chebyshev polynomials \(T_{n}(z)\) of degree *n* is given by

where \([\frac{n}{2}]\) denotes the integer part of \(\frac{n}{2}\).

In order to use these polynomials on the interval \([0,1]\) for example, we define the so-called shifted Chebyshev polynomials by introducing the change of variable \(z=2x-1\). The shifted Chebyshev polynomials are denoted by \(ST_{n}(x)=T_{n}(2x-1)=T_{2n}(\sqrt{x})\). We can generalize this formula in any interval \([0,\eta_{\infty}]\).

The function \(y(x)\), which belongs to the space of square integrable functions in \([0,1]\), may be expressed in terms of shifted Chebyshev polynomials as

where the coefficients \(c_{i}\) are given by

In practice, only the first \((m+1)\)-terms of shifted Chebyshev polynomials are considered. Then we have

The analytic form of the shifted Chebyshev polynomials \(ST_{n}(x)\) of degree *n* is given by

The main approximate formula of the derivative of \(y_{m}(x)\) is given in the following theorem.

### Theorem 1

*Let*
\(y(x)\)
*be approximated by shifted Chebyshev polynomials as* (18) *and also suppose*
*r*
*is an integer number*, *then*

*where*
\(\lambda_{i, k, r}\)
*is given by*

### Proof

The proof of this theorem can be done directly with the help of equation (19) and some properties of the shifted Chebyshev polynomials. □

Also in this subsection, special attention is given to study the convergence analysis and evaluating the upper bound of the error of the proposed formula.

### Theorem 2

*The derivative of order*
*r*
*for the shifted Chebyshev polynomials can be expressed in terms of the shifted Chebyshev polynomials themselves in the following form*:

*where*

### Proof

We concern the properties of the shifted Chebyshev polynomials [32] and expand \(x^{k-r}\) in the proof of the previous theorem in the following form:

where \(c_{kj}\) can be obtained using (17) where \(y(x)=x^{k-r}\); then

At \(j=0\) we find,

also, at any *j* and using equation (19) we can find that

employing (23) gives

where

After some lengthly manipulation \(\Theta_{i,j,k}\) can put in the following form:

and this completes the proof of the theorem. □

### Theorem 3

*The error*
\(\vert E_{T}(m)\vert =\vert D^{(r)}y(x)-D^{(r)}y_{m}(x)\vert \)
*in approximating*
\(D^{(r)}y(x)\)
*by*
\(D^{(r)}y_{m}(x)\)
*is bounded by*

### Proof

A combination of equations (16), (18), and (22) leads to

but \(\vert ST_{j}(x)\vert \leq1\), so, we can obtain

and subtracting the truncated series from the infinite series, bounding each term in the difference, and summing the bounds completes the proof of the theorem. □

### Procedure solution

In this subsection, we implement the proposed method to solve numerically the system of ordinary differential equations of the form (9)-(10). The unknown functions \(f(\eta)\) and \(\theta(\eta)\) may be expanded by a finite series of shifted Chebyshev polynomials as in the following approximations:

From equations (9)-(10), (26) and Theorem 1 we have

We now collocate equations (27)-(28) at \((m-n+1)\) points \(\eta_{s}\), \(s=0,1,\ldots,m-n\) as

For suitable collocation points, we use the roots of the shifted Chebyshev polynomial \({ST}_{m-n+1}(\eta)\). Also, by substituting formula (26) in the boundary conditions (11)-(12) we can obtain five equations as follows:

where \(\ell1_{i}=ST^{\prime}_{i}(0), \ell2_{i}=ST^{\prime\prime}_{i}(0), \ell 3_{i}=ST^{\prime}_{i}(\eta_{\infty}), \ell4_{i}=ST^{\prime\prime}_{i}(\eta_{\infty})\).

Equations (29)-(30), together with the *six* equations of the boundary conditions (31), give a system of \((2m+2)\) algebraic equations which can be solved, for the unknowns \(c_{i}\), \(d_{i}, i =0,1,\ldots,m\), using Newton iteration method.

## Results and discussion

For the non-Newtonian viscoelastic fluid the value of the skin friction coefficient is equal to \(-(1-K)f^{\prime\prime}(0)\). To validate our numerical solution, we compare that value with the earlier work of Rajagopal et al. [33]. Table 1 presents these values with those using the Chebyshev spectral collocation method. This comparison ensures that our results are in excellent agreement with this reference.

Also, in this section, computational results are shown in Figures 2-6. The velocity decreases with the increasing values of porous parameter *β* as shown in Figure 2. Physically, a greater of *β* means a high dynamic viscosity \(\mu_{e}\), which corresponds to porous medium and a small permeability for the porous medium, which causes the production of a resistance force to the fluid flow which causes a decrease for the velocity distribution when *β* increases and so enhances the temperature distribution along the thermal boundary layer as we can see from Figure 2. Also, from this figure we can observe that, owing to the increase in the value of the porous parameter, and as a result, the thermal boundary layer becomes thicker but the momentum boundary layer becomes thinner.

Figure 3 depicts dimensionless velocity and temperature profiles for various values of the Eckert number. From this figure, we note that, when the Eckert number is larger the velocity curve is lower, so that the momentum effect is lower for a larger Eckert number. Also, from the same figure we can note that after increasing the value of the Eckert number, the thermal boundary layer becomes thicker but the temperature distribution enhances.

Figure 4 plots the dimensionless velocity and the dimensionless wall temperature versus similarity variable *η* for selected values of slip velocity parameter. It is worth noting that the velocity decreases with the increase of the velocity slip parameter, while the temperature is increased with the increase of the same parameter.

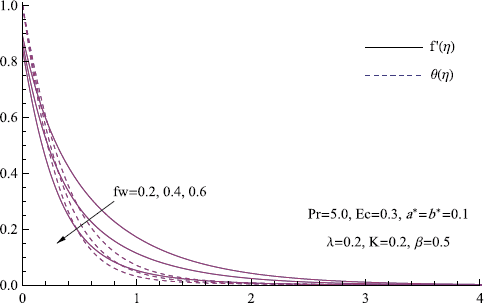

The effects of the suction parameter on the fluid flow and the temperature distribution have been analyzed and the results are presented in Figure 5. This figure shows that the suction parameter has a profound effect on the boundary layer thickness in which the suction reduces the thermal boundary layer thickness. So, the net effect for the suction parameter is to slow down both the flow velocity and the temperature distribution.

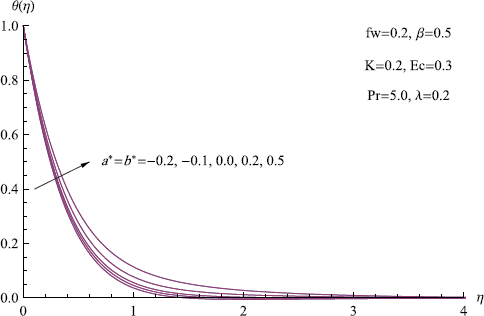

Figure 6 indicates that the thermal boundary-layer thicknesses increase when the internal heat generation parameters \(a^{*}>0\) and \(b^{*}>0\) become stronger, whereas the internal heat absorption parameters \(a^{*}<0\) and \(b^{*}<0\) have the opposite effect. Also, it is noticed that the highest temperature distribution for the fluid in the boundary layer was obtained with the greatest heat generation parameters \(a^{*}>0\) and \(b^{*}>0\). Likewise, it is shown that the effect of the heat absorption parameters \(a^{*}<0\) and \(b^{*}<0\) causes a drop in the temperature distribution as the heat following from the sheet is absorbed.

## Conclusions

The Chebyshev spectral collocation method is used to solve the problem of flow and heat transfer of a viscoelastic fluid over a stretching sheet which is embedded in a porous medium with viscous dissipation, internal heat generation/absorption, and slip velocity. The convergence analysis and the upper bound of the error for the proposed method *are* presented. From the study, it was found that increasing the suction parameter, the porous parameter, and the slip velocity parameter lowers the momentum boundary layer thickness. Furthermore, an increasing Eckert number causes the thermal boundary layer and temperature distribution to increase.
