Sinc-Galerkin method and a higher-order method for a 1D and 2D time-fractional diffusion equations

Abstract

In this article, a new numerical algorithm for solving a 1-dimensional (1D) and 2-dimensional (2D) time-fractional diffusion equation is proposed. The Sinc-Galerkin scheme is considered for spatial discretization, and a higher-order finite difference formula is considered for temporal discretization. The convergence behavior of the methods is analyzed, and the error bounds are provided. The main objective of this paper is to propose the error bounds for 2D problems by using the Sinc-Galerkin method. The proposed method in terms of convergence is studied by using the characteristics of the Sinc function in detail with optimal rates of exponential convergence for 2D problems. Some numerical experiments validate the theoretical results and present the efficiency of the proposed schemes.

1 Introduction

In recent years, fractional differential equations (FDEs) have been used in various fields of science, engineering, physics, and chemistry. The time-fractional diffusion equations were used in the super-diffusive flow process, description of fractional random walk, etc. Many researchers have considered some efficient and reliable numerical methods to solve some kinds of FDEs. The FDEs have been discussed by many numerical methods, such as compact difference method [1], finite element method [2], weakly Galerkin finite element method [3], spectral method [4], hp-versions discontinuous Galerkin methods [5], and piecewise quadratic reconstructions [6]. Many researchers have proposed numerical methods to solve this problem in dealing with the weakly singular kernel in FDEs, for example, Lv and Xu studied a higher-order finite difference method and spectral method in [7]. The nonuniform meshes were used [8] and [9]. The two-dimensional fractional diffusion-wave equation was studied by many researchers, such as [10] and [11]. In our article, we will apply a higher-order finite difference method to approximate the 1D and 2D fractional derivative problems with the rates of convergence \(\mathcal {O}(3-\mathfrak {a})\) (\(\mathfrak {a}\) is the fractional derivative order in time).

As the exponential convergence rate can be derived, the Sinc methods have been considered to deal with the integro-differential equation in various fields in recent years. On the one hand, the Sinc collocation is used to deal with some problems by many researchers [1217]. The Sinc-collocation method is studied for solving a partial integro-differential equation with a weakly singular kernel both in temporal discretization and spatial discretization by Xu in the paper [18]. He demonstrates that the rates of convergence are both exponential in time and space. In [19], Babaei et al. proposed a discrete scheme for a 2D variable-order fractional integro-partial differential equation using piecewise linear interpolation in time and the Sinc collocation method in space. In [20], Yang et al. investigated a space-time Sinc collocation method for solving a 1D fourth-order partial integro-differential equation with a weakly singular kernel. On the other hand, some researchers have paid attention to the Sinc-Galerkin method in [2126]. In [27], the authors used the L1 formula in time and the Sinc-Galerkin method in space to solve a 1D time fractional convection-diffusion equation. The numerical solution is \(2-\mathfrak {a}\) order in time and exponential rate order in space. In our present paper, we can achieve \(3-\mathfrak {a}\) order using a higher-order finite difference method in time.

As the Sinc-Galerkin method and the higher-order finite difference are efficient methods, we will combine these two methods to get the discrete scheme of the 1D and 2D fractional diffusion equation with \(0<\mathfrak {a}<1\). This is the first paper to study the 2D fractional diffusion problem using the Sinc-Galerkin scheme, and we will show the detailed derivation of convergent rate for 2D problems. First, we will give some definitions and abilities regarding the Sinc interpolation in Sect. 2. Second, the discrete schemes for 1D and 2D problems are given in Sect. 3. Then, we will show the theoretical analysis of the discrete scheme in time and space in Sect. 4. In this part, we will demonstrate that the convergence is \(3-\mathfrak {a}\) order in time and exponential convergence rate in space. At last, we will use some 1D and 2D numerical examples to demonstrate the theoretical analysis in Sect. 5. The conclusion is introduced in Sect. 6.

2 Introduction of the sinc interpolation

The Sinc function is defined by:

$$ \mathrm{Sinc}(x)=\left \{\textstyle\begin{array}{l@{\quad}l} \frac{\sin (\pi x)}{\pi x},&{x\neq 0} \\ 1,&{x=0}. \end{array}\displaystyle \right . $$

We denote the Sinc basis function by:

$$ S(k,h)(x)=\mathrm{Sinc}(\frac{x-kh}{h}),k=0,\pm 1,\pm 2,\ldots , $$

so the Sinc function at the interpolating points \(x_{j}=jh\) is given by

$$ S(k,h)(jh)=\delta _{kj}^{(0)}=\left \{\textstyle\begin{array}{l@{\quad}l} 1,&{k=j} \\ 0,&{k\neq j}. \end{array}\displaystyle \right . $$

Definition 1

[28] If f is a function defined on R, let \(h>0\) and define the series

$$ C(f,h)(x)=\sum _{j=-\infty}^{\infty}f(jh)\mathrm{Sinc}(\frac{x-jh}{h}). $$

The function \(C(f,h)(x)\) is called the Whittaker cardinal expansion of f whenever the series converges.

Let \(\mathcal {D}\) be a domain in the \(w=u+iv\) plane with boundary points \(a\neq b\). We consider the conformal map \(z=\phi (w)\) to be a one-to-one conformal map of \(\mathcal {D}\) onto the infinite strip

$$ \mathcal{D}_{S}=\{z\in \mathcal {C}, z=x+iy, |y|< d\}, $$

where \(\phi (a)=-\infty \) and \(\phi (b)=\infty \). To obtain a good result, we always choose the conformal map \(z=\phi (\omega )=\ln (\frac{\omega -a}{b-\omega})\), which carries a eye-shaped region in the complex plane

$$ \mathcal{D}_{E}=\{\omega \in \mathcal {C}, |\arg ( \frac{\omega -a}{b-\omega})|< d< \pi /2\}, $$

onto \(\mathcal {D}_{s}\). There are many properties derived by Stenger in [29]. We refer readers to [29] for more properties.

Definition 2

Let \(B(\mathcal {D})\) be the set of all analytic functions in \(\mathcal {D}\), which satisfy for some constant α with \(0\leq \alpha <1\),

$$ \int _{\psi (x+L)}|F(w)dw|= O(|x|^{\alpha}),x\to \pm \infty , $$

where \(L={iy:|y|< d}\). For γ a simple closed contour in \(\mathcal {D}\), we define

$$ N(F,D)\equiv \lim _{\gamma \to \partial D}\int _{\gamma}|F(w)dw|< \infty . $$

The following lemma will be used for inducing the discrete scheme:

Lemma 1

[28] Let ϕ be the conformal one-to-one mapping of the simple connected domain \(\mathcal {D}\) onto \(\mathcal {D}_{S}\), then we can get the following formulas:

$$\begin{aligned}& \delta _{kj}^{(0)}=[S(k,h)\circ \phi (x)]\Big|_{x=x_{j}}=\left \{\textstyle\begin{array}{l@{\quad}l} 1,&{k=j} \\ 0,&{k\neq j}. \end{array}\displaystyle \right . \end{aligned}$$
(1)
$$\begin{aligned}& \delta _{kj}^{(1)}=h\frac{d}{d\phi}[S(k,h)\circ \phi (x)]\Big|_{x=x_{j}}= \left \{\textstyle\begin{array}{l@{\quad}l} 0,&{k=j} \\ \frac{(-1)^{(j-k)}}{j-k},&{k\neq j}. \end{array}\displaystyle \right . \end{aligned}$$
(2)
$$\begin{aligned}& \delta _{kj}^{(2)}=h^{2}\frac{d^{2}}{d\phi ^{2}}[S(k,h)\circ \phi (x)] \Big|_{x=x_{j}}=\left \{\textstyle\begin{array}{l@{\quad}l} -\frac{\pi ^{2}}{3},&{k=j} \\ \frac{-2(-1)^{(j-k)}}{(j-k)^{2}},&{k\neq j}. \end{array}\displaystyle \right . \end{aligned}$$
(3)

It is easy to see that \(|\delta _{kj}^{(2)}|\leq \pi ^{2}/3\), \(|\delta _{kj}^{(1)}|\leq 1\), and \(|\delta _{kj}^{(0)}|\leq 1\).

The following theorems will be used to demonstrate the convergence order for the discrete scheme in space:

Theorem 1

[28] Let \(F\in B(\mathcal {D})\) and \(h>0\). Let ϕ be a one-to-one conformal map of the domain \(\mathcal {D}\) to \(\mathcal {D}_{S}\). Let \(\psi =\phi ^{-1}\), \(x_{j}=\psi (jh)=\psi (jh)\) and \(\Gamma =\psi (\Re )\). Then,

$$ \eta (F)\equiv \int _{a}^{b} F(x)dx-h\sum _{j=-\infty}^{\infty} \frac{F(x_{j})}{\phi ^{\prime}(x_{j})}=\frac{i}{2}{\lim}_{\gamma \to \partial \mathcal {D}}\int _{\gamma} \frac{F(x)\kappa (\phi ,h)(x)}{\sin (\pi \phi (x)/h)}dx, $$

where i is the imaginary unit, and

$$ \mid \kappa (\phi ,h)(x)\mid |_{x\in \partial D}\equiv \mid \exp [ \frac{i\pi \phi (x)}{h}sgn(\mathrm{Im}(\phi (x)))]\mid |_{x\in \partial D}=e^{-\pi d/h}. $$

Moreover,

$$ |\eta (F)|\leq \frac{N(F,D)}{2\sinh (\pi d/h)}e^{-\pi d/h}. $$

Theorem 2

[28] Let ϕ be a one-to-one conformal map of the simple connected domain \(\mathcal {D}\) to \(\mathcal {D}_{S}\). Then, for d, \(h>0\),

$$\begin{aligned}& \big{ \vert }\frac{S(k,h)\circ \phi (w)}{\sin (\pi \phi (w)/h)} \big{ \vert }\big{ \vert }_{w\in \partial \mathcal {D}}\leq \frac{h}{\pi d}\equiv C_{0}(h,d), \\& \big{ \vert } \frac{\frac{d}{d\phi}S(k,h)\circ \phi (w)}{\sin (\pi \phi (w)/h)} \big{ \vert }\big{ \vert }_{w\in \partial \mathcal {D}}\leq \frac{\pi d+h\tanh (\pi d/h)}{\pi d^{2}\tanh (\pi d/h)}\equiv C_{1}(h,d), \\& \big{ \vert } \frac{\frac{d^{2}}{d\phi ^{2}}S(k,h)\circ \phi (w)}{\sin (\pi \phi (w)/h)} \big{ \vert }\big{ \vert }_{w\in \partial \mathcal {D}}\leq \frac{2}{d}C_{1}(h,d)+\frac{\pi}{hd}\equiv C_{2}(h,d) . \end{aligned}$$

Furthermore, for \(p=0,1,2\), there exist constants \(R_{p}\) such that

$$ C_{p}(h,d)\leq R_{p}h^{1-p} . $$

Theorem 3

[28] Let ϕ be a conformal one-to-one map of the simple connected domain \(\mathcal {D}\) onto \(\mathcal {D}_{S}\). Assume that \(\phi (a)=-\infty \), \(\phi (b)=+\infty \), and let \(x_{k}=\psi (kh)\), \(uw\in B(\mathcal {D})\), \(u(S(k,h)\circ \phi w)'\in B(\mathcal {D})\), \(u(S(k,h)\circ \phi w)''\in B(\mathcal {D})\), and \(B_{T}=0\), which was defined as (4.11) in [26], then

$$ \big{ \vert } \int _{a}^{b} uw[S(k,h)\circ \phi ](x)dx-h \frac{uw}{\phi ^{\prime}}(x_{k})\big{ \vert } \leq \frac{C_{0}(h,d)}{2}N(uw, \mathcal {D})e^{-\pi d/h}, $$

and

$$\begin{aligned} &\big{ \vert } \int _{a}^{b} u''w[S(k,h)\circ \phi ](x)dx-h\sum _{j=- \infty}^{\infty}u(x_{j}) [\frac{\delta _{kj}^{(2)}}{h^{2}}(\phi ^{\prime}w)(x_{j})\\ &\qquad{}+ \frac{\delta _{kj}^{(1)}}{h}(\frac{\phi ^{\prime \prime}}{\phi ^{\prime}}w+2w')(x_{j})]-h \frac{uw''}{\phi ^{\prime}}(x_{k}) \big{ \vert } \\ &\quad\leq \frac{1}{2}[C_{2}(h,d)N(u(\phi ^{\prime})^{2}w,\mathcal {D})+C_{1}(h,d)N(u[w \phi ^{\prime \prime}+2\phi ^{\prime}w'],\mathcal {D})\\ &\qquad{}+C_{0}(h,d)N(uw'',\mathcal {D})]e^{- \pi d/h}. \end{aligned}$$

Theorem 4

[28] Let ϕ be a conformal one-to-one map of the simple connected domain \(\mathcal {D}\) onto \(\mathcal {D}_{S}\). Assume that \(\phi (a)=-\infty \), \(\phi (b)=+\infty \), and let \(x_{k}=\psi (kh)\). Further, assume that exist these positive constants α, β, and K so that

$$\begin{aligned} \big|F(x)\big|\leq K\left \{\textstyle\begin{array}{l@{\quad}l} \exp (-\alpha |\phi (x)|),&{x\in \Gamma _{a}} \\ \exp (-\beta |\phi (x)|),&{x\in \Gamma _{b},} \end{array}\displaystyle \right . \end{aligned}$$

where \(F=uw,~u\phi ^{\prime}w,~u(\frac{\phi ^{\prime \prime}}{\phi ^{\prime}}w+2w')\), \(\Gamma _{a}=\{\xi \in \Gamma :\phi (\xi )=x\in (-\infty ,0)\}\) and \(\Gamma _{b}=\{\xi \in \Gamma :\phi (\xi )=x\in{[}0,\infty{)}\}\). Make the selections \(N=[|\frac{\alpha}{\beta}M+1|]\) and \(h=\sqrt {\frac{\pi d}{\alpha M}}\).

(1) If \(uw\in B(\mathcal {D})\), then

$$ \big{ \vert } \int _{a}^{b} uw[S(k,h)\circ \phi ](x)dx-h \frac{uw}{\phi ^{\prime}}(x_{k})\big{ \vert } \leq L_{0}M^{-1/2}\exp (-( \pi d\alpha M)^{1/2}), $$

where \(L_{0}\equiv \frac{R_{0}}{2}N(uw,\mathcal {D}){\pi d/\alpha}^{1/2}\) is a constant depending on \(u,~w\), and d.

(2) If \(u(S(k,h)\circ \phi w)''\in B(\mathcal {D})\), then

$$\begin{aligned} &\big{ \vert } \int _{a}^{b} u''w[S(k,h)\circ \phi ](x)dx-h\sum _{j=-M}^{N}u(x_{j}) [\frac{\delta _{kj}^{(2)}}{h^{2}}(\phi ^{\prime}w)(x_{j})+ \frac{\delta _{kj}^{(1)}}{h}(\frac{\phi ^{\prime \prime}}{\phi ^{\prime}}w+2w')(x_{j})]\\ &\qquad{}-h \frac{uw''}{\phi ^{\prime}}(x_{k}) \big{ \vert } \\ &\quad\leq L_{1}^{\prime}M\exp (-(\pi d\alpha M)^{1/2}), \end{aligned}$$

where \(L_{1}^{\prime}\equiv \frac{R_{0}}{2}(\frac{\pi d}{\alpha})^{1/2}N(uw'', \mathcal {D})+R_{1} N(u[w\phi ^{\prime \prime}+2\phi ^{\prime}w'],\mathcal {D})+R_{2}( \frac{\alpha}{\pi d})^{1/2}N(u(\phi ^{\prime})^{2}w,\mathcal {D})+K(1/ \alpha +1/\beta )(\frac{\alpha \pi}{3d}+\sqrt{\frac{\alpha}{\pi d}})\).

3 The discrete scheme

In this paper, we consider the following time-fractional diffusion equation:

figure a

where \(\boldsymbol{x}=x\) or \(\boldsymbol{x}=(x,y) \), \(\Delta =\partial _{x}^{2}\) or \(\Delta =\partial _{x}^{2}+\partial _{y}^{2}\). The initial condition is

$$ u(\boldsymbol{x},0)=u_{0}(\boldsymbol{x}),~~ \boldsymbol{x}\in \Omega , $$
(5)

and the boundary conditions are

$$ u(\boldsymbol{x},t)=0, \boldsymbol{x}\in \partial \Omega ~~~~~~t>0. $$
(6)

The fractional integrals (or Riemann-Liouville integrals) with order \(\mathfrak {a}\) in equation (4) is defined as

figure b

3.1 The discrete scheme in time

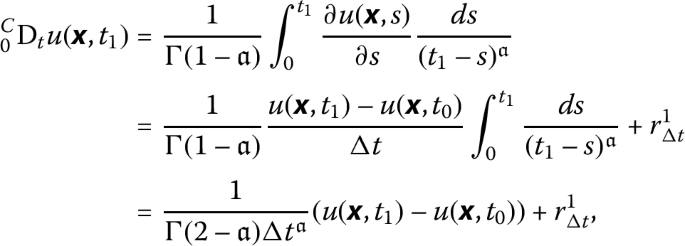

Considering the case \(T=1\), we denote the temporal uniform step to be \(\Delta t=1/N\), and \(t_{n}=n\Delta t\). For the first term of equation (4), we use a higher-order finite difference method to get the discrete scheme just as the semi-discrete scheme, which is presented in [7]. At the first point, we have

figure c

where \(r_{\Delta t}^{1}\) is the first-step truncation error. Then, for the remaining points, we will deal with the fractional integral term in equation (4) using the Taylor formula

$$\begin{aligned} H_{2}^{j}(\boldsymbol{x},\tau )={}&u(\boldsymbol{x},t_{j})- \frac{u(\boldsymbol{x},t_{j})-u(\boldsymbol{x},t_{j-1})}{\Delta t}(t_{j}- \tau )\\ &{}- \frac{u(\boldsymbol{x},t_{j+1})-2u(\boldsymbol{x},t_{j})+u(\boldsymbol{x},t_{j-1})}{\Delta t^{2}} \frac{(t_{j}-\tau )(\tau -t_{j-1})}{2}, \end{aligned}$$

which interpolates the function u at 3 points \(\{t_{j-1},t_{j},t_{j+1}\}\), i.e.,

$$ H_{2}^{j}(t_{j-1})=u(\boldsymbol{x},t_{j-1}),~H_{2}^{j}(t_{j})=u( \boldsymbol{x},t_{j}),~H_{2}^{j}(t_{j+1})=u(\boldsymbol{x},t_{j+1}), $$

so, for the all discrete functions \({u(\boldsymbol{x},t_{n})}\), where \(n\ge 2\), we have

figure d

where \(r_{\Delta t}^{n}\) is the truncation error of the approximation, and

$$\begin{aligned} a_{j}=-\frac{3}{2}(2-\mathfrak {a})(j+1)^{1-\mathfrak {a}}+\frac{1}{2}(2- \mathfrak {a})j^{1-\mathfrak {a}}+(j+1)^{2-\mathfrak {a}}-j^{2-\mathfrak {a}}, \\ b_{j}=2(2-\mathfrak {a})(j+1)^{1-\mathfrak {a}}-2(j+1)^{2-\mathfrak {a}}+2j^{2- \mathfrak {a}}, \\ c_{j}=-\frac{1}{2}(2-\mathfrak {a})((j+1)^{1-\mathfrak {a}}+j^{1- \mathfrak {a}})+(j+1)^{2-\mathfrak {a}}-j^{2-\mathfrak {a}}. \end{aligned}$$

If we denote

$$\begin{aligned} L_{t}^{\mathfrak {a}} u(t_{n}) =& \frac{1}{\Gamma (3-\mathfrak {a})\Delta t^{\mathfrak {a}}}\bigg\{ \sum _{j=1}^{n-1}(a_{j}u( \boldsymbol{x},t_{n-j-1})+b_{j}u(\boldsymbol{x},t_{n-j}) +c_{j}u( \boldsymbol{x},t_{n-j+1})) \\ &+\frac{\mathfrak {a}}{2}u(\boldsymbol{x},t_{n-2}) -2u(\boldsymbol{x},t_{n-1})+ \frac{4-\mathfrak {a}}{2}u(\boldsymbol{x},t_{n})\bigg\} ,2\leq n\leq N, \end{aligned}$$

then , i.e.,

$$\begin{aligned} L_{t}^{\mathfrak {a}} u(t_{n})-\Delta u(\boldsymbol{x},t_{n})=f( \boldsymbol{x},t_{n})-r_{\Delta t}^{n}. \end{aligned}$$

The above reformulation motivates the following time scheme if we omit the error term \(r_{\Delta t}^{n}\):

$$ \left \{\textstyle\begin{array}{l} L_{t}^{\mathfrak {a}} u^{n}=\Delta u^{n}+f^{n} \\ u(\boldsymbol{x},y_{0})=u_{0}, \end{array}\displaystyle \right . $$

where \(u^{n}\approx u(\boldsymbol{x},t_{n})\), which is come from the semi-discrete scheme in time.

Lemma 2

[7] For any \(\alpha \in (0,1)\), it holds

$$\begin{aligned}& |r_{\Delta t}^{1}|\leq C_{\mathfrak {a}}\widetilde{M}(u)\Delta t^{(2- \mathfrak {a})},\forall \boldsymbol{x}\in \Omega ,\\& |r_{\Delta t}^{n}|\leq C_{\mathfrak {a}}M(u)\Delta t^{(3-\mathfrak {a})}, \forall n=2,3,\ldots,N,\forall \boldsymbol{x}\in \Omega , \end{aligned}$$

where \(C_{\mathfrak {a}}\) depends only on \({\mathfrak {a}}\), \(\widetilde{M}(u)=\max _{t\in{[0,T]}}|\partial _{t}^{2}u(t)|\), \(M(u)=\max _{t\in{[0,T]}}|\partial _{t}^{3}u(t)|\).

If we denote

$$ \alpha _{0}=\Gamma (3-\mathfrak {a})\Delta t^{\mathfrak {a}}, \widetilde{\alpha _{0}}=\Gamma (2-\mathfrak {a})\Delta t^{\mathfrak {a}}, \beta _{0}=c_{1}+2-\frac{\mathfrak {a}}{2}, $$

then for \(n\geq 4\), the semi-discrete scheme has to be changed to:

$$\begin{aligned} u^{n}+\alpha _{0}\beta _{0}^{-1}Au^{n} =&\beta _{0}^{-1}(-(b_{1}+c_{2}-2)u^{n-1}+(-a_{1}-b_{2}-c_{3}- \frac{\mathfrak {a}}{2})u^{n-2}+\sum _{i=3}^{n-2}(-a_{i-1}-b_{i} \\ &-c_{i+1})u^{n-i}+(-a_{n-2}-b_{n-1})u^{1}-a_{n-1}u^{0})+\alpha _{0} \beta _{0}^{-1}f^{n}. \end{aligned}$$

When \(n=3,2,1\), the semi-discrete scheme has to be changed to:

$$\begin{aligned} u^{3}+\alpha _{0}\beta _{0}^{-1}Au^{3}=\beta _{0}^{-1}(-(b_{1}+c_{2}-2)u^{2}+(-a_{1}-b_{2}- \frac{\mathfrak {a}}{2})u^{1}-a_{2}u^{0})+\alpha _{0}\beta _{0}^{-1}f^{3}, \\ u^{2}+\alpha _{0}\beta _{0}^{-1}Au^{2}=\beta _{0}^{-1}(-(b_{1}-2)u^{1}+(-a_{1}- \frac{\mathfrak {a}}{2})u^{0})+\alpha _{0}\beta _{0}^{-1}f^{2}, \\ u^{1}+\widetilde{\alpha}_{0}Au^{1}=u^{0}+\widetilde{\alpha}_{0}f^{1}. \end{aligned}$$

If we denote these labels as follows:

$$\begin{aligned} d_{1}^{2}=-(b_{1}-2)\beta _{0}^{-1},d_{0}^{2}=(-a_{1}- \frac{\mathfrak {a}}{2})\beta _{0}^{-1},d_{2}^{3}=-(b_{1}+c_{2}-2) \beta _{0}^{-1}, \\ d_{1}^{3}=(-a_{1}-b_{2}-\frac{\mathfrak {a}}{2})\beta _{0}^{-1}, d_{0}^{3}=-a_{2} \beta _{0}^{-1}, \end{aligned}$$

and for \(k\ge 4\),

$$\begin{aligned} d_{n-1}^{n}=-(b_{1}+c_{2}-2)\beta _{0}^{-1},d_{n-2}^{n}=(-a_{1}-b_{2}-c_{3}- \frac{\mathfrak {a}}{2})\beta _{0}^{-1}, \\ d_{n-i}^{n}=(-a_{i-1}-b_{i}-c_{i+1})\beta _{0}^{-1},(i=3,4,\ldots,n-2), d_{1}^{3}=(-a_{1}-b_{2}- \frac{\mathfrak {a}}{2})\beta _{0}^{-1}, \\ d_{1}^{n}=-(a_{n-2}-b_{n-1})\beta _{0}^{-1},d_{0}^{n}=-a_{n-1}\beta _{0}^{-1}, \end{aligned}$$

then the semi-discrete scheme is changed as follows:

$$\begin{aligned}& u^{n}+\alpha _{0}\beta _{0}^{-1}Au^{n}=\sum _{i=1}^{n}d_{n-i}^{n}u^{n-i}+ \alpha _{0}\beta _{0}^{-1}f^{n},~~2\leq n\leq N, \end{aligned}$$
(8)
$$\begin{aligned}& u^{1}+\widetilde{\alpha}_{0}Au^{1}=u^{0}+\widetilde{\alpha}_{0}f^{1}. \end{aligned}$$
(9)

3.2 The full-discrete scheme for 1D problem

The Sinc-Galerkin method is applied to solve the one-dimensional problem of equation (4) in this subsection, where x is chosen to be x. Denoting the approximate solution \(u^{n}(x)\approx u^{n}_{m}(x)=\sum _{k=-M}^{N}C_{k}^{n}S_{k}(x)\), which is achieved from Theorem 1, where \(n=1,2,\ldots,N+1\), and \(S_{k}(x)\) is a dense linearly independent set of functions \(S(k,h)\circ \phi (x)\) for spatial step h. Supposing the <.,.> represents the inner product defined by

$$\begin{aligned} < f,g>=\int _{a}^{b}f(x)g(x)w(x)dx. \end{aligned}$$

Let us take the inner product of both sides of equation (8). By choosing the inner product function g to be the orthogonal basis function \(\{S_{k}\}_{k=-M}^{N}\), the equation (8) turn to be:

$$\begin{aligned} < u^{n},S_{k}>-\alpha _{0}\beta _{0}^{-1}< u_{xx}^{n},S_{k}>=\sum _{i=1}^{n}d_{n-i}^{n}< u^{n-i},S_{k}>+ \alpha _{0}\beta _{0}^{-1}< f^{n},S_{k}>. \end{aligned}$$
(10)

For the second term in the left-hand side of equation (10), using integrating by parts, we have

$$\begin{aligned} -< u_{xx}^{n},S_{k}> =&-[u_{x}^{n}S_{k}(x)w(x)]_{a}^{b}+\int _{a}^{b}u_{x}^{n}(x)(S_{k}(x)w(x))'dx \\ & =-[u_{x}^{n}S_{k}(x)w(x)]_{a}^{b}+[u^{n}(x)(S_{k}(x)w(x))']_{a}^{b}- \int _{a}^{b}u^{n}(x)(S_{k}(x)w(x))''dx \\ & =B_{T}-\int _{a}^{b}u^{n}(S_{k}(x)w(x))''dx. \end{aligned}$$
(11)

Supposing \(B_{T}=0\), using Theorem 4 to the integral term in equation (11), and omitting the small errors, the above equation can be changed to

$$\begin{aligned} -< u_{xx}^{n},S_{k}>\approx h\sum _{j=-M}^{N}\sum _{l=0}^{2} \frac{u_{m}^{n}(x_{j})}{\phi ^{\prime}(x_{j})h^{l}}\delta _{kj}^{(l)}g_{l}(x_{j}). \end{aligned}$$
(12)

We also have

$$\begin{aligned} < F^{p},S_{k}>\approx h\sum _{j=-M}^{N}\delta _{kj}^{(0)} \frac{F^{p}w}{\phi ^{\prime}}(x_{j})=h\frac{F^{p}w}{\phi ^{\prime}}(x_{k}), \end{aligned}$$
(13)

where

$$\begin{aligned} g_{2}=-w (\phi ^{\prime})^{2},~ g_{1}=-w \phi ^{\prime \prime}-2w^{\prime}\phi ^{\prime},~g_{0}=-w^{\prime \prime},~F^{p}=u^{p}~or~f^{p},~p=n~or~n-i, \end{aligned}$$

\(x_{j}=\frac{a+be^{jh}}{1+e^{jh}}\) are Sinc grid points. Combing equations (12) and (13), using the formulas (1) in Lemma 1, the fully discrete scheme of equation (9) leads to:

$$\begin{aligned} h\frac{w(x_{k})}{\phi ^{\prime}(x_{k})}u_{m}^{1}(x_{k})+h\widetilde{\alpha}_{0} \sum _{j=-M}^{N}\sum _{l=0}^{2}\frac{1}{h^{l}}\delta _{kj}^{(l)} \frac{g_{l}(x_{j})}{\phi ^{\prime}(x_{j})}u_{m}^{1}(x_{j}) =h \frac{w(x_{k})}{\phi ^{\prime}(x_{k})}u_{m}^{0}(x_{k}) +h\widetilde{\alpha}_{0} \frac{w(x_{k})}{\phi ^{\prime}(x_{k})}f^{1}(x_{k}), \end{aligned}$$

and the fully discrete scheme of equation (8) leads to:

$$\begin{aligned} &{h\frac{w(x_{k})}{\phi ^{\prime}(x_{k})}u_{m}^{n}(x_{k}) +h\alpha _{0} \beta _{0}^{-1}\sum _{j=-M}^{N}\sum _{l=0}^{2}\frac{1}{h^{l}}\delta _{kj}^{(l)} \frac{g_{l}(x_{j})}{\phi ^{\prime}(x_{j})}u_{m}^{n}(x_{j})} \\ &{=h\sum _{i=1}^{n}d_{n-i}^{n}\frac{w(x_{k})}{\phi ^{\prime}(x_{k})}u_{m}^{n-i}(x_{k})+h \alpha _{0}\beta _{0}^{-1}\frac{w(x_{k})}{\phi ^{\prime}(x_{k})}f^{n}(x_{k})).} \end{aligned}$$

As \(\delta _{kj}^{(0)}=S_{k}(x_{j})=0\) for \(k\neq j\), and \(S_{k}(x_{j})=1\) for \(k=j\), the approximate solution \(u^{n}_{m}(x_{j})=\sum _{k=-M}^{N}C_{j}^{n}S_{k}(x_{j})\) can be written to \(C^{n}_{k}\). Dividing each side of the above equation by h, the finally full discrete scheme of the fractional diffusion equation (4)–(6), which uses a high-order finite difference and Sinc-Galerkin methods are given as follows:

$$\begin{aligned} \frac{w(x_{k})}{\phi ^{\prime}(x_{k})}C_{k}^{1}+\widetilde{\alpha}_{0}\sum _{j=-M}^{N} \sum _{l=0}^{2}\frac{1}{h^{l}}\delta _{kj}^{(l)} \frac{g_{l}(x_{j})}{\phi ^{\prime}(x_{j})}C_{j}^{1} = \frac{w(x_{k})}{\phi ^{\prime}(x_{k})}C_{k}^{0}+\widetilde{\alpha}_{0} \frac{w(x_{k})}{\phi ^{\prime}(x_{k})}f_{k}^{1}, \end{aligned}$$

and

$$\begin{aligned} \frac{w(x_{k})}{\phi ^{\prime}(x_{k})}C_{k}^{n}+\alpha _{0}\beta _{0}^{-1} \sum _{j=-M}^{N}\sum _{l=0}^{2}\frac{1}{h^{l}}\delta _{kj}^{(l)} \frac{g_{l}(x_{j})}{\phi ^{\prime}(x_{j})}C_{j}^{n} =\sum _{i=1}^{n}d_{n-i}^{n} \frac{w(x_{k})}{\phi ^{\prime}(x_{k})}C_{k}^{n-i}+\alpha _{0}\beta _{0}^{-1} \frac{w(x_{k})}{\phi ^{\prime}(x_{k})}f_{k}^{n}, \end{aligned}$$

where \(k=-M,\ldots,N\).

Substituting \(g_{l}\) into the above equations, we can get the approximate solution for solving the unknown coefficients \(C_{j}^{n}\):

$$\begin{aligned} &{\frac{w(x_{k})}{\phi ^{\prime}(x_{k})}C_{k}^{1}+\widetilde{\alpha}_{0} \sum _{j=-M}^{N}(-\frac{1}{h^{2}}\delta _{kj}^{(2)} \frac{(w(\phi ^{\prime})^{2})(x_{j})}{\phi ^{\prime}(x_{j})}C_{j}^{1} - \frac{1}{h}\delta _{kj}^{(1)} \frac{w (x_{j})\phi ^{\prime \prime}(x_{j})+2w^{\prime}(x_{j})\phi ^{\prime}(x_{j})}{\phi ^{\prime}(x_{j})}C_{j}^{1}} \\ &{-\delta _{kj}^{(0)}\frac{w^{\prime \prime} (x_{j})}{\phi ^{\prime}(x_{j})}C_{j}^{1}) =\frac{w(x_{k})}{\phi ^{\prime}(x_{k})}C_{k}^{0}+\widetilde{\alpha}_{0} \frac{w(x_{k})}{\phi ^{\prime}(x_{k})}f_{k}^{1},} \end{aligned}$$
(14)

and

$$\begin{aligned} &{\frac{w(x_{k})}{\phi ^{\prime}(x_{k})}C_{k}^{n}+\alpha _{0}\beta _{0}^{-1} \sum _{j=-M}^{N}(-\frac{1}{h^{2}}\delta _{kj}^{(2)} \frac{w(\phi ^{\prime})^{2}}{\phi ^{\prime}}C_{j}^{n} -\frac{1}{h}\delta _{kj}^{(1)} \frac{w (x_{j})\phi ^{\prime \prime}(x_{j})+2w^{\prime}(x_{j})\phi ^{\prime}(x_{j})}{\phi ^{\prime}(x_{j})}C_{j}^{n}} \\ &{-\delta _{kj}^{(0)}\frac{w^{\prime \prime} (x_{j})}{\phi ^{\prime}(x_{j})}C_{j}^{n}) =\sum _{i=1}^{n}d_{n-i}^{n}\frac{w(x_{k})}{\phi ^{\prime}(x_{k})}C_{k}^{n-i}+ \alpha _{0}\beta _{0}^{-1}\frac{w(x_{k})}{\phi ^{\prime}(x_{k})}f_{k}^{n}.} \end{aligned}$$
(15)

To make the boundary term \(B_{T}=0\) and the functions F to satisfy the conditions in Theorem 4, (where \(F=uw,~u\phi ^{\prime}w,~u(\frac{w \phi ^{\prime \prime}}{\phi ^{\prime}}+2w^{\prime})\)), we choose the weight function \(w(x)=\frac{1}{\phi ^{\prime}(x)}\) in the Sinc-Galerkin inner product.

In the rest part of this section, we will consider the situation of \(M=N\). Defining \(\mathbf {I}^{(l)}=[\delta _{kj}^{(l)}], l=0,1,2\) to be the \((2M+1)\times (2M+1)\) matrices. It is easy to see that the matrix \(\mathbf {I}^{(0)}\) is an identity matrix, the matrix \(\mathbf {I}^{(1)}\) is a symmetric matrix, and the matrix \(\mathbf {I}^{(2)}\) is a skew-symmetric matrix. Define the \((2M+1)\times (2M+1)\) diagonal matrix as follows:

$$\begin{aligned} \mathbf {D}(g(x))_{ij}=\left \{\textstyle\begin{array}{l@{\quad}l} g(x_{j}),&{k=j} \\ 0,&{k\neq j}. \end{array}\displaystyle \right . \end{aligned}$$

Define the column matrix \(\mathbf {C}^{n}=(C_{-M}^{n},\ldots,C_{M}^{n})^{T}\), \(\mathbf {D}_{n-1}^{n}=(d_{0}^{n},d_{1}^{n},\ldots,d_{n-1}^{n})^{T}\) and \(\mathbf {F}^{n}=(f_{-M}^{n},\ldots,f_{M}^{n})^{T}\). The following matrix will be used for the solution of the unknown matrix \(\mathbf {C}^{n}\)

$$ \mathbf {C^{n-1}_{1}} = \left ( \textstyle\begin{array}{c@{\quad}c@{\quad}c@{\quad}c} C_{-M}^{0} & C_{-M}^{1} & \ldots & C_{-M}^{n-1} \\ C_{-M+1}^{0} & C_{-M+1}^{1} & \ldots & C_{-M+1}^{n-1} \\ \ldots & \ldots & \ldots & \ldots \\ C_{M}^{0} & C_{M}^{1} & \ldots & C_{M}^{n-1} \end{array}\displaystyle \right ). $$

By substituting \(w(x)=\frac{1}{\phi ^{\prime}(x)}\) into Eq. (14) and Eq. (15), the discrete systems (14)–(15) can be changed to the following matrix form:

$$\begin{aligned}{} [\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}}) -&\widetilde{\alpha}_{0} \frac{1}{h^{2}}\mathbf{I}^{(2)} +\widetilde{\alpha}_{0}\frac{1}{h} \mathbf{I}^{(1)}\mathbf{D}(\frac{\phi ^{\prime \prime}}{(\phi ^{\prime})^{2}})- \widetilde{\alpha}_{0}\delta _{kj}^{(0)}\mathbf{D} ( \frac{1}{\phi ^{\prime}}(\frac{1}{\phi ^{\prime}})^{\prime \prime})]\mathbf {C}^{1} \\ &=\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}})\mathbf{C^{0}_{1}}+ \widetilde{\alpha}_{0}\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}}) \mathbf {F}^{1}; \end{aligned}$$
$$\begin{aligned}{} [\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}}) -&\alpha _{0}\beta _{0}^{-1} \frac{1}{h^{2}}\mathbf{I}^{(2)} +\alpha _{0}\beta _{0}^{-1} \frac{1}{h}\mathbf{I}^{(1)}\mathbf{D}( \frac{\phi ^{\prime \prime}}{(\phi ^{\prime})^{2}})-\alpha _{0}\beta _{0}^{-1}\delta _{kj}^{(0)} \mathbf{D} (\frac{1}{\phi ^{\prime}}(\frac{1}{\phi ^{\prime}})^{\prime \prime})]\mathbf {C}^{n} \\ &=\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}})\mathbf{C^{n-1}_{1}}\mathbf {D}^{n}_{n-1}+ \alpha _{0}\beta _{0}^{-1}\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}}) \mathbf {F}^{n}, \end{aligned}$$
(16)

where we use the equality \(-\frac{\phi ^{\prime \prime}}{(\phi ^{\prime})^{2}}-2(\frac{1}{\phi ^{\prime}})^{\prime}=( \frac{1}{\phi ^{\prime}})^{\prime}-2(\frac{1}{\phi ^{\prime}})^{\prime}=-( \frac{1}{\phi ^{\prime}})^{\prime}=\frac{\phi ^{\prime \prime}}{(\phi ^{\prime})^{2}}\).

If we denote

$$\begin{aligned} &\mathbf {M}=\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}})-\alpha _{0}\beta _{0}^{-1} \frac{1}{h^{2}}\mathbf{I}^{(2)} +\alpha _{0}\beta _{0}^{-1} \frac{1}{h}\mathbf{I}^{(1)}\mathbf{D}( \frac{\phi ^{\prime \prime}}{(\phi ^{\prime})^{2}})-\alpha _{0}\beta _{0}^{-1}\delta _{kj}^{(0)} \mathbf{D} (\frac{1}{\phi ^{\prime}}(\frac{1}{\phi ^{\prime}})^{\prime \prime})\\ &\quad(when~n>1) , \end{aligned}$$

or

$$\begin{aligned} \mathbf {M}=\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}})-\widetilde{\alpha}_{0} \frac{1}{h^{2}}\mathbf{I}^{(2)} +\widetilde{\alpha}_{0}\frac{1}{h} \mathbf{I}^{(1)}\mathbf{D}(\frac{\phi ^{\prime \prime}}{(\phi ^{\prime})^{2}})- \widetilde{\alpha}_{0}\delta _{kj}^{(0)}\mathbf{D} ( \frac{1}{\phi ^{\prime}}(\frac{1}{\phi ^{\prime}})^{\prime \prime})(when~n=1) , \end{aligned}$$

and let

$$\begin{aligned} \mathbf {R}=\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}})\mathbf{C^{n-1}_{1}} \mathbf {D}^{n}_{n-1}+\alpha _{0}\beta _{0}^{-1}\mathbf {D}( \frac{1}{(\phi ^{\prime})^{2}})\mathbf {F}^{n}(when~n>1) , \end{aligned}$$

or \(\mathbf {R}=\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}})\mathbf{C^{0}_{1}}+ \widetilde{\alpha}_{0}\mathbf {D}(\frac{1}{(\phi ^{\prime})^{2}})\mathbf {F}^{1}(when~n=1)\), system (16) can be represented by the following brief form:

$$\begin{aligned} \mathbf {M}\cdot \mathbf {C}^{n}=\mathbf {R}. \end{aligned}$$
(17)

We can get the numerical solution \(\mathbf {C}^{n}\) by moving the left term M to the right side of the above equation.

3.3 The full-discrete scheme for 2D problem

The Sinc-Galerkin method is applied to solve the two-dimensional problem of equation (4), where x is chosen to be \((x,y)\). The approximate solution of \(u^{n}(x,y)\approx u^{n}_{m}(x,y)=\sum _{k=-M_{x}}^{N_{x}}\sum _{l=-M_{y}}^{N_{y}}C_{k,l}^{n}S_{kl}(x)\) can be achieved using Theorem 1, where \(S_{kl}(x)=S_{k}(x)S^{*}_{l}(y)=S(k,h_{x})\circ \phi _{x}(x)S(l,h_{y}) \circ \phi _{y}(y)\), \(n=1,2,\ldots,N+1\). Suppose that the \(\langle .,.\rangle \) represents the inner product defined by

$$\begin{aligned} \langle f,g\rangle =\int _{c}^{d}\int _{a}^{b} f(x)g(x)w(x)v(y)dxdy, \end{aligned}$$

where the product \(w(x)v(y)\) plays the role of a weight function. Let us take the inner product of both sides of equation (8). By orthogonalizing the residual for the inner product, the full discrete scheme of equation (8) is changed to:

$$\begin{aligned} \langle u^{n},S_{kl}\rangle -\alpha _{0}\beta _{0}^{-1}\langle \Delta u^{n},S_{kl}\rangle =\sum _{i=1}^{n}d_{n-i}^{n}\langle u^{n-i},S_{kl} \rangle +\alpha _{0}\beta _{0}^{-1}\langle f^{n},S_{kl}\rangle . \end{aligned}$$
(18)

For the second term in the left-hand side of equation (10), using the integrating by parts, we have

$$\begin{aligned} -\langle \Delta u^{n},S_{kl}\rangle =&\int _{c}^{d}\int _{a}^{b} \Delta u^{n}(x,y)S(k,h_{x})\circ \phi _{x}(x)S(l,h_{y})\circ \phi _{y}(y)w(x)v(y)dxdy \\ &=-\int _{c}^{d}\int _{a}^{b}u^{n}(x,y)\Delta [S(k,h_{x})\circ \phi _{x}(x)S(l,h_{y}) \circ \phi _{y}(y)w(x)v(y)]dxdy-B_{T_{2}}, \ \end{aligned}$$

where the number of \(B_{T_{2}}\) is given on page 196 of paper [20]. Assume that \(B_{T_{2}}=0\), then

$$\begin{aligned} -\langle \Delta u^{n},S_{kl}\rangle =&\int _{c}^{d}\int _{a}^{b}-u^{n}(x,y)[S(k,h_{x}) \circ \phi _{x}(x)w(x)]'' S(l,h_{y})\circ \phi _{y}(y)v(y)dxdy \\ & +\int _{c}^{d}\int _{a}^{b}-u^{n}(x,y)S(k,h_{x})\circ \phi _{x}(x)w(x)[S(l,h_{y}) \circ \phi _{y}(y)v(y)]''dxdy. \end{aligned}$$

Applying the quadrature rule (Theorem 4) to the above-iterated integrals, deleting the error terms, replacing \(u(x_{k},y_{l})\) by \(C_{kl}\), dividing \(h_{x}h_{y}\), and using these formulas (1) to (3), the discrete sinc system can be changed to

$$\begin{aligned} &{\frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})} \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}C_{kl}^{1} +\widetilde{\alpha}_{0} \sum _{i=-M_{x}}^{N_{x}}[-\frac{1}{h_{x}^{2}}\delta _{ki}^{(2)}\phi _{x}^{\prime}(x_{i})w(x_{i}) -\frac{1}{h_{x}}\delta _{ki}^{(1)}( \frac{\phi _{x}^{\prime \prime}(x_{i})w(x_{i})}{\phi _{x}^{\prime}(x_{i})}+2w^{\prime}(x_{i}))} \\ &{-\delta _{ki}^{(0)}\frac{w^{\prime \prime}(x_{i})}{\phi _{x}^{\prime}(x_{i})}]C_{kl}^{1} \frac{v(y_{l})}{\phi _{x}^{\prime}(y_{l})} +\widetilde{\alpha}_{0} \frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})}C_{kl}^{1} \sum _{j=-M_{y}}^{N_{y}}[- \frac{1}{h_{y}^{2}}\delta _{lj}^{(2)}\phi _{y}^{\prime}(y_{j})v(y_{j}) - \frac{1}{h_{y}}\delta _{lj}^{(1)}( \frac{\phi _{y}^{\prime \prime}(y_{j})v(y_{j})}{\phi _{y}^{\prime}(y_{j})}} \\ &{+2v^{\prime}(y_{j})) -\delta _{lj}^{(0)} \frac{v^{\prime \prime}(y_{j})}{\phi _{y}^{\prime}(y_{j})}] = \frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})} \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}C_{kl}^{0} +\widetilde{\alpha}_{0} \sum _{j=-M_{y}}^{N_{y}}\frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})} \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}f^{1}_{kl},} \end{aligned}$$

and

$$\begin{aligned} &{\frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})} \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})} C_{kl}^{n} +\alpha _{0}\beta _{0}^{-1} \sum _{k=-M_{x}}^{N_{x}}[-\frac{1}{h_{x}^{2}}\delta _{ki}^{(2)}\phi _{x}^{\prime}(x_{i})w(x_{i}) -\frac{1}{h_{x}}\delta _{ki}^{(1)}( \frac{\phi _{x}^{\prime \prime}(x_{i})w(x_{i})}{\phi _{x}^{\prime}(x_{i})}+2w^{\prime}(x_{i}))} \\ &{-\delta _{ki}^{(0)}\frac{w^{\prime \prime}(x_{i})}{\phi _{x}^{\prime}(x_{i})}]C_{kl}^{n} \frac{v(y_{l})}{\phi _{x}^{\prime}(y_{l})} +\alpha _{0}\beta _{0}^{-1} \frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})}C_{kl}^{n} \sum _{j=-M_{y}}^{N_{y}}[- \frac{1}{h_{y}^{2}}\delta _{lj}^{(2)}\phi _{y}^{\prime}(y_{j})v(y_{j}) - \frac{1}{h_{y}}\delta _{lj}^{(1)}( \frac{\phi _{y}^{\prime \prime}(y_{j})v(y_{j})}{\phi _{y}^{\prime}(y_{j})}} \\ &{+2v^{\prime}(y_{j})) -\delta _{lj}^{(0)} \frac{v^{\prime \prime}(y_{j})}{\phi _{y}^{\prime}(y_{j})}] =\sum _{i=1}^{n}d_{n-i}^{n} \frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})} \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}C_{kl}^{n-i} +\alpha _{0}\beta _{0}^{-1} \sum _{j=-M_{y}}^{N_{y}}\frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})} \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}f^{n}_{kl},} \end{aligned}$$
(19)

where these points \(x_{i},y_{j}\) are Sinc grid points \(x_{i}=\frac{a+be^{ih}}{1+e^{ih}}\) and \(y_{j}=\frac{a+be^{jh}}{1+e^{jh}}\)((for \(a=0, b=1\)). In this paper, we choose \(M_{x}=N_{x},~M_{y}=N_{y}\). By denoting the labels \(m_{x}=2*M_{x}+1\), \(m_{y}=2*M_{y}+1\), defining the notation \(I^{(l)}=[\delta ^{(l)}_{kj}]_{m_{x}\times m_{y}},l=0,1,2\), \(\mathbf {C}^{n}=[C_{kl}^{n}]_{m_{x}\times m_{y}}\), \(\mathbf {F}^{n}=[f_{kl}^{n}]_{m_{x}\times m_{y}}\), \(\phi _{x}(x_{i})=\phi (x_{i})\) and \(\phi _{y}(y_{j})=\phi (y_{j})(i,j=-M_{x},\ldots M_{x})\), the discrete scheme leads to the matrix form

$$\begin{aligned} &{D(\frac{w}{\phi _{x}^{\prime}})\mathbf {C}^{1}D(\frac{v}{\phi _{y}^{\prime}}) + \widetilde{\alpha}_{0}\lbrack -\frac{1}{h_{x}^{2}}I^{(2)}D(\phi _{x}^{\prime}w) -\frac{1}{h_{x}}I^{(1)}D(\frac{\phi ^{\prime \prime}_{x}w}{\phi ^{\prime}_{x}}+2w^{\prime}) -I^{(0)}D(\frac{w^{\prime \prime}}{\phi ^{\prime}_{x}})\rbrack \mathbf {C}^{1}D( \frac{v}{\phi _{y}^{\prime}})} \\ &{+\widetilde{\alpha}_{0} D(\frac{w}{\phi _{x}^{\prime}})\mathbf {C}^{1} \lbrack -\frac{1}{h_{y}^{2}}I^{(2)}D(\phi _{y}^{\prime}v) -\frac{1}{h_{y}}I^{(1)}D( \frac{\phi ^{\prime \prime}_{y}v}{\phi ^{\prime}_{x}}+2v^{\prime}) -I^{(0)}D( \frac{v^{\prime \prime}}{\phi ^{\prime}_{y}})\rbrack ^{T}} \\ &{=D(\frac{w}{\phi ^{\prime}_{x}})\mathbf {C}^{0} D(\frac{v}{\phi ^{\prime}_{y}}) + \widetilde{\alpha}_{0}D(\frac{w}{\phi _{x}^{\prime}})\mathbf {F}^{1}D( \frac{v}{\phi _{y}^{\prime}}),} \end{aligned}$$

and

$$\begin{aligned} &{D(\frac{w}{\phi _{x}^{\prime}})\mathbf {C}^{n}D(\frac{v}{\phi _{y}^{\prime}}) + \alpha _{0}\beta _{0}^{-1}\lbrack -\frac{1}{h_{x}^{2}}I^{(2)}D(\phi _{x}^{\prime}w) -\frac{1}{h_{x}}I^{(1)}D(\frac{\phi ^{\prime \prime}_{x}w}{\phi ^{\prime}_{x}}+2w^{\prime}) -I^{(0)}D(\frac{w^{\prime \prime}}{\phi ^{\prime}_{x}})\rbrack \mathbf {C}^{n}D( \frac{v}{\phi _{y}^{\prime}})} \\ &{+\alpha _{0}\beta _{0}^{-1} D(\frac{w}{\phi _{x}^{\prime}})\mathbf {C}^{n} \lbrack -\frac{1}{h_{y}^{2}}I^{(2)}D(\phi _{y}^{\prime}v) -\frac{1}{h_{y}}I^{(1)}D( \frac{\phi ^{\prime \prime}_{y}v}{\phi ^{\prime}_{x}}+2v^{\prime}) -I^{(0)}D( \frac{v^{\prime \prime}}{\phi ^{\prime}_{y}})\rbrack ^{T}} \\ &{=\sum _{i=1}^{n}d_{n-i}^{n}D(\frac{w}{\phi ^{\prime}_{x}})\mathbf {C}^{n-i} D(\frac{v}{\phi ^{\prime}_{y}}) +\alpha _{0}\beta _{0}^{-1}D( \frac{w}{\phi _{x}^{\prime}})\mathbf {F}^{n}D(\frac{v}{\phi _{y}^{\prime}}).} \end{aligned}$$

Premultiplying by \(D(\phi ^{\prime}_{x})\) and postmultiplying by \(D(\phi ^{\prime}_{y})\) yields the equivalent system

$$\begin{aligned} &{D({w})\mathbf {C}^{1}D({v}) +\widetilde{\alpha}_{0}D(\phi _{x}^{\prime}) \lbrack -\frac{1}{h_{x}^{2}}I^{(2)}D(\phi _{x}^{\prime}w) -\frac{1}{h_{x}}I^{(1)}D( \frac{\phi ^{\prime \prime}_{x}w}{\phi ^{\prime}_{x}}+2w^{\prime}) -I^{(0)}D( \frac{w^{\prime \prime}}{\phi ^{\prime}_{x}})\rbrack \mathbf {C}^{1}D({v})} \\ &{+\widetilde{\alpha}_{0} D({w})\mathbf {C}^{1}\lbrack - \frac{1}{h_{y}^{2}}I^{(2)}D(\phi _{y}^{\prime}v) -\frac{1}{h_{y}}I^{(1)}D( \frac{\phi ^{\prime \prime}_{y}v}{\phi ^{\prime}_{x}}+2v^{\prime}) -I^{(0)}D( \frac{v^{\prime \prime}}{\phi ^{\prime}_{y}})\rbrack ^{T}D({\phi ^{\prime}_{y}})} \\ &{=D({w})[\mathbf {C}^{0}+\widetilde{\alpha}_{0}\mathbf {F}^{1}]D({v});} \\ &{D({w})\mathbf {C}^{n}D({v}) +\alpha _{0}\beta _{0}^{-1}D(\phi _{x}^{\prime}) \lbrack -\frac{1}{h_{x}^{2}}I^{(2)}D(\phi _{x}^{\prime}w) -\frac{1}{h_{x}}I^{(1)}D( \frac{\phi ^{\prime \prime}_{x}w}{\phi ^{\prime}_{x}}+2w^{\prime}) -I^{(0)}D( \frac{w^{\prime \prime}}{\phi ^{\prime}_{x}})\rbrack \mathbf {C}^{n}D({v})} \\ &{+\alpha _{0}\beta _{0}^{-1} D({w})\mathbf {C}^{n}\lbrack - \frac{1}{h_{y}^{2}}I^{(2)}D(\phi _{y}^{\prime}v) -\frac{1}{h_{y}}I^{(1)}D( \frac{\phi ^{\prime \prime}_{y}v}{\phi ^{\prime}_{x}}+2v^{\prime}) -I^{(0)}D( \frac{v^{\prime \prime}}{\phi ^{\prime}_{y}})\rbrack ^{T}D({\phi ^{\prime}_{y}})} \\ &{=D({w})[\sum _{i=1}^{n}d_{n-i}^{n}\mathbf {C}^{n-i}+\alpha _{0}\beta _{0}^{-1} \mathbf {F}^{n}]D({v}).} \end{aligned}$$

Denote \(A(w)=-\frac{1}{h_{x}^{2}}I^{(2)} -\frac{1}{h_{x}}I^{(1)}D( \frac{\phi ^{\prime \prime}_{x}}{(\phi ^{\prime}_{x})^{2}}+2 \frac{w^{\prime}}{\phi _{x}^{\prime}w}) -I^{(0)}D( \frac{w^{\prime \prime}}{(\phi ^{\prime}_{x})^{2}w})\). From the above equations, we present the following matrix form:

$$\begin{aligned} &{D({w})\mathbf {C}^{1}D({v}) +\widetilde{\alpha}_{0}[D(\phi _{x}^{\prime})A(w)D( \phi _{x}^{\prime})]D(w)\mathbf {C}^{1}D({v})+\widetilde{\alpha}_{0} D({w}) \mathbf {C}^{1}D(v)[D(\phi _{y}^{\prime}v)A(v)D({\phi ^{\prime}_{y}})]^{T}} \\ &{\quad=D({w})(\mathbf {C}^{0}+\widetilde{\alpha}_{0}\mathbf {F}^{1})D({v});} \\ &{D({w})\mathbf {C}^{n}D({v}) +\alpha _{0}\beta _{0}^{-1}[D(\phi _{x}^{\prime})A(w)D( \phi _{x}^{\prime})]D(w)\mathbf {C}^{n}D({v})} \\ &{\qquad{}+\alpha _{0}\beta _{0}^{-1} D({w}) \mathbf {C}^{n}D(v)[D(\phi _{y}^{\prime}v)A(v)D({\phi ^{\prime}_{y}})]^{T}} \\ &{\quad=D({w})(\sum _{i=1}^{n}d_{n-i}^{n}\mathbf {C}^{n-i}+\alpha _{0}\beta _{0}^{-1} \mathbf {F}^{n})D({v}).} \end{aligned}$$

In this paper, we define \(\mathbf {V}^{n}=D({w})\mathbf {C}^{n}D({v})(n\geq 1)\), \(\mathbf {G}^{1}=D({w})(\mathbf {C}^{0}+\widetilde{\alpha}_{0}\mathbf {F}^{1})D({v})\), and \(\mathbf {G}^{n}=D({w})(\sum _{i=1}^{n}d_{n-i}^{n}\mathbf {C}^{n-i}+ \alpha _{0}\beta _{0}^{-1}\mathbf {F}^{n})D({v})(n>1)\). Using the weight function \(w(x)v(y)=\frac{1}{\sqrt{\phi _{x}^{\prime}(x)\phi _{y}^{\prime}(y)}}\) in the Sinc-Galerkin inner product, we can know \(\mathbf {A}_{x}=D(\phi _{x}^{\prime})A(w)D(\phi _{x}^{\prime})=D(\phi _{x}^{\prime})[- \frac{1}{h_{x}^{2}}I^{(2)}+D(\frac{1}{4})]D(\phi _{x}^{\prime})\), with an analogous definition for \(\mathbf {A}_{y}\), so the matrix form may be written in the following form

$$\begin{aligned} \mathbf {V}^{1}+\widetilde{\alpha}_{0}\mathbf {A}_{x}\mathbf {V}^{1}+ \widetilde{\alpha}_{0}\mathbf {V}^{1}\mathbf {A}_{y}^{T}=\mathbf {G}^{1}; \end{aligned}$$
(20)
$$\begin{aligned} \mathbf {V}^{n}+\alpha _{0}\beta _{0}^{-1}\mathbf {A}_{x}\mathbf {V}^{n}+ \alpha _{0}\beta _{0}^{-1}\mathbf {V}^{n}\mathbf {A}_{y}^{T}=\mathbf {G}^{n}. \end{aligned}$$
(21)

To solve the solution of V, we use the Kronecker product and concatenate the system in (20)–(21) to arrive at (see [28, Thm. A.33])

$$\begin{aligned}& [I_{m_{y}}\otimes I_{m_{x}}+\widetilde{\alpha}_{0}I_{m_{y}}\otimes \mathbf {A}_{x}+\widetilde{\alpha}_{0}\mathbf {A}_{y}\otimes I_{m_{x}}]Co( \mathbf {V}^{1})=Co(\mathbf {G}^{1}); \end{aligned}$$
(22)
$$\begin{aligned}& [I_{m_{y}}\otimes I_{m_{x}}+\alpha _{0}\beta _{0}^{-1}I_{m_{y}} \otimes \mathbf {A}_{x}+\alpha _{0}\beta _{0}^{-1}\mathbf {A}_{y}\otimes I_{m_{x}}]Co( \mathbf {V}^{n})=Co(\mathbf {G}^{n}), \end{aligned}$$
(23)

where \(Co(\mathbf {G}^{n})= \left ( \begin{array}{c@{\quad}c@{\quad}c@{\quad}c} Co(\mathbf {G}^{n}_{i1}) & Co(\mathbf {G}^{n}_{i2}) & \ldots & Co( \mathbf {G}^{n}_{im_{y}}) \end{array} \right )^{T}\) is the concatenation of \(\mathbf {G}^{n}\), which is a \(m_{x} m_{y}\times 1\) vector, where \(Co(\mathbf {G}^{n}_{ij})= \left ( \begin{array}{c@{\quad}c@{\quad}c@{\quad}c} \mathbf {G}^{n}_{1j} & \mathbf {G}^{n}_{2j} & \ldots & \mathbf {G}^{n}_{m_{x}j} \end{array} \right )^{T}(j=1,2,\ldots,m_{y})\). \(I_{m_{x}}\) is a \({m_{x}}\times {m_{x}}\) identity matrix, the same as the matrix \(I_{m_{y}}\). The symbol represents the Kronecker product.

By premultiplying by \(D^{-1}(w)\) and postmultiplying by \(D^{-1}(v)\) of \(\mathbf {V}^{n}\), we can get the numerical solution \(\mathbf {C}^{n}\) from the solution of \(\mathbf {V}^{n}\).

4 The stability and convergence analysis of the discrete scheme

4.1 The stability and convergence analysis of the discrete scheme in time

The weak form of the formulation of the discrete scheme (8) with the homogeneous boundary condition \(u^{n}\in H_{0}^{1}(\Lambda )\) is defined as:

$$\begin{aligned} (u^{n},v)+\alpha _{0}\beta _{0}^{-1}(\nabla u^{n},\nabla v)=\sum _{i=1}^{n}d_{n-i}^{n}(u^{n-i},v)+ \alpha _{0}\beta _{0}^{-1}(f^{n},v),\forall v\in H_{0}^{1}(\Lambda ), \end{aligned}$$
(24)

where \((.,.)\) is the usual \(L^{2}\)-inner product, \(\Lambda =[0,1]\). Just as the same derivation process in [5], the bellowing theorem is easily demonstrated:

Theorem 5

[7] If we assume the solution of problem (4) has the necessary regularity and that the \(f=0\) to deduce the stability analysis, the semi-discretization of equation (11) is unconditionally stable and its solution satisfies the following inequality:

$$\begin{aligned} \Arrowvert u^{n}\Arrowvert _{0}+\sqrt{\alpha _{0}\beta _{0}^{-1}} \Arrowvert \nabla u^{n}\Arrowvert _{0}\leq 4\Arrowvert u^{0} \Arrowvert _{0}. \end{aligned}$$
(25)

The following error estimate is established.

Theorem 6

[7] Let u be the exact solution of equation (4), and let \(\{u^{n}\}_{n=0}^{N}\) be the semi-discrete solution of (11) with the initial \(u^{0}=u(t_{0})\). Suppose \(\partial _{t}^{3}u\in L^{\infty}([0,T];L^{2}{(\Lambda )})\), then the following error estimate holds:

$$\begin{aligned} \Arrowvert u(t_{n})-u^{n}\Arrowvert _{0}+\sqrt{\alpha _{0}\beta _{0}^{-1}} \Arrowvert \nabla (u(t_{n})-u^{n})\Arrowvert _{0}\leq C_{\alpha ,T} \Arrowvert \partial _{t}^{3}u\Arrowvert _{L^{\infty}(L^{2})}\Delta t^{3- \alpha},2\leq n\leq N. \end{aligned}$$
(26)

4.2 The convergence analysis of the discrete scheme in space for 1D problem

Considering the fully discrete scheme (10), supposing the function \(F(x)\) satisfies the condition in Theorem 4, we can get the following exponential convergence:

$$\begin{aligned} &{|< u^{n},s_{k}>-h\frac{w(x_{k})u(x_{k})}{\phi ^{\prime}(x_{k})}|\leq L_{0}M^{-1/2} \exp (-(\pi d\alpha M)^{1/2}),} \\ &{\big{ \vert }< u^{n}_{xx},S_{k}>-h\sum _{k=-M}^{N}u(x_{k})[ \frac{\delta _{jk}^{(2)}}{h^{2}}(\phi ^{\prime}w)(x_{k})+ \frac{\delta _{jk}^{(1)}}{h}(\frac{\phi ^{\prime \prime}}{\phi ^{\prime}}w+2w')(x_{k})]-h \frac{uw''}{\phi ^{\prime}}(x_{j}) \big{ \vert }} \\ &{\quad\leq L_{1}^{\prime}M\exp (-(\pi d\alpha M)^{1/2}).} \end{aligned}$$

4.3 The convergence analysis of the discrete scheme in space for 2D problem

In this section, we will analyze the convergence rates of each term in equation (18). We will use the following lemmas to derive the convergence order.

Lemma 3

Define the notations \(\delta _{kj}^{(s)}(s=0,1,2)\) as formulas (1)(3) and \(\phi _{x}(x)\) via \(\phi _{x}(x)=\ln \frac{x-a}{b-x}\), then we have

$$\begin{aligned} &{(1)\mid \sum _{i=-\infty}^{\infty}\delta _{kj}^{(0)}\mid =\mid \sum _{i=-\infty}^{\infty}[S(k,h_{x})\circ \phi _{x}(x_{i})]\mid =1;} \\ &{(2)\mid \sum _{i=-\infty}^{\infty}\delta _{kj}^{(1)}\mid < 2;} \\ &{(3)\mid \sum _{i=-\infty}^{\infty}\delta _{kj}^{(2)}\mid \leq 4+ \frac{\pi ^{2}}{3}.} \end{aligned}$$

Proof

(1). The first equality can be directly obtained from [28](P.53).

(2). We change the sum \(\sum _{i=-\infty}^{\infty}\delta _{kj}^{(1)}\) to two parts, which is \(\sum _{i=k}^{\infty}\delta _{kj}^{(1)}\) and \(\sum _{i=-\infty}^{k-1}\delta _{kj}^{(1)}\). For the first part, it is an alternating series, whose general term \(\frac{1}{n}>\frac{1}{n+1}\) and \(\lim _{n\to \infty}\frac{1}{n}=0\). So according to the Leibniz law, this series is limited. Then,

$$\begin{aligned} \mid \sum _{i=k}^{\infty}\delta _{kj}^{(1)}\mid =\mid 1-\frac{1}{2}+ \frac{1}{3}-\frac{1}{4}+\cdots\mid =\ln 2< 1. \end{aligned}$$

And the rest part, if we choose \(n=-(i-k)\), then

$$\begin{aligned} \mid \sum _{-\infty}^{i=k-1}\delta _{kj}^{(1)}\mid =\mid \sum _{n=1}^{\infty}\frac{(-1)^{n}}{n}\mid =\mid 1-\frac{1}{2}+\frac{1}{3}- \frac{1}{4}+\cdots\mid =\ln 2< 1. \end{aligned}$$

So, \(\mid \sum _{i=-\infty}^{\infty}\delta _{kj}^{(1)}\mid <2\).

(3). Just as the demonstration of (2), the sum \(\sum _{i=-\infty}^{\infty}\delta _{kj}^{(1)}\) also can be changed to two parts of \(\sum _{i=k}^{\infty}\delta _{kj}^{(2)}\) and \(\sum _{i=-\infty}^{k-1}\delta _{kj}^{(2)}\). The first part is also limited.

$$\begin{aligned} \mid \sum _{i=k}^{\infty}\delta _{kj}^{(2)}\mid =\mid \sum _{i=k+1}^{\infty}\frac{-2(-1)^{i-k}}{(i-k)^{2}}-\frac{\pi ^{2}}{3}\mid =\mid 2- \frac{2}{2^{2}}+\frac{2}{3^{2}}-\frac{2}{4^{2}}+\cdots- \frac{\pi ^{2}}{3} \mid \leq 2+\frac{\pi ^{2}}{3}. \end{aligned}$$

And the rest part, if we choose \(n=-(i-k)\), then

$$\begin{aligned} \mid \sum _{-\infty}^{i=k-1}\delta _{kj}^{(2)}\mid =\mid \sum _{n=1}^{\infty}\frac{-2(-1)^{-n}}{n^{2}}\mid =\mid 2-\frac{2}{2^{2}}+ \frac{2}{3^{2}}-\frac{2}{4^{2}}+\cdots\mid \leq 2. \end{aligned}$$

So, we get the proof. □

Lemma 4

Let \(\phi _{x}(x)\) be defined via \(\phi _{x}(x)=\ln \frac{x-a}{b-x}\), then it holds that

$$\begin{aligned} \mid \frac{1}{\phi _{x}^{\prime}(x)}\mid < \frac{b-a}{4}. \end{aligned}$$

Proof

According to \(\phi _{x}(x)=\ln \frac{x-a}{b-x}\), we have

$$\begin{aligned} \mid \frac{1}{\phi _{x}^{\prime}(x)}\mid =\mid \frac{(x-a)(b-x)}{b-a}\mid = \mid \frac{-x^{2}+(a+b)x-ab}{b-a}\mid =\mid \frac{-(x-\frac{a+b}{2})^{2}+\frac{(b-a)^{2}}{4}}{b-a}\mid < \frac{b-a}{4}. \end{aligned}$$

 □

It is easy to see that \(\mid \frac{1}{\phi _{y}^{\prime}(y)}\mid <\frac{d-c}{4}\).

Lemma 5

Let \(\phi _{x}(x)\) be defined via \(\phi _{x}(x)=\ln \frac{x-a}{b-x}\), \(w=\frac{1}{\sqrt{\phi _{x}^{\prime}(x)}}\), \(\phi _{y}(y)=\ln \frac{y-c}{d-y}\), \(v=\frac{1}{\sqrt{\phi _{y}^{\prime}(y)}}\), then it holds that

$$\begin{aligned} &{(1)\frac{w^{\prime \prime}(x)}{\phi _{x}^{\prime}(x)}=\frac{-1}{4}\sqrt{\phi _{x}^{\prime}(x)},~ \frac{\phi _{x}^{\prime \prime}(x)}{\phi _{x}^{\prime}(x)}w(x)+2w^{\prime}=0.} \\ &{(2)\frac{v^{\prime \prime}(y)}{\phi _{y}^{\prime}(y)}=\frac{-1}{4}\sqrt{\phi _{y}^{\prime}(y)},~ \frac{\phi _{y}^{\prime \prime}(y)}{\phi _{y}^{\prime}(y)}v(y)+2v^{\prime}=0.} \end{aligned}$$

Proof

(1) According to \(\phi _{x}(x)=\ln \frac{x-a}{b-x}\), we have

$$\begin{aligned} &{\phi _{x}^{\prime}(x)=\frac{b-a}{(x-a)(b-x)},} \\ &{w=\frac{1}{\sqrt{\phi _{x}^{\prime}(x)}}= \frac{\sqrt{(x-a)(b-x)}}{\sqrt{b-a}}=e^{\frac{1}{2}\ln (x-a)+ \frac{1}{2}\ln (b-x)-\frac{1}{2}\ln (b-a)},} \end{aligned}$$

and

$$\begin{aligned} \frac{\phi _{x}^{\prime \prime}(x)}{\phi _{x}^{\prime}(x)}w(x)+2w^{\prime}= \frac{\phi _{x}^{\prime \prime}(x)}{(\phi _{x}^{\prime}(x))^{3/2}}+2( \frac{1}{\sqrt{\phi _{x}^{\prime}(x)}})^{\prime}= \frac{\phi _{x}^{\prime \prime}(x)}{(\phi _{x}^{\prime}(x))^{3/2}}+2(-\frac{1}{2}) \frac{1}{(\sqrt{\phi _{x}^{\prime}(x)})^{3/2}}\phi _{x}^{\prime \prime}(x)=0, \end{aligned}$$

then

$$\begin{aligned} w^{\prime} =&e^{\frac{1}{2}\ln (x-a)+\frac{1}{2}\ln (b-x)-\frac{1}{2}\ln (b-a)}( \frac{1}{2}\frac{1}{(x-a)}-\frac{1}{2}\frac{1}{(b-x)}), \\ w^{\prime \prime} =&e^{\frac{1}{2}\ln (x-a)+\frac{1}{2}\ln (b-x)-\frac{1}{2}\ln (b-a)}[( \frac{1}{2}\frac{1}{(x-a)}-\frac{1}{2}\frac{1}{(b-x)})^{2} - \frac{1}{2}\frac{1}{(x-a)^{2}}-\frac{1}{2}\frac{1}{(b-x)^{2}}] \\ =&\frac{\sqrt{(x-a)(b-x)}}{\sqrt{b-a}}[-\frac{1}{4(x-a)^{2}}- \frac{1}{4(b-x)^{2}}-\frac{1}{2(x-a)(b-x)}]\\ =&\frac{-1}{4} \frac{(b-a)^{3/2}}{(x-a)^{3/2}(b-x)^{3/2}} \\ =&\frac{-1}{4}(\phi _{x}^{\prime}(x))^{3/2}. \end{aligned}$$

The results for parameter y can be demonstrated just as above, so the proof is completed. □

Theorem 7

Let \(\phi _{x}\) and \(\phi _{y}\) be conformal one-to-one maps of the simple connected domain \(\mathcal {D}_{x}\) and \(\mathcal {D}_{y}\), respectively, onto \(\mathcal {D}_{S}\). \(\mathcal {D}_{x}\times \mathcal {D}_{y}\) is the domain Ω. Assume that \(x_{k}=\psi (kh_{x})\), \(y_{l}=\psi (lh_{y}),~k,l\in \mathbb{Z}\), \(uF_{q}\in B(\mathcal {D}),~(F_{q}=\sqrt{\phi ^{\prime}_{q}}(1/\phi ^{\prime}_{q})^{\prime \prime}, \phi ^{\prime \prime}_{q}/\sqrt{\phi ^{\prime}_{q}},(~\phi ^{\prime}_{q})^{3/2}\), \((1/\sqrt{\phi ^{\prime}_{q}})^{\prime \prime}\)), and \(f/\sqrt{\phi ^{\prime}_{q}}\in B(\mathcal {D}),(q=x~or~y)\), \(B_{T_{2}}=0\), which is defined as (4.13) in [26]. To simplify the discrete scheme, we choose \(w=\frac{1}{\sqrt {\phi _{x}^{\prime}}}\), \(v=\frac{1}{\sqrt {\phi _{y}^{\prime}}}\). In this paper, we choose \(\phi _{x}(x)=\ln \frac{x-a}{b-x}\), and \(\phi _{y}(y)=\ln \frac{y-c}{d-y}\), then

$$\begin{aligned} &(1).\big{ \vert } \langle u,S_{kl}\rangle - h_{x}h_{y}u(x_{k},y_{l}) \frac{w(x_{k})v(y_{l})}{\phi _{x}^{\prime}(x_{k})\phi _{y}^{\prime}(y_{l})} \big{ \vert } \\ \leq &\frac{(b-a)^{3/2}C_{0}(h_{y},d_{y})}{16}h_{x}e^{-\pi d_{y}/h_{y}} \widetilde{N}(uv,D_{y})+\frac{(d-c)^{3/2}C_{0}(h_{x},d_{x})}{16}h_{y}e^{- \pi d_{x}/h_{x}}\widetilde{N}(uw,D_{x}) \\ +&\frac{C_{0}(h_{x},d_{x})C_{0}(h_{y},d_{y})}{4}e^{-\pi d_{x}/h_{x}}e^{- \pi d_{y}/h_{y}}N(N(uw,\mathcal {D}_{x})v,\mathcal {D}_{y}), \end{aligned}$$
$$\begin{aligned} &(2).\big{ \vert } \langle \Delta u,S_{kl}\rangle -h_{x}h_{y} \sum _{i=-\infty}^{\infty}\sum _{j=-\infty}^{\infty} \frac{u(x_{i},y_{j})}{\phi _{x}^{\prime}(x_{i})\phi _{y}^{\prime}(y_{j})} \lbrace [S(l,h_{y})\circ \phi _{y}(y_{j})v(y_{j})]I_{1}(x_{i}) \\ +&I_{1}(y_{j})[S(k,h_{x})\circ \phi _{x}(x_{i}) w(x_{i})]\rbrace \big{ \vert } \\ \leq &\frac{1}{2}h_{x}e^{-\pi d_{y}/h_{y}}C_{0}(h_{y},d_{y}) \widetilde{N}^{\prime}(u\sqrt{\phi _{x}^{\prime}}v,D_{y})[\frac{1}{h_{x}^{2}}(4+ \frac{\pi ^{2}}{3})+\frac{1}{4}] \\ +&\frac{1}{2}h_{y}e^{-\pi d_{x}/h_{x}}C_{0}(h_{x},d_{x}) \widetilde{N}^{\prime}(u\sqrt{\phi _{y}^{\prime}}w,D_{x})[\frac{1}{h_{y}^{2}}(4+ \frac{\pi ^{2}}{3})+\frac{1}{4}] \\ +&\frac{(b-a)^{3/2}}{4}h_{x}e^{-\pi d_{y}/h_{y}}|C_{2}(h_{y},d_{y})- \frac{1}{4}C_{0}(h_{y},d_{y})|\widetilde{N}(uv^{\prime \prime},D_{y}) \\ +&\frac{(d-c)^{3/2}}{4}h_{y}e^{-\pi d_{x}/h_{x}}|C_{2}(h_{x},d_{x})- \frac{1}{4}C_{0}(h_{x},d_{x})|\widetilde{N}(uw^{\prime \prime},D_{x}) \\ +&C_{0}(h_{y},d_{y})e^{-\pi d_{x}/h_{x}}e^{-\pi d_{y}/h_{y}}N(N(uw^{\prime \prime},D_{x})v,D_{y})|C_{2}(h_{x},d_{x})- \frac{1}{4}C_{0}(h_{x},d_{x})| \\ +&C_{0}(h_{x},d_{x})e^{-\pi d_{x}/h_{x}}e^{-\pi d_{y}/h_{y}}N(N(uw,D_{x})v^{\prime \prime},D_{y})|C_{2}(h_{y},d_{y})- \frac{1}{4}C_{0}(h_{y},d_{y})| \\ \equiv & R(\Omega ), \end{aligned}$$

where \(\widetilde{N}(u,D_{y})=\int _{\partial _{\mathcal {D}_{y}}}u(x_{k},y)dy\), \(\widetilde{N}^{\prime}(u\sqrt{\phi _{x}^{\prime}}v,D_{y})=\max _{i}\int _{\partial _{\mathcal {D}_{y}}}u(x_{i},y)v(y)\sqrt{\phi _{x}^{\prime}}(x_{k})dy\), and the same as \(\widetilde{N}(u,D_{x})=\int _{\partial _{\mathcal {D}_{x}}}u(x,y_{l})dx\), \(\widetilde{N}^{\prime}(u\sqrt{\phi _{y}^{\prime}}w,D_{x})=\max _{j}\int _{\partial _{\mathcal {D}_{x}}}u(x,y_{j})w(x)\sqrt{\phi _{x}^{\prime}}(y_{l})dx\), \(N(N(uw,D_{x})v,D_{y})=\int _{\partial _{\mathcal {D}_{y}}}\int _{\partial _{\mathcal {D}_{x}}}u(x,y)w(x)v(y)dxdy\),

$$\begin{aligned} &{I_{1}(x)=\frac{d^{2}}{d\phi _{x}^{2}}[S(k,h_{x})\circ \phi _{x}(x)]( \phi _{x}^{\prime})^{2}(x)w(x)+\frac{d}{d\phi _{x}}[S(k,h_{x})\circ \phi _{x}(x)]( \phi _{x}^{\prime \prime}w +2\phi _{x}^{\prime}w^{\prime})(x)} \\ &{+[S(k,h_{x})\circ \phi _{x}(x)]w^{\prime \prime}(x).} \end{aligned}$$

At the same,

$$\begin{aligned} &{I_{1}(y)=\frac{d^{2}}{d\phi _{y}^{2}}[S(l,h_{y})\circ \phi _{y}(y)]( \phi _{y}^{\prime})^{2}(y)v(y)+\frac{d}{d\phi _{y}}[S(l,h_{y})\circ \phi _{y}(y)]( \phi _{y}^{\prime \prime}v+2\phi _{y}^{\prime}v^{\prime})(y)} \\ &{+[S(l,h_{y})\circ \phi _{y}(y)]v^{\prime \prime}(y).} \end{aligned}$$

Applying Lemma 3, Lemma 4, Theorem 1, and Theorem 2 to each term of equation (18), we can prove the above theorem.

Proof

(1) Utilizing the integral approximation in Theorem 1 for variable x, we have

$$\begin{aligned} &\big{ \vert }\langle u,S_{kl}\rangle \big{ \vert }= \big{ \vert } \int _{c}^{d} \int _{a}^{b} u(x,y) [S(k,h_{x})\circ \phi _{x}(x) w(x)][S(l,h_{y})\circ \phi _{y}(y)v(y)]dxdy \big{ \vert } \\ =& \big{ \vert } \int _{c}^{d} h_{x}\sum _{i=-\infty}^{\infty} \frac{u(x_{i},y)[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]}{\phi _{x}^{\prime}(x_{i})}[S(l,h_{y}) \circ \phi _{y}(y)v(y)]dy \\ +& \int _{c}^{d}\frac{i}{2}\int _{\partial \mathcal {D}_{x}} \frac{u(x,y)\kappa (\phi _{x},h_{x})(x)}{\sin (\pi \phi _{x}(x)/h_{x})}[S(k,h_{x}) \circ \phi _{x}(x)w(x)]dx[S(l,h_{y})\circ \phi _{y}(y)v(y)]dy \big{ \vert }. \end{aligned}$$

Then, using the inequalities about \(\kappa (\phi _{x},h_{x})(x)\) in Theorem 1 and the first inequality about \(\frac{S(k,h_{x})\circ \phi _{x}(x)}{\sin (\pi \phi _{x}(x)/h_{x})}\) in Theorem 2, we deduce the above equality as:

$$\begin{aligned} &\big{ \vert }\langle u,S_{kl}\rangle \big{ \vert }\leq \big{ \vert } h_{x}\sum _{i=-\infty}^{\infty} \frac{[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]}{\phi _{x}^{\prime}(x_{i})} \int _{c}^{d} u(x_{i},y)[S(l,h_{y})\circ \phi _{y}(y)v(y)]dy \big{ \vert } \\ +&\big{ \vert }\frac{C_{0}(h_{x},d_{x})}{2}e^{-\pi d_{x}/h_{x}} \int _{c}^{d}\int _{\partial \mathcal {D}_{x}}u(x,y)w(x)dx[S(l,h_{y}) \circ \phi _{y}(y)v(y)]dy\big{ \vert }. \end{aligned}$$

Then utilizing the integral approximation in Theorem 1 for variable y, we have

$$\begin{aligned} &\big{ \vert }\langle u,S_{kl}\rangle \big{ \vert }\leq \big{ \vert } h_{x}h_{y}\sum _{i=-\infty}^{\infty} \frac{[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]}{\phi _{x}^{\prime}(x_{i})} \sum _{j=-\infty}^{\infty} u(x_{i},y_{j}) \frac{[S(l,h_{y})\circ \phi _{y}(y_{j})v(y_{j})]}{\phi _{y}^{\prime}(y_{j})} \\ +& h_{x}\sum _{i=-\infty}^{\infty} \frac{[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]}{\phi _{x}^{\prime}(x_{i})} \frac{i}{2}\int _{\partial \mathcal {D}_{y}} \frac{u(x_{i},y)\kappa (\phi _{y},h_{y})(y)}{\sin (\pi \phi _{y}(y)/h_{y})}[S(l,h_{y}) \circ \phi _{y}(y)v(y)]dy \big{ \vert } \\ +&\big{ \vert }\frac{C_{0}(h_{x},d_{x})}{2}e^{-\pi d_{x}/h_{x}}h_{y} \sum _{j=-\infty}^{\infty}\int _{\partial \mathcal {D}_{x}}u(x,y_{j})w(x)dx \frac{[S(l,h_{y})\circ \phi _{y}(y_{j})v(y_{j})]}{\phi _{y}^{\prime}(y_{j})} \\ +&\frac{C_{0}(h_{x},d_{x})}{2}e^{-\pi d_{x}/h_{x}}\frac{i}{2}\int _{\partial \mathcal {D}_{y}}\int _{\partial \mathcal {D}_{x}}u(x,y)w(x)v(y)dx \frac{\kappa (\phi _{y},h_{y})(y)[S(l,h_{y})\circ \phi _{y}(y)]}{\sin (\pi \phi _{y}(y)/h_{y})}dy \big{ \vert }. \end{aligned}$$

Using the inequalities in Theorem 1 and Theorem 2, we also have

$$\begin{aligned} &\big{ \vert }\langle u,S_{kl}\rangle \big{ \vert }\leq \big{ \vert } h_{x}h_{y}\sum _{i=-\infty}^{\infty} \sum _{j=- \infty}^{\infty} u(x_{i},y_{j}) \frac{[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]}{\phi _{x}^{\prime}(x_{i})} \frac{[S(l,h_{y})\circ \phi _{y}(y_{j})v(y_{j})]}{\phi _{y}^{\prime}(y_{j})} \big{ \vert } \\ +&\big{ \vert }h_{x}\frac{C_{0}(h_{y},d_{y})}{2}e^{-\pi d_{y}/h_{y}} \sum _{i=-\infty}^{\infty} \frac{[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]}{\phi _{x}^{\prime}(x_{i})} \int _{\partial \mathcal {D}_{y}} u(x_{i},y)v(y)dy \big{ \vert } \\ +& \big{ \vert }\frac{C_{0}(h_{x},d_{x})}{2}e^{-\pi d_{x}/h_{x}}h_{y} \sum _{j=-\infty}^{\infty} \frac{[S(l,h_{y})\circ \phi _{y}(y_{j})v(y_{j})]}{\phi _{y}^{\prime}(y_{j})} \int _{\partial \mathcal {D}_{x}}u(x,y_{j})w(x)dx\big{ \vert } \\ +&\big{ \vert }\frac{C_{0}(h_{x},d_{x})}{2}e^{-\pi d_{x}/h_{x}} \frac{C_{0}(h_{y},d_{y})}{2}e^{-\pi d_{y}/h_{y}}\int _{\partial \mathcal {D}_{y}}\int _{\partial \mathcal {D}_{x}}u(x,y)w(x)v(y)dxdy \big{ \vert }. \end{aligned}$$
(27)

For the second part of the right side of equation (27), we will use the Lemma 3, Lemma 4, and the fact that \(S(k,h_{x})\circ \phi _{x}(x_{i})=0(\textrm{if}~i\neq k)\) to demonstrate:

$$\begin{aligned} &\big{ \vert }\sum _{i=-\infty}^{\infty} \frac{[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]}{\phi _{x}^{\prime}(x_{i})} \int _{\partial \mathcal {D}_{y}} u(x_{i},y)v(y)dy \big{ \vert } \\ \leq & \big{ \vert }\frac{b-a}{4}\frac{\sqrt{b-a}}{2}\int _{\partial \mathcal {D}_{y}} u(x_{i},y)v(y)dy \big{ \vert }= \frac{(b-a)^{3/2}}{8}\widetilde{N}(uv,D_{y}). \end{aligned}$$

The same as the third term of the right side of equation (27), we have:

$$\begin{aligned} \big{ \vert }\sum _{j=-\infty}^{\infty} \frac{[S(l,h_{y})\circ \phi _{y}(y_{j})v(y_{j})]}{\phi _{y}^{\prime}(y_{j})} \int _{\partial \mathcal {D}_{x}}u(x,y_{j})w(x)dx\big{ \vert }\leq \frac{(d-c)^{3/2}}{8}\widetilde{N}(uw,D_{x}). \end{aligned}$$

Combining these above inequalities into equation (27), we can prove the first result in Theorem 8.

(2) Using the integration by parts, and assuming \(B_{T_{2}}=0\), we can change the second term of the left side in Eq. (18) to

$$\begin{aligned} &{I=\int _{c}^{d}\int _{a}^{b}\Delta u^{n}(x,y)S(k,h_{x})\circ \phi _{x}(x)S(l,h_{y}) \circ \phi _{y}(y)w(x)v(y)dxdy} \\ &{=\int _{c}^{d}\int _{a}^{b}u^{n}(x,y)\Delta [S(k,h_{x})\circ \phi (x)w(x)][S(l,h_{y}) \circ \phi (y)v(y)]dxdy} \\ &{= \int _{c}^{d} \int _{a}^{b} u(x,y) \lbrace I_{1}(x)[S(l,h_{y}) \circ \phi _{y}(y)v(y)]+[S(k,h_{x})\circ \phi _{x}(x) w(x)]I_{1}(y) \rbrace dxdy.} \end{aligned}$$

Applying the integral approximation for variable x described in Theorem 1, we have

$$\begin{aligned} &{I=\int _{c}^{d}h_{x}\sum _{i=-\infty}^{\infty} \frac{u(x_{i},y)}{\phi _{x}^{\prime}(x_{i})}I_{1}(x_{i})[S(l,h_{y})\circ \phi _{y}(y)v(y)]dy} \\ &{+\int _{c}^{d}h_{x}\sum _{i=-\infty}^{\infty} \frac{u(x_{i},y)}{\phi _{x}^{\prime}(x_{i})}[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]I_{1}(y)dy} \\ &{+\int _{c}^{d}\frac{i}{2}\int _{\partial \mathcal {D}_{x}} \frac{u(x,y)\kappa (\phi _{x},h_{x})(x)}{\sin (\pi \phi _{x}(x)/h_{x})}I_{1}(x)dx[S(l,h_{y}) \circ \phi _{y}(y)v(y)]dy} \\ &{+\int _{c}^{d}\frac{i}{2}\int _{\partial \mathcal {D}_{x}} \frac{u(x,y)\kappa (\phi _{x},h_{x})(x)}{\sin (\pi \phi _{x}(x)/h_{x})}[S(k,h_{x}) \circ \phi _{x}(x) w(x)]dxI_{1}(y)dy.} \end{aligned}$$

Using Theorem 1 and Theorem 2, we can get

$$\begin{aligned} &{{\vert } I- h_{x}\sum _{i=-\infty}^{\infty}\int _{c}^{d} \frac{u(x_{i},y)}{\phi _{x}^{\prime}(x_{i})}I_{1}(x_{i})[S(l,h_{y})\circ \phi _{y}(y)v(y)]dy} \\ &{-\int _{c}^{d}h_{x}\sum _{i=-\infty}^{\infty} \frac{u(x_{i},y)}{\phi _{x}^{\prime}(x_{i})}[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]I_{1}(y)dy \big{ \vert }} \\ &{\leq \big{ \vert } \frac{1}{2}e^{-\pi d_{x}/h_{x}}\int _{c}^{d} \int _{\partial \mathcal {D}_{x}} \frac{u(x,y)}{\sin (\pi \phi _{x}(x)/h_{x})}I_{1}(x)dx[S(l,h_{y}) \circ \phi _{y}(y)v(y)]dy\big{ \vert }} \\ &{+\big{ \vert }\frac{1}{2}C_{0}(h_{x},d_{x})e^{-\pi d_{x}/h_{x}} \int _{c}^{d}N(uw,\mathcal {D}_{x})I_{1}(y)dy\big{ \vert }.} \end{aligned}$$

Applying the integral approximation for variable y, we can obtain

$$\begin{aligned} &{\big{ \vert }I- h_{x}h_{y}\sum _{i=-\infty}^{\infty} \sum _{j=- \infty}^{\infty} \frac{u(x_{i},y_{j})}{\phi _{x}^{\prime}(x_{i})\phi _{y}^{\prime}(y_{j})}\{[S(l,h_{y}) \circ \phi _{y}(y_{j})v(y_{j})]I_{1}(x_{i})} \\ &{+I_{1}(y_{j})[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]\} \big{ \vert }} \\ &{\leq \big{ \vert }\frac{i}{2}h_{x}\sum _{i=-\infty}^{\infty} \int _{\partial \mathcal {D}_{y}} \frac{u(x_{i},y)\kappa (\phi _{y},h_{y})(y)}{\sin (\pi \phi _{y}(y)/h_{y})\phi _{x}^{\prime}(x_{i})}[S(l,h_{y}) \circ \phi _{y}(y)v(y)]dyI_{1}(x_{i})} \\ &{+\frac{i}{2}h_{x}\sum _{i=-\infty}^{\infty} \int _{\partial \mathcal {D}_{y}} \frac{u(x_{i},y)\kappa (\phi _{y},h_{y})(y)}{\sin (\pi \phi _{y}(y)/h_{y})\phi _{x}^{\prime}(x_{i})}I_{1}(y)dy[S(k,h_{x}) \circ \phi _{x}(x_{i}) w(x_{i})]\big{ \vert }} \\ &{+\big{ \vert }\frac{h_{y}}{2}e^{-\pi d_{x}/h_{x}}\sum _{j=- \infty}^{\infty} \frac{[S(l,h_{y})\circ \phi _{y}(y_{j})v(y_{j})]}{\phi _{y}^{\prime}(y_{j})} \int _{\partial \mathcal {D}_{x}} \frac{u(x,y_{j})}{\sin (\pi \phi _{x}(x)/h_{x})}I_{1}(x)dx} \\ &{+\frac{i}{4}e^{-\pi d_{x}/h_{x}}\int _{\partial \mathcal {D}_{y}} \int _{\partial \mathcal {D}_{x}} \frac{u(x,y)}{\sin (\pi \phi _{x}(x)/h_{x})}I_{1}(x)dx \frac{[S(l,h_{y})\circ \phi _{y}(y)v(y)]\kappa (\phi _{y},h_{y})(y)}{\sin (\pi \phi _{y}(y)/h_{y})}dy \big{ \vert }} \\ &{+\big{ \vert }\frac{h_{y}}{2}e^{-\pi d_{x}/h_{x}}C_{0}(h_{x},d_{x}) \sum _{j=-\infty}^{\infty} \frac{N(u(x,y_{j})w,\mathcal {D}_{x})I_{1}(y_{j})}{\phi _{y}^{\prime}(y_{j})}} \\ &{+\frac{i}{4}e^{-\pi d_{x}/h_{x}}C_{0}(h_{x},d_{x})\int _{\partial \mathcal {D}_{y}} \frac{N(uw,\mathcal {D}_{x})I_{1}(y)\kappa (\phi _{y},h_{y})(y)}{\sin (\pi \phi _{y}(y)/h_{y})}dy \big{ \vert }.} \end{aligned}$$

Applying Theorem 1 and Theorem 2 yields

$$\begin{aligned} &{\big{ \vert }I- h_{x}h_{y}\sum _{i=-\infty}^{\infty} \sum _{j=- \infty}^{\infty} \frac{u(x_{i},y_{j})}{\phi _{x}^{\prime}(x_{i})\phi _{y}^{\prime}(y_{j})}\{[S(l,h_{y}) \circ \phi _{y}(y_{j})v(y_{j})]I_{1}(x_{i})} \\ &{+I_{1}(y_{j})[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})]\} \big{ \vert }} \\ &{\leq \frac{1}{2}h_{x}e^{-\pi d_{y}/h_{y}}C_{0}(h_{y},d_{y}) \big{ \vert }\sum _{i=-\infty}^{\infty} \int _{\partial \mathcal {D}_{y}} \frac{u(x_{i},y)v(y)}{\phi _{x}^{\prime}(x_{i})}dyI_{1}(x_{i}) \big{ \vert }} \\ &{+\frac{1}{2}h_{x}e^{-\pi d_{y}/h_{y}} \big{ \vert }\sum _{i=- \infty}^{\infty} \frac{[S(k,h_{x})\circ \phi _{x}(x_{i}) w(x_{i})]}{\phi _{x}^{\prime}(x_{i})} \int _{\partial \mathcal {D}_{y}} \frac{u(x_{i},y)}{\sin (\pi \phi _{y}(y)/h_{y})}I_{1}(y)dy \big{ \vert }} \\ &{+\frac{1}{2}h_{y} e^{-\pi d_{x}/h_{x}}\big{ \vert }\sum _{j=- \infty}^{\infty} \frac{[S(l,h_{y})\circ \phi _{y}(y_{j})v(y_{j})]}{\phi _{y}^{\prime}(y_{j})} \int _{\partial \mathcal {D}_{x}} \frac{u(x,y_{j})}{\sin (\pi \phi _{x}(x)/h_{x})}I_{1}(x)dx \big{ \vert }} \\ &{+\frac{1}{4}e^{-\pi d_{x}/h_{x}}e^{-\pi d_{y}/h_{y}}C_{0}(h_{y},d_{y}) \big{ \vert } \int _{\partial \mathcal {D}_{y}}\int _{\partial \mathcal {D}_{x}} \frac{u(x,y)v(y)}{\sin (\pi \phi _{x}(x)/h_{x})}I_{1}(x)dxdy \big{ \vert }} \\ &{+\frac{h_{y}}{2}e^{-\pi d_{x}/h_{x}}C_{0}(h_{x},d_{x}) \big{ \vert }\sum _{j=-\infty}^{\infty} \frac{N(u(x,y_{j})w,\mathcal {D}_{x})I_{1}(y_{j})}{\phi _{y}^{\prime}(y_{j})} \big{ \vert }} \\ &{+\frac{1}{4}e^{-\pi d_{x}/h_{x}}e^{-\pi d_{y}/h_{y}} C_{0}(h_{x},d_{x}) \big{ \vert } \int _{\partial \mathcal {D}_{y}} \frac{N(uw,\mathcal {D}_{x})I_{1}(y)}{\sin (\pi \phi _{y}(y)/h_{y})}dy \big{ \vert }.} \end{aligned}$$
(28)

Next, we will analyze the error of each term in the right side of inequality (28). For the second term, we will use Lemma 3 and Lemma 5 to deduce the following error:

$$\begin{aligned} &\big{ \vert } \int _{\partial \mathcal {D}_{y}} \sum _{i=-\infty}^{\infty}\frac{u(x_{i},y)v(y)}{\phi _{x}^{\prime}(x_{i})}I_{1}(x_{i})dy \big{ \vert } \\ =&\big{ \vert } \int _{\partial \mathcal {D}_{y}} \sum _{i=-\infty}^{\infty}\frac{u(x_{i},y)v(y)}{\phi _{x}^{\prime}(x_{i})}\{\frac{d^{2}}{d\phi _{x}^{2}}[S(k,h_{x})\circ \phi _{x}(x_{i})](\phi _{x}^{\prime})^{2}(x_{i})w(x_{i}) \\ +&\frac{d}{d\phi _{x}}[S(k,h_{x})\circ \phi _{x}(x_{i})](\phi _{x}^{\prime \prime}w+2 \phi _{x}^{\prime}w^{\prime})(x_{i})+[S(k,h_{x})\circ \phi _{x}(x_{i})]w^{\prime \prime}(x_{i}) \}dy\big{ \vert } \\ =&\big{ \vert }\sum _{i=-\infty}^{\infty}[ \frac{\delta _{ki}^{(2)}}{h^{2}_{x}} \frac{(\phi _{x}^{\prime})^{2}w}{\phi _{x}^{\prime}}(x_{i}) + \frac{\delta _{ki}^{(1)}}{h_{x}}( \frac{\phi _{x}^{\prime \prime}w}{\phi _{x}^{\prime}}+2w^{\prime})(x_{i}) \\ +& \frac{[S(k,h_{x})\circ \phi _{x}(x_{i})]w^{\prime \prime}(x_{i})}{\phi _{x}^{\prime}}]N(u(x_{i},y)v,D_{y}) \big{ \vert } \\ \leq &[\frac{1}{h_{x}^{2}}(4+\frac{\pi ^{2}}{3})+\frac{1}{4}] \widetilde{N}^{\prime}(u\sqrt{\phi _{x}^{\prime}}v,D_{y}). \end{aligned}$$
(29)

Just the same as above, the sixth term can be considered:

$$\begin{aligned} \big{ \vert } \sum _{j=-\infty}^{\infty} \frac{N(u(x,y_{j})w,D_{x})}{\phi _{y}^{\prime}(y_{j})}I_{1}(y_{j})dy \big{ \vert } \leq [\frac{1}{h_{y}^{2}}(4+\frac{\pi ^{2}}{3})+ \frac{1}{4}]\widetilde{N}^{\prime}(u\sqrt{\phi _{y}^{\prime}}w,D_{x}) \end{aligned}$$
(30)

Now we consider the third and forth terms. Utilizing Lemmas 35 and Theorem 2, we get

$$\begin{aligned} &\big{ \vert } \sum _{i=-\infty}^{\infty}\int _{\partial \mathcal {D}_{y}} \frac{u(x_{i},y)I_{1}(y)[S(k,h_{x})\circ \phi _{x}(x_{i})]w(x_{i})}{\sin (\pi \phi _{y}(y)/h_{y})\phi _{x}^{\prime}(x_{i})}dy \big{ \vert } \\ =&\big{ \vert } \sum _{i=-\infty}^{\infty}\int _{\partial \mathcal {D}_{y}} \frac{u(x_{i},y)[S(k,h_{x})\circ \phi _{x}(x_{i})]w(x_{i})}{\phi _{x}^{\prime}(x_{i})\sin (\pi \phi _{y}(y)/h_{y})} \{\frac{d^{2}}{d\phi _{y}^{2}}[S(l,h_{y})\circ \phi _{y}(y)](\phi _{y}^{\prime})^{2}(y)v(y) \\ +&\frac{d}{d\phi _{y}}[S(l,h_{y})\circ \phi _{y}(y)](\phi _{y}^{\prime \prime}v+2 \phi _{y}^{\prime}v^{\prime})(y)+[S(l,h_{y})\circ \phi _{y}(y)]v^{\prime \prime}(y)\}dy \big{ \vert } \\ \leq &4\frac{b-a}{4}\frac{\sqrt{b-a}}{2}|C_{2}(h_{y},d_{y})- \frac{1}{4}C_{0}(h_{y},d_{y})|\widetilde{N}(uv^{\prime \prime},D_{y}), \end{aligned}$$
(31)

and

$$\begin{aligned} &\big{ \vert }\sum _{j=-\infty}^{\infty} \frac{[S(l,h_{y})\circ \phi _{y}(y_{j})v(y_{j})]}{\phi _{y}^{\prime}(y_{j})} \int _{\partial \mathcal {D}_{x}} \frac{u(x,y_{j})}{\sin (\pi \phi _{x}(x)/h_{x})}I_{1}(x)dx \big{ \vert } \\ \leq &4\frac{d-c}{4}\frac{\sqrt{d-c}}{2}| C_{2}(h_{x},d_{x})- \frac{1}{4}C_{0}(h_{x},d_{x})|\widetilde{N}(uw^{\prime \prime},D_{x}). \end{aligned}$$
(32)

The fifth and the last term will be considered as follows:

$$\begin{aligned} &\big{ \vert } \int _{\partial \mathcal {D}_{y}}\int _{\partial \mathcal {D}_{x}} \frac{u(x,y)v(y)}{\sin (\pi \phi _{x}(x)/h_{x})}I_{1}(x)dxdy \big{ \vert } \\ =&\big{ \vert } \int _{\partial \mathcal {D}_{y}}\int _{\partial \mathcal {D}_{x}} \frac{u(x,y)v(y)}{\sin (\pi \phi _{x}(x)/h_{x})}\{\frac{d^{2}}{d\phi _{x}^{2}}[S(k,h_{x})\circ \phi _{x}(x)](\phi _{x}^{\prime})^{2}(x)w(x) \\ +&\frac{d}{d\phi _{x}}[S(k,h_{x})\circ \phi _{x}(x)](\phi _{x}^{\prime \prime}w+2 \phi _{x}^{\prime}w^{\prime})(x)+[S(k,h_{x})\circ \phi _{x}(x)]w^{\prime \prime}(x)\}dxdy \big{ \vert } \\ \leq &4 N(N(uw^{\prime \prime},D_{x})v,D_{y})|C_{2}(h_{x},d_{x})-\frac{1}{4}C_{0}(h_{x},d_{x})|, \end{aligned}$$
(33)
$$\begin{aligned} \big{ \vert } \int _{\partial \mathcal {D}_{y}} \frac{N(uw,\mathcal {D}_{x})I_{1}(y)}{\sin (\pi \phi _{y}(y)/h_{y})}dy \big{ \vert } \leq 4 N(N(uw,D_{x})v^{\prime \prime},D_{y})|C_{2}(h_{y},d_{y})- \frac{1}{4}C_{0}(h_{y},d_{y})|. \end{aligned}$$
(34)

Combining inequalities (29)–(34) into inequality (28), the proof of the second result in Theorem (8) is completed. □

Utilizing the formulas (1)–(3) yields

$$\begin{aligned} I_{1}(x_{i})=\frac{\delta _{ki}^{(2)}}{h_{x}^{2}}(\phi _{x}^{\prime})^{2}(x_{i})w(x_{i})+ \frac{\delta _{ki}^{(1)}}{h_{x}}(\phi _{x}^{\prime \prime}w+2\phi _{x}^{\prime}w^{\prime})(x_{i})+ \delta _{ki}^{(0)}w^{\prime \prime}(x_{i}). \end{aligned}$$

So, we can get

$$\begin{aligned} &{\big{ \vert }I-\{h_{x}h_{y}\sum _{i=-\infty}^{\infty} \frac{u(x_{i},y_{l})}{\phi _{x}^{\prime}(x_{i})\phi _{y}^{\prime}(y_{l})}v(y_{l})[ \frac{\delta _{ki}^{(2)}}{h_{x}^{2}}(\phi _{x}^{\prime})^{2}(x_{i})w(x_{i}) +\frac{\delta _{ki}^{(1)}}{h_{x}}(\phi _{x}^{\prime \prime}w} \\ &{+2\phi _{x}^{\prime}w^{\prime})(x_{i})]+h_{x}h_{y} \frac{u(x_{k},y_{l})}{\phi _{x}^{\prime}(x_{k})\phi _{y}^{\prime}(y_{l})}v(y_{l})w^{\prime \prime}(x_{k})} \\ &{+h_{x}h_{y} \sum _{j=-\infty}^{\infty} \frac{u(x_{k},y_{j})}{\phi _{x}^{\prime}(x_{k})\phi _{y}^{\prime}(y_{j})}w(x_{k})[ \frac{\delta _{jl}^{(2)}}{h_{y}^{2}}(\phi _{y}^{\prime})^{2}(y_{j})v(y_{j}) +\frac{\delta _{jl}^{(1)}}{h_{y}}(\phi _{y}^{\prime \prime}v} \\ &{+2\phi _{y}^{\prime}v^{\prime})(y_{j})]+h_{x}h_{y} \frac{u(x_{k},y_{l})}{\phi _{x}^{\prime}(x_{k})\phi _{y}^{\prime}(y_{l})}w(x_{k})v^{\prime \prime}(y_{l}) \}\big{ \vert } \leq R(\Omega ).} \end{aligned}$$

The following inequalities can be directly obtained by the definition of \(h_{x}=\frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}M_{x}}}\), \(h_{y}=\frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}M_{y}}}\) and the fact that \(C_{p}(h,d)\leq R_{p}h^{1-p}\):

$$\begin{aligned} h_{x}C_{0}(h_{y},d_{y})[\frac{1}{h_{x}^{2}}(4+\frac{\pi ^{2}}{3})+ \frac{1}{4}] \leq &R_{0} h_{y} [\frac{1}{h_{x}}(4+\frac{\pi ^{2}}{3})+ \frac{1}{4}h_{x} ] \\ =&R_{0}\frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}M_{y}}}[ \frac{\sqrt{\alpha _{x}M_{x}}}{\sqrt{\pi d_{x}}}(4+\frac{\pi ^{2}}{3})+ \frac{1}{4}\frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}M_{x}}}] \\ \leq & M_{x}M_{y}R_{0}\frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}}}[ \frac{\sqrt{\alpha _{x}}}{\sqrt{\pi d_{x}}}(4+\frac{\pi ^{2}}{3})+ \frac{1}{4}\frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}}}]; \end{aligned}$$
(35)
$$\begin{aligned} h_{x}|C_{2}(h_{y},d_{y})-\frac{1}{4}C_{0}(h_{y},d_{y})| \leq &h_{x}[R_{2} \frac{1}{h_{y}}+\frac{1}{4}R_{0}h_{y}] \\ =&R_{2} \frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}M_{x}}}/ \frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}M_{y}}}+\frac{1}{4}R_{0} \frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}M_{x}}} \frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}M_{y}}} \\ \leq & M_{x}M_{y}(R_{2} \frac{\sqrt{d_{x}\alpha _{y}}}{\sqrt{\alpha _{x}d_{y}}}+\frac{1}{4}R_{0} \pi \frac{\sqrt{d_{x} d_{y}}}{\sqrt{\alpha _{x}\alpha _{y}}}); \end{aligned}$$
(36)

and

$$\begin{aligned} &C_{0}(h_{y},d_{y})|C_{2}(h_{x},d_{x})-\frac{1}{4}C_{0}(h_{x},d_{x})| \leq R_{0}R_{2}\frac{h_{y}}{h_{x}}+\frac{1}{4}R^{2}_{0}h_{x}h_{y} \\ =& R_{0}R_{2}\frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}M_{y}}}/ \frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}M_{x}}}+\frac{1}{4}R^{2}_{0} \frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}M_{x}}} \frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}M_{y}}} \\ \leq & M_{x}M_{y}(R_{0}R_{2} \frac{\sqrt{\alpha _{x} d_{y}}}{\sqrt{\alpha _{y}d_{x}}}+\frac{1}{4}R^{2}_{0} \pi \frac{\sqrt{d_{x} d_{y}}}{\sqrt{\alpha _{x}\alpha _{y}}}). \end{aligned}$$
(37)

Just as above, we can get the similar bound of \(h_{y}C_{0}(h_{x},d_{x})[\frac{1}{h_{y}^{2}}(4+\frac{\pi ^{2}}{3})+ \frac{1}{4}]\), \(h_{y}[C_{2}(h_{x},d_{x})+\frac{1}{4}C_{0}(h_{x},d_{x})]\), and \(C_{0}(h_{x},d_{x})|C_{2}(h_{y},d_{y})-\frac{1}{4}C_{0}(h_{y},d_{y})|\). Combining these above inequalities (35)–(37) into \(R(\Omega )\) yields:

$$\begin{aligned} R(\Omega ) \leq & M_{x}M_{y}\{\frac{1}{2}\exp (-\sqrt{\alpha _{y}M_{y} \pi d_{y}})\widetilde{N}^{\prime}(u\sqrt{\phi _{x}^{\prime}}v,D_{y})\\ \times &[R_{0} \frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}}}( \frac{\sqrt{\alpha _{x}}}{\sqrt{\pi d_{x}}}(4+\frac{\pi ^{2}}{3})+ \frac{1}{4}\frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}}})] \\ +&\frac{1}{2}\exp (-\sqrt{\alpha _{x}M_{x}\pi d_{x}})\widetilde{N}^{\prime}(u \sqrt{\phi _{y}^{\prime}}w,D_{x})[R_{0} \frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}}}( \frac{\sqrt{\alpha _{y}}}{\sqrt{\pi d_{y}}}(4+\frac{\pi ^{2}}{3})+ \frac{1}{4}\frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}}})] \\ +&\frac{(b-a)^{3/2}}{4}\exp (-\sqrt{\alpha _{y}M_{y}\pi d_{y}}) \widetilde{N}(uv^{\prime \prime},D_{y})[R_{2} \frac{\sqrt{d_{x}\alpha _{y}}}{\sqrt{\alpha _{x}d_{y}}}+\frac{1}{4}R_{0} \pi \frac{\sqrt{d_{x} d_{y}}}{\sqrt{\alpha _{x}\alpha _{y}}}] \\ +&\frac{(d-c)^{3/2}}{4}\exp (-\sqrt{\alpha _{x}M_{x}\pi d_{x}}) \widetilde{N}(uw^{\prime \prime},D_{x})[R_{2} \frac{\sqrt{d_{y}\alpha _{x}}}{\sqrt{\alpha _{y}d_{x}}}+\frac{1}{4}R_{0} \pi \frac{\sqrt{d_{y} d_{x}}}{\sqrt{\alpha _{y}\alpha _{x}}}] \\ +&\exp (-\sqrt{\alpha _{x}M_{x}\pi d_{x}})\exp (-\sqrt{\alpha _{y}M_{y} \pi d_{y}})N(N(uw^{\prime \prime},D_{x})v,D_{y})\\ \times &[R_{0}R_{2} \frac{\sqrt{\alpha _{x} d_{y}}}{\sqrt{\alpha _{y}d_{x}}}+\frac{1}{4}R^{2}_{0} \pi \frac{\sqrt{d_{x} d_{y}}}{\sqrt{\alpha _{x}\alpha _{y}}}] \\ +&\exp (-\sqrt{\alpha _{x}M_{x}\pi d_{x}})\exp (-\sqrt{\alpha _{y}M_{y} \pi d_{y}})N(N(uw,D_{x})v^{\prime \prime},D_{y})\\ \times &[R_{0}R_{2} \frac{\sqrt{\alpha _{y} d_{x}}}{\sqrt{\alpha _{x}d_{y}}}+\frac{1}{4}R^{2}_{0} \pi \frac{\sqrt{d_{y} d_{x}}}{\sqrt{\alpha _{x}\alpha _{y}}}]\} \\ \equiv &M_{x}M_{y}L_{2}\exp (-\sqrt{\alpha _{x}M_{x}\pi d_{x}})+M_{x}M_{y}L_{2}^{\prime} \exp (-\sqrt{\alpha _{y}M_{y}\pi d_{y}}) \\ + &M_{x}M_{y}L_{2}^{\prime \prime}\exp (-\sqrt{\alpha _{x}M_{x}\pi d_{x}})\exp (- \sqrt{\alpha _{y}M_{y}\pi d_{y}}) \\ \equiv & R^{\prime}(\Omega ), \end{aligned}$$

where

$$\begin{aligned} L_{2}\equiv &\frac{1}{2}\widetilde{N}^{\prime}(u\sqrt{\phi _{y}^{\prime}}w,D_{x})[R_{0} \frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}}}( \frac{\sqrt{\alpha _{y}}}{\sqrt{\pi d_{y}}}(4+\frac{\pi ^{2}}{3})+ \frac{1}{4}\frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}}})] \\ &+\frac{(d-c)^{3/2}}{4}\widetilde{N}(uw^{\prime \prime},D_{x})[R_{2} \frac{\sqrt{d_{y}\alpha _{x}}}{\sqrt{\alpha _{y}d_{x}}}+\frac{1}{4}R_{0} \pi \frac{\sqrt{d_{y} d_{x}}}{\sqrt{\alpha _{y}\alpha _{x}}}], \end{aligned}$$
$$\begin{aligned} L_{2}^{\prime}\equiv &\frac{1}{2}\widetilde{N}^{\prime}(u\sqrt{\phi _{x}^{\prime}}v,D_{y})[R_{0} \frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}}}( \frac{\sqrt{\alpha _{x}}}{\sqrt{\pi d_{x}}}(4+\frac{\pi ^{2}}{3})+ \frac{1}{4}\frac{\sqrt{\pi d_{x}}}{\sqrt{\alpha _{x}}})] \\ &+\frac{(b-a)^{3/2}}{4}\widetilde{N}(uv^{\prime \prime},D_{y})[R_{2} \frac{\sqrt{d_{x}\alpha _{y}}}{\sqrt{\alpha _{x}d_{y}}}+\frac{1}{4}R_{0} \pi \frac{\sqrt{d_{x} d_{y}}}{\sqrt{\alpha _{x}\alpha _{y}}}], \end{aligned}$$

and

$$\begin{aligned} L_{2}^{\prime \prime}\equiv & N(N(uw^{\prime \prime},D_{x})v,D_{y})[R_{0}R_{2} \frac{\sqrt{\alpha _{x} d_{y}}}{\sqrt{\alpha _{y}d_{x}}}+\frac{1}{4}R^{2}_{0} \pi \frac{\sqrt{d_{x} d_{y}}}{\sqrt{\alpha _{x}\alpha _{y}}}] \\ &+N(N(uw,D_{x})v^{\prime \prime},D_{y})[R_{0}R_{2} \frac{\sqrt{\alpha _{y} d_{x}}}{\sqrt{\alpha _{x}d_{y}}}+\frac{1}{4}R^{2}_{0} \pi \frac{\sqrt{d_{y} d_{x}}}{\sqrt{\alpha _{x}\alpha _{y}}}]. \end{aligned}$$

The following inequality is satisfied:

$$\begin{aligned} \frac{h_{y}}{h_{x}}(\frac{\pi ^{2}}{3h_{x}}+1) =& \frac{\sqrt{\pi d_{y}}}{\sqrt{\alpha _{y}M_{y}}} \frac{\pi \alpha _{x}M_{x}}{3d_{x}}+ \frac{\sqrt{d_{y}}}{\sqrt{\alpha _{y}M_{y}}} \frac{\sqrt{\alpha _{x}M_{x}}}{\sqrt{d_{x}}} \\ \leq& M_{x}M_{y}\sqrt{\frac{\pi d_{y}}{\alpha _{y}}}(\frac{\pi \alpha _{x}}{3d_{x}}+\sqrt{\frac{\alpha _{x}}{\pi d_{x}}}), \end{aligned}$$
(38)

which will be used to demonstrate Theorem 8.

Theorem 8

Assume that there are positive constants K, \(K^{\prime}\), \(\alpha _{x}\), \(\alpha _{y}\), \(\beta _{x}\), and \(\beta _{y}\) so that

$$\begin{aligned} \big|F(x,y_{l})\big|\leq K\left \{\textstyle\begin{array}{l@{\quad}l} \exp (-\alpha _{x}|\phi _{x}(x)|),&{x\in \Gamma _{a},} \\ \exp (-\beta _{x}|\phi _{x}(x)|),&{x\in \Gamma _{b}}, \end{array}\displaystyle \right . \end{aligned}$$

where \(F(x,y_{l})=u(x,y_{l})\phi _{x}^{\prime}(x)w(x)v(y_{l})\) or \(u(x,y_{l})(\frac{\phi _{x}^{\prime \prime}(x)}{\phi _{x}^{\prime}(x)}w(x)+2w'(x))v(y_{l})\), and

$$\begin{aligned} \big|\bar{F}(x_{k},y)\big|\leq K^{\prime}\left \{\textstyle\begin{array}{l@{\quad}l} \exp (-\alpha _{y}|\phi _{y}(y)|),&{y\in \Gamma _{c},} \\ \exp (-\beta _{y}|\phi _{y}(y)|),&{y\in \Gamma _{d}}, \end{array}\displaystyle \right . \end{aligned}$$

where \(\bar{F}(x_{k},y)=~u(x_{k},y)\phi _{y}^{\prime}(y)v(y)w(x_{k})\) or \(u(x_{k},y)(\frac{\phi _{y}^{\prime \prime}(y)}{\phi _{y}^{\prime}(y)}v(y)+2v'(y))w(x_{k})\), \(\Gamma _{c}=\{\xi \in \Gamma :\phi (\xi )=y\in (-\infty ,0)\}\) and \(\Gamma _{d}=\{\xi \in \Gamma :\phi (\xi )=y\in{[}0,\infty{)}\}\). Choosing \(N_{x}=[|\frac{\alpha _{x}}{\beta _{x}}M_{x}+1|]\), \(N_{y}=[|\frac{\alpha _{y}}{\beta _{y}}M_{y}+1|]\), \(h_{x}=\sqrt{ \frac{\pi d_{x}}{\alpha _{x} M_{x}}}\) and \(h_{y}=\sqrt {\frac{\pi d_{y}}{\alpha _{y} M_{y}}}\), we have

$$\begin{aligned} &{\big{ \vert }\int _{c}^{d}\int _{a}^{b} u''w[S(j,h)\circ \phi ](x)dx-h_{x}h_{y} \sum _{i=-M_{x}}^{N_{x}}\frac{u(x_{i},y_{l})}{\phi _{x}^{\prime}(x_{i})}I_{1}(x_{i}) \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}} \\ &{-h_{x}h_{y}\sum _{j=-M_{y}}^{N_{y}} \frac{u(x_{k},y_{j})}{\phi _{y}^{\prime}(y_{j})}I_{1}(y_{j}) \frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})}\big{ \vert } \leq L_{2}^{\prime \prime}M_{x} M_{y}\exp (-\sqrt{\alpha _{x}M_{x}\pi d_{x}})\exp (-\sqrt{\alpha _{y}M_{y} \pi d_{y}})} \\ &{+(L_{2}+J)M_{x}M_{y}\exp (-\sqrt{\alpha _{x}M_{x}\pi d_{x}})+(L_{2}^{\prime}+J^{\prime})M_{x}M_{y} \exp (-\sqrt{\alpha _{y}M_{y}\pi d_{y}}),} \end{aligned}$$

where \(J\equiv K\frac{(d-c)^{3/2}}{8}(1/\alpha _{x}+1/\beta _{x})(\sqrt{\frac{\pi d_{y}}{\alpha _{y}}}\frac{\alpha _{x}\pi}{3d_{x}}+\sqrt{\frac{\alpha _{x}d_{y}}{\alpha _{y}d_{x}}})\), \(J^{\prime}\equiv K^{\prime}\frac{(b-a)^{3/2}}{8}(1/\alpha _{y}+1/\beta _{y})( \sqrt{\frac{\pi d_{x}}{\alpha _{x}}}\frac{\alpha _{y}\pi}{3d_{y}}+ \sqrt{\frac{\alpha _{y}d_{x}}{\pi d_{y}\alpha _{x}}})\).

Proof

The positive proportional series \(\sum _{i=M_{x}+1}^{\infty}e^{-\alpha _{x}ih_{x}}\) is limited, and the sum is satisfied

$$\begin{aligned} &{\sum _{i=M_{x}+1}^{\infty}e^{-\alpha _{x}ih_{x}}=e^{-\alpha _{x}(M_{x}+1)h_{x}}(1+e^{- \alpha _{x}h_{x}}+e^{-2\alpha _{x}h_{x}}+\cdots )=e^{-\alpha _{x}(M_{x}+1)h_{x}} \lim _{n\to \infty} \frac{1- e^{-n\alpha _{x}h_{x}}}{1-e^{-\alpha _{x}h_{x}}}} \\ &{ =e^{-\alpha _{x}(M_{x}+1)h_{x}}(\frac{1}{1-e^{-\alpha _{x}h_{x}}}- \lim _{n\to \infty} \frac{e^{-n\alpha _{x}h_{x}}}{1-e^{-\alpha _{x}h_{x}}})= \frac{e^{-\alpha _{x}(M_{x}+1)h_{x}}}{1-e^{-\alpha _{x}h_{x}}}} \\ &{ =e^{-\alpha _{x}M_{x}h_{x}}\frac{1}{e^{-\alpha _{x}h_{x}}-1}=e^{- \alpha _{x}M_{x}h_{x}} \frac{1}{1+\alpha _{x}h_{x}+\frac{1}{2}(\alpha _{x}h_{x})^{2}+\cdots -1}} \\ &{\leq e^{-\alpha _{x}M_{x}h_{x}}\frac{1}{\alpha _{x}h_{x}} .} \end{aligned}$$
(39)

The following sum is conducted by the inequality \(|\delta _{ij}^{(2)}|\leq \frac{\pi ^{2}}{3}\), and \(|\delta _{ij}^{(1)}|\leq 1\),

$$\begin{aligned} &{\big{ \vert }h_{x}h_{y}\sum _{i=-\infty}^{-M_{x}-1} \frac{u(x_{i},y_{l})}{\phi _{x}^{\prime}(x_{i})}I_{1}(x_{i}) \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}\big{ \vert }} \\ &{\leq \big{ \vert }h_{x}h_{y} \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}\sum _{i=M_{x}+1}^{\infty}[ \frac{\delta _{-i,k}^{(2)}}{h_{x}^{2}}(u\phi _{x}^{\prime}w)(x_{-i}) + \frac{\delta _{-i,k}^{(1)}}{h_{x}}(u( \frac{\phi _{x}^{\prime \prime}}{\phi _{x}^{\prime}}w+2w^{\prime})(x_{-i})] \big{ \vert }} \\ &{\leq \big{ \vert }h_{y}\frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}( \frac{K\pi ^{2}}{3h_{x}}+K)\sum _{i=M_{x}+1}^{\infty}e^{-\alpha _{x}ih_{x}} \big{ \vert },} \\ &{\leq \big{ \vert } h_{y}\frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}( \frac{K\pi ^{2}}{3h_{x}}+K)e^{-\alpha _{x}M_{x}h_{x}} \frac{1}{\alpha _{x}h_{x}}\big{ \vert }.(\textrm{if}~k\in (-M_{x},N_{x})),} \end{aligned}$$
(40)

As the same, we have \(\big{ \vert }h_{x}h_{y}\sum _{i=N_{x}+1}^{\infty} \frac{u(x_{i},y_{l})}{\phi _{x}^{\prime}(x_{i})}I_{1}(x_{i}) \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}\big{ \vert }\leq h_{y} \frac{v(y_{l})}{\beta _{x}h_{x}\phi _{y}^{\prime}(y_{l})}e^{-\beta _{x}N_{x}h_{x}}( \frac{K\pi ^{2}}{3h_{x}}+K)\), \(\big{ \vert }h_{x}h_{y}\sum _{j=-\infty}^{-M_{y}-1} \frac{u(x_{k},y_{j})}{\phi _{y}^{\prime}(y_{j})}I_{1}(y_{j}) \frac{v(y_{j})}{\phi _{y}^{\prime}(y_{j})}\big{ \vert }\leq h_{x} \frac{w(x_{k})}{\alpha _{y}h_{y}\phi _{x}^{\prime}(x_{k})} e^{-\alpha _{y}M_{y}h_{y}}( \frac{K^{\prime}\pi ^{2}}{3h_{y}} +K^{\prime})\),

and \(\big{ \vert }h_{x}h_{y}\sum _{j=N_{y}+1}^{\infty} \frac{u(x_{k},y_{j})}{\phi _{y}^{\prime}(y_{j})}I_{1}(y_{j}) \frac{v(y_{j})}{\phi _{y}^{\prime}(y_{j})}\big{ \vert }\leq h_{x} \frac{w(x_{k})}{\beta _{y}h_{y}\phi _{x}^{\prime}(x_{k})}e^{-\beta _{y}N_{y}h_{y}}( \frac{K^{\prime}\pi ^{2}}{3h_{y}} +K^{\prime})\). Substituting the above inequalities (38)–(40) into the error in Theorem 8, we have

$$\begin{aligned} &{\big{ \vert }\langle \Delta u,S_{kl}\rangle - \{h_{x}h_{y}\sum _{i=-M_{x}}^{N_{x}} \sum _{j=-M_{y}}^{N_{y}} \frac{u(x_{i},y_{j})}{\phi _{x}^{\prime}(x_{i})\phi _{y}^{\prime}(y_{j})}([S(l,h_{y}) \circ \phi _{y}(y_{j})v(y_{j})]I_{1}(x_{i})} \\ &{+I_{1}(y_{j})[S(k,h_{x})\circ \phi _{x}(x_{i})w(x_{i})])\} \big{ \vert }} \\ &{= \big{ \vert }I-h_{x}h_{y}\sum _{i=-M_{x}}^{N_{x}} \frac{u(x_{i},y_{l})}{\phi _{x}^{\prime}(x_{i})}I_{1}(x_{i}) \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}-h_{x}h_{y}\sum _{j=-M_{y}}^{N_{y}} \frac{u(x_{k},y_{j})}{\phi _{y}^{\prime}(y_{j})}I_{1}(y_{j}) \frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})}\big{ \vert }} \\ &{\leq \big{ \vert }h_{x}h_{y}(\sum _{i=-\infty}^{-M_{x}-1}+\sum _{i=N_{x}}^{\infty})\frac{u(x_{i},y_{l})}{\phi _{x}^{\prime}(x_{i})}[ \frac{\delta _{ki}^{(2)}}{h_{x}^{2}}(\phi _{x}^{\prime}w)(x_{i}) + \frac{\delta _{ki}^{(1)}}{h_{x}}(( \frac{\phi _{x}^{\prime \prime}}{\phi _{x}^{\prime}}w+2w^{\prime})(x_{i})] \frac{v(y_{l})}{\phi _{y}^{\prime}(y_{l})}} \\ &{+h_{x}h_{y}(\sum _{j=-\infty}^{-M_{y}-1} +\sum _{j=N_{y}}^{\infty}) \frac{u(x_{k},y_{j})}{\phi _{y}^{\prime}(y_{j})}[ \frac{\delta _{jl}^{(2)}}{h_{y}^{2}}(\phi _{y}^{\prime}v)(y_{j}) + \frac{\delta _{jl}^{(1)}}{h_{y}}(\frac{\phi _{y}^{\prime \prime}}{\phi _{y}^{\prime}}v+2v^{\prime})(y_{j})] \frac{w(x_{k})}{\phi _{x}^{\prime}(x_{k})}\big{ \vert }+R(\Omega )} \\ &{\leq \big{ \vert }[h_{y} \frac{v(y_{l})}{\alpha _{x}h_{x}\phi _{y}^{\prime}(y_{l})}e^{-\alpha _{x}M_{x}h_{x}} +h_{y}\frac{v(y_{l})}{\beta _{x}h_{x}\phi _{y}^{\prime}(y_{l})}e^{-\beta _{x}N_{x}h_{x}}]( \frac{K\pi ^{2}}{3h_{x}}+K)} \\ &{+[h_{x}\frac{w(x_{k})}{\alpha _{y}h_{y}\phi _{x}^{\prime}(x_{k})} e^{- \alpha _{y}M_{y}h_{y}}+h_{x} \frac{w(x_{k})}{\beta _{y}h_{y}\phi _{x}^{\prime}(x_{k})}e^{-\beta _{y}N_{y}h_{y}}]( \frac{K^{\prime}\pi ^{2}}{3h_{y}} +K^{\prime})\big{ \vert }+R^{\prime}(\Omega )} \\ &{\leq M_{x}M_{y}\big{ \vert }K\frac{(d-c)^{3/2}}{8}\sqrt{\frac{\pi d_{y}}{\alpha _{y}}}(1/\alpha _{x}+1/\beta _{x})( \frac{\alpha _{x}\pi}{3d_{x}}+\sqrt{\frac{\alpha _{x}}{\pi d_{x}}})e^{- \sqrt{\pi d_{x}\alpha _{x}M_{x}}}} \\ &{+K^{\prime}\frac{(b-a)^{3/2}}{8}\sqrt{\frac{\pi d_{x}}{\alpha _{x}}}(1/ \alpha _{y}+1/\beta _{y})(\frac{\alpha _{y}\pi}{3d_{y}}+\sqrt{\frac{\alpha _{y}}{\pi d_{y}}})e^{-\sqrt{\pi d_{y}\alpha _{y}M_{y}}} \big{ \vert }+R^{\prime}(\Omega ).} \end{aligned}$$
(41)

The proof is completed. □

Remark 1

Set \(u^{n}(\boldsymbol {x}) \) to be the numerical solution of semi-discrete equation (8) using the high-order finite difference method and \(u^{n}_{m}(\boldsymbol {x})\) to be the full-discrete solution of (15) and (19) using the Sinc-Galerkin method and a high-order finite difference method. Then, using the quality of \(0<\alpha _{0}\beta ^{-1}<\tilde{\alpha}\) and \(\sum _{i=1}^{n}d_{n-i}^{n}=1\) (which is described in [7]), it is easy to see:

$$\begin{aligned} \sup _{x\in (a,b)}\vert u^{n}(x)-u^{n}_{m}(x)\vert \leq CM \exp (-(\pi \alpha dM)^{1/2}). \end{aligned}$$

For the 1D problem, and

$$\begin{aligned} &\sup _{\boldsymbol {x}\in (a,b)\times (c,d)}\vert u^{n}( \boldsymbol {x})-u^{n}_{m}(\boldsymbol {x})\vert \\ &\quad\leq C_{1}M_{x}M_{y} \exp (-(\pi \alpha dM_{x})^{1/2})+C_{2}M_{x}M_{y}\exp (-(\pi \alpha dM_{y})^{1/2}) \\ &\qquad{}+C_{3}M_{x}M_{y}\exp (-(\pi \alpha dM_{x})^{1/2})\exp (-(\pi \alpha dM_{y})^{1/2}), \end{aligned}$$

for the 2D problem, where C, \(C_{1}\), \(C_{2}\), and \(C_{3}\) are constants independent of \(M_{x}\) and \(M_{y}\).

5 Numerical results

In this section, we will give some numerical examples to verify the convergence analysis. We consider the problem (4)–(6) for that \([a,b]\) and \([c,d]\) are both chosen to be \([0,1]\), and we set \(d=\frac{\pi}{2}\). In this section, we select the function \(\phi (x)=\ln \frac{x}{1-x}\) and \(\phi (y)=\ln \frac{y}{1-y}\).

5.1 Numerical results for 1D problem

Suppose that \(u_{j}^{n}\) is denoted to be the approximate solution and \(u(x_{j},t_{n})\) is denoted to be the exact solution. The absolute maximum error and \(L^{2}\) error at Sinc grid points are taken as

$$\begin{aligned} \Arrowvert e\Arrowvert _{\infty}(M,N)=\max _{-M\leq j\leq M} \vert u(x_{j},t_{n})-u_{j}^{n}\vert ,~\Arrowvert e \Arrowvert _{2}(M,N)=\sqrt{\sum _{j=-M}^{M}( u(x_{j},t_{n})-u_{j}^{n})^{2}}, \end{aligned}$$

and the following space-time convergence rates

$$\begin{aligned} order^{t}=log_{\frac{N_{2}}{N_{1}}}( \frac{\Arrowvert e\Arrowvert _{2}(M,N_{2})}{\Arrowvert e\Arrowvert _{2}(M,N_{1})}),~order^{x}=log_{\frac{M_{2}}{M_{1}}}( \frac{\Arrowvert e\Arrowvert _{2}(M_{2},N)}{\Arrowvert e\Arrowvert _{2}(M_{1},N)}), \end{aligned}$$

respectively, where \(x_{j}=\frac{e^{jh}}{1+e^{jh}}\).

In this part, we choose the parameters \(w=\frac{1}{\phi ^{\prime}(x)}\).

Example 1

We consider the following 1D nonhomogeneous problem for \(f=-3t^{3}e^{x}(-x^{2}-3x)+\frac{18}{\Gamma (4-\mathfrak {a})}t^{(3- \mathfrak {a})}e^{x}x(1-x)\) and \(u(x,0))=0, 0\leq x\leq 1\), the data are chosen so that the exact solution is

$$\begin{aligned} u(x,t)=3e^{x}x(1-x)t^{3}. \end{aligned}$$

In this example, we can see that when \(\phi (x)=\ln \frac{x}{1-x}\), \(\alpha =\beta =1\). We choose \(M=N\), and \(d=\pi /2\), which yield \(h=\frac{\pi}{\sqrt{2M}}\). The maximum absolute errors, \(L_{2}\) errors, and the related convergence rates are displayed in Table 1 for different M at different \(\mathfrak {a}\) with \(\Delta t =1/100\).

Table 1 Errors for \(\Arrowvert e\Arrowvert _{2}\), \(\Arrowvert e\Arrowvert _{\infty}\) when \(\mathfrak {a}=0.4\), \(\mathfrak {a}=0.7\), \(\Delta t =1/100\) for Example 1

In Table 1, the maximum-norm errors, \(L_{2}\) errors, and the spatial convergence orders with \(\mathfrak {a}=0.4,~0.7\) are presented, respectively. From Table 1, we can see that when \(\Delta t=1/100\), \(M=64\), and \(\mathfrak {a}=0.4\), the \(L^{2}\) error can be 1.07194e-06, the maximum error is 2.02353e-07. The spatial convergence rates are also shown to be exponential convergence orders.

Table 2 lists the temporal errors and convergence rates at \(\mathfrak {a}=0.4,0.7\), when \(M=64\) is fixed at time \(T=1\). It is shown that the convergence order is \({3-\mathfrak {a}}\), which is a very high order in recent years for the numerical solutions of fractional diffusion equations. These numerical solutions agree with the theoretical results. Figure 1 shows the convergence rates in space when \(\mathfrak {a}=0.4\), \(\Delta t=1/100\) at \(T=1\), and the convergence rates in time at \(T=1\), when \(\mathfrak {a}=0.4\), \(M=64\).

Figure 1
figure 1

The spatial convergence rates (loglog) when \(\mathfrak {a}=0.4\), \(N=100\) at \(T=1\) and the temporal convergence rates (loglog) when \(\mathfrak {a}=0.4\), \(M=64\) at \(T=1\) for Example 1

Table 2 Errors and orders at \(\mathfrak {a}=0.4\) and \(\mathfrak {a}=0.7\) for Example 1

Example 2

The second example is chosen \(f=-\frac{3}{4}t^{3}x^{-1/2}+\frac{6}{\Gamma (4-\mathfrak {a})}t^{(3- \mathfrak {a})}(x^{3/2}-x)\), and \(u(x,0)=0,~0< x< 1\) so that the exact solution is \(u(x,t)=(x^{3/2}-x)t^{3}\). In this example, it is easy to get \(\alpha =\beta =1\) and \(h=\frac{\pi}{\sqrt{2M}}\), when we choose \(M=N\), and \(d=\pi /2\).

Table 3 shows the errors for \(\Arrowvert e\Arrowvert _{2}(M,N)\), \(\Arrowvert e\Arrowvert _{\infty}(M,N)\) and the convergence order about the \(\Arrowvert e\Arrowvert _{2}(M,N)\) errors in space when fixing \(N=100\). Table 4 lists the temporal errors and convergence rates at the time \(T=1\) when \(\mathfrak {a}=0.4,0.7\). These data show the convergence rates are exponentially convergent in space and \(\mathcal {O}{(3-\mathfrak {a})}\) in time. Figure 2 presents the convergence rates in space when \(\mathfrak {a}=0.4\), \(\Delta t=1/100\) at \(T=1\) and the convergence rates in time at \(T=1\) when \(\mathfrak {a}=0.4\), \(M=64\).

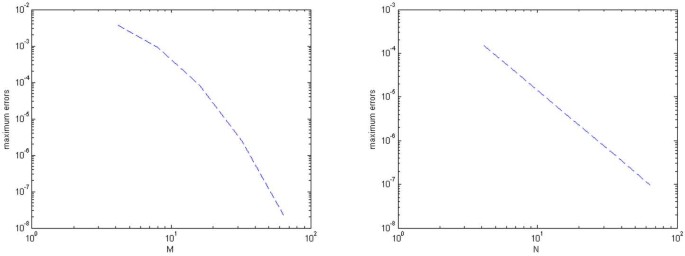

Figure 2
figure 2

The spatial convergence rates (loglog) when \(\mathfrak {a}=0.4\), \(N=100\) at \(T=1\) and the temporal convergence rates (loglog) when \(\mathfrak {a}=0.4\), \(M=64\) at \(T=1\) for Example 2

Table 3 Errors for \(\Arrowvert e\Arrowvert _{2}(M,N)\), \(\Arrowvert e\Arrowvert _{\infty}(M,N)\) when \(\mathfrak {a}=0.4\), \(\mathfrak {a}=0.7\), \(\Delta t =1/100\) for Example 2
Table 4 Errors and orders at \(\mathfrak {a}=0.4\) and \(\mathfrak {a}=0.7\) for Example 2

5.2 Numerical results for 2D problem

In the case of two dimensional problem, we choose \(w=\frac{1}{\sqrt{\phi ^{\prime}(x)}}\) and \(v=\frac{1}{\sqrt{\phi ^{\prime}(y)}}\) to get the symmetric matrixes. For every problem, we choose \(M_{x}=N_{x}\), \(M_{y}=N_{y}\). In this part, we also take \(d=\pi /2\).

Example 3

We consider the following 2D nonhomogeneous problem with \(f(x,y,t)=-3t^{3}e^{x+y}[(-x^{2}-3x)y(1-y)+x(1-x)(-y^{2}-3y)]+ \frac{18}{\Gamma (4-\mathfrak {a})}t^{(3-\mathfrak {a})}e^{x+y}xy(1-x)(1-y)\) and \(u(x,y,0))=0, (x,y)\in [0,1]\times [0,1]\). The data are chosen so that the exact solution is

$$\begin{aligned} u(x,y,t)=3e^{x+y}xy(1-x)(1-y)t^{3}. \end{aligned}$$

Herein, similar to the previous analysis, we have \(\alpha _{x}=\beta _{x}=\alpha _{y}=\beta _{y}=1/2\), which yields \(h_{x}=\frac{\pi}{\sqrt{M_{x}}}\) and \(h_{y}=\frac{\pi}{\sqrt{M_{y}}}\).

In Table 5, fixing \(N=100\), the maximum absolute errors, \(L_{2}\) errors, and the spatial convergence orders are displayed at \(\mathfrak {a}=0.4\) and \(\mathfrak {a}=0.7\). In Table 6, fixing \(M_{x}=M_{y}=32\), the \(\Arrowvert e\Arrowvert _{2}(M,N)\) errors and the temporal convergence orders are displayed at \(\mathfrak {a}=0.4\) and \(\mathfrak {a}=0.7\). We can also see the convergence orders are exponential in space and \(\mathcal {O}(3-\mathfrak {a})\) in time. Figure 3 presents the convergence rates in space when \(\mathfrak {a}=0.4\), \(\Delta t=1/100\) at \(T=1\) and the convergence rates in time at \(T=1\) when \(\mathfrak {a}=0.4\), \(M=32\).

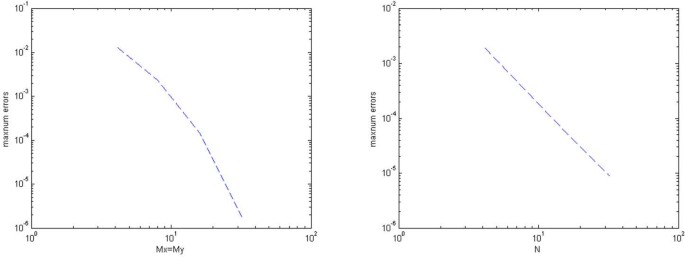

Figure 3
figure 3

The spatial convergence rates (loglog) when \(\mathfrak {a}=0.4\), \(N=100\) at \(T=1\) and the temporal convergence rates (loglog) when \(\mathfrak {a}=0.4\), \(M=32\) at \(T=1\) for Example 3

Table 5 Errors for \(\Arrowvert e\Arrowvert _{2}(M,N)\), \(\Arrowvert e\Arrowvert _{\infty}(M,N)\) when \(\mathfrak {a}=0.4\), \(\mathfrak {a}=0.7\), \(\Delta t =1/100\) for Example 3
Table 6 Errors and orders at \(\mathfrak {a}=0.4\) and \(\mathfrak {a}=0.7\) for Example 3

Example 4

We consider the following 2D nonhomogeneous problem for a sequence of \(M_{x}=4,8,16,32\) \(M_{y}=4,8,16,32\), with \(f(x,y,t)=-\frac{3}{4}t^{3}[y^{-1/2}(x^{3/2}-x)+x^{-1/2}(y^{3/2}-y)]+ \frac{6}{\Gamma (4-\mathfrak {a})}t^{(3-\mathfrak {a})}(x^{3/2}-x)(y^{3/2}-y)\) and \(u(x,y,0))=0, (x,y)\in [0,1]\times [0,1]\). The data are chosen so that the exact solution is

$$\begin{aligned} u(x,y,t)=(x^{3/2}-x)(y^{3/2}-y)t^{3}. \end{aligned}$$

It is easy to see that \(\alpha _{x}=\beta _{x}=\alpha _{y}=\beta _{y}=1/2\), which yields \(h_{x}=\frac{\pi}{\sqrt{M_{x}}}\) and \(h_{y}=\frac{\pi}{\sqrt{M_{y}}}\).

Maximum absolute errors and \(\Arrowvert e\Arrowvert _{2}(M,N)\) errors and the related convergence orders are displayed in Table 7 for different \(M_{x}\) and \(M_{y}\) at different \(\mathfrak {a}\) with \(\Delta t =1/100\). Table 8 presents the errors in time. Figure 4 presents the convergence rates in space when \(\mathfrak {a}=0.4\), \(\Delta t=1/100\) and the convergence rates in time when \(\mathfrak {a}=0.4\), \(M=32\). These data show that they agree with the theoretical results.

Figure 4
figure 4

The spatial convergence rates (loglog) when \(\mathfrak {a}=0.4\), \(N=100\) at \(T=1\) and the temporal convergence rates (loglog) when \(\mathfrak {a}=0.4\), \(M=32\) at \(T=1\) for Example 4

Table 7 Errors for \(\Arrowvert e\Arrowvert _{2}(M,N)\), \(\Arrowvert e\Arrowvert _{\infty}(M,N)\) when \(\mathfrak {a}=0.4\), \(\mathfrak {a}=0.7\), \(\Delta t =1/100\) for Example 4
Table 8 Errors and orders at \(\mathfrak {a}=0.4\) and \(\mathfrak {a}=0.7\) for Example 4

6 Conclusion

In this work, we have introduced a Sinc-Galerkin scheme for solving a 1D and 2D time-fractional diffusion equation. The discrete scheme is based on a higher-order method in time and a Sinc-Galerkin method in space to get high convergence rates. The convergence order is \(\mathcal {O}(3-\mathfrak {a})\) in time and \(e^{-\sqrt{\pi \alpha dM}}\) in space. This is the first paper describing the exponentially discrete scheme order for 2D partial differential problems using the Sinc-Galerkin method. It is shown that we did not need a large mesh. Our next work is to use the Sinc-Galerkin method to study the temporal and spatial fractional equation in both time and space for 2D fractional-order problems.

Data Availability

No datasets were generated or analysed during the current study.

References

  1. Du, R., Cao, W.R., Sun, Z.Z.: A compact difference scheme for the fractional diffusion-wave equation. Appl. Math. Model. 11, 309–319 (1993). https://doi.org/10.1016/j.apm.2010.01.008

    Article  Google Scholar

  2. Lai, J., Liu, F., Anh, V.V. et al.: A space-time finite element method for solving linear Riesz space fractional partial differential equations. Numer. Algorithms 88(1), 499–520 (2021). https://doi.org/10.1007/s11075-020-01047-9

    Article  MathSciNet  Google Scholar

  3. Deng, W.: Finite element method for the space and time fractional Fokker-Planck equation. SIAM J. Numer. Anal. 47, 204–226 (2008). https://doi.org/10.1137/08071413

    Article  MathSciNet  Google Scholar

  4. Lin, Y., Xu, C.J.: Finite difference/spectral approximations for the time-fractional diffusion equation. J. Comput. Phys. 225, 1533–1552 (2007). https://doi.org/10.1016/j.jcp.2007.02.001

    Article  MathSciNet  Google Scholar

  5. Kassem, M.: Time-stepping discontinuous Galerkin methods for fractional diffusion problems. J. Numer. Math. 130, 497–516 (2015). https://doi.org/10.1007/s00211-014-0669-2

    Article  MathSciNet  Google Scholar

  6. Wang, W., Yi, L., Xiao, A.: A posteriori error estimates for fully discrete finite element method for generalized diffusion equation with delay. J. Sci. Comput. 84, 13 (2020). https://doi.org/10.1007/s10915-020-01262-5

    Article  MathSciNet  Google Scholar

  7. Lv, C.W., Xu, C.J.: Error analysis of a high order method for time-fractional diffusion equations. SIAM J. Sci. Comput. 38, 2699–2724 (2016). https://doi.org/10.1137/15M102664X

    Article  MathSciNet  Google Scholar

  8. Zhou, J., Xu, D., Qiu, W., Qiu, W., Qiao, L.: An accurate, robust, and efficient weak Galerkin finite element scheme with graded meshes for the time-fractional quasi-linear diffusion equation. Comput. Math. Appl. 124, 188–195 (2022). https://doi.org/10.1016/j.camwa.2022.08.022

    Article  MathSciNet  Google Scholar

  9. Liao, H.L., Mclean, W., Zhang, J.: A discrete Grönwall inequality with applications to numerical schemes for subdiffusion problems. SIAM J. Numer. Anal. 57, 218–237 (2019). https://doi.org/10.13140/RG.2.2.34292.86408

    Article  MathSciNet  Google Scholar

  10. Zhang, Y.N., Sun, Z.Z., Zhao, X.: Compact alternating direction implicit scheme for the two-dimensional fractional diffusion-wave equation. SIAM J. Numer. Anal. 50, 1535–1555 (2012). https://doi.org/10.1137/110840959

    Article  MathSciNet  Google Scholar

  11. Wang, Y., Liu, F., Mei, L., et al.: A novel alternating-direction implicit spectral Galerkin method for a multi-term time-space fractional diffusion equation in three dimensions. Numer. Algorithms (2021). https://doi.org/10.1007/s11075-020-00940-7

    Article  MathSciNet  Google Scholar

  12. Rashidinia, J., Zarebnia, M.: Numerical solution of linear integral equations by using Sinc–collocation method. Appl. Math. Comput. 168, 806–822 (2005). https://doi.org/10.1016/j.amc.2004.09.044

    Article  MathSciNet  Google Scholar

  13. Zarebnia, M., Abadi, M.G.A.: Numerical solution of system of nonlinear second-order integro-differential equations. Comput. Math. Appl. 60, 591–601 (2010). https://doi.org/10.1016/j.camwa.2010.05.005

    Article  MathSciNet  Google Scholar

  14. Zarebnia, M., Rashidinia, J.: Convergence of the Sinc method applied to Volterra integral equations. J. Appl. Math. 5, 198–216 (2010). https://digitalcommons.pvamu.edu/aam/vol5/iss1/15

    MathSciNet  Google Scholar

  15. Mohsen, A., El-Gamel, M.: A Sinc-collocation method for the linear Fredholm integro-differential equations. Z. Angew. Math. Phys. 58, 380–390 (2007). https://doi.org/10.1007/s00033-006-5124-5

    Article  MathSciNet  Google Scholar

  16. Fahim, A., Araghi, M.A.F., Rashidinia, J. et al.: Numerical solution of Volterra partial integro-differential equations based on sinc-collocation method. Adv. Differ. Equ. 1, 362 (2017). https://doi.org/10.1186/s13662-017-1416-7

    Article  MathSciNet  Google Scholar

  17. Qiu, W., Xu, D., Guo, J.: Numerical solution of the fourth-order partial integro-differential equation with multi-term kernels by the Sinc-collocation method based on the double exponential transformation. Appl. Math. Comput. 392, 125693 (2021). https://doi.org/10.1016/j.amc.2020.125693

    Article  MathSciNet  Google Scholar

  18. Xu, D.: Numerical solution of partial integro-differential equation with a weakly singular kernel based on Sinc methods. Math. Comput. Simul. 190, 140–158 (2021). https://doi.org/10.1016/j.matcom.2021.05.014

    Article  MathSciNet  Google Scholar

  19. Babaei, A., Moghaddam, B.P., Banihashemi, S., et al.: Numerical solution of variable-order fractional integro-partial differential equations via Sinc collocation method based on single and double exponential transformations. Commun. Nonlinear Sci. Numer. Simul. 82, 104985 (2019). https://doi.org/10.1016/j.cnsns.2019.104985

    Article  MathSciNet  Google Scholar

  20. Yang, X., Wu, L., Zhang, H.: A space-time spectral order sinc-collocation method for thefourth-order nonlocal heat model arising in viscoelasticity. Appl. Math. Comput. 457, 128192 (2023). https://doi.org/10.1016/j.amc.2023.128192

    Article  Google Scholar

  21. Alkan, S., Secer, A.: Application of Sinc-Galerkin Method for Solving Space-Fractional Boundary Value Problems. Math. Probl. Eng., 1–10 (2015). https://doi.org/10.1155/2015/217348

  22. El-Gamel, M.: On the numerical solution of linear and nonlinear Volterra integral and integro-differential equations. Appl. Math. Comput. 217, 3330–3337 (2010). https://doi.org/10.1016/j.amc.2010.08.065

    Article  MathSciNet  Google Scholar

  23. El-Gamel, M.: Numerical solution of Troesch’s problem by Sinc-collocation method. J. Appl. Math. 4, 707–712 (2013). https://doi.org/10.4236/am.2013.44098

    Article  Google Scholar

  24. El-Gamel, M.: Error analysis of Sinc-Galerkin method for time-dependent partial differential equations. Numer. Algorithms 77, 1–17 (2017). https://doi.org/10.1007/s11075-017-0326-9

    Article  MathSciNet  Google Scholar

  25. Qiu, W., Xu, D., Guo, J.: The Crank-Nicolson-type Sinc-Galerkin method for the fourth-order partial integro-differential equation with a weakly singular kernel. Appl. Numer. Math. 159, 239–258 (2021). https://doi.org/10.1016/j.apnum.2020.09.011

    Article  MathSciNet  Google Scholar

  26. Jiang, H., Lu, T., Zhang, W.: A hybrid sinc-Galerkin/finite-difference method for the time-dependent Wigner equation. J. Comput. Appl. Math. 409, 114152 (2022). https://doi.org/10.1016/j.cam.2022.114152

    Article  MathSciNet  Google Scholar

  27. Chen, L.J., Li, M.Z., Xu, Q.: Sinc-Galerkin method for solving the time fractional convection–diffusion equation with variable coefficients. Adv. Differ. Equ. 504 (2020). https://doi.org/10.1186/s13662-020-02959-5

  28. Lund, J., Bowers, K.L.: Sinc Methods for Quadrature and Differential Equations. SIAM, Philadelphia (1992). https://doi.org/10.1137/1.9781611971637

    Book  Google Scholar

  29. Stenger, F.: Numerical Methods Based on Sinc and Analytic Functions. Springer, Berlin (2012). https://doi.org/10.1007/978-1-4612-2706-9

    Book  Google Scholar

Download references

Funding

This research was supported by Scientific Research Foundation of Hunan Provincial Education Department, PR China (Grant Number: 23B0908, 22A0686), project of teaching reform research in Hunan Province under Grant 202401001725 and Key project of teaching reform research in Hunan Province under Grant HNJG-2022-0371.

Author information

Authors and Affiliations

Authors

Contributions

Luo wrote the main manuscript text and all authors reviewed the manuscript.

Corresponding author

Correspondence to Man Luo.

Ethics declarations

Ethics approval and consent to participate

This declaration is not applicable. The authors declare that they have no conflict of interest.

Competing interests

The authors declare no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Luo, M., Xu, D. & Pan, X. Sinc-Galerkin method and a higher-order method for a 1D and 2D time-fractional diffusion equations. Bound Value Probl 2024, 106 (2024). https://doi.org/10.1186/s13661-024-01915-6

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s13661-024-01915-6

Keywords
