On a system of fractional q-differential inclusions via sum of two multi-term functions on a time scale

Abstract

Nowadays most researchers have been focused on fractional calculus because it has been proved that fractional derivatives could describe most phenomena better than usual derivations. Numerical parts of fractional calculus such as q-derivations are considered by researchers. In this work, our aim is to review the existence of solution for an m-dimensional system of fractional q-differential inclusions via sum of two multi-term functions under some boundary conditions on the time scale \(\mathbb{T}_{t_{0}}= \{ t : t =t_{0}q^{n}\}\cup\{0\}\), where \(n\geq1\), \(t_{0} \in\mathbb{R}\), and \(q \in(0,1)\). By using the Banach contraction principle and some sufficient conditions, we guarantee the existence of solutions for the system of q-differential inclusions. Also, we provide an example, some algorithms, and a figure to illustrate our main result.

Introduction

The fractional calculus provides a meaningful generalization for the classical integration and differentiation to any order. Also, the quantum calculus is equivalent to traditional infinitesimal calculus without the notion of limits. It defines q-calculus, where q stands for quantum. Despite the old history of the theories, the investigation of their properties has remained untouched until recent time. After its introduction by Jackson in 1910 [1], many researchers have extended this field (see, for example, [28]). It is important that we increase our abilities by investigating complicate fractional differential equations and applications (see [924]). One of the methods in this way is working on fractional differential inclusions which are an appropriate extension for fractional differential equations [2530]. Finally, it is known that fractional difference equations need time scales as a discrete system [31, 32].

In 2013, Ahmad et al. studied the fractional inclusion problem \({}^{c}\mathcal{D}^{\beta }k(t) \in T(t, k(t))\) with the integral boundary conditions \(k^{j} (0) - c_{i} k^{j} (\delta ) = a_{i} \int _{0}^{1} f_{j}(r , k(r) ) \,\mathrm{d}r\) for \(j = 0,1,2\), where T is a multifunction [26]. In 2014, Ghorbanian et al. investigated the existence of solution for the fractional differential inclusion problems

$$ {}^{c}\mathcal{D}^{\sigma _{1}} [z](t) \in T_{1} \bigl(t, z(t), z' (t), z''(t) \bigr) $$

and

$$ {}^{c}\mathcal{D}^{\sigma _{2}} [z](t) \in T_{2} \bigl(t, z(t), \qquad {}^{c} \mathcal{D}^{\beta _{1} } [z](t), \ldots , {}^{c}\mathcal{D}^{\beta _{n}} [z](t)\bigr), $$

with integral boundary value conditions

$$ \textstyle\begin{cases} z(0) + z (\eta ) + z(1) = \int _{0}^{1} f_{0}(r, z(r)) \,\mathrm{d}r, \\ {}^{c}\mathcal{D}^{\zeta }[z](0) + {}^{c}\mathcal{D}^{\zeta }[z](\eta ) + {}^{c}\mathcal{D}^{\zeta }[z](1 ) = \int _{0}^{1} f_{1} (r, z(r)) \,\mathrm{d}r, \\ {}^{c}\mathcal{D}^{\beta }[z](0) + {}^{c}\mathcal{D}^{\beta }[z](\eta ) + {}^{c}\mathcal{D}^{\beta }[z](1) = \int _{0}^{1} f_{2} (r, z(r)) \,\mathrm{d}r, \\ z(0) + a z(1) = \sum_{i=1}^{n} \mathcal{I}^{\beta _{i}} [z](\eta ), \\ Z'(0) + b z'(1) = \sum_{i=1}^{n} {}^{c}\mathcal{D}^{ \beta _{i}} [z](\eta ), \end{cases} $$

where \(t \in J\), \(2<\sigma _{1} \leq 3\), \(1<\sigma _{2}\leq 2\), \(0<\eta , \zeta , \beta _{i} < 1\), \(1< \beta <2\), \(\sigma _{2} -\beta _{i}\geq 1\), for \(1\leq i \leq n\),

$$ a > \sum_{i=1}^{n} \frac{ \eta ^{\beta _{i}+1}}{ \varGamma (\beta _{i}+2)}, \qquad b > \sum_{i=1}^{n} \frac{ \eta ^{ 1 - \beta _{i}}}{ \varGamma ( 2 - \beta _{i})}, $$

\(n \in \mathbb{N}\), \(T_{1} : J \times \mathbb{R} \times \mathbb{R} \times \mathbb{R} \to P_{\mathrm{cp}}( \mathbb{R})\), \(T_{2} : J\times \mathbb{R}^{n+1}\to P_{\mathrm{cp}}(\mathbb{R})\) are multifunctions, \(f_{i} : J \times \mathbb{R} \to \mathbb{R}\) are continuous functions for \(i=0,1,2\), and \(P_{\mathrm{cp}}(\mathbb{R})\) is the set of all compact subsets of \(\mathbb{R}\) [28]. In 2015, Agarwal et al. reviewed the fractional derivative inclusions \({}^{c}\mathcal{D}^{\beta }[x](t) \in F_{1}(t,x(t))\) and \({}^{c}\mathcal{D}^{\beta }[x] (t) \in F_{2}(t, x(t), {}^{c}\mathcal{D}^{ \zeta } x(t))\) with the boundary value conditions \(x(0) = a \int _{0}^{\nu }x(s)ds\), \(x(1) = b \int _{0}^{\eta }x(s) \,\mathrm{d}s\) and \(x(1) + x' (1) = \int _{0}^{\eta } x(s) \,\mathrm{d}s\), \(x(0) = 0\), respectively, where \(t\in J\), \(\zeta , \eta , \nu \in (0,1)\), \(\beta \in (1,2]\) with \(\beta - \zeta >1\), \(a, b \in \mathbb{R}\), \({}^{c}\mathcal{D}^{\beta }\) is the Caputo differentiation and \(F_{1} : J\times \mathbb{R}\times \mathbb{R}\to 2^{\mathbb{R}} \), \(F_{2} : J \times \mathbb{R} \times \mathbb{R} \to 2^{\mathbb{R}}\) are compact-valued multifunctions [25]. In 2019, Samei et al. studied the existence of solutions for the hybrid inclusion

$$ \textstyle\begin{cases} {}^{C}_{H}D^{\alpha } [ \frac{x(t)- f (t, x(t), I^{\beta _{1}} h_{1} (t, x(t)), I^{\beta _{2}} h_{2}(t, x(t)), \ldots , I^{\beta _{n}} h_{n}( t, x(t)) )}{ g (t, x(t), I^{\gamma _{1}} [x](t), I^{\gamma _{2}} [x] (t), \ldots , I^{\gamma _{m}} [x](t) )} ] \in K (t, x(t)), \\ x (1) = \mu (x),\quad x(e) = \eta (x), \end{cases} $$

where \({}^{C}_{H} \mathcal{D}^{\alpha }\) and \({}^{H}\mathcal{I}^{\alpha }\) denote the Caputo–Hadamard fractional derivative and Hadamard integral of order α, respectively, \(t \in J = [1, e]\), \(n, m \in \mathbb{N}\), \(1 < \alpha \leq 2 \), \(\beta _{i} >0\) for \(i=1, 2, \ldots , n\), \(\gamma _{i} > 0\) for \(i=1,2, \ldots , m\), the functions \(f : J\times \mathbb{R}^{n+1} \to \mathbb{R}\), \(g : J \times \mathbb{R}^{m+1} \to \mathbb{R} -\{0\}\), \(h_{i}: J \times \mathbb{R} \to \mathbb{R}\) for \(i= 1,2, \ldots , n\), functions μ, η map \(C(J, \mathbb{R})\) into \(\mathbb{R}\) and the multifunction \(K: J \times \mathbb{R} \to P(\mathbb{R} )\) satisfies certain conditions [30]. Also, Ntouyas et al. studied the boundary value problem of first-order fractional differential equations given by

$$ {}^{c}D_{0^{+}}^{\beta _{1}} [f_{1}] (x) = w_{1} \bigl(x, f_{1}(x), f_{2}(x)\bigr), \qquad {}^{c}D_{0^{+}}^{\beta _{2}} [f_{2}] (x) = w_{2} \bigl(x, f_{1}(x), f_{2}(x) \bigr),\quad \bigl(t \in [0,1]\bigr) $$

with Riemann–Liouville integral boundary conditions of different order \(f_{1}(0) = c_{1} I^{\alpha _{1}} [f_{1}] (a_{1})\) and \(f_{2}(0) = c_{2} I^{\alpha _{2}} [f_{2}](a_{2})\) for \(0 < a_{1}, a_{2} <1\), \(\beta _{i}\in (0, 1]\), \(\alpha _{i}, c_{i} \in \mathbb{R}\) where \(i=1,2\) [33]. On the other hand, Samei and Ntouyas investigated a multi-term nonlinear fractional q-integro-differential equation

$$ {}^{c}D_{q}^{\alpha } [x](t) = w \bigl( t, x(t), (\varphi _{1} x) (t), ( \varphi _{2} x) (t), \qquad {}^{c}D_{q}^{\beta _{1}} [x](t), {}^{c}D_{q}^{ \beta _{2}} [x](t), \ldots , {}^{c}D_{q}^{ \beta _{n}} [x](t) \bigr) $$

under some boundary conditions [7]. In 2019, Samei et al. discussed the fractional hybrid q-differential inclusions

$$ {}^{c}\mathcal{D}_{q}^{\alpha } \biggl( \frac{k}{ f ( t, k, \mathcal{I}_{q}^{\alpha _{1}} [k], \ldots , \mathcal{I}_{q}^{\alpha _{n}} [k] )} \biggr) \in F \bigl( t, k, \mathcal{I}_{q}^{ \beta _{1}} [k] , \ldots , \mathcal{I}_{q}^{ \beta _{k}} [k] \bigr) $$

with the boundary conditions \(k(0) = k_{0}\) and \(k(1) = k_{1}\), where \(1 < \alpha \leq 2\), \(q \in (0,1)\), \(k_{0}, k_{1} \in \mathbb{R}\), \(\alpha _{i} >0\) for \(i=1, 2, \ldots , n\), \(\beta _{j} > 0\) for \(j=1, 2, \ldots , m\), \(n, m\in \mathbb{N}\), \({}^{c}\mathcal{ D}_{q}^{\alpha }\) denotes Caputo type q-derivative of order α, \(\mathcal{I}_{q}^{\beta }\) denotes Riemann–Liouville type q-integral of order β, \(f : J \times \mathbb{R}^{n} \to (0,\infty )\) is continuous, and \(F : J \times \mathbb{R}^{m} \to P(\mathbb{R})\) is a multifunction [34].

Now by mixing the main ideas of the works, we investigate the existence of solutions for a system of fractional q-differential inclusions via sum of two multi-term functions:

$$ \textstyle\begin{cases} {}^{c}\mathcal{D}_{q}^{\sigma _{1}} [k_{1}](t) \in \mathcal{T}_{1i} (t, k_{1}(t), \ldots , k_{m}(t), \mathcal{I}_{q}^{\zeta _{1}} [k_{1}] (t), \ldots , \mathcal{I}_{q}^{\zeta _{m}} [k_{m}(t)] ) \\ \hphantom{{}^{c}\mathcal{D}_{q}^{\sigma _{1}} [k_{1}](t) \in}{} + \mathcal{T}_{21} ( t, k_{1}(t), \ldots , k_{m}(t), {}^{c} \mathcal{D}_{q}^{\zeta _{1}} [k_{1} ](t), \ldots , {}^{c}\mathcal{D}_{q}^{ \zeta _{m}} [k_{m}] (t) ), \\ {}^{c}\mathcal{D}_{q}^{ \sigma _{2}} [k_{2}](t) \in \mathcal{T}_{12} ( t, k_{1} (t), \ldots , k_{m}(t), \mathcal{I}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , \mathcal{I}_{q}^{ \zeta _{m}} [k_{m}](t) ) \\ \hphantom{{}^{c}\mathcal{D}_{q}^{ \sigma _{2}} [k_{2}](t) \in}{} + \mathcal{T}_{22} ( t, k_{1}(t), \ldots , k_{m}(t), {}^{c} \mathcal{D}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , {}^{c}\mathcal{D}_{q}^{ \zeta _{m}} [k_{m}]( t ) ), \\ \vdots \\ {}^{c}\mathcal{D}_{q}^{\sigma _{m}} [k_{m}](t) \in \mathcal{T}_{1m} ( t, [k_{1}](t), \ldots , k_{m}(t), \mathcal{I}_{q}^{\zeta _{1}} [k_{1}] (t), \ldots , \mathcal{I}_{q}^{ \zeta _{m}} [k_{m}](t) ) \\ \hphantom{{}^{c}\mathcal{D}_{q}^{\sigma _{m}} [k_{m}](t) \in}{} + \mathcal{T}_{2m} ( t, k_{1}(t), \ldots , k_{m}(t), {}^{c} \mathcal{D}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , {}^{c}\mathcal{D}_{q}^{ \zeta _{m}} [k_{m}](t) ), \end{cases} $$
(1)

with the boundary conditions

$$ \begin{aligned} &k_{i}(0) + \mathcal{I}_{q}^{\zeta _{i}} [k_{i}](0) + {}^{c} \mathcal{D}_{q}^{\zeta _{i}} [k_{i}](0) = -k_{i} (1), \\ &k_{i}(1) + \mathcal{I}_{q}^{\zeta _{i}} [k_{i}](1) + {}^{c} \mathcal{D }_{q}^{\zeta _{i}} [k_{i}](1)= - k_{i}(0), \end{aligned} $$
(2)

where \(1 < \sigma _{i} \leq 2\), \(0< \zeta _{i} < 1\), \(t \in \overline{J} = [0,1]\), and \(\mathcal{T}_{1i}\), \(\mathcal{T}_{2i}: \overline{J} \times \mathbb{R}^{2m}\to 2^{ \mathbb{R}}\) are some set-valued maps for \(i = 1, \ldots , m\).

Essential preliminaries

In this work, we apply the time scales calculus notation of the book [32]. In fact, we consider the fractional q-calculus on the specific time scale \(\mathbb{T}_{t_{0}} = \{0 \} \cup \{ t : t = t_{0} q^{n} \}\), where \(n \geq 0\), \(t_{0} \in \mathbb{R}\), and \(q \in (0,1)\). Let \(a \in \mathbb{R}\). Define \([a]_{q} = \frac{1-q^{a}}{ 1 - q}\) [1]. The power function \((x - y)_{q}^{n}\) with \(n \in \mathbb{N}_{0}\) is defined by \(( x - y)_{q}^{(0)}=1\) and \((x-y)_{q}^{(n)} = \prod_{k=0}^{n-1} (x - yq^{k})\) for \(n\geq 1\), where x and y are real numbers [31]. Also, for \(\alpha \in \mathbb{R}\) and \(a \neq 0\), we have \((x - y)_{q}^{ (\alpha ) } = x^{\alpha }\prod_{k=0}^{\infty }\frac{x - y q^{k}}{x - yq^{ \alpha + k}}\). If \(y=0\), then it is clear that \(x^{ (\alpha ) } = x^{\alpha }\) [31] (Algorithm 1). The q-gamma function is given by \(\varGamma _{q}(z) = (1-q)^{ ( z - 1)} / (1-q)^{z -1}\), where \(z \in \mathbb{R} \backslash \{0, -1, -2, \ldots \}\) [1]. Note that \(\varGamma _{q} (z+1) = [z]_{q} \varGamma _{q} (z)\). Algorithm 2 shows a pseudo-code description of the technique for estimating q-gamma function of order n. The q-derivative of function f is defined by \((\mathcal{D}_{q} f)(x) = \frac{f(x) - f(qx)}{(1- q)x}\) and \((\mathcal{D}_{q} f)(0) = \lim_{x \to 0} (\mathcal{D}_{q} f)(x)\), which is shown in Algorithm 3 [2, 3]. Furthermore, the higher-order q-derivative of a function f is defined by \(D_{q}^{n} [f]( x) = D_{q}[ D_{q}^{n-1} [f] ](x)\) for \(n \geq 1\), where \((D_{q}^{0} f)(x) = f(x)\) [2, 3]. The q-integral of a function f is defined by

$$ I_{q} f(x) = \int _{0}^{x} f(s)\,\mathrm{d}_{q} s = x(1- q) \sum_{k=0}^{ \infty } q^{k} f\bigl(x q^{k}\bigr) $$

for \(0 \leq x \leq b\), provided the series is absolutely convergent [2, 3]. If x in \([0, T]\), then

$$\begin{aligned} \int _{x}^{T} f(r)\,\mathrm{d}_{q} r &= I_{q} f(T) - I_{q} f(x) \\ & = (1- q) \sum _{k=0}^{\infty } q^{k} \bigl[ T f\bigl(T q^{k}\bigr) - x f\bigl(x q^{k}\bigr) \bigr], \end{aligned}$$

whenever the series exists. The operator \(I_{q}^{n}\) is given by \((I_{q}^{0} h)(x) = h(x) \) and \((I_{q}^{n} h)(x) = (I_{q} (I_{q}^{n-1} h)) (x)\) for \(n \geq 1\) and \(h \in C([0,T])\) [2, 3]. It has been proved that \((D_{q} (I_{q} h))(x) = h(x) \) and \((I_{q} (D_{q} h))(x) = h(x) - h(0)\) whenever h is continuous at \(x =0\) [2, 3].

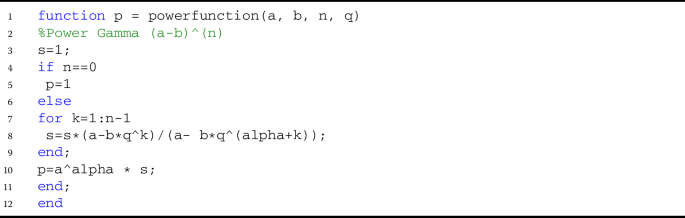

Algorithm 1
figurea

The proposed method for calculated \((a-b)_{q}^{(\alpha)}\)

Algorithm 2
figureb

The proposed method for calculated \(\varGamma _{q}(x)\)

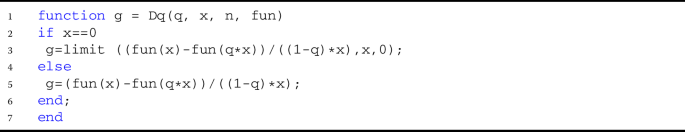

Algorithm 3
figurec

The proposed method for calculated \((D_{q} f)(x)\)

The fractional Riemann–Liouville type q-integral of the function h on \(J=(0,1)\) for \(\sigma \geq 0\) is defined by

$$\begin{aligned} \mathcal{I}_{q}^{\sigma }[h](t)& = \frac{1}{\varGamma _{q}(\sigma )} \int _{0}^{t} (t- qs)^{(\sigma - 1)} h(s) \, \mathrm{d}_{q}s \\ & = t^{\sigma }(1-q)^{\sigma }\sum_{k=0}^{ \infty } q^{k} \frac{ \prod_{i=1}^{k - 1} (1-q^{\sigma +i } ) }{ \prod_{i=1}^{k - 1} (1 - q^{i +1} ) } h\bigl(t q^{k}\bigr) \end{aligned}$$
(3)

and \(\mathcal{I}_{q}^{0} [h](t) = h(t) \) for \(t \in J\) [5]. Also, the Caputo fractional q-derivative of a function w is defined by

$$\begin{aligned} {}^{c}\mathcal{D}_{q}^{\sigma }[w] (t) & = \mathcal{I}_{q}^{[ \sigma ]-\sigma } \bigl[ {}^{c} \mathcal{D}_{q}^{[\sigma ]} [w] \bigr] (t) \\ & = \frac{1}{\varGamma _{q} ([\sigma ] - \alpha )} \int _{0}^{t} (t- qs)^{ ( [\sigma ]-\sigma -1 )} {}^{c}\mathcal{D}_{q}^{[ \sigma ]} [w] (s) \, \mathrm{d}_{q}s \\ & = \frac{1}{t^{\sigma }(1-q)^{\sigma }} \sum_{k=0}^{ \infty } q^{k} \frac{ \prod_{i=1}^{k - 1} (1-q^{ i-\sigma } )}{ \prod_{i=1}^{k - 1} (1 - q^{i +1} ) } w\bigl(t q^{k}\bigr), \end{aligned}$$
(4)

where \(t \in J\) and \(\sigma >0\) [5, 35]. It has been proved that \(\mathcal{I}_{q}^{\beta }(\mathcal{I}_{q}^{\alpha } [h]) (x) = \mathcal{I}_{q}^{\alpha + \beta } [h] (x)\) and \(\mathcal{D}_{q}^{\alpha } (\mathcal{I}_{q}^{\alpha } [h])(x)= h(x)\), where \(\alpha , \beta \geq 0\) [5]. Algorithm 4 shows pseudo-code \(\mathcal{I}_{q}^{\alpha }[h](x)\).

Algorithm 4
figured

The proposed method for calculated \(I_{q}^{\alpha}[x]\)

Let \((\mathcal{E}, \rho )\) be a metric space. Denote by \(\mathcal{P}( \mathcal{E})\) and \(2^{\mathcal{E}}\) the class of all subsets and the class of all nonempty subsets of \(\mathcal{E}\), respectively. Thus, \(\mathcal{P}_{\mathrm{cl}}( \mathcal{E})\), \(\mathcal{P}_{\mathrm{bd}}( \mathcal{E})\), \(\mathcal{P}_{\mathrm{cv}}( \mathcal{E})\), and \(\mathcal{P}_{\mathrm{cp}}( \mathcal{E})\) denote the class of all closed, bounded, convex, and compact subsets of \(\mathcal{E}\), respectively. A mapping \(\mathcal{T}: \mathcal{E}\to 2^{\mathcal{E}}\) is called a multifunction on \(\mathcal{E}\) and \(e\in \mathcal{E}\) is called a fixed point of \(\mathcal{T}\) whenever \(e\in \mathcal{T}(e)\). A multifunction \(\mathcal{T} : \mathcal{E}\to \mathcal{P}_{\mathrm{cl}}( \mathcal{E})\) is lower semi-continuous if, for any open set \(\mathcal{O}\) of \(\mathcal{E}\), the set

$$ \mathcal{T}^{-1} (\mathcal{O}) : = \bigl\{ z\in \mathcal{E} : \mathcal{T} (z) \cap \mathcal{O} \neq \emptyset \bigr\} $$

is open [29]. If the set \(\{ z\in \mathcal{X} : \mathcal{T}(z) \subset \mathcal{O}\}\) is open for every open set \(\mathcal{O}\) of \(\mathcal{E}\), then we say that \(\mathcal{T}\) is upper semi-continuous [29]. Also, \(\mathcal{T} : \mathcal{E}\to \mathcal{P}_{\mathrm{cp}}( \mathcal{E}) \) is called compact if \(\overline{ \mathcal{T} (\mathcal{B})}\) is compact for each bounded subset \(\mathcal{B}\) of \(\mathcal{E}\) [29]. A multifunction \(\mathcal{T}=[0,1] : \overline{J} \to \mathcal{P}_{\mathrm{cl}}( \mathbb{R})\) is said to be measurable whenever, for each \(y \in \mathbb{R}\), the function \(t \mapsto \rho ( y, \mathcal{T}(t)) = \inf \{ | y - z| : z \in \mathcal{T}(t) \} \) is measurable [36]. The Pompeiu–Hausdorff metric \(P_{\rho }: 2^{\mathcal{E}}\times 2^{\mathcal{E}}\to [0,\infty )\) is defined by

$$ P_{\rho }(S,T) = \max \Bigl\{ \sup _{s\in S} \rho (s,T), \sup_{t\in T} \rho (S,t) \Bigr\} , $$
(5)

where \(\rho (S,t)= \inf_{s\in S} \rho (s; t)\) [29]. Then \((\mathcal{P}_{b,\mathrm{cl}}( \mathcal{E}), P_{\rho })\) is a metric space and \((\mathcal{P}_{\mathrm{cl}}( \mathcal{E}), P_{\rho })\) is a generalized metric space [29]. A multifunction \(\mathcal{T} : \mathcal{E} \to \mathcal{P}_{\mathrm{cl}}( \mathcal{E})\) is called λ-contraction whenever there exists \(\lambda \in (0,1)\) such that \(P_{\rho } ( \mathcal{T}( e_{1} ), \varTheta (e_{2})) \leq \lambda \rho (e_{1}, e_{2})\) for all \(e_{1}, e_{2}\in \mathcal{E}\).

In 1970, Covitz and Nadler proved that each closed-valued contractive multifunction on a complete metric space has a fixed point [37]. We say that \(\mathcal{T}: \overline{J}\times \mathbb{R}^{2m} \to 2^{\mathbb{R}}\) is a Carathéodory multifunction whenever \(t \mapsto \mathcal{T} (t, r_{1}, \ldots , r_{2m} )\) is measurable for all \(r_{1}, \ldots , r_{2m}\in \mathbb{R}\) and \((r_{1}, \ldots , r_{2m}) \mapsto \mathcal{T} (t, r_{1}, \ldots , r_{2m} )\) is an upper semi-continuous map for almost all \(t \in \overline{J}\) [27, 29, 38]. Also, a Carathéodory multifunction \(\mathcal{T}: \overline{J} \times \mathbb{R}^{2m} \to 2^{ \mathbb{R}}\) is called \(L^{1}\)-Carathéodory whenever, for each \(\eta >0\), there exists \(\varUpsilon _{\eta } \in L^{1} (\overline{J}, \mathbb{R}^{+})\) such that

$$ \bigl\Vert \mathcal{T} ( t, r_{1}, \ldots , r_{2m} ) \bigr\Vert = \sup \bigl\{ \vert k \vert : k \in \mathcal{T} (t, r_{1}, \ldots , r_{2m}) \bigr\} \leq \varUpsilon _{ \eta }(t) $$

for all \(|r_{1}|, \ldots , |r_{2m}| \leq \eta \) and for almost all \(t\in \overline{J}\) [27, 29, 38]. For each i, define the space \(E_{i} = \{ k(t) : k(t), {}^{c}\mathcal{D}_{q}^{ \zeta _{i}} [k](t) \in \mathcal{A} \} \) endowed with the norm

$$ \Vert k \Vert _{i} = \max_{t\in \overline{J}} \bigl\vert k(t) \bigr\vert + \max_{t\in \overline{J}} \bigl\vert {}^{c}\mathcal{D}_{q}^{ \zeta _{i}} [k](t) \bigr\vert , $$

where \(\mathcal{A}= C(\overline{J}, \mathbb{R})\). Also, consider the product space \(\mathcal{E} = E_{1} \times \cdots \times E_{m}\) endowed with the norm \(\|( k_{1}, \ldots , k_{m})\| = \sum_{i=1}^{m} \|k_{i}\|_{i}\). Then \((\mathcal{E}, \|. \|)\) is a Banach space [39]. By using the idea of some works such as [26], define the set of the selections of \(\mathcal{S}_{1i}\), \(\mathcal{S}_{2i}\) at k by

$$\begin{aligned} &S_{\mathcal{T}_{1i}, k} = \bigl\{ p \in L^{1} (\overline{J}) : p(t) \in \mathcal{T}_{1i} \bigl(t, k_{1}(t), \ldots , k_{m}(t), \mathcal{I}_{q}^{ \zeta _{1}} [k_{1}](t), \ldots , \mathcal{I}_{q}^{ \zeta _{m}} [k_{m}](t) \bigr) \bigr\} , \\ &S_{\mathcal{T}_{2i},k} = \bigl\{ p \in L^{1}(\overline{J}) : p(t) \in \mathcal{T}_{2i} \bigl(t, k_{1}(t), \ldots , k_{m}(t), {}^{c}\mathcal{D}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , {}^{c} \mathcal{D}_{q}^{ \zeta _{m}} [k_{m}](t) \bigr) \bigr\} \end{aligned}$$

for all \(t\in \overline{J}\), \(k=(k_{1}, \dots ,k_{m}) \in \mathcal{E}\) and \(1\leq i\leq m\). One can check that \(S_{\mathcal{T}_{1i},k} \neq \emptyset \) for all \(k\in \mathcal{E}\) whenever \(\dim \mathcal{E} < \infty \) [40]. We need the following results.

Lemma 1

([38])

If\(\mathcal{T} : \mathcal{E} \to \mathcal{P}_{\mathrm{cl}}(\mathcal{F})\)is upper semicontinuous, then\(\operatorname{Gr}(\mathcal{T})\)is a closed subset of\(\mathcal{E}\times \mathcal{F}\). Conversely, if\(\mathcal{T}\)is completely continuous and has a closed graph, then it is upper semicontinuous.

Lemma 2

([40])

Let\(\mathcal{E}\)be a Banach space, \(\mathcal{T} : \overline{J}\times \mathcal{E}\to \mathcal{P}_{\mathrm{cp},\mathrm{cv}}( \mathcal{E})\)be an\(L^{1}\)-Carathéodory multifunction, and\(\mathscr{L}\)be a linear continuous mapping from\(L^{1}( \overline{J}, \mathcal{E})\)to\(C(\overline{J}, \mathcal{E})\). Then the operator\(\mathscr{L} o S_{\mathcal{T}}: C( \overline{J}, \mathcal{E}) \to \overline{P}_{\mathrm{cp},\mathrm{cv}} ( C(\overline{J}), \mathcal{E})\)defined by\((\mathscr{L} o S_{\mathcal{T}})(k) = \mathscr{L}( S_{\mathcal{T}, k} )\)is a closed graph operator in\(C(\overline{J},\mathcal{E}) \times C(\overline{J}, \mathcal{E})\).

Lemma 3

([41])

Let\(\mathcal{E}\)be a Banach space, \(\mathcal{F} \in \mathcal{P}_{\mathrm{bd}, \mathrm{cl}, \mathrm{cv}} ( \mathcal{E} )\)and\(\mathcal{M}, \mathcal{N} : \mathcal{F}\to \mathcal{P}_{\mathrm{cp}, \mathrm{cv}}( \mathcal{E})\)be two multi-valued operators. If\(\mathcal{M}(k) + \mathcal{N}(k) \subset \mathcal{F}\)for all\(k\in \mathcal{F}\)m, \(\mathcal{M}\)is a contraction and\(\mathcal{N}\)is upper semicontinuous and compact, then there exists\(k\in \mathcal{F}\)such that\(k \in \mathcal{M}(k) + \mathcal{N}(k)\).

Main results

Now, we are ready to provide our main results.

Lemma 4

Let\(z \in \mathcal{A}\), \(\sigma \in (1,2]\)and\(\zeta \in (0,1)\)with\(\sigma - \zeta >1\). Then the unique solution of the fractional problem\({}^{c}\mathcal{D}_{q}^{\sigma }[k](t) = z(t)\)with the boundary value conditions

$$\begin{aligned} & k(0) + \mathcal{I}_{q}^{\zeta } [k](0) + {}^{c}\mathcal{D}_{q}^{ \zeta } [k](0) = -k(1), \\ &k(1) + \mathcal{I}_{q}^{\zeta }[k](1) + {}^{c}\mathcal{D}_{q}^{\zeta }[k](1) = - k(0), \end{aligned}$$

is given by

$$\begin{aligned} k(t) ={}& \mathcal{I}_{q}^{\sigma }[z](t) + A_{1}(t, q, \zeta ) \mathcal{I}_{q}^{\sigma } [z](1) \\ &{} + A_{2}(t, q, \zeta ) \mathcal{I}_{q}^{ \sigma +\zeta } [z](1) + A_{3}(t, q, \zeta ) \mathcal{I}_{q}^{ \sigma -\zeta } [z](1) \\ ={}& \int _{0}^{1} G_{q}(t, r,\sigma , \zeta ) z(r) \,\mathrm{d}_{q}r, \end{aligned}$$

where

$$\begin{aligned}& \begin{aligned}&A_{1}(t, q, \zeta ) = \varSigma \bigl[ t \varGamma _{q}( \zeta + 2) \varGamma _{q}( 2 - \zeta ) + \varGamma _{q}( \zeta + 1 ) \varGamma _{q}( \zeta + 2 ) + \varGamma _{q}( \zeta + 1 ) \varGamma _{q}( 2 - \zeta )\bigr], \\ &A_{2}(t, q, \zeta ) = \varSigma \bigl[ ( 2 t - 1 ) \varGamma _{q}( \zeta + 1 ) \varGamma _{q}( \zeta + 2 ) \varGamma _{q} ( 2 - \zeta )\bigr], \\ &A_{3}(t, q, \zeta ) = \varSigma \bigl[ ( 2 t - 1 )\varGamma _{q} (\zeta + 1 ) \varGamma _{q} (\zeta + 2 ) \varGamma _{q}( 2 - \zeta )\bigr], \\ &\varSigma = \bigl[ \varGamma _{q}( \zeta + 2) \varGamma _{q} ( 2 - \zeta ) - 2 \varGamma _{q} (\zeta + 1 ) \varGamma _{q}( 2 + \zeta ) - 2 \varGamma _{q}( \zeta + 1 ) \varGamma _{q} ( 2 - \zeta ) \bigr]^{-1} \end{aligned} \end{aligned}$$
(6)

and

$$ G_{q}(t,r, \sigma , \zeta ) = \textstyle\begin{cases} \frac{(1-qr)^{(\sigma -1)}}{\varGamma _{q}(\sigma )} [1+ A_{1}(t, q, \zeta ) ] & \\ \quad {} + \frac{(1-qr)^{(\sigma + \zeta - 1 )}}{\varGamma _{q}(\sigma + \zeta )} A_{2}(t, q, \zeta ) & \\ \quad {} + \frac{(1-qr)^{(\sigma -\zeta -1)}}{ \varGamma _{q}( \sigma -\zeta )} A_{3}(t, q, \zeta ), & 0< r < t< 1, \\ \frac{(1-qr)^{(\sigma -1)}}{\varGamma _{q}(\sigma )} A_{1}(t, q, \zeta ) &\\ \quad {} + \frac{(1-qr)^{(\sigma + \zeta - 1 )}}{\varGamma _{q}(\sigma + \zeta )} A_{2}(t, q, \zeta ) & \\ \quad {} + \frac{(1-qr)^{(\sigma -\zeta -1)}}{ \varGamma _{q}( \sigma -\zeta )} A_{3}(t, q, \zeta ),& 0< t< r< 1. \end{cases} $$

Proof

It is known that the general solution of the equation \({}^{c}\mathcal{D}_{q}^{\sigma }[k](t)=z(t)\) is given by

$$ k(t) =\mathcal{I}_{q}^{\sigma }[z](t) + d_{0} + d_{1} t = \frac{1}{\varGamma _{q}(\sigma )} \int _{0}^{t} ( t - qs)^{ (\sigma -1)} z(r) \,\mathrm{d}_{q}r + d_{0} + d_{1} t, $$

where \(d_{0}\), \(d_{1}\) are real constants and \(t\in \overline{J}\) (see [42]). Thus,

$$\begin{aligned} {}^{c}\mathcal{D}_{q}^{\zeta }[k](t) & = \mathcal{I}_{q}^{\sigma - \zeta } [z](t) + \frac{ t^{1 - \zeta } d_{1}}{ \varGamma _{q}( 2 - \zeta )} \\ & = \frac{1}{ \varGamma _{q}(\sigma - \zeta )} \int _{0}^{t} ( t - qr)^{ ( \sigma -\zeta -1)} z(r) \,\mathrm{d}_{q}r + \frac{t^{ 1 - \zeta } d_{1}}{ \varGamma _{q}( 2 -\zeta )} \end{aligned}$$

and

$$\begin{aligned} \mathcal{I}_{q}^{\zeta }[k](t) ={}& \frac{1}{ \varGamma _{q}(\sigma + \zeta )} \int _{0}^{t} ( t -qr)^{ ( \sigma + \zeta - 1)} z(r) \, \mathrm{d}_{q}r + \frac{ d_{0} t^{\zeta }}{ \varGamma _{q}( \zeta + 1)} + \frac{ d_{1} t^{\zeta +1 } }{ \varGamma _{q}( \zeta + 2)}. \end{aligned}$$

Hence, we get \(k(0) = - d_{0} - d_{1} - \frac{1}{ \varGamma _{q}( \sigma )} \int _{0}^{1} ( 1-qr)^{ \sigma - 1} z(r) \,\mathrm{d}_{q}r\) and

$$\begin{aligned} &k(1) + {}^{c}\mathcal{D}_{q}^{\zeta }[k](1) + \mathcal{I}_{q}^{\zeta }[k](1) \\ &\quad = \frac{1}{\varGamma _{q}( \sigma )} \int _{0}^{1} ( 1 - qr)^{ (\sigma - 1)} z(r) \, \mathrm{d}_{q}r \\ &\qquad {} + \frac{1}{ \varGamma _{q}( \sigma + \zeta )} \int _{0}^{1} ( 1 - qr)^{(\sigma + \zeta - 1)} z(r) \, \mathrm{d}_{q}r \\ &\qquad {} + \frac{1}{ \varGamma _{q}( \sigma - \zeta )} \int _{0}^{1} ( 1 - qr)^{(\sigma - \zeta -1)} z(r) \, \mathrm{d}_{q}r \\ &\qquad {} + d_{0} \biggl[ \frac{ 1 + \varGamma _{q}( \zeta + 1)}{ \varGamma _{q}( \zeta + 1)} \biggr] \\ &\qquad {} + d_{1} \biggl[ \frac{ \varGamma _{q}( \zeta + 2 ) \varGamma _{q}( 2 - \zeta ) + \varGamma _{q}( \zeta + 2) + \varGamma _{q}( 2 - \zeta ) }{ \varGamma _{q}( \zeta + 2) \varGamma _{q}( 2 - \zeta )} \biggr]. \end{aligned}$$

By using the boundary conditions, we obtain

$$\begin{aligned} 2d_{0} + d_{1} ={}& - \frac{1}{\varGamma _{q}(\sigma )} \int _{0}^{1} ( 1 -qr)^{( \sigma -1 )} z(r) \, \mathrm{d}_{q}r \\ &{} + d_{0} \biggl[ \frac{ 1 + 2 \varGamma _{q}( \zeta + 1 )}{ \varGamma _{q} (\zeta +1) } \biggr] \\ & {} + d_{1} \biggl[ \frac{ \varGamma _{q}( \zeta + 2 ) \varGamma _{q} ( 2 - \zeta ) + \varGamma _{q} ( \zeta + 2 ) + \varGamma _{q} ( 2 - \zeta ) }{ \varGamma _{q}( \zeta + 2 ) \varGamma _{q} ( 2 - \zeta )} \biggr] \\ ={}& - \frac{1}{\varGamma _{q}(\sigma ) } \int _{0}^{1} ( 1 - qr)^{ ( \sigma -1)} z(r) \,\mathrm{d}_{q}r \\ &{} - \frac{1}{ \varGamma _{q}( \sigma - \zeta ) } \int _{0}^{1} ( 1 -qr)^{( \sigma - \zeta -1)} z(r) \, \mathrm{d}_{q}r \\ & {} - \frac{1}{ \varGamma _{q}( \sigma + \zeta )} \int _{0}^{1} ( 1 -qr)^{( \sigma + \zeta -1)} z(r) \, \mathrm{d}_{q}r. \end{aligned}$$

Thus,

$$\begin{aligned} d_{0} ={}& \varSigma \bigl[ \varGamma _{q}( \zeta + 1) \bigl( \varGamma _{q}( \zeta + 2) + \varGamma _{q}( 2 - \zeta )\bigr) \bigr] \mathcal{I}_{q}^{\alpha }[z](1) \\ & {} - \varSigma \varGamma _{q}( \zeta + 1 ) \varGamma _{q}( \zeta + 2 ) \varGamma _{q} ( 2 - \zeta ) \mathcal{I}_{q}^{\sigma + \zeta } [z](1) \\ & {} -\varSigma \varGamma _{q} ( \zeta +1) \varGamma _{q}( \zeta +2) \varGamma _{q}( 2 - \zeta ) \mathcal{I}_{q}^{ \sigma -\zeta } [z](1) \end{aligned}$$

and

$$\begin{aligned} d_{1} ={}& \varSigma \varGamma _{q}( \zeta +2) \varGamma _{q}(2-\zeta )) \mathcal{I}_{q}^{ \sigma } [z](1) \\ &{} +\varSigma 2 \varGamma _{q}(\zeta +1) \varGamma _{q}(\zeta +2) \varGamma _{q}( 2 - \zeta ) \mathcal{I}_{q}^{ \sigma + \zeta } [z](1) \\ &{} + \varSigma 2 \varGamma _{q}(\zeta +1) \varGamma _{q}(\zeta +2) \varGamma _{q}( 2 - \zeta ) \mathcal{I}_{q}^{ \sigma - \zeta } [z](1). \end{aligned}$$

Hence,

$$\begin{aligned} k(t) = {}&\frac{1}{ \varGamma _{q}(\sigma )} \int _{0}^{t} (t - qr)^{( \sigma -1)} z(r) \,\mathrm{d}_{q}r+ A_{1}(t, q, \zeta ) \mathcal{I}_{q}^{ \sigma } [z](1) \\ & {} + A_{2}(t, q, \zeta ) \mathcal{I}_{q}^{ \sigma + \zeta } [z](1)+ A_{3}(t, q, \zeta ) \mathcal{I}_{q}^{ \sigma - \zeta } [z](1) \\ = {}& \int _{0}^{1} G_{q}(t,r,\sigma , \zeta ) z(r) \,\mathrm{d}_{q}r. \end{aligned}$$

The converse part concludes with some straight calculation. This completes the proof. □

Definition 5

A function \((k_{1}, k_{2}, \ldots , k_{m})\in \prod_{i=1}^{m} \operatorname{AC}^{1} ( \overline{J})\) is a solution for the system of fractional inclusions whenever it satisfies the boundary conditions and there exists a function \((z_{1}, z_{2}, \ldots , z_{m})\), \((z'_{1}, z'_{2}, \dots , z'_{m}) \in \prod_{i=1}^{m} L^{1}( \overline{J})\) such that

$$\begin{aligned} &z_{i}(t) \in \mathcal{T}_{1i} \bigl( t, k_{1}(t), \ldots , k_{m}(t),\mathcal{I}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , \mathcal{I}_{q}^{ \zeta _{m}} [k_{m}](t) \bigr), \\ &z'_{i}(t) \in \mathcal{T}_{2i} \bigl( t, k_{1}(t), \ldots , k_{m}(t), {}^{c} \mathcal{D}_{q}^{\zeta _{1}} [k_{1}] (t), \ldots , {}^{c}\mathcal{D}_{q}^{ \zeta _{m}} [k_{m}](t) \bigr) \end{aligned}$$

and

$$\begin{aligned} k_{i}(t) ={}& \frac{1}{ \varGamma _{q}(\sigma _{i})} \int _{0}^{t} (t- qr )^{( \sigma _{i}-1)} z_{i}(r) \,\mathrm{d}_{q}r + A_{1}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}} [z_{i}](1) \\ & {} + A_{2}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}+ \zeta _{i}} [z_{i}](1)+ A_{3}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}- \zeta _{i}} [z_{i}](1) \\ & {} + \frac{1}{ \varGamma _{q}(\sigma _{i})} \int _{0}^{t} (t - qr)^{( \sigma _{i}-1)} z'_{i}(r) \,\mathrm{d}_{q}r + A_{1} (t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}} \bigl[z'_{i}\bigr](1) \\ & {} + A_{2}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}+ \zeta _{i}} \bigl[z'_{i}\bigr](1)+ A_{3}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}- \zeta _{i}} \bigl[z'_{i}\bigr](1) \\ ={}& \int _{0}^{1} G_{q}(t,r,\sigma _{i}, \zeta _{i}) z_{i}(r) \, \mathrm{d}_{q}r + \int _{0}^{1} G_{q}(t,r,\sigma _{i}, \zeta _{i}) z'_{i}(r) \,\mathrm{d}_{q}r \end{aligned}$$

for \(t\in \overline{J}\) and \(1\leq i\leq m\).

Theorem 6

Let\(\mathcal{T}_{1i}: \overline{J}\times \mathbb{R}^{2m}\to \mathcal{P}_{\mathrm{cp},\mathrm{cv}}( \mathbb{R})\)be a set-valued map and, for each\(1\leq i\leq m\), \(\mathcal{T}_{2i} : \overline{J}\times \mathbb{R}^{2m} \to \mathcal{P}_{\mathrm{cp},\mathrm{cv}} (\mathbb{R})\)be a Caratheodory multifunction. Assume that there exist continuous functions\(h_{1i}, h_{2i}, \gamma _{i} : \overline{J} \to (0,\infty )\) (\(i=1, \ldots , m\)) such that\(t\vdash \mathcal{T}_{1i} (t, u_{1}, \ldots , u_{m}, v_{1}, \ldots , v_{m} )\)is measurable,

$$\begin{aligned} & \bigl\Vert \mathcal{T}_{1i} \bigl( t, k_{1}(t), \ldots , k_{m}(t), \mathcal{I}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , \mathcal{I}_{q}^{ \zeta _{m}} [k_{m}](t) \bigr) \bigr\Vert \\ &\quad = \sup \bigl\{ \vert z \vert : v\in \mathcal{T}_{1i} \bigl(t, k_{1}(t), \ldots , k_{m}(t), \mathcal{I}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , \mathcal{I}_{q}^{\zeta _{m}} [k_{m}](t)\bigr) \bigr\} \\ &\quad \leq h_{1i}(t), \\ & \bigl\Vert \mathcal{T}_{2i} \bigl(t, k_{1}(t), \ldots , k_{m}(t), {}^{c} \mathcal{D}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , {}^{c}\mathcal{D}_{q}^{ \zeta _{m}} [k_{m}](t) \bigr) \bigr\Vert \\ &\quad =\sup \bigl\{ \vert z \vert : z\in \mathcal{T}_{2i} \bigl(t, k_{1}(t), \ldots , k_{m}(t), {}^{c} \mathcal{D}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , {}^{c}\mathcal{D}_{q}^{ \zeta _{m}} [k_{m}](t) \bigr)\bigr\} \\ &\quad \leq h_{2i}(t), \end{aligned}$$

and

$$\begin{aligned} &P_{\rho } \bigl( \mathcal{T}_{1i} ( t, u_{1}, \dots , u_{k}, v_{1}, \ldots , v_{m} ), \mathcal{T}_{1i} \bigl(t, u'_{1}, \ldots , u'_{k}, v'_{1}, \ldots , v'_{m}\bigr) \bigr) \\ &\quad \leq \sum_{i=1}^{m} \gamma _{i} (t) \bigl( \bigl\vert u_{i} - u'_{i} \bigr\vert + \bigl\vert v_{i} - v'_{i} \bigr\vert \bigr) \end{aligned}$$

for all\(t \in \overline{J}\), \(( k_{1}, \ldots , k_{m})\in \mathcal{E}\), \(u_{i}\), \(v_{i}\), \(u'_{i}\)and\(v'_{i} \in \mathbb{R}\)and\(1 \leq i\leq m\). If

$$ \Delta = \sum_{i=1}^{m} \Vert \gamma _{i} \Vert _{\infty } \biggl( \frac{ 1 + \varGamma _{q}( \zeta _{i} + 1) }{ \varGamma _{q}(\zeta _{i} + 1) } \biggr) ( \varLambda _{1i} + \varLambda _{2i} ) < 1, $$

then the system of fractional inclusions has a solution, where

$$ \Vert \gamma _{i} \Vert _{\infty }= \max _{t\in \overline{J}} \bigl\vert \gamma _{i}(t) \bigr\vert $$

and

$$\begin{aligned} &\varLambda _{1i} = \frac{1}{ \varGamma _{q}(\sigma _{i} + 1) } \bigl( 1 + \vert \varSigma _{i} \vert \bigl[ \varGamma _{q}(\zeta _{i} + 2 ) \varGamma _{q}( 2 - \zeta _{i} ) \\ & \hphantom{\varLambda _{1i} =}{} + \varGamma _{q}(\zeta _{i} + 1) \varGamma _{q}(\zeta _{i} + 2)+ \varGamma _{q}( \zeta _{i} + 1 ) \varGamma _{q}( 2 - \zeta _{i} ) \bigr] \bigr) \\ & \hphantom{\varLambda _{1i} =}{} + \frac{ \vert \varSigma _{i} \vert \varGamma _{q}( \zeta _{i} + 1 ) \varGamma _{q}(\zeta _{i} + 2 ) \varGamma _{q}( 2 - \zeta _{i})}{ \varGamma _{q}( \sigma _{i} + \zeta _{i} + 1 )} \\ & \hphantom{\varLambda _{1i} =}{} + \frac{ \vert \varSigma _{i} \vert \varGamma _{q}( \zeta _{i} + 1 ) \varGamma _{q}( \zeta _{i} + 2 ) \varGamma _{q}( 2 - \zeta _{i})}{ \varGamma _{q}( \sigma _{i} - \zeta _{i}+1 ) }, \end{aligned}$$
(7)
$$\begin{aligned} &\varLambda _{2i} = \frac{1}{ \varGamma _{q}( \sigma _{i} - \zeta _{i} + 1 ) } + \frac{ \vert \varSigma _{i} \vert \varGamma _{q}( \zeta _{i} + 2 )}{ \varGamma _{q}(\sigma _{i} + 1 )} \\ &\hphantom{\varLambda _{2i} =}{} + \frac{2 \vert \varSigma _{i} \vert ( \varGamma _{q} ( \zeta _{i} + 1 ) + \varGamma _{q}( \zeta _{i} + 2 )) }{ \varGamma _{q}(\sigma _{i} + \zeta _{i} + 1)} + \frac{ \vert \varSigma _{i} \vert ( 2 \varGamma _{q}( \zeta _{i}+1 ) + \varGamma _{q}( \zeta _{i} + 2 ))}{ \varGamma _{q}( \sigma _{i} - \zeta _{i} + 1 ) } \end{aligned}$$
(8)

for all\(1\leq i \leq m\).

Proof

Consider the subset \(\mathcal{F} = \{(k_{1}, \ldots , k_{m})\in \mathcal{E} : \| (k_{1}, \ldots , k_{m})\| \leq M \}\) of \(\mathcal{E}\), where

$$ M = \sum_{i=1}^{m} \bigl( \Vert h_{1i} \Vert _{\infty }+ \Vert h_{2i} \Vert _{\infty } \bigr) (\varLambda _{1i} + \varLambda _{2i} ). $$

It is easy to see that \(\mathcal{F}\) is a closed, bounded, and convex subset of the Banach space \(\mathcal{E}\). Now, define the multi-valued operators \(\mathcal{M}, \mathcal{N} : \mathcal{F} \to \mathcal{P}( \mathcal{E})\) by

M ( k 1 , , k m ) = ( M 1 ( k 1 , , k m ) M 2 ( k 1 , , k m ) M m ( k 1 , , k m ) ) , N ( k 1 , , k m ) = ( N 1 ( k 1 , , k m ) N 2 ( k 1 , , k m ) N m ( k 1 , , k m ) ) ,

where the multifunctions \(M_{i} (k_{1}, \ldots , k_{m}) \) and \(N_{i} (k_{1}, \ldots , k_{m}) \) are the set of all \(\theta \in \mathcal{E}_{i}\) with the feature that there exist \(z \in S_{\mathcal{T}_{1i}, ( k_{1}, \ldots , k_{m})} \) and \(\theta \in S_{\mathcal{T}_{2i}, ( k_{1}, \ldots , k_{m})}\), respectively, such that

$$ \theta (t) = \int _{0}^{1} G_{q}(t,r,\sigma _{i}, \zeta _{i}) z(r) { \,\mathrm{d}}_{q}s $$

for all \(t\in \overline{J}\) and \(1\leq i \leq m\). Thus, the system of fractional q-differential inclusions is equivalent to the inclusion problem \(k \in \mathcal{M} (k) + \mathcal{N}(k)\). We show that the set-valued maps \(\mathcal{M}\) and \(\mathcal{N}\) satisfy the conditions of Lemma 3 on \(\mathcal{F}\). First, we show that \(\mathcal{M}\) is compact-valued on \(\mathcal{F}\). Note that \(M_{i}=\mathscr{L}_{i} \circ S_{\mathcal{T}_{1i}}\), where \(\mathscr{L}_{i}\) is the continuous linear operator on \(L^{1}(\overline{J}, \mathbb{R})\) into \(E_{i}\) defined by \(\mathscr{L}_{i} [z](t) = \int _{0}^{1} G_{q}(t,r,\sigma _{i}, \zeta _{i}) z(r) \,\mathrm{d}_{q}s\). Let \((k_{1}, \ldots , k_{m})\in \mathcal{F}\) and \(\{z_{n}\}\) be a sequence in \(S_{\mathcal{T}_{1i}, (k_{1}, \ldots , k_{m})}\). Then, by the definition of \(S_{\mathcal{T}_{1i}, ( k_{1}, \ldots , k_{m})}\), we have

$$ z_{n} (t) \in \mathcal{T}_{1i} \bigl( t, k_{1}(t), \ldots , k_{m}(t), \mathcal{I}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , \mathcal{I}_{q}^{ \zeta _{m}} [k_{m}](t) \bigr) $$

for almost \(t\in \overline{J}\). Since \(\mathcal{T}_{1i} (t, k_{1} (t), \ldots , k_{m}(t), \mathcal{I}_{q}^{ \zeta _{1} } [k_{1}](t), \ldots , \mathcal{I}_{q}^{\zeta _{m}} [k_{m}](t) )\) is compact for all \(t\in \overline{J}\), there is a convergent subsequence of \(\{z_{n}(t) \} \), call it again \(\{z_{n}(t)\}\)), that converges in measure to some \(z(t) \in S_{\mathcal{T}_{1i} , (k_{1}, \ldots , k_{m})} \) for almost all \(t\in \overline{J}\). Since \(\mathscr{L}_{i}\) is continuous, we conclude that \(\mathscr{L}_{i} [z_{n}](t)\to \mathscr{L}_{i} [z](t)\) pointwise on . In order to show that the convergence is uniform, we have to show that \(\{\mathscr{L}_{i} [z_{n}]\}\) is an equicontinuous sequence. Let \(t_{1} < t \in \overline{J}\). Then we have

$$\begin{aligned} & \bigl\vert \mathscr{L}_{i} [z_{n}] (t) - \mathscr{L}_{i} [z_{n}] (t_{1}) \bigr\vert \\ &\quad \leq \int _{0}^{1} \bigl\vert G_{q}(t, r, \sigma _{i}, \zeta _{i}) - G_{q}(t_{1}, r, \sigma _{i}, \zeta _{i}) \bigr\vert \bigl\vert z_{n}(r) \bigr\vert \,\mathrm{d}_{q}r \\ &\quad \leq \Vert h_{1i} \Vert _{\infty } \biggl[ \frac{ 1}{ \varGamma _{q}(\sigma _{i} + 1 ) } \bigl( t^{\sigma _{i}} - t_{1}^{ \sigma _{i}}+ \vert \varSigma _{i} \vert ( t -t_{1}) \varGamma _{q}(\zeta _{i} + 2 ) \varGamma _{q}( \zeta _{i} + 1 ) \bigr) \\ & \qquad {} + \frac{2 \vert \varSigma _{i} \vert ( t - t_{1}) \varGamma _{q}(\zeta _{i} + 2) \varGamma _{q}(\zeta _{i} + 1 ) \varGamma _{q}( 2 - \zeta _{i} ) }{ \varGamma _{q}( \sigma _{i} + \zeta _{i} + 1 )} \\ & \qquad {} + \frac{2 \vert \varSigma _{i} \vert ( t - t_{1}) \varGamma _{q} ( \zeta _{i} + 2 ) \varGamma _{q}( \zeta _{i} + 1 ) \varGamma _{q}( 2 - \zeta _{i})}{ \varGamma _{q}( \sigma _{i} - \zeta _{i} + 1 )} \biggr] \end{aligned}$$

and

$$\begin{aligned} & \bigl\vert {}^{c}\mathcal{D}_{q}^{\zeta _{i}} \bigl(\mathscr{L}_{i} [z_{n}](t)\bigr) - {}^{c}\mathcal{D}_{q}^{ \zeta _{i}}\bigl( \mathscr{L}_{i} [z_{n}](t_{1})\bigr) \bigr\vert \\ &\quad \leq \Vert h_{1i} \Vert _{\infty } \biggl[ \frac{ t^{\sigma _{i} - \zeta _{i} } - t_{1}^{\sigma _{i} - \zeta _{i}} }{ \varGamma _{q}(\sigma _{i} - \zeta _{i} + 1 )} + \frac{ \vert \varSigma _{i} \vert ( t^{ 1 - \zeta _{i} } - t_{1}^{1 - \zeta _{i} }) \varGamma _{q}( 2 + \zeta _{i} ) }{ \varGamma _{q}( \sigma _{i} + 1 )} \\ &\qquad {} + \frac{2 \vert \varSigma _{i} \vert ( t^{ 1 - \zeta _{i} } - t_{1}^{ 1- \zeta _{i}} ) \varGamma _{q}( 2 + \zeta _{i} ) \varGamma _{q} (1 + \zeta _{i} )}{ \varGamma _{q}(\sigma _{i} + \zeta _{i} + 1 ) } \\ &\qquad {} + \frac{2 \vert \varSigma _{i} \vert ( t^{ 1 - \zeta _{i} } - t_{1}^{1 - \zeta _{i}} ) \varGamma _{q}( 2 + \zeta _{i}) \varGamma _{q}( 1 + \zeta _{i})}{\varGamma _{q}( \sigma _{i} - \zeta _{i} + 1 )} \biggr]. \end{aligned}$$

Hence, the right-hand side of the inequalities tends to 0 as \(t\to t_{1}\), and so the sequence \(\{\mathscr{L}_{i} [z_{n}]\}\) is equicontinuous. Now, by using the Arzela–Ascoli theorem we deduce that there is a uniformly convergent subsequence. Thus, there is a subsequence of \(\{z_{n}\}\), we show it again by \(\{z_{n}\}\), such that \(\mathscr{L}_{i} [z_{n}](t) \to \mathscr{L}_{i} [z](t)\) for each \(t \in \overline{J}\). Note that \(\mathscr{L}_{i} [z] \in \ell _{i} (S_{\mathcal{T}_{1i},( k_{1}, \ldots , k_{m})} ) \). Hence,

$$ M_{i} (k_{1}, \ldots , k_{m} ) = \mathscr{L}_{i} (S_{\mathcal{T}_{1i}, (k_{1}, \ldots , k_{m}) } ) $$

is compact for all \((k_{1}, \ldots , k_{m}) \in \mathcal{F}\) and \(i=1,\dots ,m\), and so \(\mathcal{M} (k_{1}, \ldots , k_{m})\) is compact. Now, we show that \(\mathcal{M} (k_{1}, \ldots , k_{m})\) is convex for all \(( k_{1}, \ldots , k_{m}) \in \mathcal{F}\). Let \(( x_{1}, \ldots , x_{m})\), \(( x'_{1}, \ldots , x'_{m} ) \in \mathcal{M}(k)\). Choose \(z_{i}\), \(z'_{i} \in S_{\mathcal{T}_{1i}, (k_{1}, \ldots , k_{m})}\) such that

$$\begin{aligned} &x_{i} (t) = \int _{0}^{1} G_{q}(t,r,\sigma _{i}, \zeta _{i}) z_{i} (r) \, \mathrm{d}_{q}r, \\ &x'_{i} (t) = \int _{0}^{1} G_{q}(t,r,\sigma _{i}, \zeta _{i}) z'_{i}(r) \,\mathrm{d}_{q}r \end{aligned}$$

for almost all \(t\in \overline{J}\) and \(1 \leq i \leq m\). Let \(0\leq \lambda \leq 1\). Then we have

$$ \bigl[\lambda x_{i} + (1-\lambda ) x'_{i} \bigr] (t) = \int _{0}^{1} G_{q}(t,r, \sigma _{i}, \zeta _{i}) \bigl[ \lambda z_{i}(r) + ( 1 - \lambda ) z'_{i}(r)\bigr] \, \mathrm{d}_{q}r. $$

Since \(\mathcal{T}_{1i}\) is convex-valued for all \(1 \leq i \leq m\),

$$ \bigl[ \lambda x_{i} + ( 1 - \lambda ) x'_{i} \bigr] \in M_{i} (k_{1}, \ldots , k_{m}). $$

Thus,

$$\begin{aligned}& \lambda (x_{1}, \ldots , x_{m}) + ( 1 -\lambda ) \bigl( x'_{1}, \ldots , x'_{m} \bigr) = \bigl(\lambda x_{1} + ( 1 - \lambda ) x'_{1}, \ldots , \lambda x_{m} + ( 1 - \lambda ) x'_{m} \bigr) \in \mathcal{M}(k). \end{aligned}$$

Similarly, \(\mathcal{N}\) is compact and convex-valued. Here, we show that \(\mathcal{M} (f)+ \mathcal{N}(f) \subset \mathcal{F}\) for all \(f \in \mathcal{F}\). Let \(f\in \mathcal{F}\) and \(( x_{1}, \ldots , x_{m}) \in \mathcal{M}(f)\) and \(( x'_{1}, \ldots , x'_{m}) \in \mathcal{N}(f)\). Then we can choose \((z_{1}, \ldots , z_{m})\in S_{\mathcal{T}_{11},f } \times \cdots \times S_{\mathcal{T}_{1m},f}\) and \((z'_{1}, \ldots , z'_{m})\in S_{\mathcal{T}_{21},f} \times \cdots \times S_{\mathcal{T}_{2m},f}\) such that \(x_{i}(t) = \int _{0}^{1} G_{q}(t,r,\sigma _{i}, \zeta _{i}) z_{i}(r) \,\mathrm{d}_{q}r\) and \(x'_{i}(t) = \int _{0}^{1} G_{q}(t,r,\sigma _{i}, \zeta _{i}) z'_{i}(r) \,\mathrm{d}_{q}r\) for almost all \(t\in \overline{J}\) and \(1\leq i\leq m\). Hence, we get

$$\begin{aligned} \bigl\vert x_{i}(t) + x'_{i}(t) \bigr\vert \leq{}& \mathcal{I}_{q}^{ \sigma _{i}} \bigl[ \vert z_{i} \vert + \bigl\vert z'_{i} \bigr\vert \bigr](t) + A_{1}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}} \bigl[ \vert z_{i} \vert + \bigl\vert z'_{i} \bigr\vert \bigr](1) \\ & {} + A_{2}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i} + \zeta _{i}} \bigl[ \vert z_{i} \vert + \bigl\vert z'_{i} \bigr\vert \bigr](1) \\ & {} + A_{3}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}- \zeta _{i}} \bigl[ \vert z_{i} \vert + \bigl\vert z'_{i} \bigr\vert \bigr](1) \end{aligned}$$

and

$$\begin{aligned} \bigl\vert {}^{c}\mathcal{D}_{q}^{\zeta _{i}} [x_{i}](t) + {}^{c}\mathcal{D}_{q}^{ \zeta _{i}} \bigl[x'_{i}\bigr](t) \bigr\vert \leq{}& \mathcal{I}_{q}^{\sigma _{i}-\zeta _{i}} \bigl[ \vert z_{i} \vert + \bigl\vert z'_{i} \bigr\vert \bigr](t) \\ &{} + \frac{1}{t^{\zeta _{i}}} A_{1}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}} \bigl[ \vert z_{i} \vert + \bigl\vert z'_{i} \bigr\vert \bigr](1) \\ &{} + \frac{t}{(t-1)t^{\zeta _{i}}} A_{2}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i} + \zeta _{i}} \bigl[ \vert z_{i} \vert + \bigl\vert z'_{i} \bigr\vert \bigr](1) \\ & {} + \frac{t}{(t-1)t^{\zeta _{i}}} A_{3}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}- \zeta _{i}} \bigl[ \vert z_{i} \vert + \bigl\vert z'_{i} \bigr\vert \bigr](1). \end{aligned}$$

Hence, \(\max_{t \in \overline{J} } |x_{i}(t) + x'_{i}(t)| \leq ( \|h_{1i} \|_{\infty }+ \|h_{2i}\|_{\infty } )\varLambda _{1i}\) and

$$ \max_{t\in \overline{J}} \bigl\vert {}^{c} \mathcal{D}_{q}^{\zeta _{i}} [z_{i}](t) + {}^{c}\mathcal{D}_{q}^{\zeta _{i}} \bigl[x'_{i}\bigr] (t) \bigr\vert \leq \bigl( \Vert h_{1i} \Vert _{\infty }+ \Vert h_{2i} \Vert _{\infty } \bigr) \varLambda _{2i} $$

for \(1\leq i\leq m\), and so

$$\begin{aligned} \bigl\Vert (x_{1},\ldots , x_{m}) + \bigl( x'_{1}, \ldots , x'_{m} \bigr) \bigr\Vert &= \sum_{i=1}^{m} \bigl\Vert x_{i} + x'_{i} \bigr\Vert _{i} \\ & \leq \sum_{i=1}^{m} \bigl( \Vert h_{1i} \Vert _{\infty }+ \Vert h_{2i} \Vert _{\infty } \bigr) (\varLambda _{1i} + \varLambda _{2i}) = M. \end{aligned}$$

In this step, we show that the operator \(\mathcal{N}\) is compact on \(\mathcal{F}\). To do this, it is enough to prove that \(\mathcal{N}(\mathcal{F})\) is uniformly bounded and equicontinuous. Let \((x_{1},\ldots , x_{m})\in \mathcal{N}(\mathcal{F})\). Choose \((z_{1},\ldots ,z_{m}) \in S_{\mathcal{T}_{21}, k} \times \cdots \times S_{\mathcal{T}_{2m},k} \) such that \(x_{i}(t) = \int _{0}^{1} G_{q}(t,r,\sigma _{i}, \zeta _{i}) z_{i}(r) \,\mathrm{d}_{q}r\) for some \(k\in \mathcal{F}\) and all \(1\leq i \leq m\). Hence,

$$\begin{aligned} \bigl\vert x_{i}(t) \bigr\vert \leq{}& \mathcal{I}_{q}^{ \sigma _{i}} \bigl[ \vert z_{i} \vert \bigr](t) + A_{1}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}} \bigl[ \vert z_{i} \vert \bigr](1)+ A_{2}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i} + \zeta _{i}} \bigl[ \vert z_{i} \vert \bigr](1) \\ &{} + A_{3}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}- \zeta _{i}} \bigl[ \vert z_{i} \vert \bigr](1) \end{aligned}$$

and

$$\begin{aligned} \bigl\vert {}^{c}\mathcal{D}_{q}^{\zeta _{i}} [x_{i}](t) \bigr\vert \leq{}& \mathcal{I}_{q}^{ \sigma _{i}-\zeta _{i}} \bigl[ \vert z_{i} \vert \bigr](t) + \frac{1}{t^{\zeta _{i}}} A_{1}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}} \bigl[ \vert z_{i} \vert \bigr](1) \\ & {} + \frac{t}{(t-1)t^{\zeta _{i}}} A_{2}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i} + \zeta _{i}} \bigl[ \vert z_{i} \vert \bigr](1) \\ & {} +\frac{t}{(t-1)t^{\zeta _{i}}} A_{3}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}- \zeta _{i}} \bigl[ \vert z_{i} \vert \bigr](1). \end{aligned}$$

Thus, \(\max_{t\in \overline{J}} |x_{i}(t)| \leq \|h_{1i}\|_{\infty }\varLambda _{2i}\) and \(\max_{t\in \overline{J}} | {}^{c}\mathcal{D}_{q}^{ \zeta _{i}} [x_{i}](t)| \leq \|h_{2i}\|_{\infty }\varLambda _{2i}\) for \(1\leq i\leq m\), and so

$$ \bigl\Vert (x_{1}, \ldots , x_{m}) \bigr\Vert = \sum_{i=1}^{m} \Vert x_{i} \Vert _{\infty }\leq \sum _{i=1}^{m} \Vert h_{2i} \Vert _{\infty }( \varLambda _{1i} + \varLambda _{2i}). $$

Now, we show that \(\mathcal{N}\) maps \(\mathcal{F}\) to equicontinuous subsets of \(\mathcal{E}\). Let \(t, t_{1} \in \overline{J}\) with \(t_{1} < t\), \(k\in \mathcal{F}\), and \((x_{1}, \ldots , x_{m}) \in \mathcal{N}(k)\). Choose \((z_{1}, \ldots ,z_{m}) \in S_{\mathcal{T}_{21}, k} \times \cdots \times S_{\mathcal{T}_{2k}, k} \) such that \(x_{i}(t) = \int _{0}^{1} G_{q}(t,r, \sigma _{i}, \zeta _{i}) z_{i}(r) \,\mathrm{d}_{q}r\) for all \(1\leq i \leq m\). Then we have

$$\begin{aligned} \bigl\vert x_{i}(t) - x_{i}(t_{1}) \bigr\vert \leq {}& \Vert h_{2i} \Vert _{\infty } \\ & {} \times \biggl[ \frac{ 1}{ \varGamma _{q}(\sigma _{i} + 1 ) } \bigl( t^{ \sigma _{i}} - t_{1}^{\sigma _{i}}+ \vert \varSigma _{i} \vert ( t -t_{1}) \varGamma _{q}( \zeta _{i} + 2 ) \varGamma _{q}(\zeta _{i} + 1 ) \bigr) \\ & {} + \frac{2 \vert \varSigma _{i} \vert ( t - t_{1} ) \varGamma _{q}(\zeta _{i} + 2) \varGamma _{q}(\zeta _{i} + 1 ) \varGamma _{q}( 2 - \zeta _{i} ) }{ \varGamma _{q}( \sigma _{i} + \zeta _{i} + 1 )} \\ &{} + \frac{2 \vert \varSigma _{i} \vert ( t - t_{1}) \varGamma _{q} ( \zeta _{i} + 2 ) \varGamma _{q}( \zeta _{i} + 1 ) \varGamma _{q}( 2 - \zeta _{i}) }{ \varGamma _{q}( \sigma _{i} - \zeta _{i} + 1 )} \biggr] \end{aligned}$$

and

$$\begin{aligned} \bigl\vert {}^{c}\mathcal{D}_{q}^{\zeta _{i}} [x_{i}] (t) - {}^{c} \mathcal{D}_{q}^{ \zeta _{i}} [x_{i}] (t_{1}) \bigr\vert \leq{}& \Vert h_{2i} \Vert _{\infty } \biggl[ \frac{ t^{\sigma _{i} - \zeta _{i} } - t_{1}^{\sigma _{i} - \zeta _{i}} }{ \varGamma _{q}(\sigma _{i} - \zeta _{i} + 1 )} \\ & {} + \frac{ \vert \varSigma _{i} \vert ( t^{ 1 - \zeta _{i} } - t_{1}^{1 - \zeta _{i} } ) \varGamma _{q}( 2 + \zeta _{i} ) }{ \varGamma _{q}( \sigma _{i} + 1 )} \\ & {} + \frac{2 \vert \varSigma _{i} \vert ( t^{ 1 - \zeta _{i} } - t_{1}^{ 1- \zeta _{i}} ) \varGamma _{q}( 2 + \zeta _{i} ) \varGamma _{q} (1 + \zeta _{i} )}{ \varGamma _{q}(\sigma _{i} + \zeta _{i} + 1 ) } \\ & {} + \frac{2 \vert \varSigma _{i} \vert ( t^{ 1 - \zeta _{i} } - t_{1}^{1 - \zeta _{i}} ) \varGamma _{q}( 2 + \zeta _{i}) \varGamma _{q}( 1 + \zeta _{i})}{\varGamma _{q}( \sigma _{i} - \zeta _{i} + 1 )} \biggr]. \end{aligned}$$

Note that the right-hand side of these inequalities tends to 0 as \(t\to t_{1}\). By using the Arzela–Ascoli theorem, \(\mathcal{N}\) is compact. Here, we show that \(\mathcal{N}\) has a closed graph. Let \((k_{1}^{n}, \ldots , k_{m}^{n})\in \mathcal{F}\) and \((x_{1}^{n}, \ldots , x_{m}^{n}) \in \mathcal{N}(k_{1}^{n}, \ldots , k_{m}^{n})\) be such that \((k_{1}^{n}, \ldots , k_{m}^{n})\to (k_{1}^{0}, \ldots , k_{m}^{0})\) and also \((x_{1}^{n}, \ldots , x_{m}^{n}) \to (x_{1}^{0}, \ldots , x_{m}^{0})\) for all n. We show that \((x_{1}^{0}, \ldots , x_{m}^{0}) \in \mathcal{N}( k_{1}^{0}, \ldots , k_{m}^{0})\). For each natural number n, choose \((z_{1}^{n}, \ldots , z^{n}_{m}) \in S_{\mathcal{T}_{21}, (k^{n}_{1}, \ldots , k^{n}_{m})} \times \cdots \times S_{\mathcal{T}_{2m}, (k^{n}_{1}, \ldots , k^{n}_{m})}\) such that

$$ x^{n}_{i} (t) = \int _{0}^{1} G_{q}(t,r, \sigma _{i}, \zeta _{i}) z_{i}^{n}(r) \,\mathrm{d}_{q}r $$

for all \(t\in \overline{J}\) and \(1\leq i\leq m\). Again, consider the continuous linear operator \(\mathscr{L}_{i} : L^{1}(\overline{J}, \mathbb{R}) \to E_{i}\) by \(\mathscr{L}_{i}[z](t) = \int _{0}^{1} G_{q}(t,r, \sigma _{i}, \zeta _{i}) z(r) \,\mathrm{d}_{q}r\). By using Lemma 2, \(\mathscr{L}_{i} \circ S_{\mathcal{T}_{2i}}\) is a closed graph operator. Since \(x_{i}^{n} \in \mathscr{L}_{i}(S_{\mathcal{T}_{2i},(k^{n}_{1}, \ldots , k^{n}_{m})} )\) for all n, \(1\leq i\leq m\) and \((k_{1}^{n}, \ldots , k_{m}^{n}) \to (k_{1}^{0}, \ldots , k_{m}^{0})\), there exists \(z_{i}^{0} \in S_{\mathcal{T}_{2i}, (k_{1}^{0}, \ldots , k_{m}^{0}) }\) such that \(x_{i}^{0} (t) = \int _{0}^{1} G_{q}(t,r, \sigma _{i}, \zeta _{i}) z_{i}^{0} (r) \,\mathrm{d}_{q}r\). This implies that \(x_{i}^{0} \in N_{i} (k_{1}^{0}, \ldots , k_{m}^{0})\) for all \(1\leq i\leq m\). Thus, \(N_{i}\) has a closed graph for all \(1\leq i\leq m\), and so \(\mathcal{N}\) has a closed graph. This shows that the operator \(\mathcal{N}\) is upper semi-continuous. Now, we show that \(\mathcal{M}\) is a contractive multifunction. Let \(k = (k_{1}, \ldots , k_{m})\), \(f = (f_{1}, \ldots , f_{m})\in \mathcal{E}\), and \((x_{1}, \ldots , x_{m}) \in \mathcal{M} (f)\). Then we can choose \((z_{1}, \ldots , z_{m}) \in S_{\mathcal{T}_{11},f} \times S_{ \mathcal{T}_{12},f} \times \cdots \times S_{\mathcal{T}_{1m},f}\) such that \(x_{i}(t) = \int _{0}^{1} G_{q}(t,r, \sigma _{i}, \zeta _{i}) z_{i} (r) \,\mathrm{d}_{q}r\) for all \(t\in \overline{J}\) and \(i= 1,\ldots , m\). Since

$$\begin{aligned} &P_{\rho } \bigl( \mathcal{T}_{1i} \bigl(t, k_{1}(t), \ldots , k_{m}(t), \mathcal{I}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , \mathcal{I}_{q}^{ \zeta _{m}} [k_{m}](t)\bigr), \\ &\qquad {} \mathcal{T}_{1i} \bigl(t, f_{1} (t), \ldots , f_{m}(t), \mathcal{I}_{q}^{\zeta _{1}} [f_{1}](t), \ldots , \mathcal{I}_{q}^{ \zeta _{1}} [f_{m}](t) \bigr) \bigr) \\ & \quad \leq \gamma _{i} (t) \sum_{i=1}^{m} ( \bigl\vert k_{i} (t) - f_{i}(t) \bigr\vert + \bigl\vert \mathcal{I}_{q}^{\zeta _{i}} [k_{i}](t) - \mathcal{I}_{q}^{\zeta _{i}} [k_{i}](t) \bigr\vert , \end{aligned}$$

for almost all \(t\in \overline{J}\) and \(i=1, \ldots , m\), by using (5), there exists

$$ u_{i} \in \mathcal{T}_{1i} \bigl(t, k_{1}(t), \ldots , k_{m}(t), \mathcal{I}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , \mathcal{I}_{q}^{ \zeta _{k}} [k_{m}](t) \bigr) $$

such that

$$ \bigl\vert z_{i}(t) - u_{i} \bigr\vert \leq \gamma _{i}(t) \sum_{i=1}^{m} \bigl( \bigl\vert k_{i}(t) - f_{i}(t) \bigr\vert + \bigl\vert \mathcal{I}_{q}^{ \zeta _{i}} [k_{i}] (t) - \mathcal{I}_{q}^{\zeta _{i}} [f_{i}](t) \bigr\vert \bigr) $$

for almost all \(t\in \overline{J}\) and \(i=1,\ldots , m\). Consider the set-valued mapping \(\varOmega _{i} : \overline{J} \to 2^{\mathbb{R}}\) defined by

$$ \varOmega _{i} (t) = \bigl\{ y \in \mathbb{R} : \bigl\vert z_{i} (t) - y \bigr\vert \leq \gamma _{i} (t) g(t) \text{ for almost all } t\in \overline{J} \bigr\} , $$

where \(g(t) = \sum_{i=1}^{m} ( |k_{i}(t) - f_{i}(t) | + | \mathcal{I}_{q}^{ \zeta _{i}} [k_{i}] (t) - \mathcal{I}_{q}^{\zeta _{i}} [f_{i}](t) |\). Put

$$ \varrho _{i} = \gamma _{i} \sum _{i=1}^{m} \bigl( \vert k_{i} - f_{i} \vert + \bigl\vert \mathcal{I}_{q}^{\zeta _{i}} [k_{i}] - \mathcal{I}_{q}^{\zeta _{i}} [f_{i}] \bigr\vert \bigr). $$

Since \(z_{i}\) and \(\varrho _{i}\) are measurable for all i,

$$ \varOmega _{i}(\cdot) \cap \mathcal{T}_{1i} \bigl( t, k_{1}(\cdot), \ldots , k_{m}(\cdot), \mathcal{I}_{q}^{\zeta _{1}} [k_{1}](\cdot), \ldots , \mathcal{I}_{q}^{ \zeta _{m}} [k_{m}](\cdot) \bigr) $$

is a measurable multifunction. Thus, we can choose

$$ z'_{i}(t) \in \mathcal{T}_{1i} \bigl( t, k_{1}(t), \ldots , k_{m}(t), \mathcal{I}_{q}^{\zeta _{1}} [k_{1}](t), \ldots , \mathcal{I}_{q}^{ \zeta _{m}} [k_{m}] (t) \bigr) $$

such that

$$\begin{aligned} \bigl\vert z_{i}(t) - z'_{i}(t) \bigr\vert & \leq \gamma _{i} (t) \sum _{i=1}^{m} \bigl( \bigl\vert k_{i}(t) - f_{i}(t) \bigr\vert + \bigl\vert \mathcal{I}_{q}^{\zeta _{i}} [k_{i}](t) - \mathcal{I}_{q}^{ \zeta _{i}} [f_{i}](t) \bigr\vert \bigr) \\ & \leq \gamma _{i}(t) \sum_{i=1}^{m} \biggl( \bigl\vert k_{i}(t) - f_{i}(t) \bigr\vert + \frac{ \Vert k_{i} - f_{i} \Vert _{i}}{ \varGamma _{q}(\zeta _{i} + 1 ) } \biggr) \end{aligned}$$

and

$$ x'_{i}(t) = \int _{0}^{1} G_{q}(t,r, \sigma _{i}, \zeta _{i}) z'_{i}(r) \,\mathrm{d}_{q}r $$

for all \(t\in \overline{J}\) and \(i=1, \ldots , m\). Since

$$\begin{aligned} \bigl\vert x_{i}(t) - x'_{i}(t) \bigr\vert \leq{}& \mathcal{I}_{q}^{\sigma _{i}} \bigl[ \bigl\vert z_{i} - z'_{i} \bigr\vert \bigr](t) + A_{1}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}} \bigl[ \bigl\vert z_{i} - z'_{i} \bigr\vert \bigr](1) \\ & {} + A_{2}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i} + \zeta _{i}} \bigl[ \bigl\vert z_{i} - z'_{i} \bigr\vert \bigr](1) \\ & {} + A_{3}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}-\zeta _{i}} \bigl[ \bigl\vert z_{i} - z'_{i} \bigr\vert \bigr](1) \end{aligned}$$

and

$$\begin{aligned} \bigl\vert {}^{c}\mathcal{D}^{\zeta _{i}} [x_{i}](t) + {}^{c}\mathcal{D}^{ \zeta _{i}} \bigl[x'_{i} \bigr](t) \bigr\vert \leq{}& \mathcal{I}_{q}^{\sigma _{i}-\zeta _{i}} \bigl[ \bigl\vert z_{i} -z'_{i} \bigr\vert \bigr](t) \\ & {} + \frac{1}{t^{\zeta _{i}}} A_{1}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}} \bigl[ \bigl\vert z_{i} -z'_{i} \bigr\vert \bigr](1) \\ & {} + \frac{t}{ (t-1) t^{\zeta _{i}}} A_{2}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i} + \zeta _{i}} \bigl[ \bigl\vert z_{i} -z'_{i} \bigr\vert \bigr](1) \\ & {} + \frac{t}{(t-1)t^{\zeta _{i}}} A_{3}(t, q, \zeta _{i}) \mathcal{I}_{q}^{ \sigma _{i}- \zeta _{i}} \bigl[ \bigl\vert z_{i} -z'_{i} \bigr\vert \bigr](1), \end{aligned}$$

we get \(\max_{t\in \overline{J}} |x_{i}(t) - x'_{i}(t)| \leq \|\gamma _{i} \|_{\infty } ( \frac{ 1 + \varGamma _{q}(\zeta _{i} + 1 ) }{ \varGamma _{q}(\zeta _{i} + 1 ) } ) \varLambda _{1i} \|k - f\|\) and

$$ \max_{t\in \overline{J}} \bigl\vert {}^{c} \mathcal{D}_{q}^{\zeta _{i}} x_{i}(t) -{}^{c}\mathcal{D}_{q}^{\zeta _{i}} z'_{i}(t) \bigr\vert \leq \Vert \gamma _{i} \Vert _{\infty } \biggl( \frac{ 1 + \varGamma _{q}(\zeta _{i} + 1 ) }{ \varGamma _{q}( \zeta _{i} + 1 )} \biggr) \varLambda _{2i} \Vert k - f \Vert $$

for each \(1\leq i\leq m\). Thus,

$$\begin{aligned} & \bigl\Vert (x_{1}, \ldots , x_{m}) - \bigl(x'_{1}, \ldots , x'_{m} \bigr) \bigr\Vert \\ & \quad = \sum_{i=1}^{m} \bigl\Vert x_{i} - x'_{i} \bigr\Vert _{i} \\ &\quad \leq \sum_{i=1}^{m} \Vert \gamma _{i} \Vert _{\infty } \biggl( \frac{ 1 + \varGamma _{q}(\zeta _{i} + 1 ) }{ \varGamma _{q}( \zeta _{i} + 1 ) } \biggr) ( \varLambda _{1i} + \varLambda _{2i} ) \Vert k-f \Vert . \end{aligned}$$

This implies that \(P_{\rho }(\mathcal{M}(k), \mathcal{M}(f))\leq \lambda \|k-f\|\). Now, by using Lemma 3, the operator inclusion \(k\in \mathcal{M}(k) + \mathcal{N}(k) \) has a solution which is a solution for the system of q-fractional inclusions. This completes the proof. □

Now, we give an example to illustrate our main result. In this way, we give a computational technique for checking the system. We need to present a simplified analysis that is able to execute the values of the q-gamma function. For this purpose, we provide a pseudo–code description of the method for calculation of the q-gamma function of order n in Algorithms 2, 3, 4, 5, and 6.

Algorithm 5
figuree

The proposed method for calculated \(\int _{a}^{b} f(r) \,d_{q} r\)

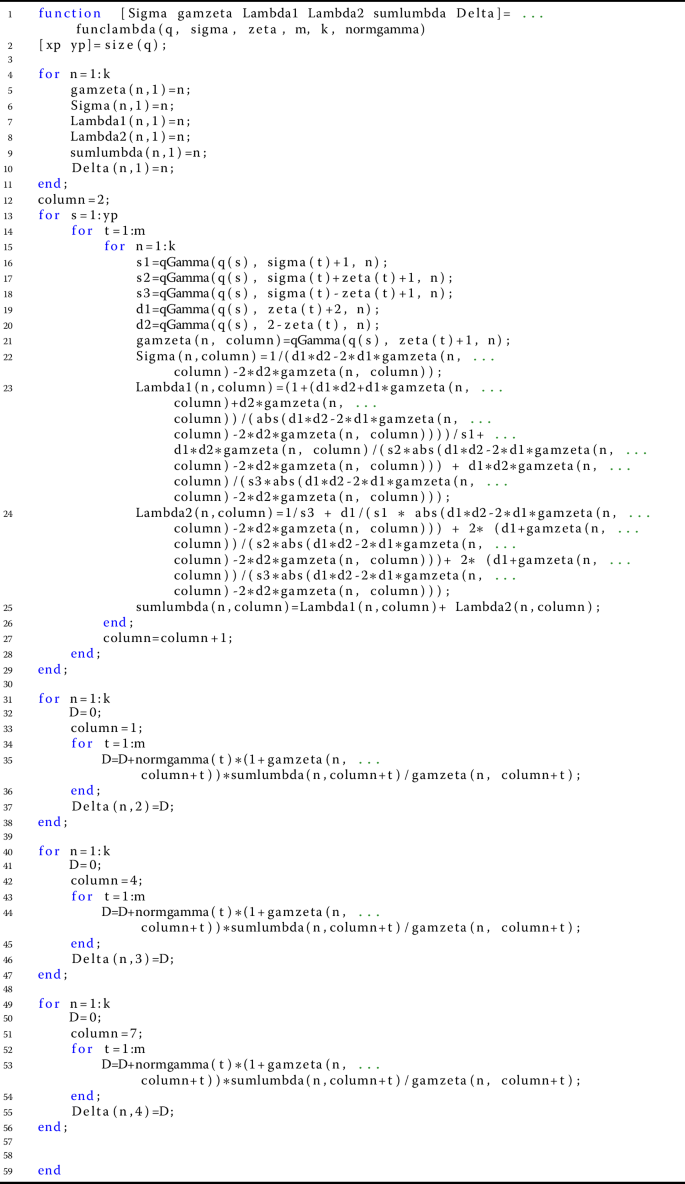

Algorithm 6
figuref

The proposed method for calculated \(\varLambda _{1i}\), \(\varLambda _{2i}\), and Δ

Example 1

Consider the three-dimensional system of fractional q-differential inclusions

$$ \textstyle\begin{cases} {}^{c}\mathcal{D}_{q}^{\frac{3}{2}} [k_{1}](t) \in \mathcal{T}_{1i} (t, k_{1}(t), k_{2}(t), k_{3}(t), \mathcal{I}_{q}^{\frac{1}{4}} [k_{1}](t), \mathcal{I}_{q}^{\frac{1}{2}} [k_{2}](t), \mathcal{I}_{q}^{ \frac{3}{5}} [k_{3}](t) ) \\ \hphantom{{}^{c}\mathcal{D}_{q}^{\frac{3}{2}} [k_{1}](t) \in}{} + \mathcal{T}_{21} ( t, k_{1}(t), k_{2}(t), k_{3}(t), {}^{c} \mathcal{D}_{q}^{\frac{1}{4}} [k_{1} ](t), {}^{c}\mathcal{D}_{q}^{ \frac{1}{2}} [k_{2}](t), {}^{c}\mathcal{D}_{q}^{\frac{3}{5}} [k_{3}] (t) ), \\ {}^{c}\mathcal{D}_{q}^{\frac{7}{4}} [k_{2}](t) \in \mathcal{T}_{12} ( t, k_{1} (t), k_{2} (t), k_{3}(t), \mathcal{I}_{q}^{\frac{1}{4}} [k_{1}](t), \mathcal{I}_{q}^{\frac{1}{2}} [k_{2}](t), \mathcal{I}_{q}^{ \frac{3}{5}} [k_{3}](t) ) \\ \hphantom{{}^{c}\mathcal{D}_{q}^{\frac{7}{4}} [k_{2}](t) \in}{} + \mathcal{T}_{22} ( t, k_{1}(t), k_{2}(t), k_{3}(t), {}^{c} \mathcal{D}_{q}^{\frac{1}{4}} [k_{1}](t), {}^{c}\mathcal{D}_{q}^{ \frac{1}{2}} [k_{2}](t), {}^{c}\mathcal{D}_{q}^{ \frac{3}{5}} [k_{3}](t) ), \\ {}^{c}\mathcal{D}_{q}^{\frac{9}{5}} [k_{3}](t) \in \mathcal{T}_{13} ( t, k_{1} (t), k_{2} (t), k_{3}(t), \mathcal{I}_{q}^{\frac{1}{4}} [k_{1}](t), \mathcal{I}_{q}^{\frac{1}{2}} [k_{2}](t), \mathcal{I}_{q}^{ \frac{3}{5}} [k_{3}](t) ) \\ \hphantom{{}^{c}\mathcal{D}_{q}^{\frac{9}{5}} [k_{3}](t) \in}{} + \mathcal{T}_{23} ( t, k_{1}(t), k_{2}(t), k_{3}(t), {}^{c} \mathcal{D}_{q}^{\frac{1}{4}} [k_{1}](t), {}^{c}\mathcal{D}_{q}^{ \frac{1}{2}} [k_{2}](t), {}^{c}\mathcal{D}_{q}^{ \frac{3}{5}} [k_{3}](t) ) \end{cases} $$
(9)

with boundary conditions \(k(0) + \mathcal{I}_{q}^{\frac{1}{4}} [k_{1}](0) + {}^{c}\mathcal{D}_{q}^{ \frac{1}{4}} [k_{1}](0) = -k_{1}(1)\), \(k_{1}(1) + \mathcal{I}_{q}^{\frac{1}{4}} [k_{1}](1) + {}^{c} \mathcal{D}_{q}^{\frac{1}{4}} [k_{1}](1)=-k_{1}(0)\), \(k_{2}(0) + \mathcal{I}_{q}^{\frac{1}{2}} [k_{2}](0) + {}^{c} \mathcal{D}_{q}^{ \frac{1}{2}} [k_{2}] (0) = - k_{2}(1)\), \(k_{2}(1) + \mathcal{I}_{q}^{\frac{1}{2}} [k_{2}](1) + {}^{c} \mathcal{D}_{q}^{ \frac{1}{2} } [k_{2}] (1) = -k_{2}(0)\), \(k_{3}(0) + \mathcal{I}_{q}^{\frac{3}{5}} [k_{3}](0) + {}^{c} \mathcal{D}_{q}^{ \frac{3}{5}} [k_{3}] (0) = - k_{3}(1)\), and \(k_{3}(1) + \mathcal{I}_{q}^{\frac{3}{5}} [k_{3}](1) + {}^{c} \mathcal{D}_{q}^{ \frac{3}{5} } [k_{3}] (1) = -k_{3}(0)\), where \(\mathcal{T}_{ij} : \overline{J} \times \mathbb{R}^{6} \to \mathcal{P}_{\mathrm{cp}, \mathrm{cv}} (\mathbb{R})\) is such that

$$\begin{aligned} &\mathcal{T}_{11}(t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) = \biggl[0, \frac{ \sin k_{1}}{ 270 ( 1 + t^{2} ) } + \frac{ t \vert k_{2} \vert }{ 135( 1 + \vert k_{2} \vert ) } \\ &\hphantom{\mathcal{T}_{11}(t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) =}{} + \frac{1}{ 270} \cos k_{3} + \frac{ \vert k_{4} \vert }{ 270 ( 1 + \vert k_{4} \vert ) } \\ &\hphantom{\mathcal{T}_{11}(t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) =} {} + \frac{t k_{5}^{2}}{ 270 ( 1 + k_{5}^{2} ) } + \frac{t}{ 270 ( 1 + \vert k_{6} \vert ) }+ t^{2} + t \biggr], \\ &\mathcal{T}_{12}(t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) = \biggl[0, \frac{ t^{2} \vert k_{1} \vert }{ 330( 1 + \vert k_{1} \vert ) } + \frac{ \vert k_{2} \vert }{330( 1 + \vert k_{2} \vert ) } \\ & \hphantom{\mathcal{T}_{12}(t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) =}{} + \frac{1}{330} \sin k_{3} + \frac{1}{330} \cos k_{4} + e^{t} \\ & \hphantom{\mathcal{T}_{12}(t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) =} {} + \frac{t \vert k_{5} \vert }{ 330 ( 2 + \vert k_{5} \vert ) } + \frac{ \vert k_{6} \vert e^{t}}{ 330 ( 1 + e^{t} \vert k_{6} \vert ) } + 2 \biggr], \\ &\mathcal{T}_{13}(t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) = \biggl[0, \frac{ t}{ 190( 1 + \vert k_{1} \vert ) } + \frac{t \vert k_{2} \vert }{190( 1 + \vert k_{2} \vert ) } \\ &\hphantom{\mathcal{T}_{13}(t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) =} {} + \frac{1}{190} \cos k_{3} + \frac{1}{190} \sin k_{4} + e^{t} \\ & \hphantom{\mathcal{T}_{13}(t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) =}{} + \frac{e^{t} \vert k_{5} \vert }{ 190 ( 1 + e^{t} \vert k_{5} \vert ) } + \frac{ \vert k_{6} \vert }{ 190 ( 1 + k_{6}| ) } + \frac{1}{95} \biggr], \\ &\mathcal{T}_{21} (t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) = \biggl[ e^{- \vert k_{1} \vert } - \frac{ \vert k_{2} \vert }{ 1 + \vert k_{2} \vert } + e^{ - \vert k_{3} \vert } + \sin k_{4} \\ & \hphantom{\mathcal{T}_{21} (t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) =}{} - \frac{ \cos (k_{5}k_{6}) }{ 1 + \cos (k_{5}k_{6}) } + t^{2}, \cos k_{1} + \cos k_{2} \\ & \hphantom{\mathcal{T}_{21} (t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) =}{} + \cos (k_{3} k_{4})+ \frac{ k_{5}^{2}k_{6}^{2} }{ 1 + k_{5}^{2}k_{6}^{2} } + t + \sin t \biggr], \\ &\mathcal{T}_{22} (t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) = \biggl[-1 , \frac{ \sin ^{2} k_{1}}{ 1 +t } + t \cos ^{2} k_{2} + e^{t} \sin (k_{3}) \\ &\hphantom{\mathcal{T}_{22} (t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) =} {} + e^{t}\cos ( k_{4}) + \frac{ e^{k_{5}k_{6}}}{ 1 + e^{k_{5}k_{6}} } \biggr], \\ &\mathcal{T}_{23} (t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) = \biggl[\frac{k_{1}}{4(1+k_{1})}+ \frac{k_{3}}{1+k_{3}} + \frac{e^{- \vert k_{6} \vert }}{4(1+k_{6})}, t \cos ^{2} k_{1} \\ & \hphantom{\mathcal{T}_{23} (t, k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}) =}{} + \sin k_{3}+ \frac{\cos ^{3}k_{6}}{1 + t^{3}} \biggr]. \end{aligned}$$

Define \(h_{11}(t) = t^{2} + \frac{46}{45} t + \frac{1}{ 270 ( 1 + t^{2}) } + \frac{1}{135}\), \(h_{12}(t) = \frac{1}{330} t^{2} +\frac{1}{330}t+ e^{t} + \frac{332}{165}\), \(h_{13} = \frac{1}{95} t +\frac{3}{95} + e^{t}\), \(h_{21}(t) = \sin t+t+ 4\), \(h_{22} (t) = 2e^{t} + t +\frac{1}{1+t}+1\), \(h_{23} = \frac{1}{1+t^{3}}+t + \frac{5}{2}\), \(\gamma _{1} (t) = \frac{1}{270( 1 + t^{2} ) } + \frac{2}{135} t + \frac{1}{135}\), \(\gamma _{2} (t) = \frac{1}{330} t^{2} + \frac{1}{330} t+ \frac{4}{330}\), and \(\gamma _{3} (t) =\frac{1}{95} t+ \frac{2}{95}\). Put \(\sigma _{1} =\frac{3}{2}\), \(\sigma _{2} =\frac{7}{4}\), \(\sigma _{3} =\frac{9}{5}\), \(\zeta _{1} =\frac{1}{4}\), \(\zeta _{2} =\frac{1}{2}\), and \(\zeta _{2} =\frac{3}{5}\). It is easy to check that \(\|\mathcal{T}_{ij} (t,k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6})\| \leq h_{ij}(t)\) and

$$ P_{\rho }\bigl( \mathcal{T}_{1j} (t,k_{1}, k_{2}, k_{3}, k_{4}, k_{5}, k_{6}), \mathcal{T}_{1j} \bigl(t,k'_{1}, k'_{2}, k'_{3}, k'_{4}, k'_{5}, k'_{6}\bigr) \bigr) \leq \gamma _{j} (t) \Biggl( \sum_{i=1}^{6} \bigl\vert k_{i} - k'_{i} \bigr\vert \Biggr) $$

for \(i=1,2\) and \(j=1,2,3\). By using (6) and (7), (8), we obtain

$$\begin{aligned} &\varSigma _{1} = \bigl[ \varGamma _{q}( \zeta _{1} + 2) \varGamma _{q} ( 2 - \zeta _{1}) - 2 \varGamma _{q} (\zeta _{1} + 1 ) \varGamma _{q}( 2 + \zeta _{1}) - 2 \varGamma _{q}( \zeta _{1} + 1 ) \varGamma _{q} ( 2 - \zeta _{1} ) \bigr]^{-1} \\ & \hphantom{\varSigma _{1}}= \biggl[ \varGamma _{q} \biggl( \frac{1}{4} + 2 \biggr) \varGamma _{q} \biggl( 2 - \frac{1}{4} \biggr) - 2 \varGamma _{q} \biggl( \frac{1}{4} + 1 \biggr) \varGamma _{q} \biggl( 2 + \frac{1}{4} \biggr) \\ & \hphantom{\varSigma _{1}=}{} - 2 \varGamma _{q} \biggl( \frac{1}{4} + 1 \biggr) \varGamma _{q} \biggl( 2 - \frac{1}{4} \biggr) \biggr]^{-1} \\ & \hphantom{\varSigma _{1}}= \biggl[ \varGamma _{q} \biggl( \frac{9}{4} \biggr) \varGamma _{q} \biggl( \frac{7}{4} \biggr) - 2 \varGamma _{q} \biggl( \frac{5}{4} \biggr) \varGamma _{q} \biggl( \frac{9}{4} \biggr) - 2 \varGamma _{q} \biggl( \frac{5}{4} \biggr) \varGamma _{q} \biggl( \frac{7}{4} \biggr) \biggr]^{-1}, \end{aligned}$$
(10)
$$\begin{aligned} &\varLambda _{11} = \frac{1}{ \varGamma _{q}(\sigma _{1} + 1) } \bigl( 1 + \vert \varSigma _{1} \vert \bigl[ \varGamma _{q}( \zeta _{1} + 2 ) \varGamma _{q}( 2 - \zeta _{1} ) \\ &\hphantom{\varLambda _{11} =}{} + \varGamma _{q}(\zeta _{1} + 1) \varGamma _{q}(\zeta _{1} + 2)+ \varGamma _{q}( \zeta _{1} + 1 ) \varGamma _{q}( 2 - \zeta _{1}) \bigr] \bigr) \\ &\hphantom{\varLambda _{11} =}{} + \frac{ \vert \varSigma _{1} \vert \varGamma _{q}( \zeta _{1} + 1 ) \varGamma _{q}(\zeta _{1} + 2 ) \varGamma _{q}( 2 - \zeta _{1})}{ \varGamma _{q}( \sigma _{1} + \zeta _{1} + 1 )} \\ & \hphantom{\varLambda _{11} =}{} + \frac{ \vert \varSigma _{1} \vert \varGamma _{q}( \zeta _{1} + 1 ) \varGamma _{q}( \zeta _{1} + 2 ) \varGamma _{q}( 2 - \zeta _{1})}{ \varGamma _{q}( \sigma _{1} - \zeta _{1}+1 ) } \\ &\hphantom{\varLambda _{11} } = \frac{1}{ \varGamma _{q} ( \frac{3}{2} + 1 ) } \biggl( 1 + \vert \varSigma _{1} \vert \biggl[ \varGamma _{q} \biggl( \frac{1}{4} + 2 \biggr) \varGamma _{q} \biggl( 2 - \frac{1}{4} \biggr) \\ &\hphantom{\varLambda _{11} =}{} + \varGamma _{q} \biggl(\frac{1}{4} + 1 \biggr) \varGamma _{q} \biggl(\frac{1}{4} + 2 \biggr)+ \varGamma _{q} \biggl(\frac{1}{4} + 1 \biggr) \varGamma _{q} \biggl( 2 - \frac{1}{4} \biggr) \biggr] \biggr) \\ & \hphantom{\varLambda _{11} =}{} + \frac{ \vert \varSigma _{1} \vert \varGamma _{q} ( \frac{1}{4} + 1 ) \varGamma _{q} ( \frac{1}{4} + 2 ) \varGamma _{q} ( 2 -\frac{1}{4} ) }{ \varGamma _{q} ( \frac{3}{2} + \frac{1}{4}+ 1 ) } \\ &\hphantom{\varLambda _{11} =}{} + \frac{ \vert \varSigma _{1} \vert \varGamma _{q} ( \frac{1}{4} + 1 ) \varGamma _{q} ( \frac{1}{4} + 2 ) \varGamma _{q} ( 2 - \frac{1}{4} ) }{ \varGamma _{q} ( \frac{3}{2}- \frac{1}{4} + 1 ) } \\ &\hphantom{\varLambda _{11} } = \frac{1}{ \varGamma _{q} ( \frac{5}{2} ) } \biggl( 1 + \vert \varSigma _{1} \vert \biggl[ \varGamma _{q} \biggl( \frac{9}{4} \biggr) \varGamma _{q} \biggl( \frac{7}{4} \biggr) \\ & \hphantom{\varLambda _{11} =}{} + \varGamma _{q} \biggl(\frac{5}{4} \biggr) \varGamma _{q} \biggl( \frac{9}{4} \biggr)+ \varGamma _{q} \biggl(\frac{5}{4} \biggr) \varGamma _{q} \biggl( \frac{7}{4} \biggr) \biggr] \biggr) \\ & \hphantom{\varLambda _{11} =}{} + \frac{ \vert \varSigma _{1} \vert \varGamma _{q} ( \frac{5}{4} ) \varGamma _{q} ( \frac{9}{4} ) \varGamma _{q} ( \frac{7}{4} ) }{ \varGamma _{q} ( \frac{11}{4} ) } + \frac{ \vert \varSigma _{1} \vert \varGamma _{q} ( \frac{5}{4} ) \varGamma _{q} ( \frac{9}{4} ) \varGamma _{q} ( \frac{7}{4} ) }{ \varGamma _{q} ( \frac{9}{4} ) }, \end{aligned}$$
(11)
$$\begin{aligned} &\varLambda _{21} = \frac{1}{ \varGamma _{q}( \sigma _{1} - \zeta _{1} + 1 ) } + \frac{ \vert \varSigma _{1} \vert \varGamma _{q}( \zeta _{1} + 2 )}{ \varGamma _{q}(\sigma _{1} + 1 )}+ \frac{2 \vert \varSigma _{1} \vert ( \varGamma _{q} ( \zeta _{1} + 1 ) + \varGamma _{q}( \zeta _{1} + 2 )) }{ \varGamma _{q}(\sigma _{1} + \zeta _{1} + 1)} \\ & \hphantom{\varLambda _{21} =}{} + \frac{2 \vert \varSigma _{1} \vert ( 2 \varGamma _{q}( \zeta _{1}+1 ) + \varGamma _{q}( \zeta _{1} + 2 ))}{ \varGamma _{q}( \sigma _{1} - \zeta _{1} + 1 ) } \\ &\hphantom{\varLambda _{21} } = \frac{1}{ \varGamma _{q} ( \frac{3}{2} - \frac{1}{4}+ 1 ) } + \frac{ \vert \varSigma _{1} \vert \varGamma _{q} ( \frac{1}{4} + 2 ) }{ \varGamma _{q} (\frac{3}{2} + 1 )}+ \frac{2 \vert \varSigma _{1} \vert ( \varGamma _{q} ( \frac{1}{4} + 1 ) + \varGamma _{q} ( \frac{1}{4} + 2 ) ) }{ \varGamma _{q} ( \frac{3}{2}+ \frac{1}{4} + 1 ) } \\ & \hphantom{\varLambda _{21} =}{} + \frac{ 2 \vert \varSigma _{1} \vert ( 2 \varGamma _{q} ( \frac{1}{4} + 1 ) + \varGamma _{q} ( \frac{1}{4} + 2 ) ) }{ \varGamma _{q} ( \frac{3}{2} - \frac{1}{4} + 1 )} \\ & \hphantom{\varLambda _{21} }= \frac{1}{ \varGamma _{q} ( \frac{9}{4} ) } + \frac{ \vert \varSigma _{1} \vert \varGamma _{q} ( \frac{9}{4} ) }{ \varGamma _{q} (\frac{5}{2} )} + \frac{2 \vert \varSigma _{1} \vert ( \varGamma _{q} ( \frac{5}{4} ) + \varGamma _{q} ( \frac{9}{4} ) ) }{ \varGamma _{q} ( \frac{11}{4} ) } \\ & \hphantom{\varLambda _{21} =}{} + \frac{ 2 \vert \varSigma _{1} \vert ( 2 \varGamma _{q} ( \frac{5}{4} ) + \varGamma _{q} ( \frac{9}{4} ) ) }{ \varGamma _{q} ( \frac{9}{4} )}, \end{aligned}$$
(12)
$$\begin{aligned} &\varSigma _{2} = \bigl[ \varGamma _{q}( \zeta _{2} + 2) \varGamma _{q} ( 2 - \zeta _{2}) - 2 \varGamma _{q} (\zeta _{2} + 1 ) \varGamma _{q}( 2 + \zeta _{2}) - 2 \varGamma _{q}( \zeta _{2} + 1 ) \varGamma _{q} ( 2 - \zeta _{2} ) \bigr]^{-1} \\ & \hphantom{\varSigma _{2}}= \biggl[ \varGamma _{q} \biggl( \frac{1}{2} + 2 \biggr) \varGamma _{q} \biggl( 2 - \frac{1}{2} \biggr) - 2 \varGamma _{q} \biggl( \frac{1}{2} + 1 \biggr) \varGamma _{q} \biggl( 2 + \frac{1}{2} \biggr) \\ &\hphantom{\varSigma _{2} =}{} - 2 \varGamma _{q} \biggl( \frac{1}{2} + 1 \biggr) \varGamma _{q} \biggl( 2 - \frac{1}{2} \biggr) \biggr]^{-1} \\ &\hphantom{\varSigma _{2} } = \biggl[ \varGamma _{q} \biggl( \frac{5}{2} \biggr) \varGamma _{q} \biggl( \frac{3}{2} \biggr) - 2 \varGamma _{q} \biggl( \frac{3}{2} \biggr) \varGamma _{q} \biggl( \frac{5}{2} \biggr) - 2 \varGamma _{q} \biggl( \frac{3}{2} \biggr) \varGamma _{q} \biggl( \frac{3}{2} \biggr) \biggr]^{-1}, \end{aligned}$$
(13)
$$\begin{aligned} &\varLambda _{12} = \frac{1}{ \varGamma _{q}(\sigma _{2} + 1) } \bigl( 1 + \vert \varSigma _{2} \vert \bigl[ \varGamma _{q}(\zeta _{2} + 2 ) \varGamma _{q}( 2 - \zeta _{2} ) \\ & \hphantom{\varLambda _{12} =}{} + \varGamma _{q}(\zeta _{2} + 1) \varGamma _{q} (\zeta _{2} + 2)+ \varGamma _{q}( \zeta _{2} + 1 ) \varGamma _{q}( 2 - \zeta _{2} ) \bigr] \bigr) \\ & \hphantom{\varLambda _{12} =}{} + \frac{ \vert \varSigma _{2} \vert \varGamma _{q}( \zeta _{2} + 1 ) \varGamma _{q}(\zeta _{2} + 2 ) \varGamma _{q} ( 2 - \zeta _{2})}{ \varGamma _{q}( \sigma _{2} + \zeta _{2} + 1 )} \\ & \hphantom{\varLambda _{12} =}{} + \frac{ \vert \varSigma _{2} \vert \varGamma _{q}( \zeta _{2} + 1 ) \varGamma _{q}( \zeta _{2} + 2 ) \varGamma _{q} ( 2 - \zeta _{2})}{ \varGamma _{q}( \sigma _{2} - \zeta _{2} + 1 ) } \\ &\hphantom{\varLambda _{12} } = \frac{1}{ \varGamma _{q} (\frac{7}{4} + 1 ) } \biggl( 1 + \vert \varSigma _{2} \vert \biggl[ \varGamma _{q} \biggl( \frac{1}{2} + 2 \biggr) \varGamma _{q} \biggl( 2 - \frac{1}{2} \biggr) \\ &\hphantom{\varLambda _{12} =}{} + \varGamma _{q} \biggl(\frac{1}{2} + 1 \biggr) \varGamma _{q} \biggl( \frac{1}{2} + 2 \biggr) + \varGamma _{q} \biggl( \frac{1}{2} + 1 \biggr) \varGamma _{q} \biggl( 2 - \frac{1}{2} \biggr) \biggr] \biggr) \\ & \hphantom{\varLambda _{12} =}{} + \frac{ \vert \varSigma _{2} \vert \varGamma _{q} ( \frac{1}{2} + 1 ) \varGamma _{q} ( \frac{1}{2} + 2 ) \varGamma _{q} ( 2 - \frac{1}{2} ) }{ \varGamma _{q} ( \frac{7}{4}+\frac{1}{2} + 1 ) } \\ &\hphantom{\varLambda _{12} =}{} + \frac{ \vert \varSigma _{2} \vert \varGamma _{q} ( \frac{1}{2} + 1 ) \varGamma _{q} ( \frac{1}{2} + 2 ) \varGamma _{q} ( 2 - \frac{1}{2} )}{ \varGamma _{q} ( \frac{7}{4} - \frac{1}{2} + 1 ) } \\ &\hphantom{\varLambda _{12} } = \frac{1}{ \varGamma _{q} (\frac{11}{4} ) } \biggl( 1 + \vert \varSigma _{2} \vert \biggl[ \varGamma _{q} \biggl( \frac{5}{2} \biggr) \varGamma _{q} \biggl( \frac{3}{2} \biggr) \\ &\hphantom{\varLambda _{12} =}{} + \varGamma _{q} \biggl(\frac{3}{2} \biggr) \varGamma _{q} \biggl( \frac{5}{2} \biggr) + \varGamma _{q} \biggl( \frac{3}{2} \biggr) \varGamma _{q} \biggl( \frac{3}{2} \biggr) \biggr] \biggr) \\ & \hphantom{\varLambda _{12} =}{} + \frac{ \vert \varSigma _{2} \vert \varGamma _{q} ( \frac{3}{2} ) \varGamma _{q} ( \frac{5}{2} ) \varGamma _{q} ( \frac{3}{2} ) }{ \varGamma _{q} ( \frac{13}{4} ) } + \frac{ \vert \varSigma _{2} \vert \varGamma _{q} ( \frac{3}{2} ) \varGamma _{q} ( \frac{5}{2} ) \varGamma _{q} ( \frac{3}{2} )}{ \varGamma _{q} ( \frac{9}{4} ) }, \end{aligned}$$
(14)
$$\begin{aligned} &\varLambda _{22} = \frac{1}{ \varGamma _{q}( \sigma _{2} - \zeta _{2} + 1 ) } + \frac{ \vert \varSigma _{2} \vert \varGamma _{q}( \zeta _{2} + 2 )}{ \varGamma _{q}(\sigma _{2} + 1 )} \\ & \hphantom{\varLambda _{22} =}{} + \frac{2 \vert \varSigma _{2} \vert ( \varGamma _{q} ( \zeta _{2} + 1 ) + \varGamma _{q}( \zeta _{2} + 2 )) }{ \varGamma _{q}(\sigma _{2} + \zeta _{2} + 1)} \\ & \hphantom{\varLambda _{22} =}{} + \frac{ 2 \vert \varSigma _{2} \vert ( 2 \varGamma _{q} ( \zeta _{2} + 1 ) + \varGamma _{q}( \zeta _{2} + 2 ) ) }{ \varGamma _{q}( \sigma _{2} - \zeta _{2} + 1 ) } \\ & \hphantom{\varLambda _{22} }= \frac{1}{ \varGamma _{q} ( \frac{7}{4} - \frac{1}{2} + 1 ) } + \frac{ \vert \varSigma _{2} \vert \varGamma _{q} ( \frac{1}{2} + 2 ) }{ \varGamma _{q} ( \frac{1}{2} + 1 )} \\ & \hphantom{\varLambda _{22} =}{} + \frac{2 \vert \varSigma _{2} \vert ( \varGamma _{q} ( \frac{1}{2} + 1 ) + \varGamma _{q} ( \frac{1}{2} + 2 ) ) }{ \varGamma _{q} (\frac{7}{4} + \frac{1}{2} + 1 ) } \\ & \hphantom{\varLambda _{22} =}{} + \frac{2 \vert \varSigma _{2} \vert ( \varGamma _{q} ( \frac{1}{2} + 1 ) + \varGamma _{q} ( \frac{1}{2} + 2 ) ) }{ \varGamma _{q} ( \frac{7}{4} - \frac{1}{2} + 1 )} \\ &\hphantom{\varLambda _{22} } = \frac{1}{ \varGamma _{q} ( \frac{9}{4} ) } + \frac{ \vert \varSigma _{2} \vert \varGamma _{q} ( \frac{5}{2} ) }{ \varGamma _{q} ( \frac{3}{2} )} + \frac{2 \vert \varSigma _{2} \vert ( \varGamma _{q} ( \frac{3}{2} ) + \varGamma _{q} ( \frac{5}{2} ) ) }{ \varGamma _{q} (\frac{13}{4} ) } \\ & \hphantom{\varLambda _{22} =}{} + \frac{2 \vert \varSigma _{2} \vert ( \varGamma _{q} ( \frac{3}{2} ) + \varGamma _{q} ( \frac{5}{2} ) ) }{ \varGamma _{q} ( \frac{9}{4} )}, \end{aligned}$$
(15)
$$\begin{aligned} &\varSigma _{3} = \bigl[ \varGamma _{q}( \zeta _{3} + 2) \varGamma _{q} ( 2 - \zeta _{3}) - 2 \varGamma _{q} (\zeta _{3} + 1 ) \varGamma _{q}( 2 + \zeta _{3}) - 2 \varGamma _{q}( \zeta _{3} + 1 ) \varGamma _{q} ( 2 - \zeta _{3} ) \bigr]^{-1} \\ &\hphantom{\varSigma _{3} } = \biggl[ \varGamma _{q} \biggl( \frac{3}{5}+ 2 \biggr) \varGamma _{q} \biggl( 2 - \frac{3}{5} \biggr) - 2 \varGamma _{q} \biggl( \frac{3}{5} + 1 \biggr) \varGamma _{q} \biggl( 2 + \frac{3}{5} \biggr) \\ & \hphantom{\varSigma _{3} =}{} - 2 \varGamma _{q} \biggl( \frac{3}{5} + 1 \biggr) \varGamma _{q} \biggl( 2 - \frac{3}{5} \biggr) \biggr]^{-1} \\ &\hphantom{\varSigma _{3} } = \biggl[ \varGamma _{q} \biggl( \frac{13}{5} \biggr) \varGamma _{q} \biggl( \frac{7}{5} \biggr) - 2 \varGamma _{q} \biggl( \frac{8}{5} \biggr) \varGamma _{q} \biggl( \frac{13}{5} \biggr) - 2 \varGamma _{q} \biggl( \frac{8}{5} \biggr) \varGamma _{q} \biggl( \frac{7}{5} \biggr) \biggr]^{-1}, \end{aligned}$$
(16)
$$\begin{aligned} &\varLambda _{13} = \frac{1}{ \varGamma _{q}(\sigma _{3} + 1) } \bigl( 1 + \vert \varSigma _{3} \vert \bigl[ \varGamma _{q}(\zeta _{3} + 2 ) \varGamma _{q}( 2 - \zeta _{3} ) \\ & \hphantom{\varLambda _{13} =}{} + \varGamma _{q}(\zeta _{3} + 1) \varGamma _{q}(\zeta _{3} + 2)+ \varGamma _{q}( \zeta _{3} + 1 ) \varGamma _{q}( 2 - \zeta _{3} ) \bigr] \bigr) \\ &\hphantom{\varLambda _{13} =}{} + \frac{ \vert \varSigma _{3} \vert \varGamma _{q}( \zeta _{3} + 1 ) \varGamma _{q}(\zeta _{3} + 2 ) \varGamma _{q}( 2 - \zeta _{3})}{ \varGamma _{q}( \sigma _{3} + \zeta _{3} + 1 )} \\ &\hphantom{\varLambda _{13} =}{} + \frac{ \vert \varSigma _{3} \vert \varGamma _{q}( \zeta _{3} + 1 ) \varGamma _{q}( \zeta _{3} + 2 ) \varGamma _{q}( 2 - \zeta _{3})}{ \varGamma _{q}( \sigma _{3} - \zeta _{3} + 1 ) } \\ &\hphantom{\varLambda _{13} } = \frac{1}{ \varGamma _{q} (\frac{9}{5} + 1 ) } \biggl( 1 + \vert \varSigma _{3} \vert \biggl[ \varGamma _{q} \biggl( \frac{3}{5} + 2 \biggr) \varGamma _{q} \biggl( 2 - \frac{3}{5} \biggr) \\ & \hphantom{\varLambda _{13} =}{} + \varGamma _{q} \biggl( \frac{3}{5} + 1 \biggr) \varGamma _{q} \biggl( \frac{3}{5} + 2 \biggr) + \varGamma _{q} \biggl( \frac{3}{5} + 1 \biggr) \varGamma _{q} \biggl( 2 - \frac{3}{5} \biggr) \biggr] \biggr) \\ &\hphantom{\varLambda _{13} =}{} + \frac{ \vert \varSigma _{3} \vert \varGamma _{q} ( \frac{3}{5} + 1 ) \varGamma _{q} (\frac{3}{5} + 2 ) \varGamma _{q} ( 2 - \frac{3}{5} ) }{ \varGamma _{q} ( \frac{9}{5} + \frac{3}{5} + 1 ) } \\ &\hphantom{\varLambda _{13} =}{} + \frac{ \vert \varSigma _{3} \vert \varGamma _{q} ( \frac{3}{5} + 1 ) \varGamma _{q} ( \frac{3}{5} + 2 ) \varGamma _{q} ( 2 - \frac{3}{5} ) }{ \varGamma _{q} ( \frac{9}{5}- \frac{3}{5} + 1 ) } \\ & \hphantom{\varLambda _{13} }= \frac{1}{ \varGamma _{q} (\frac{14}{5} ) } \biggl( 1 + \vert \varSigma _{3} \vert \biggl[ \varGamma _{q} \biggl( \frac{13}{5} \biggr) \varGamma _{q} \biggl( \frac{7}{5} \biggr) \\ & \hphantom{\varLambda _{13} =}{} + \varGamma _{q} \biggl( \frac{8}{5} \biggr) \varGamma _{q} \biggl( \frac{13}{5} \biggr) + \varGamma _{q} \biggl( \frac{8}{5} \biggr) \varGamma _{q} \biggl( \frac{7}{5} \biggr) \biggr] \biggr) \\ & \hphantom{\varLambda _{13} =}{} + \frac{ \vert \varSigma _{3} \vert \varGamma _{q} ( \frac{8}{5} ) \varGamma _{q} (\frac{13}{5} ) \varGamma _{q} ( \frac{7}{5} ) }{ \varGamma _{q} ( \frac{17}{5} ) } + \frac{ \vert \varSigma _{3} \vert \varGamma _{q} ( \frac{8}{5} ) \varGamma _{q} ( \frac{13}{5} ) \varGamma _{q} ( \frac{7}{5} ) }{ \varGamma _{q} ( \frac{11}{5} ) }, \end{aligned}$$
(17)
$$\begin{aligned} &\varLambda _{23} = \frac{1}{ \varGamma _{q}( \sigma _{3} - \zeta _{3} + 1 ) } + \frac{ \vert \varSigma _{3} \vert \varGamma _{q}( \zeta _{3} + 2 )}{ \varGamma _{q}( \sigma _{3} + 1 )} \\ & \hphantom{\varLambda _{23} =}{}+ \frac{2 \vert \varSigma _{3} \vert ( \varGamma _{q} ( \zeta _{3} + 1 ) + \varGamma _{q}( \zeta _{3} + 2 )) }{ \varGamma _{q}(\sigma _{3} + \zeta _{3} + 1)} \\ & \hphantom{\varLambda _{23} =}{} + \frac{2 \vert \varSigma _{3} \vert ( 2 \varGamma _{q}( \zeta _{3} + 1 ) + \varGamma _{q}( \zeta _{3} + 2 ))}{ \varGamma _{q}( \sigma _{3} - \zeta _{3} + 1 )} \\ &\hphantom{\varLambda _{23} } = \frac{1}{ \varGamma _{q} ( \frac{9}{5} - \frac{3}{5}+ 1 ) } + \frac{ \vert \varSigma _{3} \vert \varGamma _{q} ( \frac{3}{5}+ 2 ) }{ \varGamma _{q} ( \frac{9}{5} + 1 ) } \\ & \hphantom{\varLambda _{23} =}{} + \frac{ 2 \vert \varSigma _{3} \vert ( \varGamma _{q} ( \frac{3}{5}+ 1 ) + \varGamma _{q} ( \frac{3}{5} + 2 ) ) }{ \varGamma _{q} ( \frac{9}{5} + \frac{3}{5} + 1 ) } \\ & \hphantom{\varLambda _{23} =}{} + \frac{2 \vert \varSigma _{3} \vert ( \varGamma _{q} ( \frac{3}{5}+ 1 ) + \varGamma _{q} ( \frac{3}{5} + 2 ) ) }{ \varGamma _{q} ( \frac{9}{5} - \frac{3}{5} + 1 ) } \\ &\hphantom{\varLambda _{23} } = \frac{1}{ \varGamma _{q} ( \frac{11}{5} ) } + \frac{ \vert \varSigma \vert \varGamma _{q} ( \frac{13}{5} ) }{ \varGamma _{q} ( \frac{14}{5} ) } + \frac{ 2 \vert \varSigma _{3} \vert ( \varGamma _{q} ( \frac{8}{5} ) + \varGamma _{q} ( \frac{13}{5} ) ) }{ \varGamma _{q} ( \frac{17}{5} ) } \\ & \hphantom{\varLambda _{23} =}{} + \frac{2 \vert \varSigma _{3} \vert ( \varGamma _{q} ( \frac{8}{5} ) + \varGamma _{q} ( \frac{13}{5} ) ) }{ \varGamma _{q} ( \frac{11}{5} )}. \end{aligned}$$
(18)

Note that Tables 1 and 2 show that \(\varLambda _{11}\approx 2.5743\), \(\varLambda _{12}\approx 2.5222\), \(\varLambda _{13}\approx 2.5131\), \(\varLambda _{21}\approx 3.9450\), \(\varLambda _{22}\approx 3.9032\), \(\varLambda _{23}\approx 3.8920\). Table 3 shows that \(\varLambda _{11}\approx 2.3064\), \(\varLambda _{12}\approx 2.1178\), \(\varLambda _{13}\approx 2.0901\), \(\varLambda _{21}\approx 3.7015\), \(\varLambda _{22}\approx 3.5288\), \(\varLambda _{23}\approx 3.4997\), and Table 4 leads us to \(\varLambda _{11}\approx 2.1482\), \(\varLambda _{12}\approx 1.8883\), \(\varLambda _{13}\approx 1.8536\), \(\varLambda _{21}\approx 3.5434\), \(\varLambda _{22}\approx 3.3065\), and \(\varLambda _{23}\approx 3.2801\) for \(q=\frac{1}{10}\), \(q=\frac{1}{2}\), and \(q=\frac{6}{7}\) respectively. By the definition of \(\gamma _{i}\), for \(j=1,2,3\), we get \(\|\gamma _{1}\|_{\infty }= \frac{7}{270}\), \(\|\gamma _{2}\|_{\infty }= \frac{1}{55}\), and \(\|\gamma _{3}\|_{\infty }=\frac{3}{95}\). Now, by using Eqs. (7), (8), (10), (11), (12), (13), (14), (15), (16), (17), and (18), we obtain

$$\begin{aligned} \Delta ={}& \sum_{i=1}^{m} \Vert \gamma _{i} \Vert _{\infty } \biggl( \frac{ 1 + \varGamma _{q}( \zeta _{i} + 1) }{ \varGamma _{q}(\zeta _{i} + 1) } \biggr) ( \varLambda _{1i} + \varLambda _{2i} ) \\ ={}& \frac{7}{270} \biggl( \frac{ 1 + \varGamma _{q} ( \frac{1}{4} + 1 ) }{ \varGamma _{q} (\frac{1}{4} + 1 ) } \biggr) ( \varLambda _{11} + \varLambda _{21} ) \\ &{} + \frac{1}{55} \biggl( \frac{ 1 + \varGamma _{q} ( \frac{1}{2} + 1 ) }{ \varGamma _{q} (\frac{1}{2} + 1 ) } \biggr) ( \varLambda _{12} + \varLambda _{22} ) \\ & {} + \frac{3}{95} \biggl( \frac{ 1 + \varGamma _{q} ( \frac{3}{5} + 1 ) }{ \varGamma _{q} (\frac{3}{5} + 1 ) } \biggr) ( \varLambda _{13} + \varLambda _{23} ). \end{aligned}$$
Table 1 Some numerical results for \(\varSigma _{1}\), \(\varSigma _{2}\), and \(\varSigma _{3}\) in Example 1 for \(q=\frac{1}{10}, \frac{1}{2}, \frac{6}{7}\)
Table 2 Some numerical results of \(\varLambda _{1i}\), \(\varLambda _{2i}\), and \(\varGamma _{q}(\zeta _{i}+1)\) in Example 1 for \(q=\frac{1}{10}\)
Table 3 Some numerical results of \(\varLambda _{1i}\), \(\varLambda _{2i}\), and \(\varGamma _{q}(\zeta _{i}+1)\) in Example 1 for \(q=\frac{1}{2}\)
Table 4 Some numerical results of \(\varLambda _{1i}\), \(\varLambda _{2i}\), and \(\varGamma _{q}(\zeta _{i}+1)\) in Example 1 for \(q=\frac{6}{7}\)

By using Table 5, one finds the values of Δ for \(q = \frac{1}{10}\), \(q = \frac{1}{2}\), and \(q = \frac{6}{7}\) (see Fig. 1). In fact, we get \(\Delta \approx 0.9892 <1\), \(\Delta \approx 0.9038 <1\), and \(\Delta \approx 0.8512 <1\) for \(q=\frac{1}{10}, \frac{1}{2}, \frac{6}{7}\), respectively. Now, by using Theorem 6, system (9) of fractional differential inclusions has a solution.

Figure 1
figure1

Numerical results of Δ where \(q= \frac{1}{10}, \frac{1}{2}, \frac{6}{7}\) in Example 1

Table 5 Some numerical results of Δ, \(\varLambda _{2i}\) in Example 1 for \(q=\frac{1}{10}, \frac{1}{2}, \frac{6}{7}\)

References

  1. 1.

    Jackson, F.H.: q-difference equations. Am. J. Math. 32, 305–314 (1910). https://doi.org/10.2307/2370183

    Article  MATH  Google Scholar

  2. 2.

    Adams, C.R.: Note on the integro-q-difference equations. Trans. Am. Math. Soc. 31(4), 861–867 (1929)

    MathSciNet  MATH  Google Scholar

  3. 3.

    Adams, C.R.: The general theory of a class of linear partial q-difference equations. Trans. Am. Math. Soc. 26, 283–312 (1924)

    MathSciNet  MATH  Google Scholar

  4. 4.

    Al-Salam, W.A.: q-analogues of Cauchy’s formula. Proc. Am. Math. Soc. 17, 182–184 (1952)

    MathSciNet  Google Scholar

  5. 5.

    Ferreira, R.A.C.: Nontrivial solutions for fractional q-difference boundary value problems. Electron. J. Qual. Theory Differ. Equ. 2010, 70 (2010)

    MathSciNet  MATH  Google Scholar

  6. 6.

    Liang, S., Samei, M.E.: New approach to solutions of a class of singular fractional q-differential problem via quantum calculus. Adv. Differ. Equ. 2020, 14 (2020). https://doi.org/10.1186/s13662-019-2489-2

    MathSciNet  Article  Google Scholar

  7. 7.

    Ntouyas, S.K., Samei, M.E.: Existence and uniqueness of solutions for multi-term fractional q-integro-differential equations via quantum calculus. Adv. Differ. Equ. 2019, 475 (2019). https://doi.org/10.1186/s13662-019-2414-8

    MathSciNet  Article  Google Scholar

  8. 8.

    Samei, M.E.: Existence of solutions for a system of singular sum fractional q-differential equations via quantum calculus. Adv. Differ. Equ. 2020, 23 (2020). https://doi.org/10.1186/s13662-019-2480-y

    MathSciNet  Article  Google Scholar

  9. 9.

    Alizadeh, S., Baleanu, D., Rezapour, S.: Analyzing transient response of the parallel RCL circuit by using the Caputo–Fabrizio fractional derivative. Adv. Differ. Equ. 2020, 55 (2020). https://doi.org/10.1186/s13662-020-2527-0

    MathSciNet  Article  Google Scholar

  10. 10.

    Akbari Kojabad, E., Rezapour, S.: Approximate solutions of a sum-type fractional integro-differential equation by using Chebyshev and Legendre polynomials. Adv. Differ. Equ. 2017, 351 (2017). https://doi.org/10.1186/s13662-017-1404-y

    MathSciNet  Article  MATH  Google Scholar

  11. 11.

    Baleanu, D., Rezapour, S., Mohammadi, H.: Some existence results on nonlinear fractional differential equations. Philos. Trans. R. Soc. A, Math. Phys. Eng. Sci. 371, 7 (2013). https://doi.org/10.1098/rsta.2012.0144

    MathSciNet  Article  MATH  Google Scholar

  12. 12.

    Baleanu, D., Mohammadi, H., Rezapour, S.: Some existence results on nonlinear fractional differential equations. Adv. Differ. Equ. 2020, 184 (2020). https://doi.org/10.1186/s13662-020-02614-z

    Article  Google Scholar

  13. 13.

    Baleanu, D., Mohammadi, H., Rezapour, S.: A fractional differential equation model for the COVID-19 transmission by using the Caputo–Fabrizio derivative. Adv. Differ. Equ. 2020, 299 (2020). https://doi.org/10.1186/s13662-020-02762-2

    MathSciNet  Article  Google Scholar

  14. 14.

    Aydogan, S.M., Baleanu, D., Mousalou, A., Rezapour, S.: On approximate solutions for two higher-order Caputo–Fabrizio fractional integro-differential equations. Adv. Differ. Equ. 2017, 221 (2017). https://doi.org/10.1186/s13662-017-1258-3

    MathSciNet  Article  MATH  Google Scholar

  15. 15.

    Baleanu, D., Agarwal, R.P., Mohammadi, H., Rezapour, S.: Some existence results for a nonlinear fractional differential equation on partially ordered Banach spaces. Bound. Value Probl. 2013, 112 (2013). https://doi.org/10.1186/1687-2770-2013-112

    MathSciNet  Article  MATH  Google Scholar

  16. 16.

    Baleanu, D., Etemad, S., Pourrazi, S., Rezapour, S.: On the new fractional hybrid boundary value problems with three-point integral hybrid conditions. Adv. Differ. Equ. 2019, 473 (2019). https://doi.org/10.1186/s13662-019-2407-7

    MathSciNet  Article  Google Scholar

  17. 17.

    Baleanu, D., Ghafarnezhad, K., Rezapour, S., Shabibi, M.: On the existence of solutions of a three steps crisis integro-differential equation. Adv. Differ. Equ. 2018(1), 135 (2018). https://doi.org/10.1186/s13662-018-1583-1

    MathSciNet  Article  MATH  Google Scholar

  18. 18.

    Baleanu, D., Ghafarnezhad, K., Rezapour, S.: On the existence of solutions of a three steps crisis integro-differential equation. Adv. Differ. Equ. 2019, 153 (2019). https://doi.org/10.1186/s13662-019-2088-2

    Article  MATH  Google Scholar

  19. 19.

    Baleanu, D., Jajarmi, A., Mohammadi, H., Rezapour, S.: A new study on the mathematical modeling of human liver with Caputo–Fabrizio fractional derivative. Chaos Solitons Fractals 134, 109705 (2020). https://doi.org/10.1016/j.chaos.2020.109705

    MathSciNet  Article  Google Scholar

  20. 20.

    Baleanu, D., Mohammadi, H., Rezapour, S.: Analysis of the model of HIV-1 infection of \(cd4^{+}\) T-cell with a new approach of fractional derivative. Adv. Differ. Equ. 2020, 71 (2020). https://doi.org/10.1186/s13662-020-02544-w

    MathSciNet  Article  Google Scholar

  21. 21.

    Baleanu, D., Mousalou, A., Rezapour, S.: A new method for investigating approximate solutions of some fractional integro-differential equations involving the Caputo–Fabrizio derivative. Adv. Differ. Equ. 2017, 51 (2017). https://doi.org/10.1186/s13662-017-1088-3

    MathSciNet  Article  MATH  Google Scholar

  22. 22.

    Baleanu, D., Mousalou, A., Rezapour, S.: The extended fractional Caputo–Fabrizio derivative of order \(0 \leq\sigma<1\) on c r [0,1] and the existence of solutions for two higher-order series-type differential equations. Adv. Differ. Equ. 2018, 255 (2018). https://doi.org/10.1186/s13662-018-1696-6

    Article  MATH  Google Scholar

  23. 23.

    Baleanu, D., Mousalou, A., Rezapour, S.: On the existence of solutions for some infinite coefficient-symmetric Caputo–Fabrizio fractional integro-differential equations. Bound. Value Probl. 2017, 145 (2017). https://doi.org/10.1186/s13661-017-0867-9

    MathSciNet  Article  MATH  Google Scholar

  24. 24.

    Baleanu, D., Rezapour, S., Saberpour, Z.: On fractional integro-differential inclusions via the extended fractional Caputo–Fabrizio derivation. Bound. Value Probl. 2019, 79 (2019). https://doi.org/10.1186/s13661-019-1194-0

    MathSciNet  Article  Google Scholar

  25. 25.

    Agarwal, R.P., Baleanu, D., Hedayati, V., Rezapour, S.: Two fractional derivative inclusion problems via integral boundary condition. Appl. Math. Comput. 257, 205–212 (2015). https://doi.org/10.1016/j.amc.2014.10.082

    MathSciNet  Article  MATH  Google Scholar

  26. 26.

    Ahmad, B., Ntouyas, S.K., Alsedi, A.: On fractional differential inclusions with anti-periodic type integral boundary conditions. Bound. Value Probl. 2013, 82 (2013). https://doi.org/10.1186/1687-2770-2013-82

    MathSciNet  Article  Google Scholar

  27. 27.

    Aubin, J., Ceuina, A.: Differential Inclusions: Set-Valued Maps and Viability Theory. Springer, Berlin (1984). https://doi.org/10.1007/978-3-642-69512-4

    Google Scholar

  28. 28.

    Ghorbanian, R., Hedayati, V., Postolache, M., Rezapour, S.: On a fractional differential inclusion via a new integral boundary condition. J. Inequal. Appl. 2014, 319 (2014). https://doi.org/10.1186/1029-242X-2014-319

    MathSciNet  Article  MATH  Google Scholar

  29. 29.

    Kisielewicz, M.: Differential Inclusions and Optimal Control. Springer, Dordrecht (1991)

    Google Scholar

  30. 30.

    Samei, M.E., Hedayati, V., Rezapour, S.: Existence results for a fraction hybrid differential inclusion with Caputo–Hadamard type fractional derivative. Adv. Differ. Equ. 2019, 163 (2019). https://doi.org/10.1186/s13662-019-2090-8

    MathSciNet  Article  MATH  Google Scholar

  31. 31.

    Atici, F., Eloe, P.W.: Fractional q-calculus on a time scale. J. Nonlinear Math. Phys. 14(3), 341–352 (2007). https://doi.org/10.2991/jnmp.2007.14.3.4

    MathSciNet  Article  MATH  Google Scholar

  32. 32.

    Bohner, M., Peterson, A.: Dynamic Equations on Time Scales. Birkhäuser, Boston (2001)

    Google Scholar

  33. 33.

    Ntouyas, S.K., Obaid, M.: A coupled system of fractional differential equations with nonlocal integral boundary conditions. Adv. Differ. Equ. 2012, 130 (2012)

    MathSciNet  Article  Google Scholar

  34. 34.

    Samei, M.E., Khalilzadeh Ranjbar, G.: Some theorems of existence of solutions for fractional hybrid q-difference inclusion. J. Adv. Math. Stud. 12(1), 63–76 (2019)

    MathSciNet  Google Scholar

  35. 35.

    Annaby, M.H., Mansour, Z.S.: q-Fractional Calculus and Equations. Springer, Cambridge (2012). https://doi.org/10.1007/978-3-642-30898-7

    Google Scholar

  36. 36.

    Samko, S.G., Kilbas, A.A., Marichev, O.I.: Fractional Integral and Derivative, Theory and Applications. Gordon & Breach, Philadelphia (1993)

    Google Scholar

  37. 37.

    Covitz, H., Nadler, S.: Multivalued contraction mappings in generalized metric spaces. Isr. J. Math. 8, 5–11 (1970)

    Article  Google Scholar

  38. 38.

    Deimling, K.: Multi-Valued Differential Equations. de Gruyter, Berlin (1992)

    Google Scholar

  39. 39.

    Berinde, V., Pacurar, M.: The role of the Pompeiu–Hausdorff metric in fixed point theory. Creative Math. Inform. 22(2), 143–150 (2013)

    MathSciNet  MATH  Google Scholar

  40. 40.

    Lasota, A., Opial, Z.: An application of the Kakutani–Ky Fan theorem in the theory of ordinary differential equations. Bull. Acad. Pol. Sci., Sér. Sci. Math. Astron. Phys. 13, 781–786 (1965)

    MathSciNet  MATH  Google Scholar

  41. 41.

    Petrusel, A.: Fixed point and selections for multi-valued operators. Fixed Point Theory 2, 3–22 (2001)

    MathSciNet  MATH  Google Scholar

  42. 42.

    Podlubny, I.: Fractional Differential Equations. Academic Press, San Diego (1999)

    Google Scholar

Download references

Acknowledgements

The first author was supported by Bu-Ali Sina University. Also, the second author was supported by Azarbaijan Shahid Madani University. The authors are thankful to dear referees for the valuable comments which improved the final version of this work.

Availability of data and materials

Data sharing not applicable to this article as no datasets were generated or analyzed during the current study.

Funding

Not applicable.

Author information

Affiliations

Authors

Contributions

The authors declare that the study was realized in collaboration with equal responsibility. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Shahram Rezapour.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Consent for publication

Not applicable.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Samei, M.E., Rezapour, S. On a system of fractional q-differential inclusions via sum of two multi-term functions on a time scale. Bound Value Probl 2020, 135 (2020). https://doi.org/10.1186/s13661-020-01433-1

Download citation

MSC

  • 34A08
  • 34B16
  • 39A13

Keywords

  • Multi-term function
  • Sum boundary value condition
  • Caputo q-derivative
  • Riemann–Liouville q-derivative
  • Time scale
